Tomzn 5th Gen 2IN1 Adjustable Over & Under Voltage Protector TOVPD2-63-VA

Product Overview:

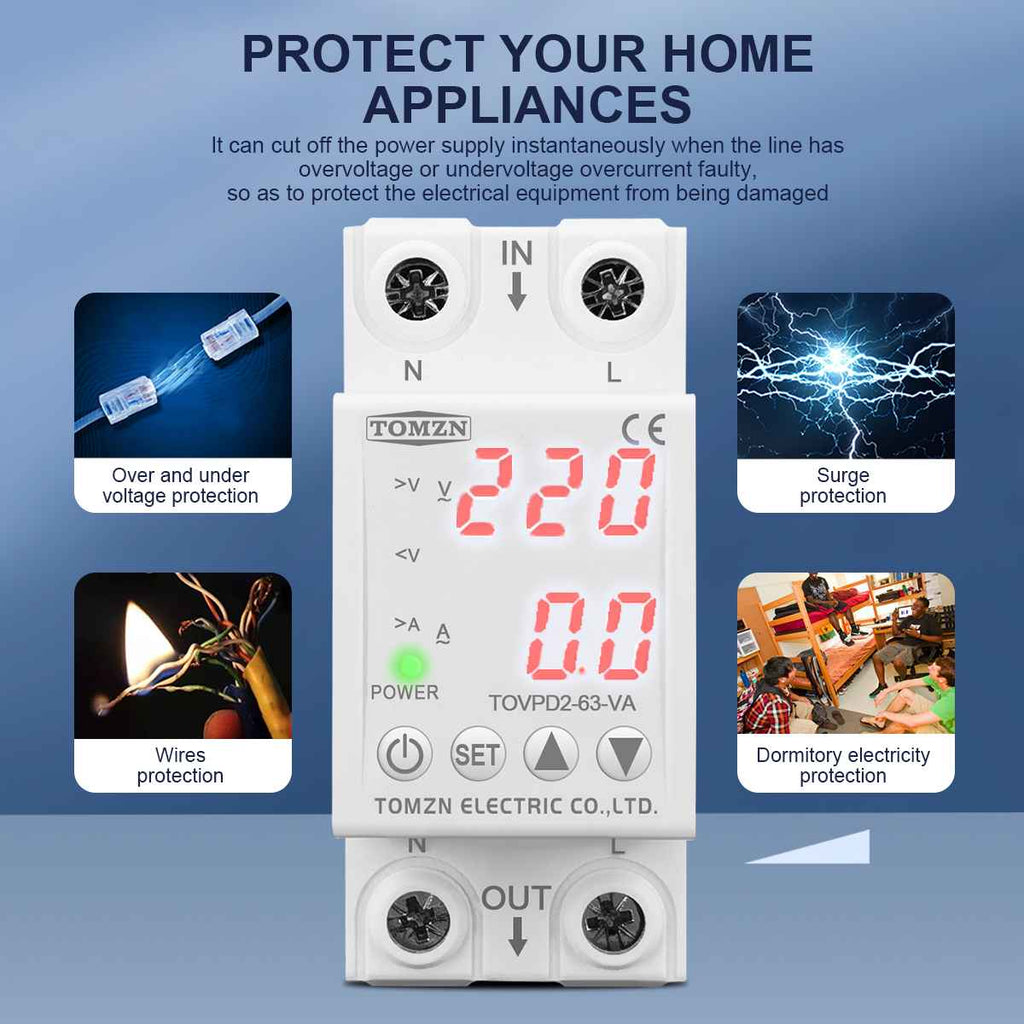

The Tomzn TOVPD2-63-VA is a sophisticated 2-in-1 over and under voltage protector designed to provide essential protection for electrical appliances by controlling voltage fluctuations. It is suitable for use in both residential and industrial settings, offering over-voltage, under-voltage, and over-current protection. The device features adjustable settings, including voltage, current, and delay time, making it a flexible and reliable solution to ensure the longevity and safety of your appliances.

Key Features:

• Over-voltage Protection:

  • Protects your equipment from excessive voltage levels (range: 230V to 300V) to prevent damage from voltage surges.

• Under-voltage Protection:

  • Prevents appliances from operating at low voltage (range: 140V to 210V), which could otherwise lead to malfunction or reduced lifespan.

• Over-current Protection:

  • Safeguards devices from excessive current (range: 1-63A), preventing circuit overloads and potential damage.

• Automatic Recovery:

  • The device will automatically reset and restore the supply once the voltage or current returns to safe levels after a fault.

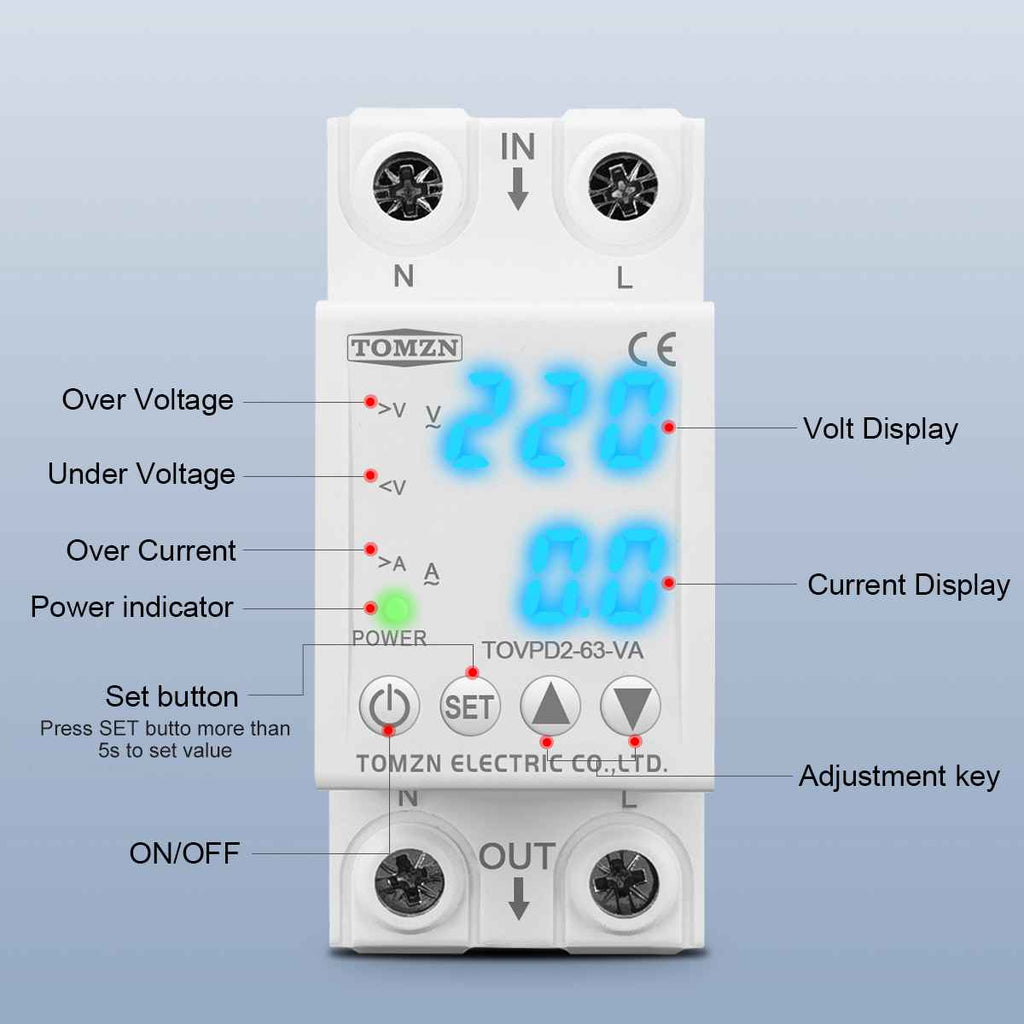

• Voltage and Current Display:

  • Displays both the current voltage and current measurements in real-time, allowing for easy monitoring of system conditions.

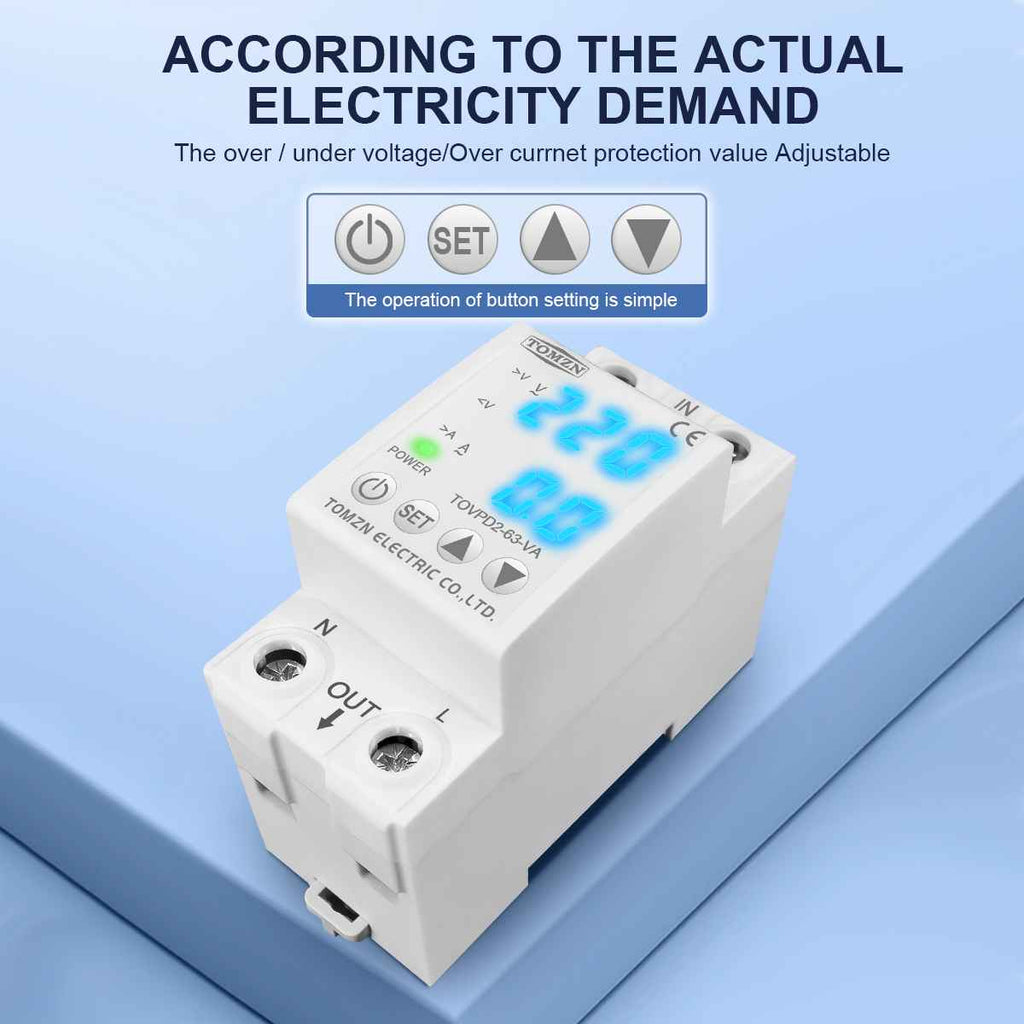

• Adjustable Settings:

  • Voltage calibration is adjustable by ±10% for precise control, ensuring tailored protection for different appliances.

• Fault Inquiry:

  • Quickly check for faults using the fault inquiry function, which can be activated by pressing the up button for more than 12 seconds.

• Restore Factory Settings:

  • Easily reset all settings to default by pressing the down button for over 12 seconds.

• Over-voltage Protection Action Time:

  • Adjustable from 0.1s to 30s, with a default of 0.5s, to determine how quickly the system responds to over-voltage situations.

• Under-voltage Recovery Delay:

  • Adjustable from 1s to 500s to fine-tune how long the system should wait before restoring power after a voltage drop.

• Long Electric Machinery Life:

  • Rated for up to 100,000 operations, ensuring long-lasting performance.

• Power Consumption:

  • Low power consumption (< 2W), making it energy-efficient.

• DIN Rail Installation:

  • Easy installation on a 35mm DIN rail for secure and organized mounting.

Product Specifications:

• Model Number: TOVPD2-63-VA
• Power Supply: 230VAC 50/60Hz (110V version available)
• Max Loading Power:
  • 1~40A adjustable (default: 40A)
  • 1~63A adjustable (default: 63A)
• Over-voltage Protection:
  • Protection value range: 230V~300V (default: 270V)
  • Recovery voltage range: 225V–295V (default: 250V)
• Under-voltage Protection:
  • Protection value range: 140V–210V (default: 170V)
  • Recovery voltage range: 145V–215V (default: 190V)
• Over-current Protection:
  • Adjustable from 1A to 63A (default: 40A)
• Action Times:
  • Over-voltage/under-voltage protection action time: 0.1s~30s (default: 0.5s)
  • Over-current action time: 0.1~30 seconds (default: 0.5s)
• Power-on Delay Time:
  • Adjustable from 1s~500s (default: 10s)
• Power Consumption: < 2W
• Electric Machinery Life: 100,000 operations
• Installation: 35mm DIN rail

Brand: Tomzn

The Tomzn TOVPD2-63-VA is a versatile and durable voltage protector designed to safeguard electrical appliances from voltage and current fluctuations. With its adjustable settings, real-time monitoring, and long service life, it provides both protection and peace of mind. Whether for home or industrial use, this protector ensures your equipment operates safely and efficiently.
