4IN1 DIN RAIL AC MONITOR 220V 100A VOLTAGE CURRENT KWH ELECTRIC ENERGY METER VOLT AMP VOLTMETER AMMETER WATTMETER
- Power Supply: AC
- Model Number: TOVA-100
- Dimensions: 65*34*78mm
- Operating Temperature: Normal
- Accuracy Class: 1% 2 words
- Display Type: Digital Only
- DIY Supplies: ELECTRICAL
- Brand Name: TOMZN
- Measure AC voltage, current, active power, energy and display with LCD.
- Rated voltage 50-300V 50/60Hz

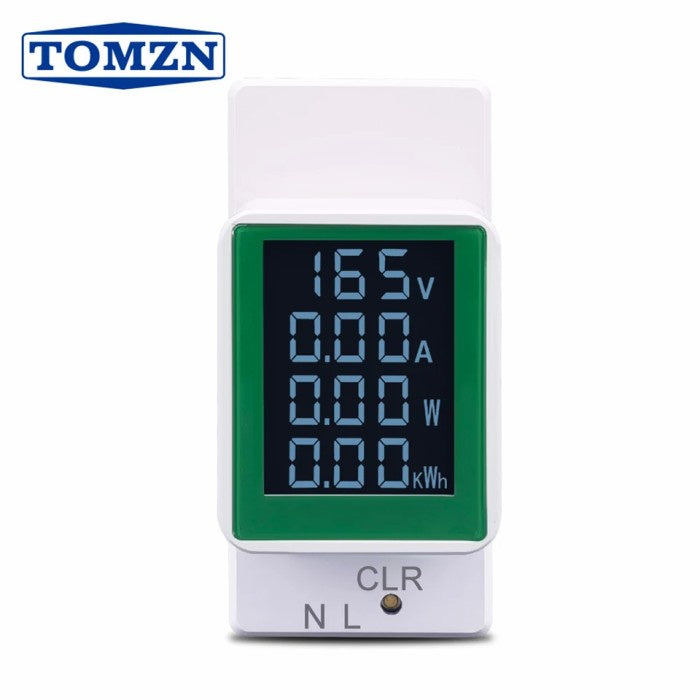

- Display interface
- BTN wide viewing angle LCD: voltage + current + active power + energy + white backlight
- Display Instruction
- Backlight control
- The backlight can be turned on or off by short press the key
- Reset energy
- Long press the key over 3 seconds until the energy data flash, then release the key, short press the key again to reset the energy, otherwise after 3 seconds it will stop flashing and the energy will not be reset. (See figure 1)
- Data Storage
- When the power off, the energy data and backlight status can be saved.
QUESTIONS & ANSWERSAsk a Question
Koi aisa submeter hai jo Wi-Fi k through mobile app pa volt and meter readings da..
Sir, Our product, Tomzn 10in1, has this functionality available.
Is it shows unit used for 30 days And how it safe unit Reding when electric city is not available
Sir , it show total number of units consumed after last reset. It keeps data save even if electricity is not available and resumes from last value when electricity becomes available.
