PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller
PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller
PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller
PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller

PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller

SKU: AR-002312
Product Type: solar inverter
Rs.159,999.00
Rs.190,000.00
Rs.159,999.00
Save Rs.30,001.00
Subtotal: Rs.159,999.00

2 Years Parts Replacement + 3 Years Service Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller

PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller

Rs.190,000.00 Rs.159,999.00
PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller
PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller
PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller
PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller

PRIMAX FOTON 8.5 6.5KW Hybrid Solar Inverter With 8500W Mppt Solar Charge Controller

Rs.190,000.00 Rs.159,999.00
Description

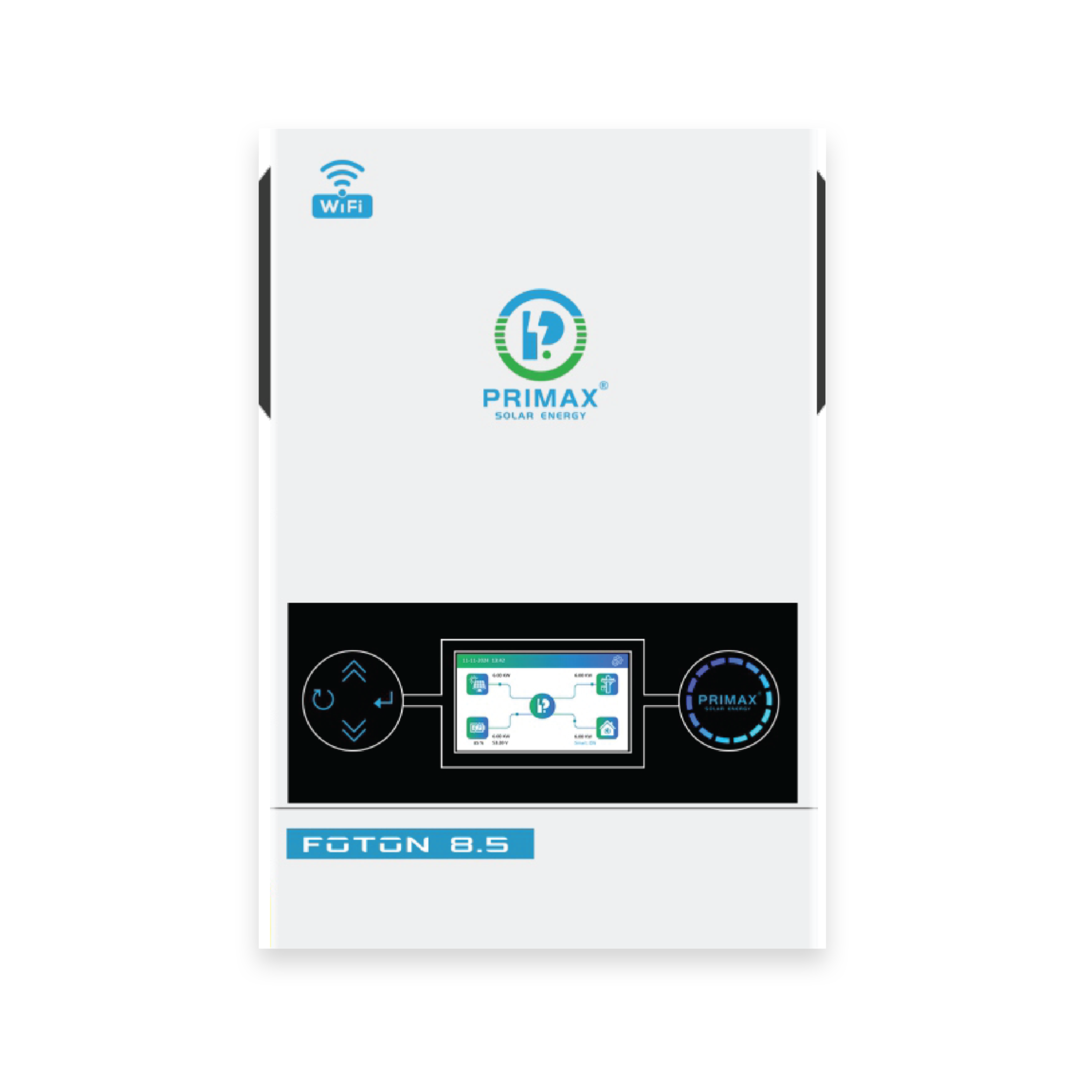

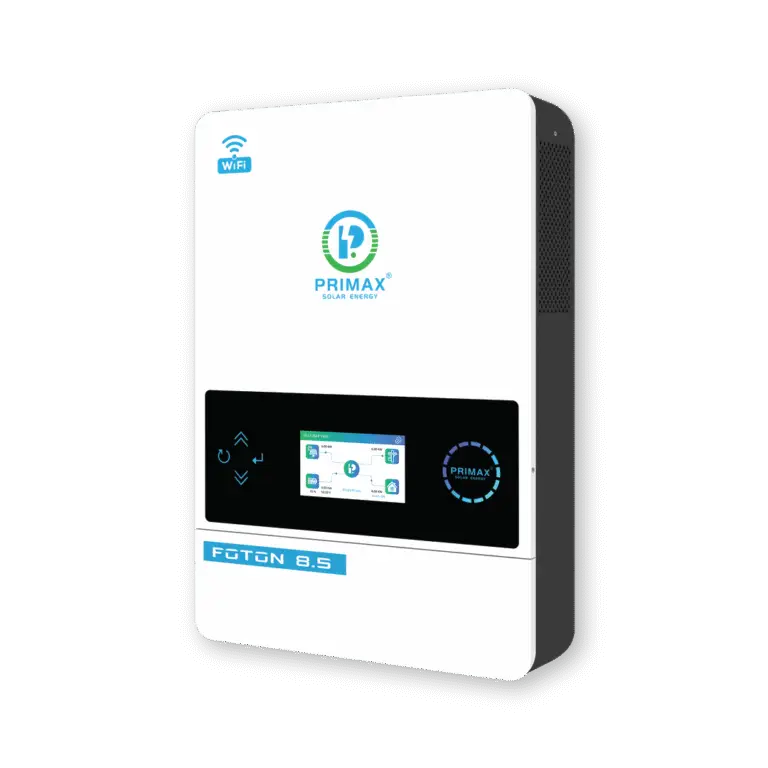

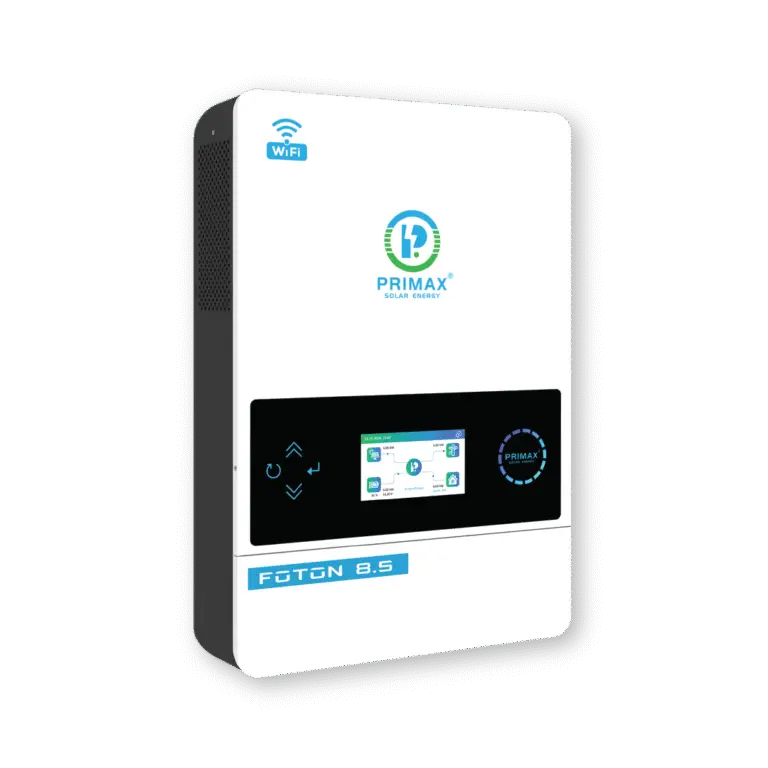

The Primax Foton 8.5 Hybrid Solar Inverter is a high-performance, versatile solution designed to optimize solar energy usage for homes and businesses. Featuring a 8500W output with pure sine wave technology, this inverter supports enhanced power under PV mode and works seamlessly with or without a battery. Equipped with a touch LCD screen for intuitive operation, Wi-Fi monitoring, and OTA firmware updates, it offers convenience and flexibility. The inverter supports dual output, BMS compatibility with lithium batteries, and an RGB atmosphere lights indicator for a modern touch. Ideal for efficient energy management with its advanced MPPT tracking and robust build, certified to IEC 62040-1 and IEC 62109-2 standards.

Features :

  • Enhanced inverter output power under PV mode
  • Touch LCD screen for intuitive parameter display and operation
  • Dual output with pure sine wave
  • 8500W high PV input, support for more panels
  • Wi-Fi monitoring and settings
  • Works with or without battery
  • BMS support for lithium battery
  • RGB atmosphere lights indicator

Product Specifications :

Download DataSheet

Parameter Specification
Model Foton 8.5
Phase Single Phase
Nominal Voltage 220/230/240VAC
Voltage Range 90-280VAC ± 3% (Normal Mode) / 170-280VAC ± 3% (UPS Mode)
Frequency Range 50Hz / 60Hz (Adaptive)
Rated Power 6500W
PV Mode 6500W
Battery Mode / AC Mode 6200W
Output Voltage (AC) 220/230/240VAC ± 5%
Dual Output Rated Power Main Load: 5200W, Second Load: 6200W
Waveform Pure Sine Wave
Transfer Time 10ms for Computer, 20ms for Home Appliances
Peak Power 12000VA
Overload (Battery Mode) 105%-110% Load: 30s; 110%-200% Load: 40ms
Peak Efficiency >94%
Output Voltage Regulation 220/230/240VAC
Feed-in Grid Voltage 175 - 265 VA
Feed-in Grid Frequency Range 49.5-51.5Hz / 59-61Hz
Rated Feed-in Grid Current 26.9A
Peak Efficiency (DC/AC) 98%
Battery
Rated Voltage 48VDC (Adjustable)
Constant Voltage Charging Voltage 56.4VDC (Adjustable)
Floating Charge Voltage 54VDC (Adjustable)
PV Charging Method Single MPPT
PV Input Power 8500W
MPPT Tracking Range 60-500VDC
Best PV Voltage Range 360-430VDC
Max PV Input Voltage 500VDC
Max PV Input Current 27A
Max AC Charging Current 120A
RS485 For External WiFi / Monitoring & Update
Communication Port Dry Contact
Operating Environment Temperature -10°C to +50°C (Non-condensing)
Storage Temperature -15°C to +60°C
Altitude ≤1000m (derating above 1000m, up to 4000m)
Noise ≤50dB
Certifications IEC 62040-1, IEC 62109-2, CE, CB



This hybrid solar inverter is perfect for those seeking a reliable, efficient, and smart energy solution.
