Knox Rack Wall 15 - 51.2V 280AH IP20 Touch LCD Display Lithium-Ion Battery – 14.33kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Knox Rack Wall 15 - 51.2V 280AH IP20 Touch LCD Display Lithium-Ion Battery – 14.33kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

SKU: AR-002416
Product Type: Battery
Rs.590,000.00
Rs.590,000.00
Rs.590,000.00
Save Rs.0.00
Subtotal: Rs.590,000.00
  • Alladin Store

5 Years Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox Rack Wall 15 - 51.2V 280AH IP20 Touch LCD Display Lithium-Ion Battery – 14.33kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Knox Rack Wall 15 - 51.2V 280AH IP20 Touch LCD Display Lithium-Ion Battery – 14.33kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Rs.590,000.00
Knox Rack Wall 15 - 51.2V 280AH IP20 Touch LCD Display Lithium-Ion Battery – 14.33kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Knox Rack Wall 15 - 51.2V 280AH IP20 Touch LCD Display Lithium-Ion Battery – 14.33kWh Wall-Mounted & Rack-Mount Design Energy Storage Solution

Rs.590,000.00
Description

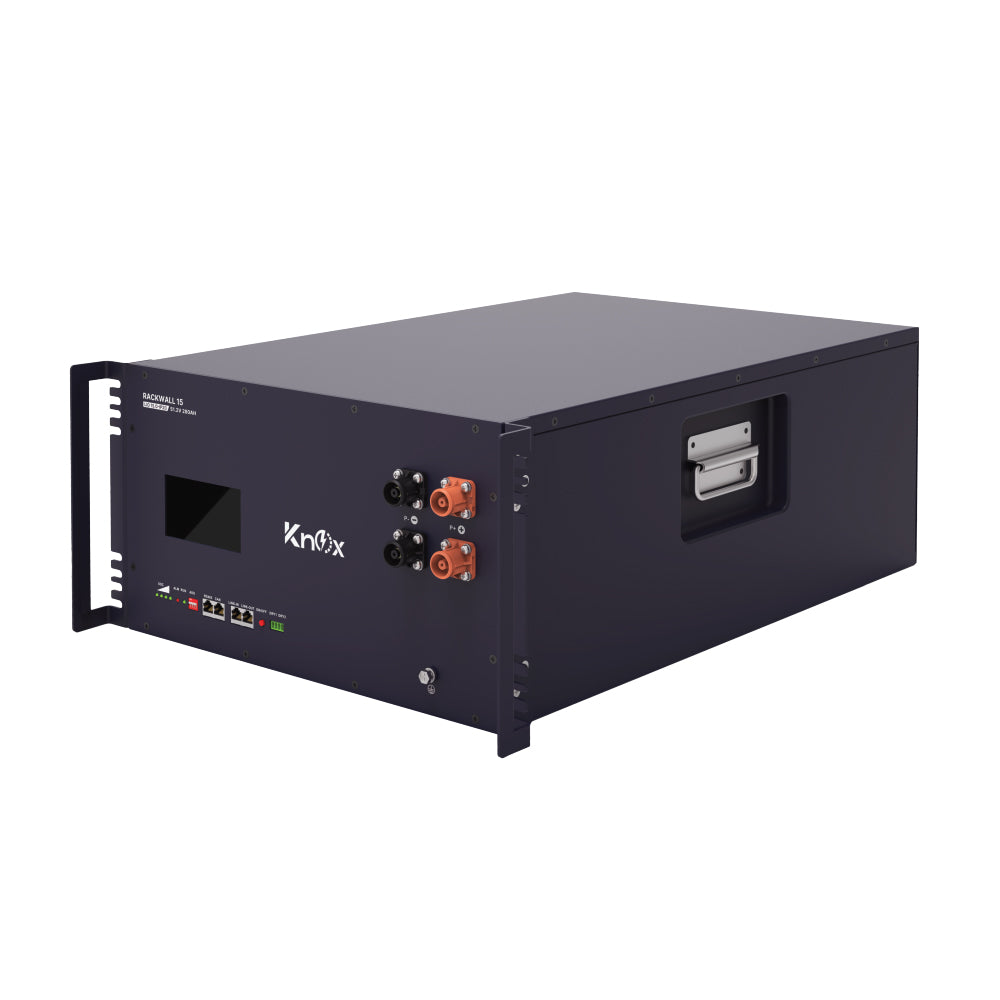

Knox Rack Wall 15.0 – 14.34kWh 51.2V 280Ah LiFePO4 Battery (Wall-Mounted & Rack-Mount Design)

The Knox Rack Wall 15.0 is a high-capacity 51.2V 280Ah lithium iron phosphate (LiFePO4) battery, delivering 14.34kWh of total energy—ideal for high-demand residential and commercial energy storage systems. Built for performance and safety, it features a >6000 cycle life, RS485/CAN communication, and a smart BMS with real-time monitoring via a 4.3” touch LCD. Though it doesn’t support series connections, up to 15 units can be connected in parallel for scalable installations. The standard 19” rack size and IP20 wall-mountable design ensure easy setup and flexibility in a variety of environments.

Key Features

  • Smart LCD + BMS: 4.3” touchscreen for SOC, system diagnostics, and alarms
  • High Energy Storage: 14.34kWh capacity with 280Ah and 150A discharge current
  • Robust Communication Options: RS-485, CAN, and Link-In/Out ports
  • Reliable LiFePO4 Chemistry: >6000 cycles, 10-year design life, safe and maintenance-free
  • Expandable & Versatile Design: Parallel up to 15 units, wall-mounted or 19” rack-mounted
Model LIO 15.0-IP20
Nominal Voltage [V] 51.2
Nominal Capacity [Ah] 280
Total Energy [Wh] 14336
Dimension (W*D*H, mm) 442*650*250
Weight [Kg] 115.2
Max. Charging Current [A] 150
Max. Discharging Current [A] 150
Pulse Discharge Current 180A @2S
Charging Voltage [V] 55.2~57.6
End of Dicharge Voltage [V] 48
Operation Humidity 0~95% RH (No condensing)
Operating Temperature Range Charge: 0 ~ +55°C;
Discharge: -20 ~ +55°C
Cycle Life >6000
Designed Calendar Life 10 Years
Communication interface For inverter : RS485, CAN
For battery to battery: LINK-IN, LINK-OUT
Protection Over voltage, Low voltage, Over current,
Over Temperature, Low Temperature, Short circuit
Parallel Support Yes, Max. 15 Sets
Series Support Not support
