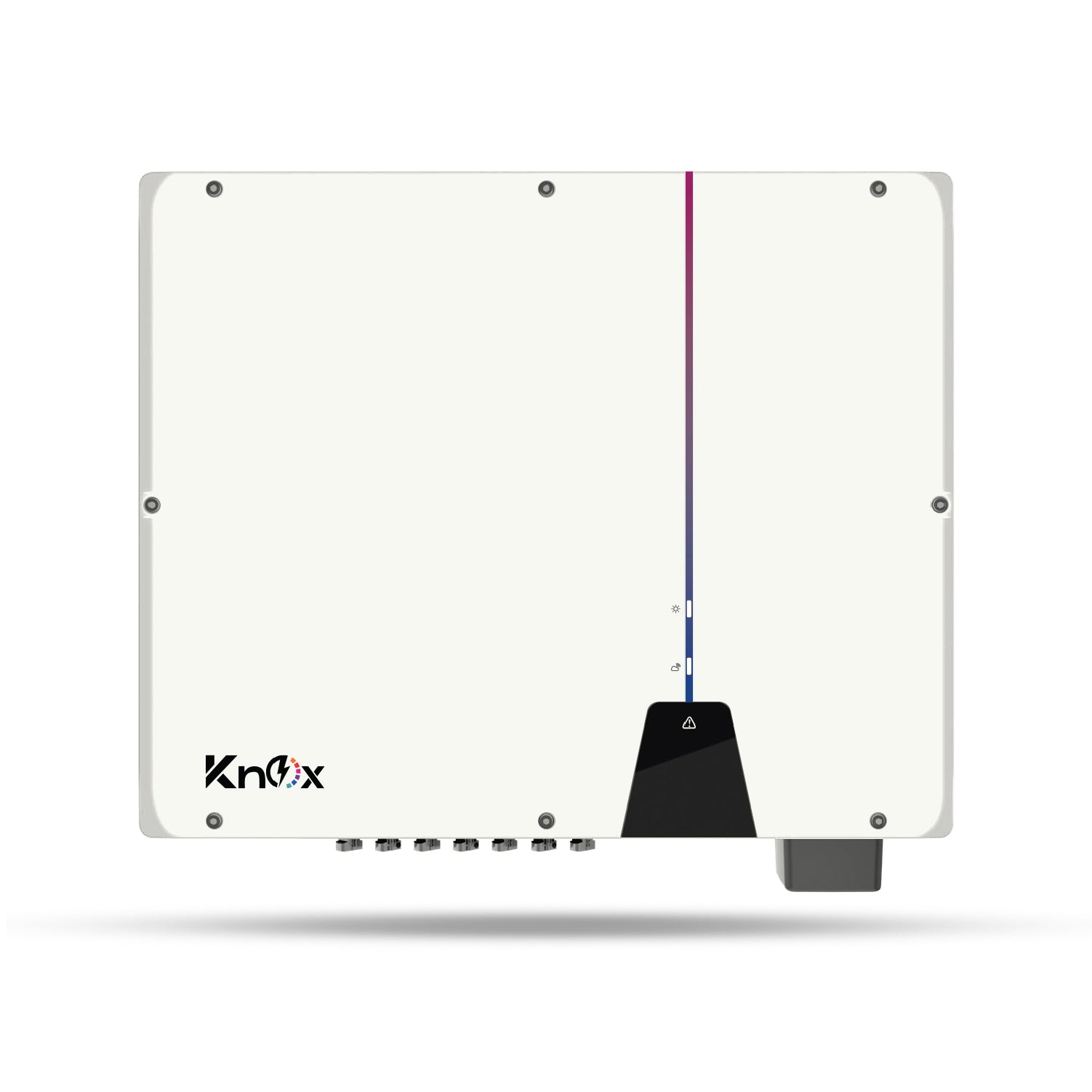

Knox G4 Pro 50k/70kpV 50KW On-Grid Solar Inverter With 70000W PV

Knox G4 Pro 50k/70kpV 50KW On-Grid Solar Inverter With 70000W PV

SKU: AR-002358
Product Type: solar inverter
Rs.182,999.00
Rs.200,000.00
Rs.182,999.00
Save Rs.17,001.00
Subtotal: Rs.182,999.00
  • Alladin Store

5 Year's Complete + 10 Year's Service Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox G4 Pro 50k/70kpV 50KW On-Grid Solar Inverter With 70000W PV

Knox G4 Pro 50k/70kpV 50KW On-Grid Solar Inverter With 70000W PV

Rs.200,000.00 Rs.182,999.00
Knox G4 Pro 50k/70kpV 50KW On-Grid Solar Inverter With 70000W PV

Knox G4 Pro 50k/70kpV 50KW On-Grid Solar Inverter With 70000W PV

Rs.200,000.00 Rs.182,999.00
Description

The Xerox G4 Pro 50K/75kpV is a powerful three-phase solar inverter built for large-scale solar systems. It provides 50,000 W of AC output power with support for up to 75,000 Wp of PV input (150% oversizing) . Featuring a wide MPP voltage range (180V–1000V) and 4 MPPTs , it maximizes energy yield, especially in shaded conditions using ShadeSol technology . Designed for versatility, it has an IP66 rating for indoor/outdoor deployment and integrates smart setup and monitoring via the Ai Solar App . It also includes comprehensive safety protections and active cooling for optimal performance.

Download DataSheet

Model G4 Pro 50K/75kpV
Installation Method Quick and easy-to-install with standard tools
Setup & Monitoring Smart setup, commissioning and monitoring via Ai Solar App
Design Compact wall mount
Standards IEC62109-1, IEC62109-2, IEC62727, IEC62683, IEC62116
PV Array Oversizing (STC) Up to 150% (75,000 Wp)
Protection Rating IP66 (suitable for indoor and outdoor use)
MPP Voltage Range 180 V – 1000 V
ShadeSol Technology Yes (improves generation under non-ideal conditions)
Max Altitude 3000 m
Rated Active Power 50,000 W
Rated Apparent Power 50,000 VA
AC Nominal Voltage 230 V / 400 V
AC Voltage Range 320 V – 520 V
AC Grid Frequency 50 Hz
AC Grid Frequency Range 45 Hz – 55 Hz
Rated Output Current 79.7 A
Input Voltage at MPP Range 180 V – 1000 V
Minimum Input Voltage 160 V
Initial Feed-in Voltage 200 V
No. of Independent MPPT Inputs 4
Strings per MPPT Input A:2; B:2; C:1; D:2
Max Efficiency 98.70%
European Efficiency 98.30%
Adjustable Power Factor Range 0.8 Leading to 0.8 Lagging
Harmonic Distortion (THD) < 3% at rated output
Ground Fault Monitoring Yes
DC Switch Yes
Grid Monitoring Yes
DC Reverse Polarity Protection Yes
AC Short Circuit Protection Yes
Residual Current Monitoring Unit All-pole-sensitive
Anti-Islanding Protection Yes
Surge Protection Yes
Protection Class (IEC 62109-1) AC: III; DC: II
Overvoltage Category II
Dimensions (W x H x D) 574 mm x 513.5 mm x 234.5 mm
Weight 30.5 kg
Operating Temperature Range Not specified
Self-consumption (at night) < 1 W
Topology Non-isolated
Cooling Concept Active cooling
Climatic Category (IEC 60721-3-4) 4K4H (non-condensing)
Mounting Type Wall-mount bracket
DC Connection Plug-in connector
AC Connection Plug-in connector
LED Indicators Status / Fault / Communication
Communication Interface RS485 / Wi-Fi / LAN / 4G
