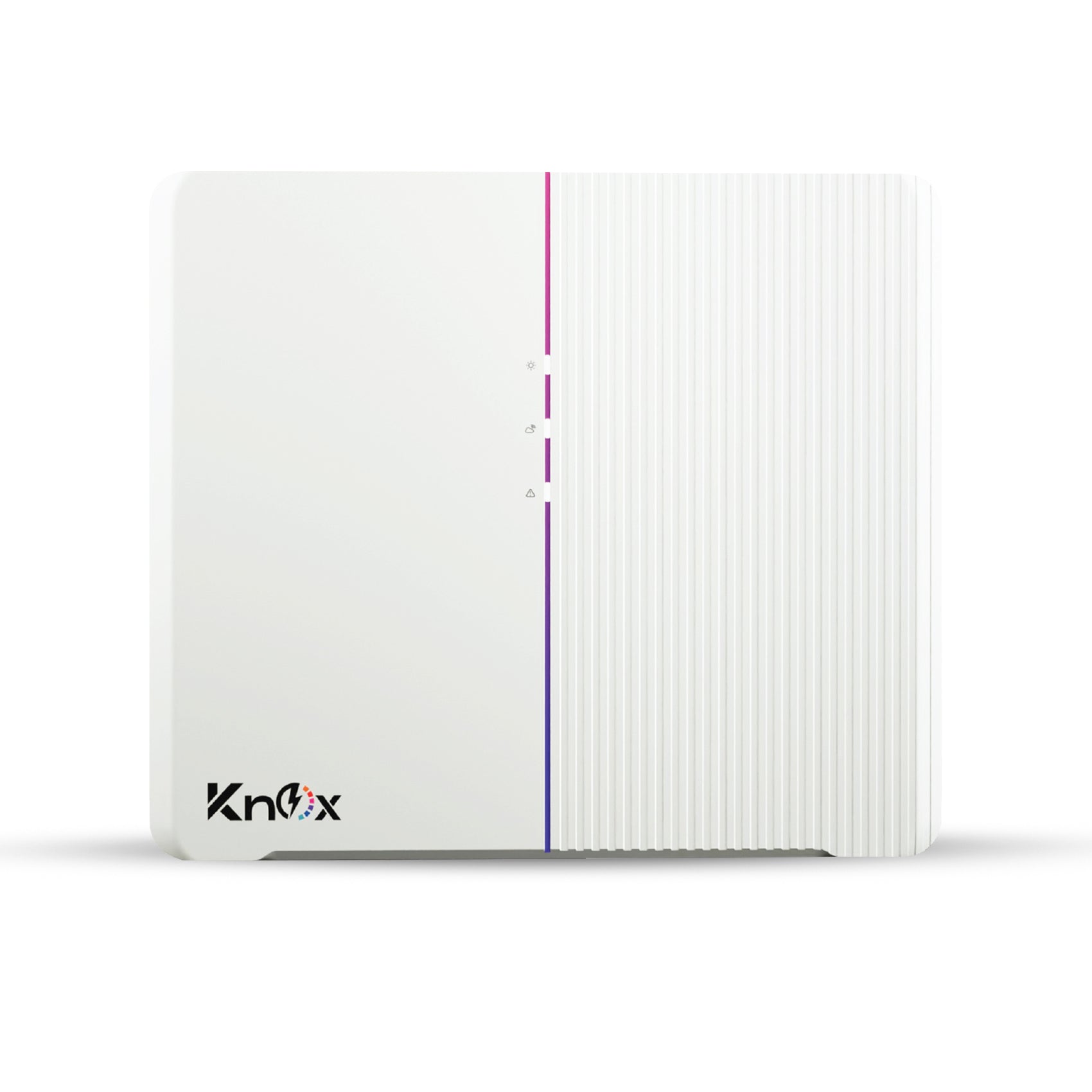

Knox G4 Pro 25.2k/38kpV 25KW On-Grid Solar Inverter With 32500W PV

Knox G4 Pro 25.2k/38kpV 25KW On-Grid Solar Inverter With 32500W PV

SKU: AR-002361
Product Type: solar inverter
Rs.280,000.00
Rs.295,000.00
Rs.280,000.00
Save Rs.15,000.00
Subtotal: Rs.280,000.00
  • Alladin Store

5 Year's Complete + 10 Year's Service Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox G4 Pro 25.2k/38kpV 25KW On-Grid Solar Inverter With 32500W PV

Knox G4 Pro 25.2k/38kpV 25KW On-Grid Solar Inverter With 32500W PV

Rs.295,000.00 Rs.280,000.00
Knox G4 Pro 25.2k/38kpV 25KW On-Grid Solar Inverter With 32500W PV

Knox G4 Pro 25.2k/38kpV 25KW On-Grid Solar Inverter With 32500W PV

Rs.295,000.00 Rs.280,000.00
Description

The Knox G4 Pro 25KW On-Grid Solar Inverter is a powerful and reliable solution for solar energy systems. It supports up to 32,500W of solar panel power and works with a maximum input voltage of 1100V. With dual MPPT trackers and a wide voltage range of 150–1000V, it ensures efficient energy conversion. It delivers 25,000W of rated output power and can handle up to 27,500VA. The inverter supports 230V (3/N/PE) grid connection, works at 50/60Hz, and has a power factor range of 0.8 ind to 0.8 cap. Built with IP66 protection and designed to operate from -25°C to +60°C, it's perfect for both indoor and outdoor use.

Download DataSheet

Max. PV modules power (W)
32,500
Max. input voltage (V)
1100
Initial feed-in voltage (V)
180
Min. input voltage (V)
125
Rated input voltage (V)
560
MPPT Voltage Range (V)
150–1000
Full load DC voltage range (V)
400–850
Max. DC input current (A)
40 / 32
Isc PV, Absolute current (A)
60 / 48
Number of MPPT Trackers
2
Strings per MPPT Tracker
2 / 2
Max. Output apparent power (VA)
27,500
Rated Output power (W)
25,000
Max. AC Output Current (A)
39.8
Nominal Grid Voltage (V)
230, 3/N/PE
Nominal Frequency (Hz)
50/60
Power Factor
0.8 ind ~ 0.80 cap
Topology
Non-isolated
Operating temperature range (°C)
-25 to +60
Degree of protection
IP66
