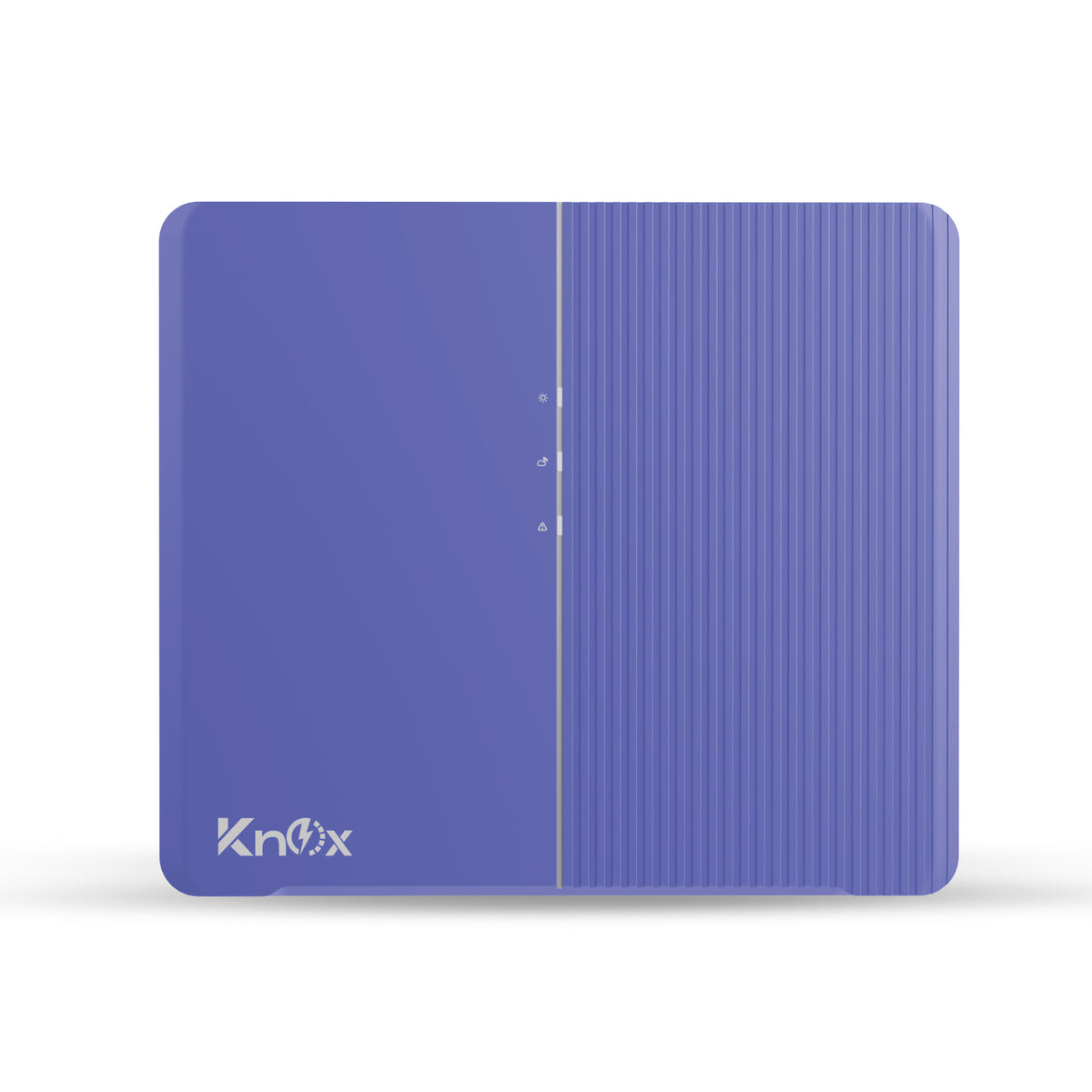

Knox G4 10k/15kpV 10KW On-Grid Solar Inverter With 15000W PV

Knox G4 10k/15kpV 10KW On-Grid Solar Inverter With 15000W PV

SKU: AR-002362
Product Type: solar inverter
Rs.182,999.00
Rs.200,000.00
Rs.182,999.00
Save Rs.17,001.00
Subtotal: Rs.182,999.00
  • Alladin Store

5 Year's Complete + 10 Year's Service Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Knox G4 10k/15kpV 10KW On-Grid Solar Inverter With 15000W PV

Knox G4 10k/15kpV 10KW On-Grid Solar Inverter With 15000W PV

Rs.200,000.00 Rs.182,999.00
Knox G4 10k/15kpV 10KW On-Grid Solar Inverter With 15000W PV

Knox G4 10k/15kpV 10KW On-Grid Solar Inverter With 15000W PV

Rs.200,000.00 Rs.182,999.00
Description

Knox XEROX Series G4 10K/15kpV Three-Phase Solar Inverter – High Efficiency & Reliability

Upgrade your solar energy system with the Knox XEROX Series G4 10K/15kpV Three-Phase Solar Inverter , a high-performance and durable solution designed for residential and commercial applications. With a rated output power of 10,000W and a max PV modules power of 15,000W, this inverter ensures maximum energy efficiency and productivity.

Download DataSheet

Model
G410K/15kpV
Type
Three Phase Inverter
Max. PV Modules Power (W)
15,000 W
Max. Input Voltage (V)
1100 V
Initial Feed-in Voltage (V)
180 V
Min. Input Voltage (V)
125 V
Rated Input Voltage (V)
630 V
MPPT Voltage Range (V)
150 - 1000 V
Full Load DC Voltage Range (V)
400 - 850 V
Max. DC Input Current (A)
20 / 16 A
Isc PV Absolute Current (A)
30 / 25 A
Number of MPPT Trackers
2
Strings per MPPT Tracker
1 / 1
Max. Output Apparent Power (VA)
11,000 VA
Rated Output Power (W)
10,000 W
Max. AC Output Current (A)
16.0 A
Nominal Grid Voltage (V)
230, 3/N/PE
Nominal Frequency (Hz)
50 / 60 Hz
Power Factor
0.8 ind ~ 0.80 cap
Topology
Non-isolated
Operating Temperature Range
-25°C to +60°C
Degree of Protection
IP66
Design
Compact wall mount for outdoor use
