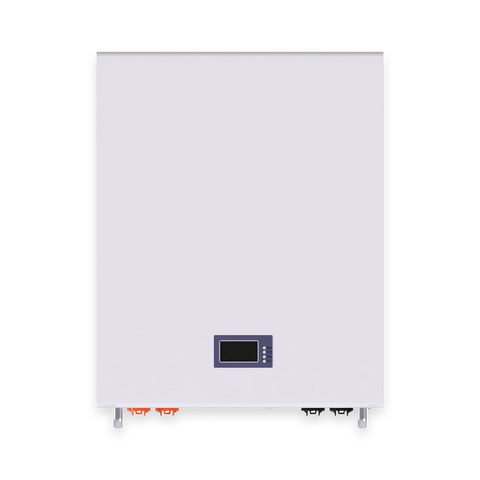

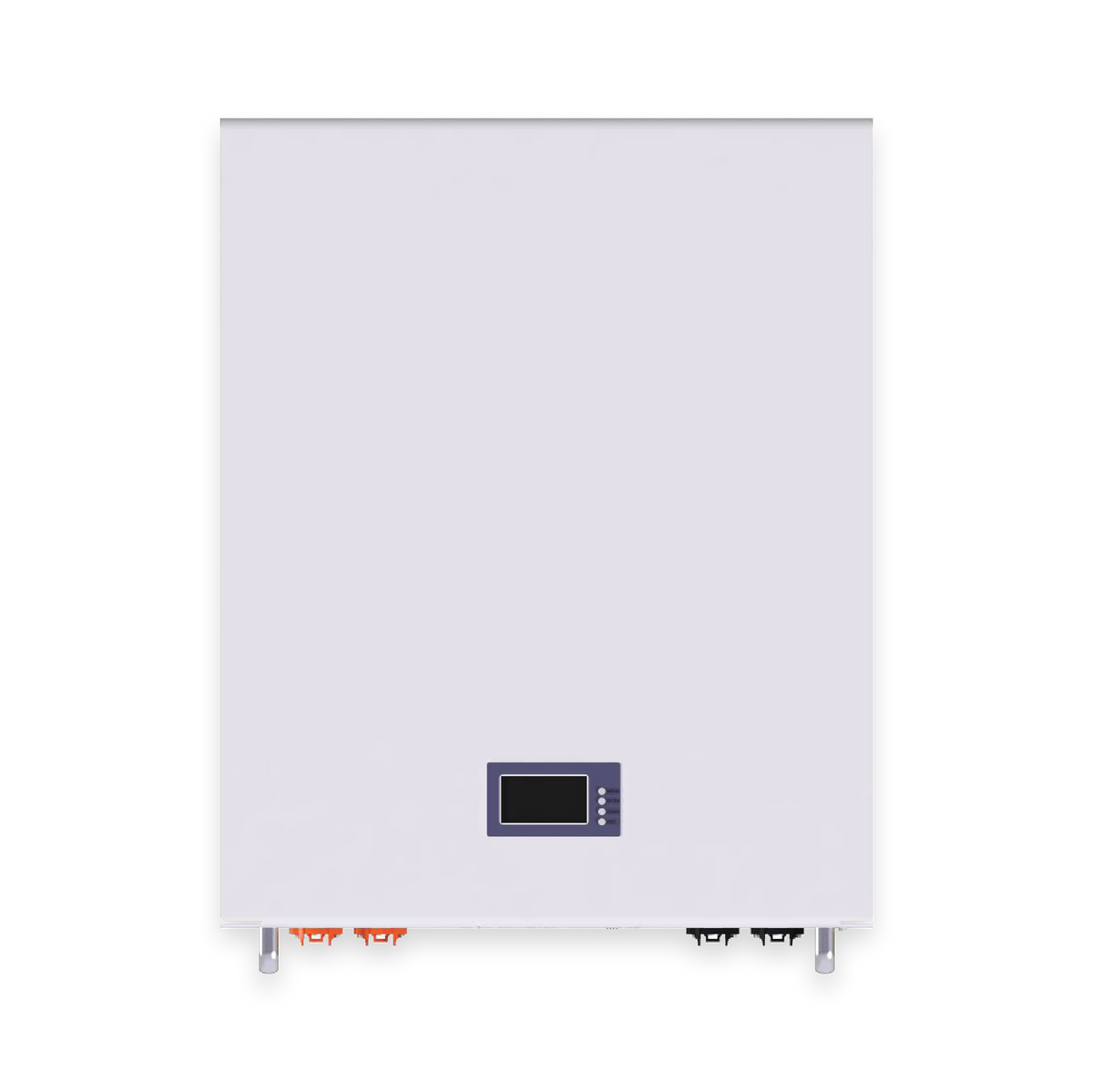

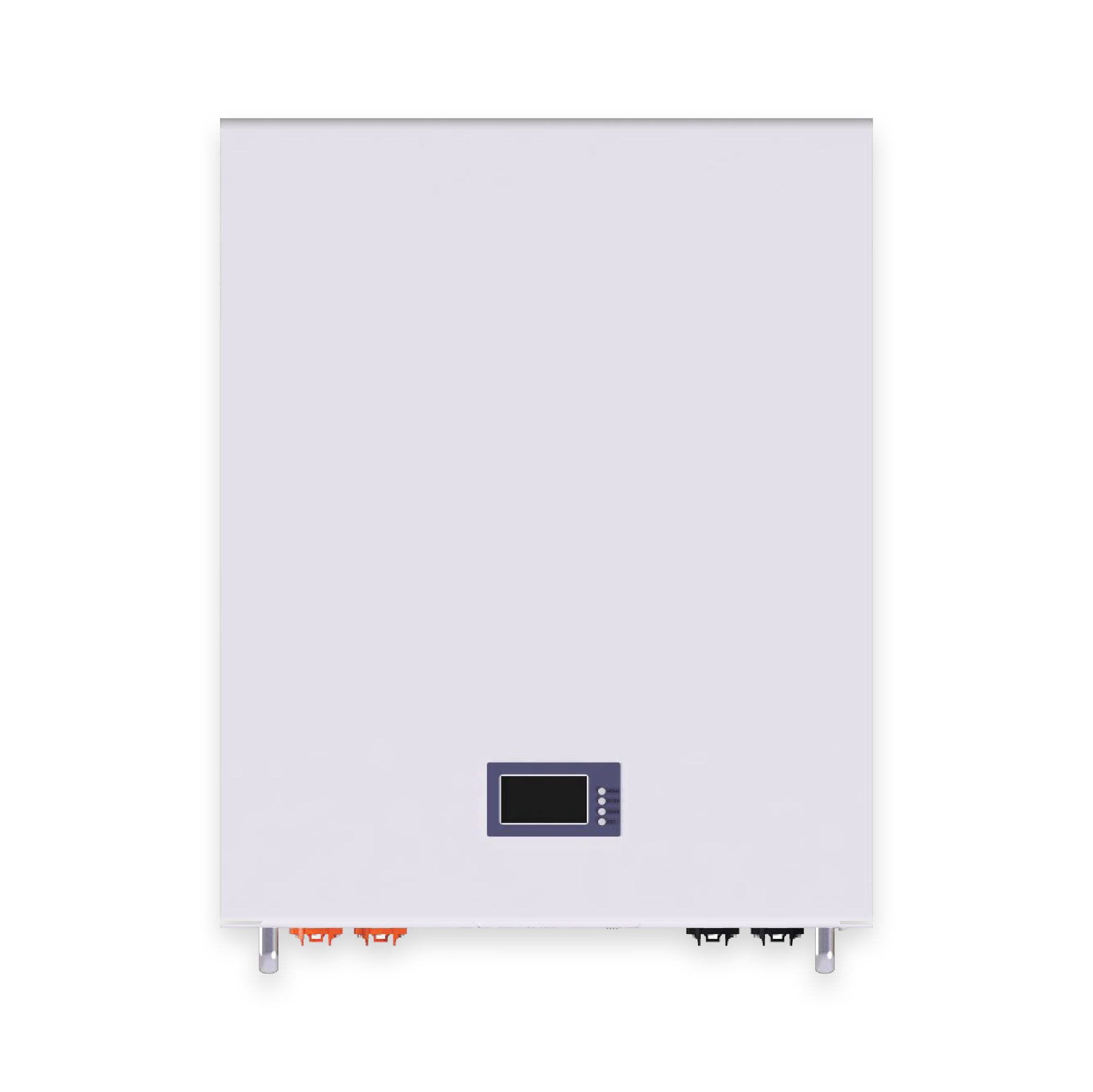

KEXIN UPPF16100A LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh - IP20
KEXIN UPPF16100A LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh - IP20
KEXIN UPPF16100A LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh - IP20

KEXIN UPPF16100A LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh - IP20

SKU: AR-002311
Product Type: Battery
Rs.280,000.00
Rs.310,000.00
Rs.280,000.00
Save Rs.30,000.00
Subtotal: Rs.280,000.00
  • Alladin Store

5 Years Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

KEXIN UPPF16100A LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh - IP20

KEXIN UPPF16100A LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh - IP20

Rs.310,000.00 Rs.280,000.00
KEXIN UPPF16100A LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh - IP20
KEXIN UPPF16100A LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh - IP20
KEXIN UPPF16100A LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh - IP20

KEXIN UPPF16100A LiFePO₄ Lithium Battery 51.2V 100Ah – 5.12kWh - IP20

Rs.310,000.00 Rs.280,000.00
Description

The KEXIN UPPF16100A is a slim, wall-mounted LiFePO₄ battery designed for home and commercial energy storage. It delivers 5.12kWh of reliable power and includes a built-in Battery Management System (BMS) for protection against overcharging, overheating, and more.

You can connect up to 15 units in parallel for larger systems. It works with most popular inverters and features an LED strip for real-time status updates. Ideal for solar setups and backup power.

Technical Specifications

Parameter Specification
Model UPPF16100A
Rated Voltage 51.2V
Voltage Range 40V – 58.4V
Rated Capacity 100Ah
Energy Capacity 5.12kWh
Configuration 1P16S
Charging Voltage 56.8V
Charging Current Continuous: 50A, Max: 80A
Discharge Current Max Continuous: 100A
Factory Voltage 51.2V – 52.8V
Self-Discharge Rate ≤2%/month
Balancing Method Passive Equalization
Parallel Support Up to 15 Units (Auto Coding)
Charging Temp. Range 0℃ to +55℃
Discharging Temp. Range -20℃ to +60℃
Ingress Protection IP20
Communication Ports RS232 / RS485 / CAN
Dimensions (L×W×H) 670 × 540 × 90 ±1 mm
Weight 48 ±2 kg
Cycle Life >6000 cycles @ 90% DOD, 25℃, 0.5C
Certifications UN38.3, CE, IEC62619, ROHS
