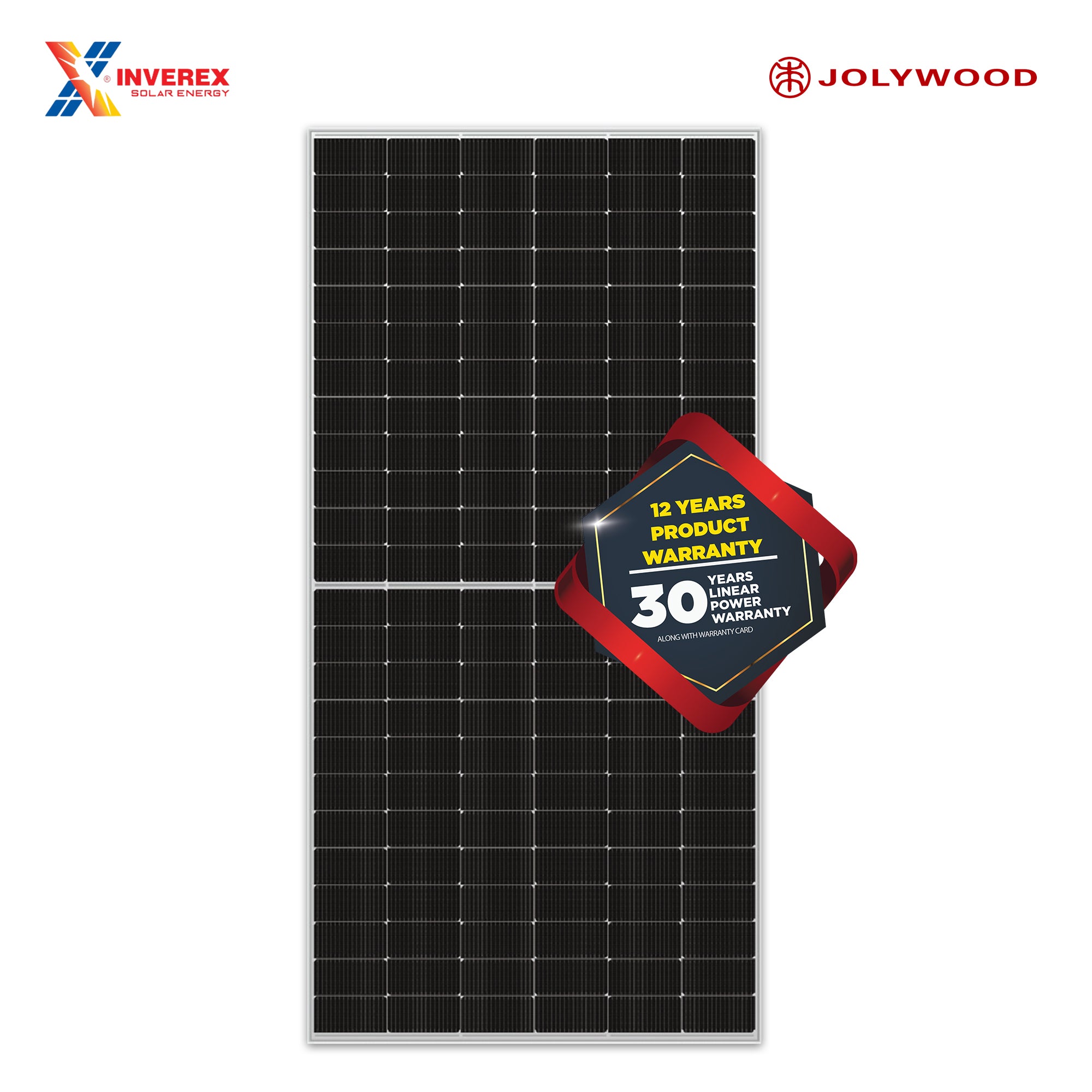

Inverex Jolywood JW-HD144N-R0 595W N-Type Bifacial Dual-Glass Windproof Solar Panel (Steel Frame)
SKU:
AR-002294
Product Type:
Solar Panels
- Rs.19,640.00
- Rs.19,640.00
- Unit price
- per
Couldn't load pickup availability
12 Years Brand's Replacement Warranty
Estimated Shipping Time: 48 to 72 Hours
You Have to Pay Partial Payment in Advance for Order Confirmation
Heavy weight parcels will be dispatch through Cargo Service
Customer will pay Cargo charges on delivery.
The Jolywood JW-HD144N-R0 Pro Series is a premium 575-600W N-Type bifacial solar panel engineered for high efficiency, durability, and long-term reliability. Featuring the latest TOPCon technology, dual-glass construction, and a backbone steel frame, it ensures superior power generation, even in challenging environments.
Download Datasheet
Key Features:
- Maximum Power Output: 595W
- Module Efficiency: Up to 23.2%
- Low Degradation: 1% 1st-year, 0.4% annually
- 30 Years Linear Performance Warranty
- Self-cleaning Front Glass with Anti-dust Frame Design

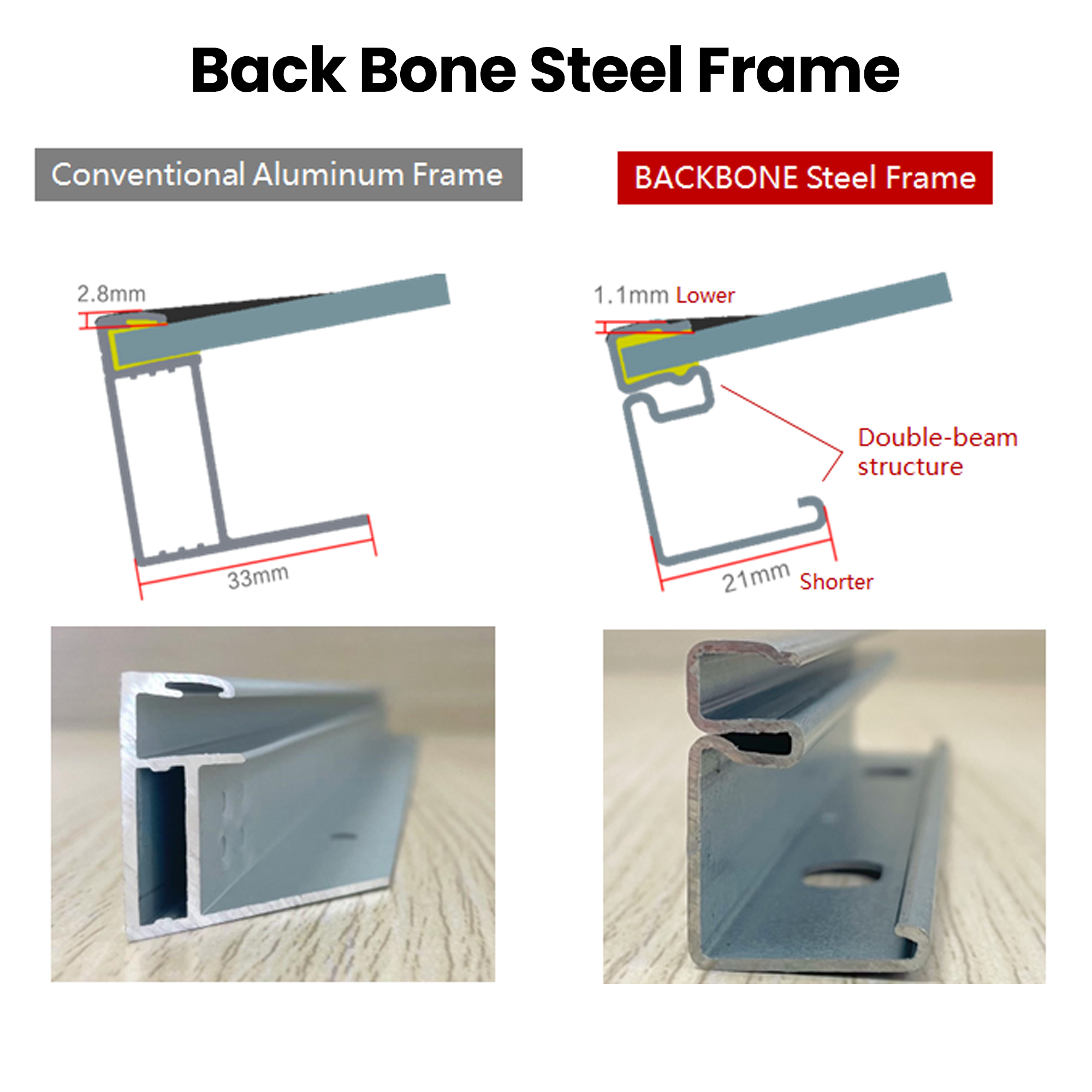

- High Reliability Backbone Steel Frame
- Resistance to Salt Fog, Ammonia, Wind, and Snow

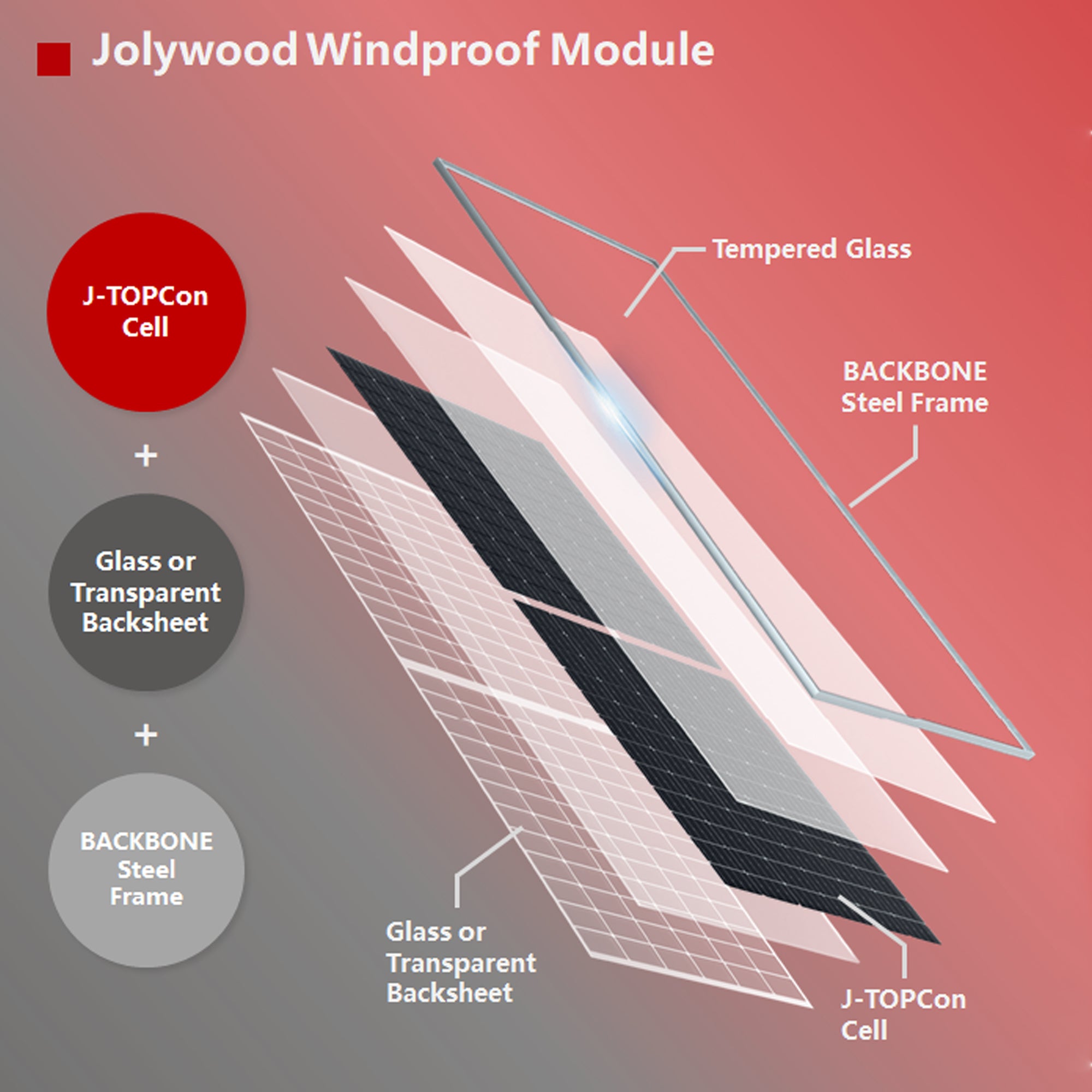

- Dual-Glass Construction for Enhanced Durability
- TOPCon Technology with Zero Leakage Current
- Certified: IEC 61215(2021), IEC 61730(2023), ISO 9001, ISO 14001, ISO 45001
Technical Data Table:
| Parameter | Value |
|---|---|
| Model | JW-HD144N-R0 595W |
| Cell Type | N-Type TOPCon Mono |
| Power Output Range (Pmax) | 595W |
| Maximum Module Efficiency | Up to 23.2% |
| Dimensions (L×W×H) | 2278 × 1134 × 29 mm |
| Weight | 33.4 kg |
| Number of Cells | 144 cells |
| Front/Rear Glass | 2.0 mm Heat-strengthened glass |
| Frame Material | Aluminum-Magnesium-Zinc Coated Steel |
| Junction Box | IP68 Rated, 3 Diodes |
| Cable Specifications | 4.0mm², +300mm/-180mm (customizable) |
| Operating Temperature Range | -40°C to +85°C |
| Maximum System Voltage | 1500V (IEC) |
| Maximum Series Fuse Rating | 30A |
| Bifaciality | 80% ±5% |
| Temperature Coefficient (Pmax) | -0.280%/°C |
| Temperature Coefficient (Voc) | -0.250%/°C |
| Temperature Coefficient (Isc) | +0.045%/°C |
| Front Static Load | 5400Pa |
| Rear Static Load | 2400Pa |
