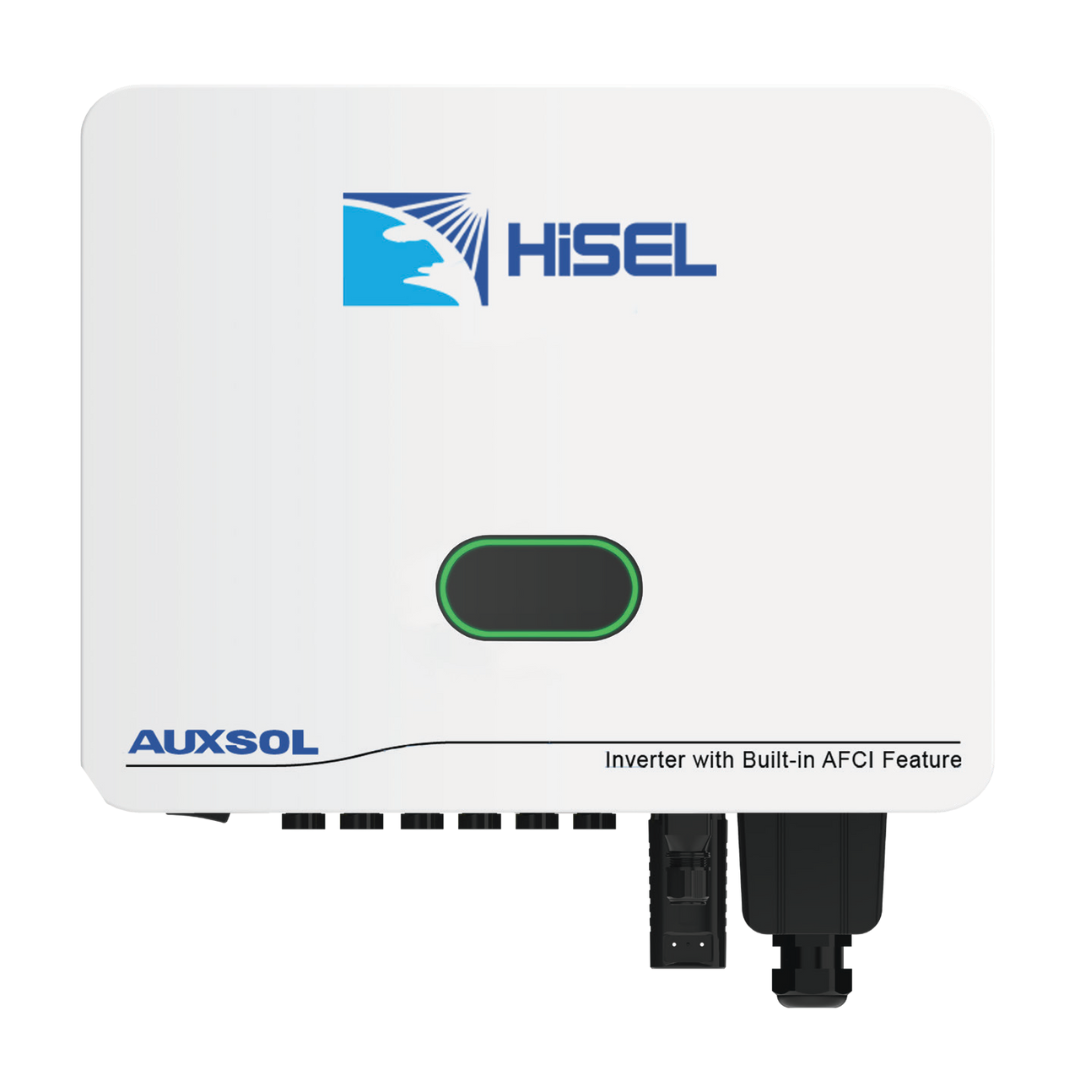

The ASN-30TL-G2 is a high-performance 30KW three-phase on-grid solar inverter, designed to optimize power conversion for commercial and industrial solar power systems. With its advanced MPPT technology, robust safety features, and smart monitoring capabilities, this inverter ensures efficient energy utilization, long-term durability, and seamless grid integration.
High Power Output: 30KW rated, 33KW max output for large-scale solar applications.
Advanced MPPT Technology: Three MPPT trackers with a 150V-1000V range for optimal energy harvesting.
Exceptional Efficiency: 98.6% max efficiency, 98.2% EU efficiency, and 99.8% MPPT efficiency.
Comprehensive Protection: DC switch, reverse polarity, short circuit, overcurrent, surge (Type II), AFCI, and anti-islanding.
Rugged & Reliable: IP66-rated, smart fan cooling, and supports 4000m altitude.
Smart Connectivity: LED, Bluetooth, mobile app, RS485, optional Wi-Fi, 4G & LAN.
Optional Enhancements: PID recovery to prevent panel degradation and 24-hour load monitoring.
Category | Specification |
---|---|
Input DC | |
Max. Input Power | 45KW |
Max. Input Voltage | 1100V |
Rated Voltage | 620V |
Start-up Voltage | 160V |
MPPT Voltage Range | 150V - 1000V |
Max. Input Current | 40A/32A/32A |
Max. Short Circuit Current | 50A/40A/40A |
MPPT Number | 3 |
Max. Input Strings Number | 2+2+2 |
Output AC | |
Rated Output Power | 30KW |
Max. Apparent Output Power | 33KVA |
Max. Output Power | 33KW |
Rated Grid Voltage | 220V/380V, 230V/400V, 3/N/PE |
Grid Voltage Range | 170V-280V (Phase voltage), 320-480V (Line voltage) |
Rated Grid Frequency | 50Hz/60Hz |
Rated Grid Output Current | 43.3A |
Max. Output Current | 47.6A |
Power Factor | 1 (0.8 leading - 0.8 lagging) |
THDi | <3% |
Efficiency | |
Max. Efficiency | 98.60% |
EU Efficiency | 98.20% |
MPPT Efficiency | 99.80% |
Protection | |
Integrated DC Switch | Yes |
DC Reverse-Polarity Protection | Yes |
Anti-Islanding Protection | Yes |
Short-Circuit Protection | Yes |
Output Overcurrent Protection | Yes |
DC Surge Protection | Type II |
AC Surge Protection | Type II |
Insulation Impedance Detection | Yes |
Ground Fault Monitoring | Yes |
Residual Leakage Current Detection | Yes |
Temperature Protection | Yes |
AC Overvoltage Protection | Yes |
DC Overcurrent Protection | Yes |
Integrated AFCI (DC Arc-Fault Circuit Protection) | Yes |
Anti-Backflow | Yes |
Strings Monitoring | Yes |
Integrated PID Recovery | Optional |
24-Hour Load Monitoring | Optional |
General Data | |
Dimensions (WHD) | 524419198mm |
Weight | 24.5Kg |
Self-Consumption (Night) | <1W |
Operating Temperature Range | -30°C to +60°C |
Cooling Concept | Smart Fan Cooling |
Max. Operation Altitude | 4000m (Derating above 3000m) |
Relative Humidity | 0-100% |
Ingress Protection | IP66 |
Topology Structure | Transformer less |
Grid Connection Standard | NB/T32004, EN 50549-1, IEC 61727, IEC 62116, IEC 61683, VDE 4105 |
Safety/EMC Standard | EN/IEC 62109-1/2, EN IEC 61000-6-1/2/3/4, EN IEC 61000-3-11, EN IEC 61000-3-12 |
Type of DC Terminal | MC4 Connector |
Type of AC Terminal | OT Terminal |
Display & Communication | |
Display | LED + Bluetooth + APP |
Communication Interface | RS485, Optional: Wi-Fi, 4G, LAN |
The ASN-30TL-G2 is an ideal choice for large-scale commercial and industrial solar installations, offering high efficiency, smart monitoring, and comprehensive protection for a reliable and cost-effective energy solution.
