ET-826 2-in-1 Digital Multimeter & Oscilloscope | Waveform Display | High Sampling Rate | Professional Testing Tool
ET-826 2-in-1 Digital Multimeter & Oscilloscope | Waveform Display | High Sampling Rate | Professional Testing Tool

ET-826 2-in-1 Digital Multimeter & Oscilloscope | Waveform Display | High Sampling Rate | Professional Testing Tool

SKU: AR-002848
Product Type: Multimeter
Rs.10,000.00
Rs.10,000.00
Rs.10,000.00
Save Rs.0.00
Subtotal: Rs.10,000.00

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

ET-826 2-in-1 Digital Multimeter & Oscilloscope | Waveform Display | High Sampling Rate | Professional Testing Tool

ET-826 2-in-1 Digital Multimeter & Oscilloscope | Waveform Display | High Sampling Rate | Professional Testing Tool

Rs.10,000.00
ET-826 2-in-1 Digital Multimeter & Oscilloscope | Waveform Display | High Sampling Rate | Professional Testing Tool
ET-826 2-in-1 Digital Multimeter & Oscilloscope | Waveform Display | High Sampling Rate | Professional Testing Tool

ET-826 2-in-1 Digital Multimeter & Oscilloscope | Waveform Display | High Sampling Rate | Professional Testing Tool

Rs.10,000.00
Description

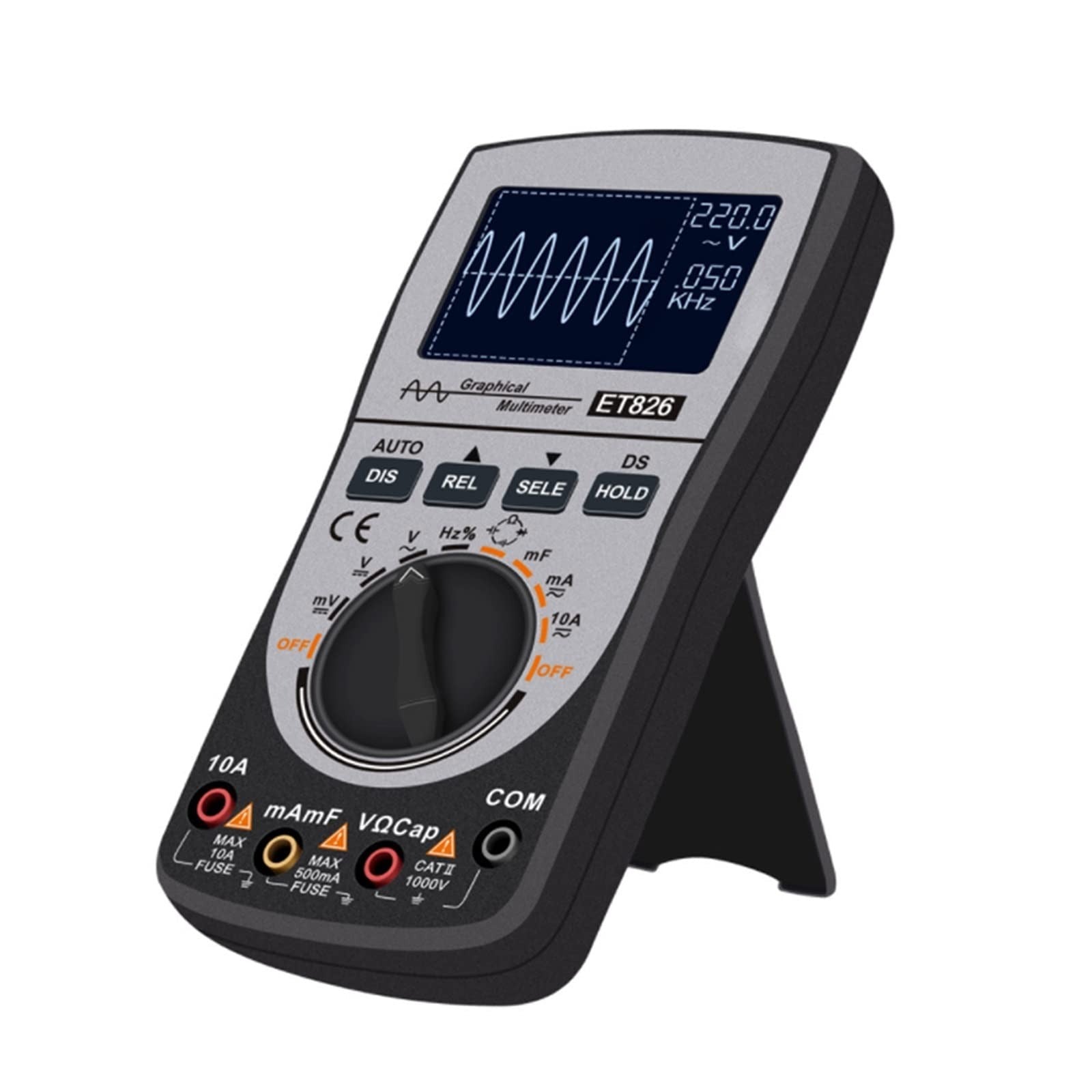

The ET-826 2-in-1 Multimeter and Oscilloscope is a powerful and versatile testing instrument designed for electricians, engineers, technicians, and electronics enthusiasts. Combining the accuracy of a digital multimeter with the functionality of an oscilloscope, it allows you to measure electrical parameters and view real-time waveforms on a clear screen display.

Key Features

2-in-1 Multimeter & Oscilloscope in one compact device

Waveform Display for real-time signal analysis

High Sampling Rate: 200ksps for accurate measurements

Analog Broadband Support up to 20KHz

Wide Voltage Range: DC up to 1000V, AC up to 750V

Current Measurement: AC/DC up to 10A

Resistance Measurement: 400Ω – 40MΩ

Capacitance Range: 40nF – 200µF

Frequency Measurement: 10Hz – 10MHz

Diode & Continuity Test with audible alert

Clear Screen Display for easy reading

Built-in Fuse Protection (500mA & 10A)

Function Range Accuracy
DC Voltage 40.0mV ~ 1000V ±(0.75% rdg + 10 dgt)
AC Voltage 40.0mV ~ 750V ±(1.0% rdg + 10 dgt)
DC Current 40mA ~ 10.00A ±(1.2% rdg + 10 dgt)
AC Current 40mA ~ 10.00A ±(1.5% rdg + 10 dgt)
Resistance 400.0Ω ~ 40.00MΩ ±(1.0% rdg + 50 dgt)
Capacitance 40.00nF ~ 200.0µF ±(2.0% rdg + 10 dgt)
Frequency 10.00Hz ~ 10.00MHz ±(1.0% rdg + 10 dgt)
Diode Test 1.5mA, Open circuit voltage 1.5V (Max test current 1.5mA) N/A
Continuity Test Judgment Resistance: About 50Ω N/A
