Dunext DN1H-L KTL-6 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9000W

Dunext DN1H-L KTL-6 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9000W

SKU: AR-002425
Product Type: solar inverter
Rs.215,000.00
Rs.289,999.00
Rs.215,000.00
Save Rs.74,999.00
Subtotal: Rs.215,000.00
  • Alladin Store

5 Years Brands Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Dunext DN1H-L KTL-6 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9000W

Dunext DN1H-L KTL-6 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9000W

Rs.289,999.00 Rs.215,000.00
Dunext DN1H-L KTL-6 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9000W

Dunext DN1H-L KTL-6 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9000W

Rs.289,999.00 Rs.215,000.00
Description

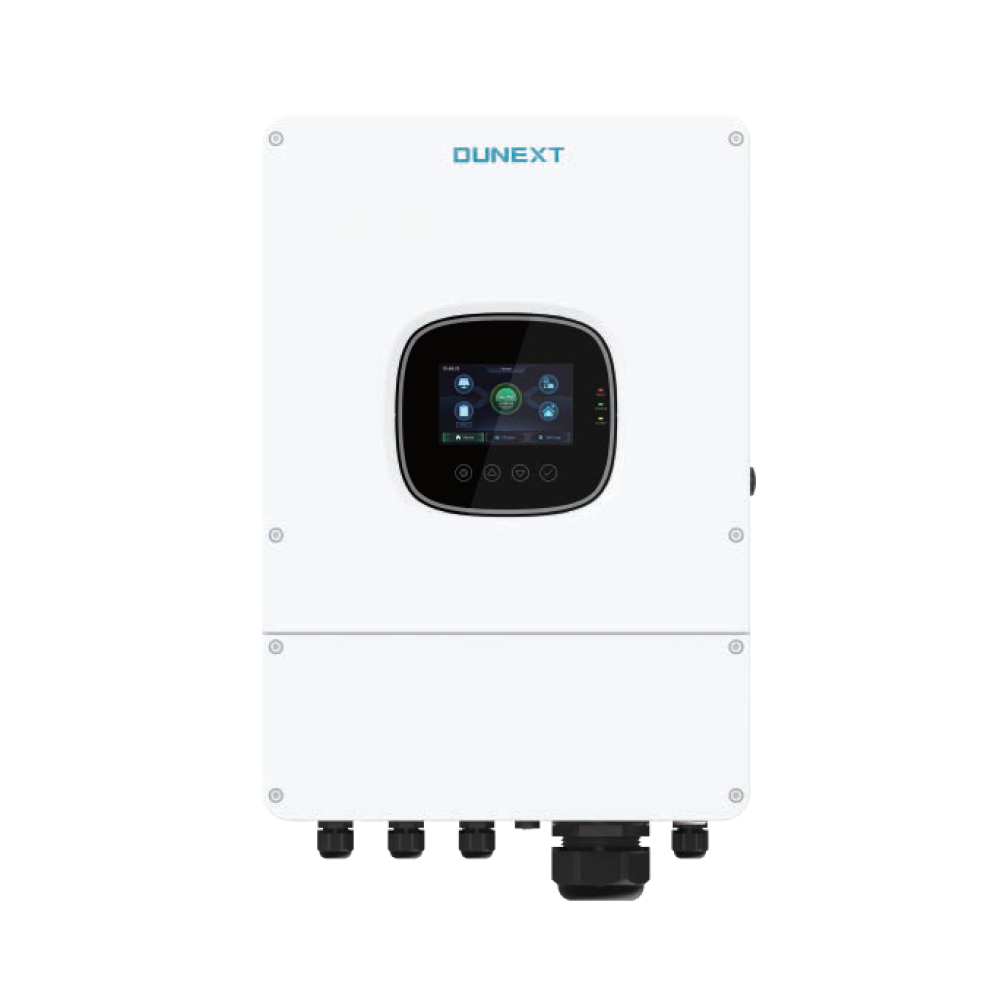

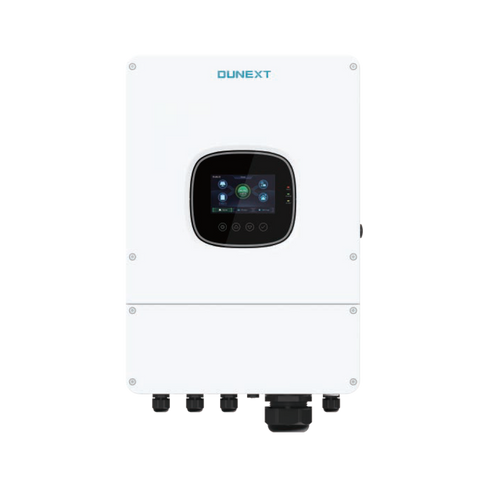

Dunext DN1H-L KTL-6 6KW Hybrid Solar Inverter – Single Phase, IP65 Rated, PV 9000W

The Dunext DN1H-L KTL-6 Hybrid Solar Inverter is a high-performance, single-phase solution built for modern solar systems. Designed for both residential and small commercial applications, this inverter delivers up to 9000W PV input with 150% DC oversizing, seamless backup switching, and reliable off-grid capabilities. Its IP65-rated weatherproof design makes it suitable for both indoor and outdoor installations.

Key Features:

  • Compatible with high-efficiency 600W+ PV modules
  • Supports energy storage from diesel generators
  • 150% DC input oversizing for enhanced energy yield
  • Less than 10ms backup power switching for uninterrupted supply
  • Remote firmware upgrade support for long-term performance
  • Parallel support for up to 6 units for scalable energy systems
Model DN1H-6KTL-L2
Max. Recommended PV Power [Wp] 9000
Max. PV Power for Single MPPT [Wp] 4500
Max. PV Input Voltage [V] 500
Rated PV Input Voltage [V] 300
Start-Up Voltage [V] 120
No. of MPP Trackers 2
No. of Input Strings per Tracker 1/1
MPPT Voltage Range [V] 120 ~ 450
Max. Input Current per MPPT [A] 16 / 16
Max. Short-Circult Current per MPPT [A] 27 / 27
AC Output (On-Grid)
Rated AC Power [W] 6000
Max. Apparent Power [VA] 6000
Rated AC Current [A] 26
Max. AC Current [A] 26
Rated AC Voltage [V] 220 / 230
Grid Frequency [Hz] 50 / 60
Output THDi [@Rated Output] < 3%
Adjustable Power Factor [cos φ] 0.8 leading ... 0.8 lagging
AC Input
Rated AC Voltage [V] 220 / 230
Input Voltage Range [V] 90 ~ 280
Bypass Overload Current [A] 40
Grid Frequency [Hz] 50 / 60
AC Output (Off-Grid)
Rated AC Power [W] 6000
Rated Current [A] 26
Rated Output Voltage [V] 230
Rated Frequency [Hz]
Load Capacity of Motors 4HP
Automatic Switch Time [ms] 10
Output THDi [@Rated Output] < 3%
Peak Apparent Power, Duration [VA, s] 12000, 5
Battery
Battery Type Lithium-ion & Lead-acid
Rated Battery Voltage [V] 48 (Min. start-up voltage 44V)
Battery Voltage Range [V] 40 ~ 60
Max. Charging / Discharging Current [A] 100
Efficiency
Max. Efficiency 97.5%
European Efficiency 97.0%
MPPT Efficiency 99.9%
Protection
DC Insulation Monitoring Yes
DC Reverse Polrity Protection Yes
Anti-island Protection Yes
Residual Current Monitoring Yes
Over-Heat Protection Yes
AC Overcurrent Protecion Yes
AC Short-circuit Protection Yes
Surge Protection DC Type II/ AC Type II
Over Voltage Category DC Type II/ AC Type III
General Data
Dimension [W * H * D] [mm] 556 * 345 * 182
Weight [kg] 22.1
Operating Temperature [℃] -25 ~ +60 (Above 45℃ Derating)
Relative Humidity 0 ~ 100%
Operating Altitude [m] < 2000
Topology Transformerless
Cooling Fan
Noise [dB] < 60
Degree of Protection IP65
Display LED + LCD
Standby Self-consumption [W] < 100
Communication RS485 / CAN / USB / Dry contact (Optional) / WiFi / GPRS
Certifications &Standards
Grid Connection Standards EN50549-1, G99, CEI 0-21
Safety Regulation IEC 62109-1, IEC 62109-2
EMC EN 61000-6-1, EN 61000-6-3
