DJDC Dongjin 25.6V 100Ah Lithium-Ion LiFePO4 Wall-Mounted Battery with WiFi & Bluetooth 2.56kw- IP32
DJDC Dongjin 25.6V 100Ah Lithium-Ion LiFePO4 Wall-Mounted Battery with WiFi & Bluetooth 2.56kw- IP32

DJDC Dongjin 25.6V 100Ah Lithium-Ion LiFePO4 Wall-Mounted Battery with WiFi & Bluetooth 2.56kw- IP32

SKU: AR-002292
Product Type: Battery
Rs.155,000.00
Rs.185,000.00
Rs.155,000.00
Save Rs.30,000.00
Subtotal: Rs.155,000.00

5 Years Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

DJDC Dongjin 25.6V 100Ah Lithium-Ion LiFePO4 Wall-Mounted Battery with WiFi & Bluetooth 2.56kw- IP32

DJDC Dongjin 25.6V 100Ah Lithium-Ion LiFePO4 Wall-Mounted Battery with WiFi & Bluetooth 2.56kw- IP32

Rs.185,000.00 Rs.155,000.00
DJDC Dongjin 25.6V 100Ah Lithium-Ion LiFePO4 Wall-Mounted Battery with WiFi & Bluetooth 2.56kw- IP32
DJDC Dongjin 25.6V 100Ah Lithium-Ion LiFePO4 Wall-Mounted Battery with WiFi & Bluetooth 2.56kw- IP32

DJDC Dongjin 25.6V 100Ah Lithium-Ion LiFePO4 Wall-Mounted Battery with WiFi & Bluetooth 2.56kw- IP32

Rs.185,000.00 Rs.155,000.00
Description

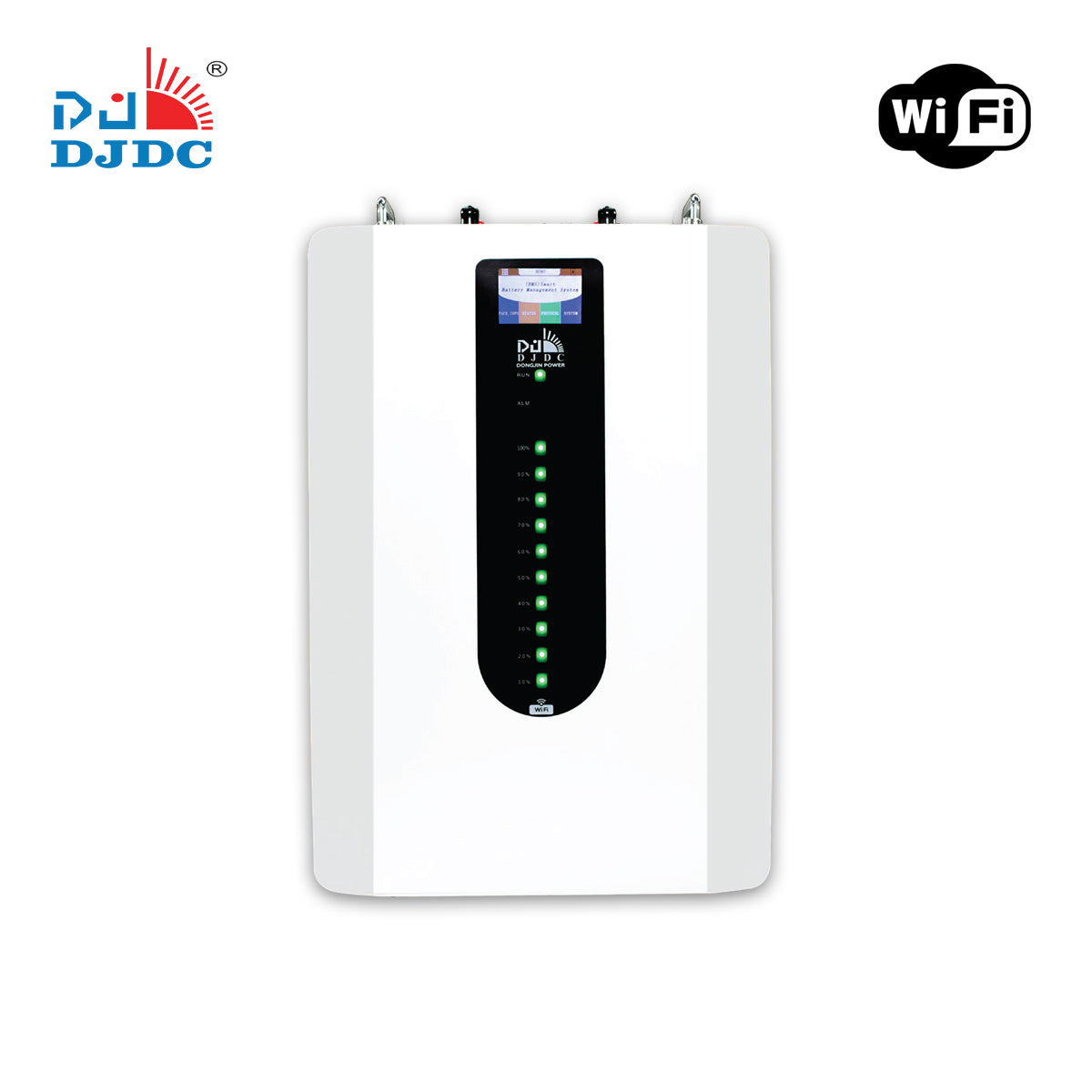

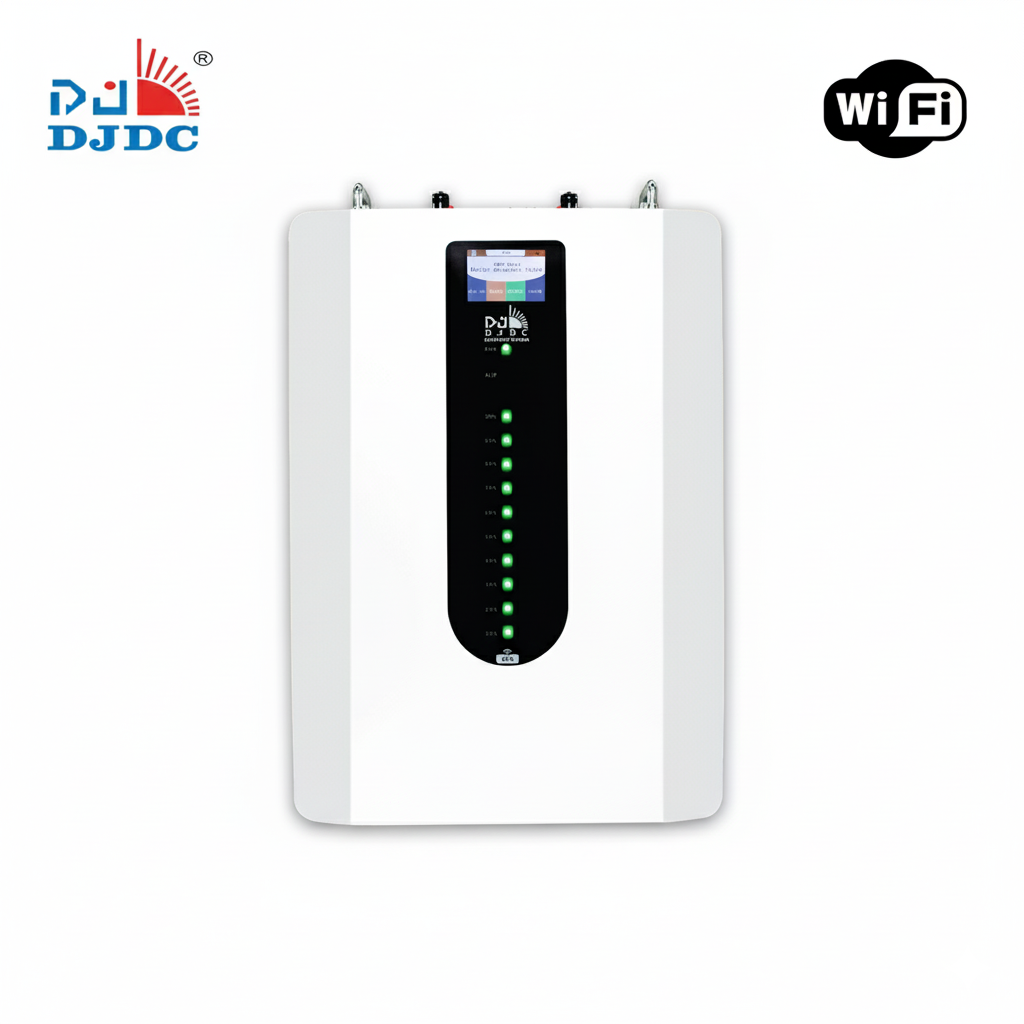

Power your solar energy system with the Dongjin Wall-Mounted 25.6V 100Ah LiFePO4 Battery, designed for efficiency and durability. This compact, wall-mounted energy storage system delivers 2560Wh of reliable power, perfect for residential or off-grid applications. With a high cycle life of 6000 cycles at 80% capacity, this low-maintenance battery ensures long-term savings. Equipped with a smart BMS, it offers seamless communication via WiFi, Bluetooth, RS232, RS485, and CAN ports, and features a user-friendly touch LCD display. Built-in protections against over-charge, over-discharge, and over-temperature, combined with fast charging and extreme heat tolerance (up to +60°C), make this battery a versatile choice for solar hybrid inverters. Upgrade your energy storage with Dongjin’s cutting-edge technology today!

Donwload Datasheet

  • Space-Saving Design: Wall-mounted for easy installation and minimal footprint.
  • High Cycle Life: 6000 cycles at 80% capacity for cost-effective ownership.
  • Smart Connectivity: WiFi, Bluetooth, and multiple communication ports for seamless integration.
  • Fast Charging: Supports rapid charge/discharge for solar applications.
  • Extreme Heat Tolerance: Operates reliably up to +60°C.

Datasheet

Specification Value
Battery Type LiFePO4
Nominal Voltage 25.6V
Nominal Capacity 100Ah
Energy 2560Wh
Cell Quantity 8 Cells
Internal Resistance ≤10mΩ
Parallel Communication Quantity 10 Batteries
Full Charge Voltage 29.2V
Full Discharge Voltage 24V
Charging Passive Current Limit 30Ah
Max. Charge Current 100A
Max. Discharge Current 100A
Communication WiFi, Bluetooth, RS232, RS485, CAN
Display Touch Screen LCD
Cycle Life 6000 cycles @ 80%
Protection BMS (Over-Charge, Over-Discharge, Over-Temperature)
IP Degree IP32
Standard Charge Method 0.2C CC to FC, CV till current <0.05C
Storage Temperature 0-40°C
Charge Temperature Range 0-45°C
Discharge Temperature Range -20°C to 60°C

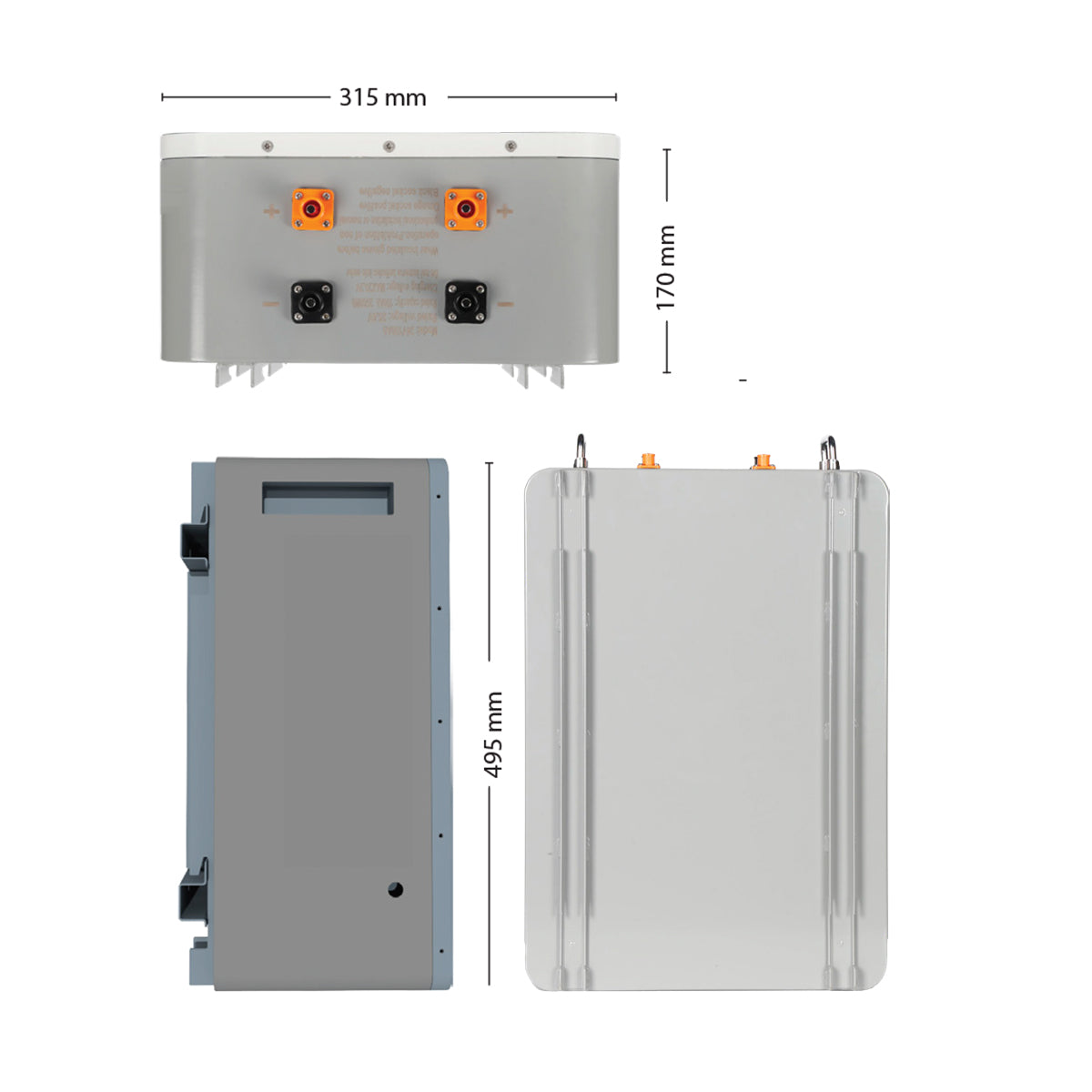

Dimensions (DxWxH) 495 x 315 x 170 mm
Net Weight 27 kg
