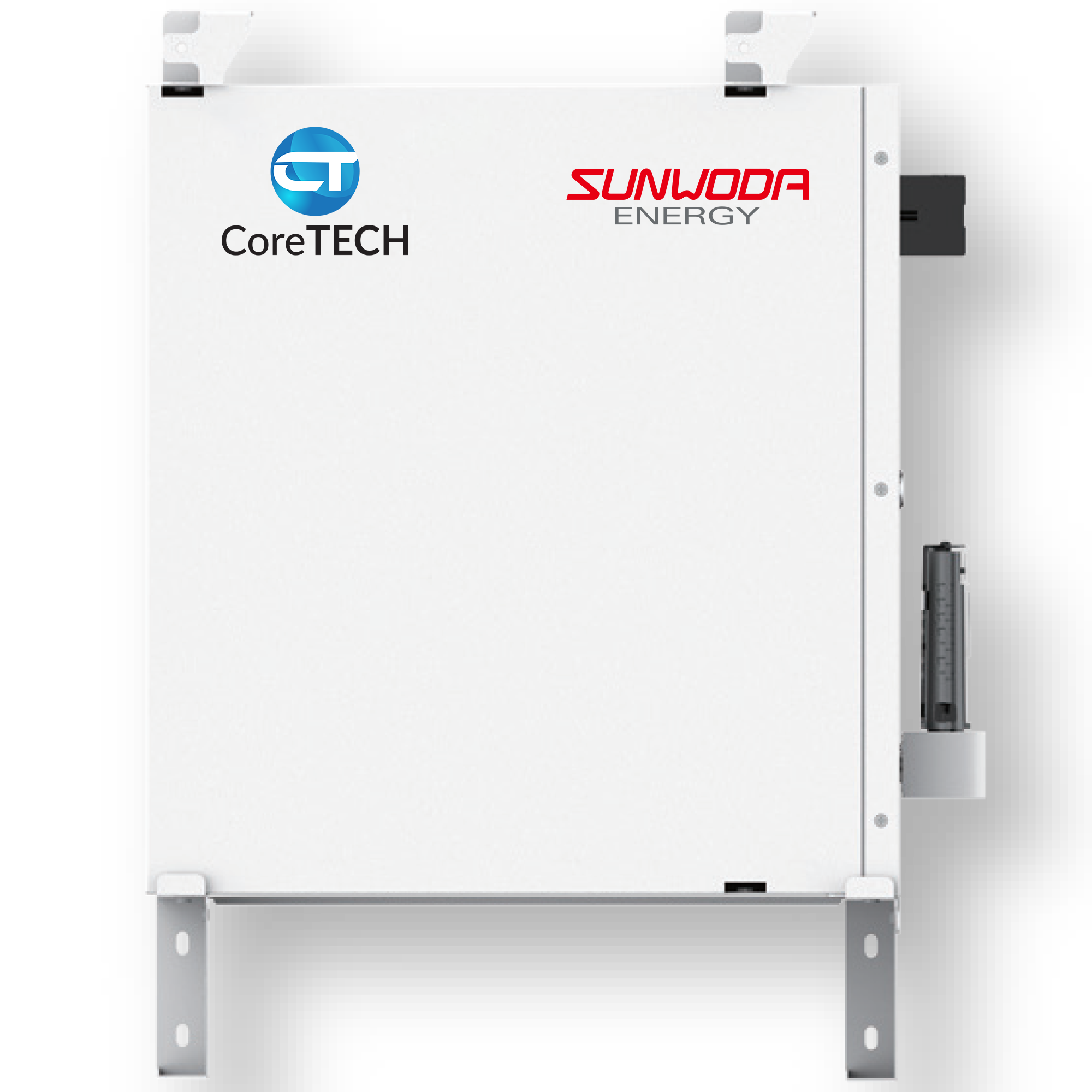

CoreTech Sunwoda Energy Atrix Smart 5 – 5kWh 51.2V LiFePO₄ Battery | Scalable Home Energy Storage with CAN & RS485

CoreTech Sunwoda Energy Atrix Smart 5 – 5kWh 51.2V LiFePO₄ Battery | Scalable Home Energy Storage with CAN & RS485

SKU: AR-002940
Product Type: Battery
Rs.210,000.00
Rs.210,000.00
Subtotal: Rs.210,000.00

7 Years

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

CoreTech Sunwoda Energy Atrix Smart 5 – 5kWh 51.2V LiFePO₄ Battery | Scalable Home Energy Storage with CAN & RS485

CoreTech Sunwoda Energy Atrix Smart 5 – 5kWh 51.2V LiFePO₄ Battery | Scalable Home Energy Storage with CAN & RS485

Rs.210,000.00
CoreTech Sunwoda Energy Atrix Smart 5 – 5kWh 51.2V LiFePO₄ Battery | Scalable Home Energy Storage with CAN & RS485

CoreTech Sunwoda Energy Atrix Smart 5 – 5kWh 51.2V LiFePO₄ Battery | Scalable Home Energy Storage with CAN & RS485

Rs.210,000.00
Description

With 100% usable energy, a 51.2V rated voltage, and support for up to 16 units in parallel (80kWh total), the Atrix Smart 5 is ideal for solar energy systems, hybrid inverters, and off-grid applications. Its compact indoor-friendly design, natural cooling, and extended 7-year warranty make it a dependable long-term energy solution.

Key Features

5kWh Usable Energy – Full 100% depth of discharge for maximum energy utilization

51.2V LiFePO₄ Technology – Enhanced safety, longer lifespan, and stable performance

High Power Output – Supports up to 100A charge and discharge current

Smart Communication – CAN 2.0 and RS485 interfaces for inverter compatibility

Scalable Design – Connect up to 16 batteries in parallel for up to 80kWh capacity

Wide Temperature Range – Reliable operation in diverse environmental conditions

Indoor Installation – Compact IP20 enclosure with natural convection cooling

Certified & Safe – IEC62619, CE, and UN38.3 certified

7-Year Warranty – Long-term reliability and peace of mind

Parameter Specification
Nominal Energy 5kWh
Usable Energy (100% DOD) 5kWh
Rated Voltage 51.2V
Charge/Discharge Cut-off Voltage 44.8V ~ 55.2V
Rated Charge/Discharge Current 50A / 80A
Max. Charge/Discharge Current 100A / 100A
Communication Interface CAN 2.0 / RS485
Scalability Max. 16 in parallel (Up to 80 kWh)
Installation Location Indoor
Operating Temperature (Discharging) -4°F to 122°F (-20°C to 50°C)
Operating Temperature (Charging) 32°F to 122°F (0°C to 50°C)
Humidity 5% to 95% (Non-condensation)
Dimensions (W x H x D) 501 x 142 x 452 mm
Weight 45kg
Enclosure Protection Rating IP20
Altitude <4000m
Cooling Natural convection
Warranty 7 years
Certifications IEC62619 / CE / UN38.3
