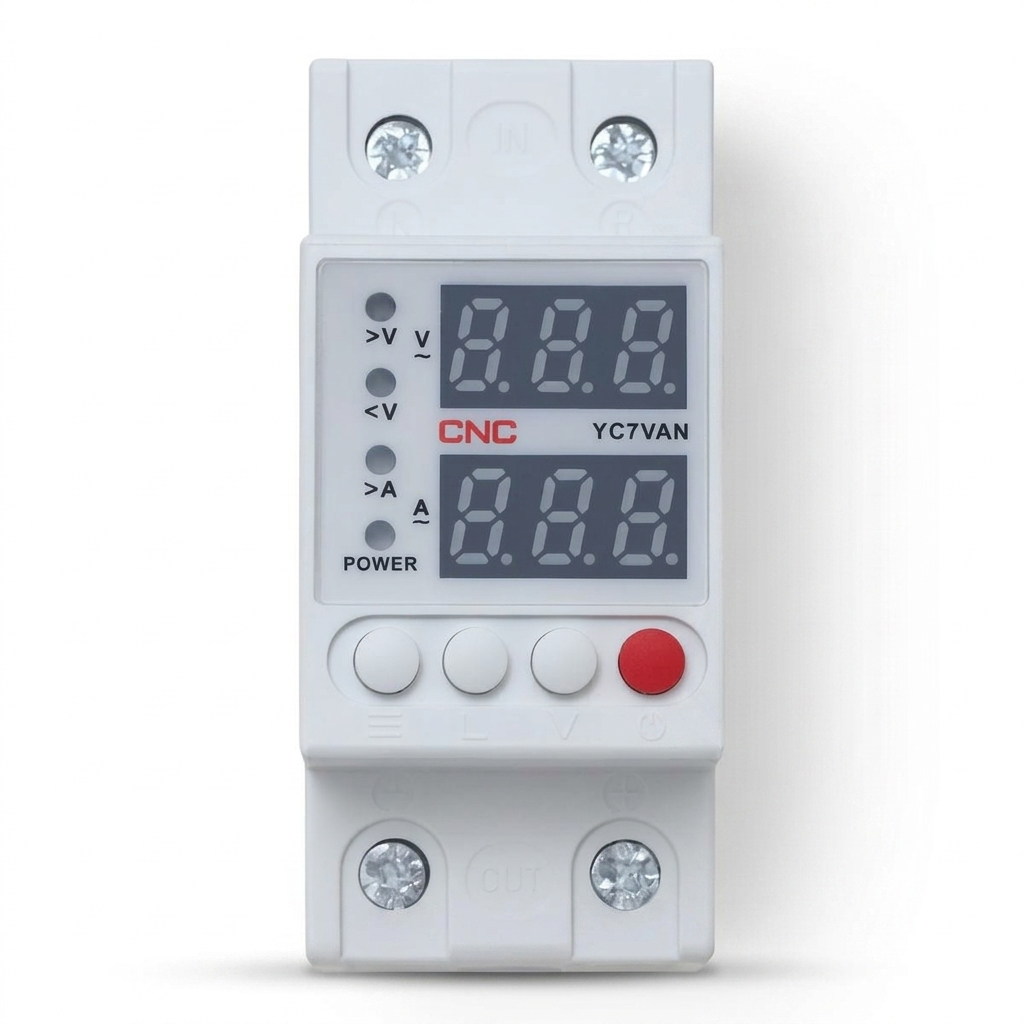

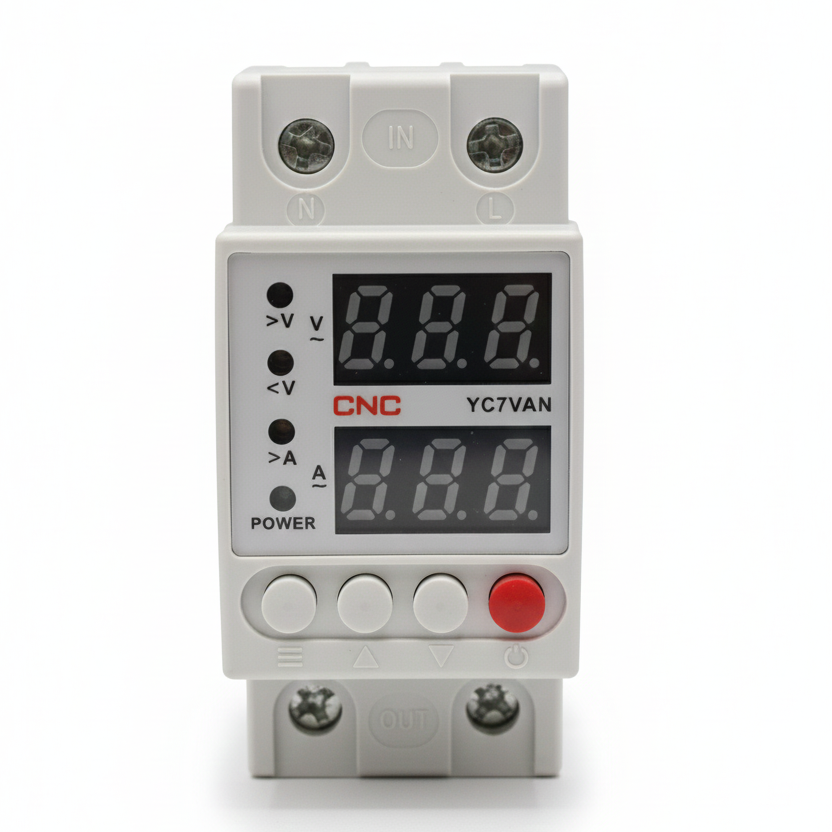

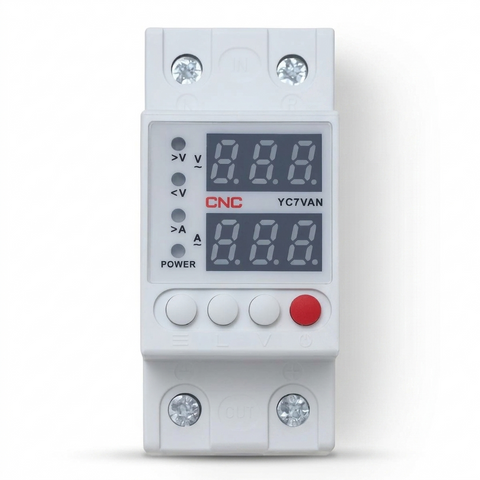

CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector
CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector
CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector
CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector

CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector

SKU: AR-002063
Availability: In Stock
Product Type: voltage protector
Rs.2,199.00
Rs.2,499.00
Rs.2,199.00
Save Rs.300.00
Ampere: 40
Subtotal: Rs.2,199.00
  • Alladin Store

Shipping

You have to pay Partial Payment for order confirmation

Shipped Within 2 - 5 Bussiness Days

CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector

CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector

Rs.2,499.00 Rs.2,199.00
CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector
CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector
CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector
CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector

CNC YC7VA 2in1 2P Overvoltage and Undervoltage Protector

Rs.2,499.00 Rs.2,199.00
Ampere: 40
Description

CNC YC7VA 2in1 40A 2P Overvoltage and Undervoltage Protector

The CNC YC7VA 2in1 40A 2P is a versatile overvoltage and undervoltage protection relay with voltage and current display capabilities. Designed for single-phase AC networks, it ensures the safety of electrical equipment by protecting against voltage surges, undervoltage, and overcurrent. With its microprocessor-based design, it provides precise monitoring, digital voltage display, and customizable settings for optimal performance. The device is suitable for residential, industrial, and administrative applications.

Key Features

  • Voltage and Current Display: Real-time monitoring of main voltage and current with a digital display for clear visualization.
  • Surge Protection: Protects equipment from overvoltage (130-300V) and undervoltage (80-210V) issues.
  • Customizable Settings: User-configurable voltage values and delay times, stored in non-volatile memory.
  • High Compatibility: Supports connections using aluminum or copper wires, with a wide operational voltage range (80V-300V).
  • Electromagnetic Relay Switching: Ensures reliable load switching with durable relay components.
  • Multiple Protection Modes: Functions include undervoltage, overvoltage, overcurrent protection, and operation as a voltmeter.
  • Robust Build: Designed to operate under harsh conditions with a wide temperature range (-50°C to 55°C) and high mechanical and electrical life expectancy.

Technical Specifications

  • Rated Voltage: AC 220V
  • Operating Voltage Range: AC 80V-300V
  • Frequency: 50Hz/60Hz
  • Rated Current Options: 15A, 25A, 32A, 50A, 63A
  • Overvoltage Setting Range: 130-300V
  • Undervoltage Setting Range: 80-210V
  • Current Trip Delay: Adjustable (1-999s, default 30s)
  • Reset/Start Delay: Adjustable (1-999s, default 5s)
  • Insulation Voltage: 400V
  • Protection Degree: IP20
  • Altitude: ≤2000m
  • Operating Temperature: -50°C ~ 55°C
  • Max Load Power: Up to 13.9kW (depending on current specification)

The CNC YC7VA-40 2P is an ideal choice for ensuring the safety and longevity of electrical systems in various environments. Its precision, durability, and user-friendly features make it indispensable for voltage and current protection applications.

Specification

Technical data YC7VA YC7V YC7A
Rated Working Voltage AC 220V
Operation voltage range AC 80V-300V AC 80V-300V
Rated frequency 50Hz/60Hz
Overvoltage(>U)setting range 130-300V
Undervoltage(<U)setting range 80-210V
Rated current 40/63A(subject to prodect label) 1~40/63A(subject to prodect label)
>U and <U trip delay 1-999S Default 30S 0.5S(>Atrip delay)
Reset/start delay 1-999S Default 5S 1~999S
Voltage measurement accuracy 2%(Not exceeding 2%of the overall range) 1%(Not exceeding 1%of the overall range)
Rated insulation voltage 400V
Output contact 1NO
Electrical Life 105
Mechanical Life 106
Protection degree IP20
Pollution degree 3
Altitude ≤2000m
Operating temperature -50℃~55℃
Humidity ≤50%at 40%(without condensation)
Storage temperature -30℃~70℃

Current specification 15A 25A 32A 50A 63A
Rated operating current(In,A) 15  25  32  50  63
Maximum operating current Imax(A,within 10min) 25  30  40  60  80
Max.power of load(kW) 3.6  5.5  7  11  13.9

Set UP menu

YC7VA Overvoltage and Undervoltage Protector Set UP menu

Setting

NO.Option    code Option max min Default  Step Unit Description
P1 Pt Power-on delay 999  1  5  1/10 S
P2 rt Recoverydelay 999  1  30  1/10 S
P3 oU Overvoltage 300  130  270  1/10 V Close overvoltage if greater than 300
P4 oUr Overvoltage recovery value 295  125  265  1/10 V Skip this setting when overvoltage is turned
off
P5 uU Undervoltage 210  80  170  1/10 V Close undervoltage if below 80
P6 uUr Undervoltage recoveryvalue 215  85  175  1/10 V Skip this setting when undervoltage is turned
off
P7 Utt Overvoltage action delay 10.0  0.1  0.5  0.1/1.0 S
P8 UAd Voltage correction +10% -10% 0  0.5% V Long press settingis not recommended
P9 oC Overcurrent 63.0  1.0  63.0  0.1/1.0 A Close overcurrent if greater than 63.0
P10 Ctt Overflow as delay 10.0  0.1  1.0  0.1/1.0 S
P11 CC Continuous overcurrent counting 20  0  0  1  Times 0:Turn off counting
P12 CAd Current correction +10% -10% 0  0.5% A Long press settingisnot recommended
P13 FAd Frequency correction +2.5% -2.5% 0  0.1% Hz Modifyingthis value will affect the accuracy
ofthe timer
P14 FPd Rapid power failure protection on off on   MS
P15 dS Display mode 3  1  1  1    1:Standards
2:Manualswitch
3:Automatic switch
P16 Ar Automatic reset on off on     on:Self-recovery
off:Manual recovery
P17 Act Action/knifemode on off on     on:Protector working properly
off:knife mode
P18 EC Energy saving mode on off off     on:Open
off:Close
P19 Loc Setuplockpassword 999  000  112  1/10   When this value is not 112,you can only view
the parameter and cannot set it

Wiring diagram

YC7VA Overvoltage and Undervoltage Protector Wiring diagram2
YC7VA Overvoltage and Undervoltage Protector Overall and mounting dimensions8

Overall and mounting dimensions(mm)

YC7VA Overvoltage and Undervoltage Protector Overall and mounting dimensions8
