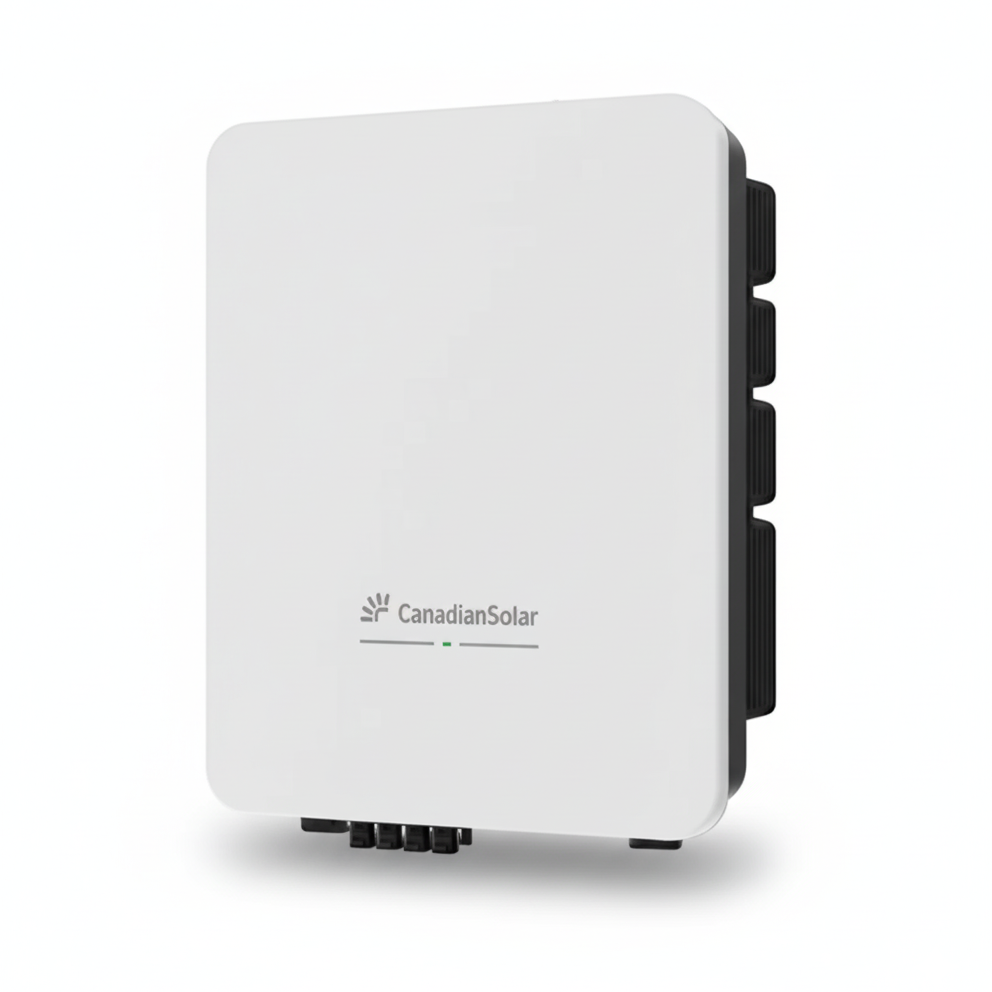

CanadianSolar 20kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | High Efficiency | CSI-20K-T4001A-E

CanadianSolar 20kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | High Efficiency | CSI-20K-T4001A-E

SKU: AR-002692
Product Type: solar inverter
Rs.299,999.00
Rs.349,999.00
Rs.299,999.00
Save Rs.50,000.00
Subtotal: Rs.299,999.00

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

CanadianSolar 20kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | High Efficiency | CSI-20K-T4001A-E

CanadianSolar 20kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | High Efficiency | CSI-20K-T4001A-E

Rs.349,999.00 Rs.299,999.00
CanadianSolar 20kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | High Efficiency | CSI-20K-T4001A-E

CanadianSolar 20kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | High Efficiency | CSI-20K-T4001A-E

Rs.349,999.00 Rs.299,999.00
Description

The Canadian Solar CSI-20kW-T4001A-E is a reliable and high-efficiency 20kW grid-tied solar inverter engineered for residential, commercial, and small industrial applications. Delivering maximum efficiency up to 98.6% and CEC efficiency up to 98.0%, it ensures optimal power conversion and long-term energy savings. Featuring dual MPPTs, this inverter handles complex installation environments with ease, maintaining consistent performance even under partial shading.

Key Features:

  • High Conversion Efficiency: Up to 98.6% max efficiency and 98.0% CEC efficiency.

  • Dual MPPT Design: Maximizes system yield in variable site conditions.

  • High Input Capability: 16A per string for compatibility with high-power PV modules.

  • Lightweight Design: Easy and fast installation process.

  • Zero Export Limitation: Ensures seamless grid integration and smart energy control.

Feature Canadian Solar CSI-20K-T4001A-E
INPUT (DC)
Max. Input Voltage 1100 Vdc
Start-up DC Input Voltage 180 Vdc
Rated Input Voltage 630 Vdc
MPPT Voltage Range 160 - 1000 Vdc
Max. String Input No. 4
MPPT No. 2
Max. Input Current 32 A / 32 A
Max. DC short-circuit current 40 A / 40 A
OUTPUT (AC)
Rated AC Output Power 20 kW
Max. AC Output Power (Apparent) 20 kVA
Rated Output Voltage 380 Vac / 400 Vac
Grid Connection Type 3 L / N / PE
Max Output Current 30.4 A
Rated Output Frequency 50 / 60 Hz
THDI < 3%
Power Factor 0.8 leading ... 0.8 lagging
Zero Export Solution Supported
EFFICIENCY
Max. Efficiency 98.6%
EU Efficiency 98.0%
ENVIRONMENT
Protection Degree IP66
Cooling Intelligent Air Cooling
Operating Temperature Range -30 °C to +60 °C
Operating Humidity 0 - 100% Non-condensing
Operating Altitude 4000 m (>3000 m derating)
PROTECTION
DC Switch Yes
Anti-Islanding Protection Yes
DC Reverse-Polarity Protection Yes
DC Insulation Resistance Detection Yes
Residual Current Monitoring Yes
AC Output Over Current Protection Yes
AC Short Circuit Protection Yes
Grid Monitoring Yes
AFCI Optional
DC / AC SPD DC SPD Type II / AC SPD Type II
DISPLAY AND COMMUNICATION
Display LED Indicators & APP
Communication WiFi (Optional)
