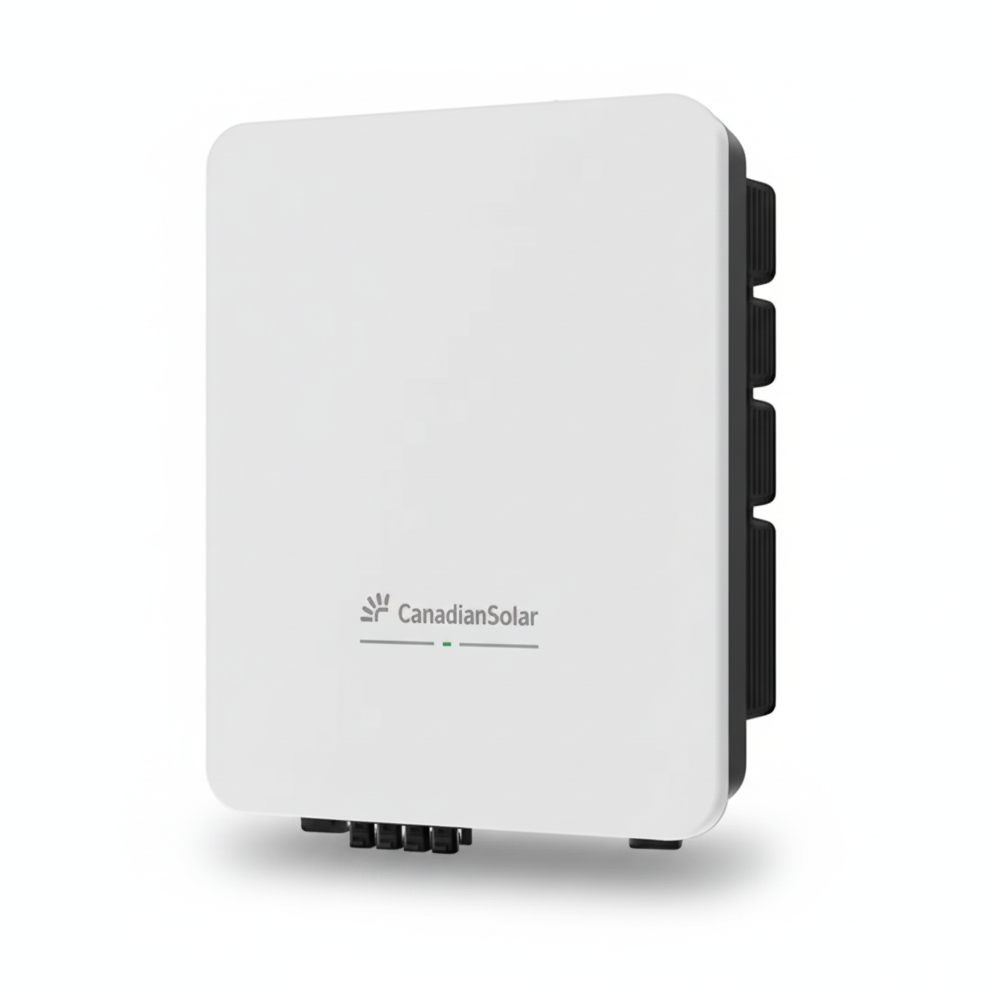

CanadianSolar 10kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | CSI-10K-T4001A-E

CanadianSolar 10kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | CSI-10K-T4001A-E

SKU: AR-002689
Product Type: solar inverter
Rs.165,999.00
Rs.210,999.00
Rs.165,999.00
Save Rs.45,000.00
Subtotal: Rs.165,999.00

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

CanadianSolar 10kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | CSI-10K-T4001A-E

CanadianSolar 10kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | CSI-10K-T4001A-E

Rs.210,999.00 Rs.165,999.00
CanadianSolar 10kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | CSI-10K-T4001A-E

CanadianSolar 10kW Three-Phase On-Grid Solar Inverter | Dual MPPT | IP66 | CSI-10K-T4001A-E

Rs.210,999.00 Rs.165,999.00
Description

The Canadian Solar CSI-10K-T4001A-E is a high-performance 10kW grid-tied solar inverter designed to maximize energy efficiency and reliability. With a maximum efficiency of up to 98.6% and CEC efficiency up to 98.0%, it ensures optimal power conversion for residential and commercial solar systems. Equipped with dual MPPTs, this inverter delivers superior performance even in complex installation conditions. Each string supports up to 16A input current, making it ideal for modern high-power solar modules.

Key Features:

  • High Efficiency: Up to 98.6% max efficiency and 98.0% CEC efficiency.

  • Dual MPPT Design: Ensures higher system yield under variable conditions.

  • High Input Capacity: 16A per string, compatible with high-power PV modules.

  • Lightweight & Easy Installation: Simplifies setup and reduces labor costs.

  • Zero Export Function: Supports grid compliance and flexible energy management.



Feature Canadian Solar CSI-10K-T4001A-E
INPUT (DC)
Max. Input Voltage 1100 Vdc
Start-up DC Input Voltage 180 Vdc
Rated Input Voltage 630 Vdc
MPPT Voltage Range 160 - 1000 Vdc
Max. String Input No. 2
MPPT No. 2
Max. Input Current 2 * 20 A
Max. DC short-circuit current 2 * 30 A
OUTPUT (AC)
Rated AC Output Power 10 kW
Max. AC Output Power (Apparent) 10 kVA
Rated Output Voltage 380 Vac / 400 Vac
Grid Connection Type 3 L / N / PE
Max Output Current 15.1 A
Rated Output Frequency 50 / 60 Hz
THDI < 3%
Power Factor 0.8 leading ... 0.8 lagging
Zero Export Solution Supported
EFFICIENCY
Max. Efficiency 98.3%
EU Efficiency 97.4%
ENVIRONMENT
Protection Degree IP66
Cooling Intelligent Air Cooling
Operating Temperature Range -30 °C to +60 °C
Operating Humidity 0 - 100% Non-condensing
Operating Altitude 4000 m (>3000 m derating)
PROTECTION
DC Switch Yes
Anti-Islanding Protection Yes
DC Reverse-Polarity Protection Yes
DC Insulation Resistance Detection Yes
Residual Current Monitoring Yes
AC Output Over Current Protection Yes
AC Short Circuit Protection Yes
Grid Monitoring Yes
AFCI Optional
DC / AC SPD DC SPD Type II / AC SPD Type II
DISPLAY AND COMMUNICATION
Display LED Indicators & APP
Communication WiFi (Optional)
