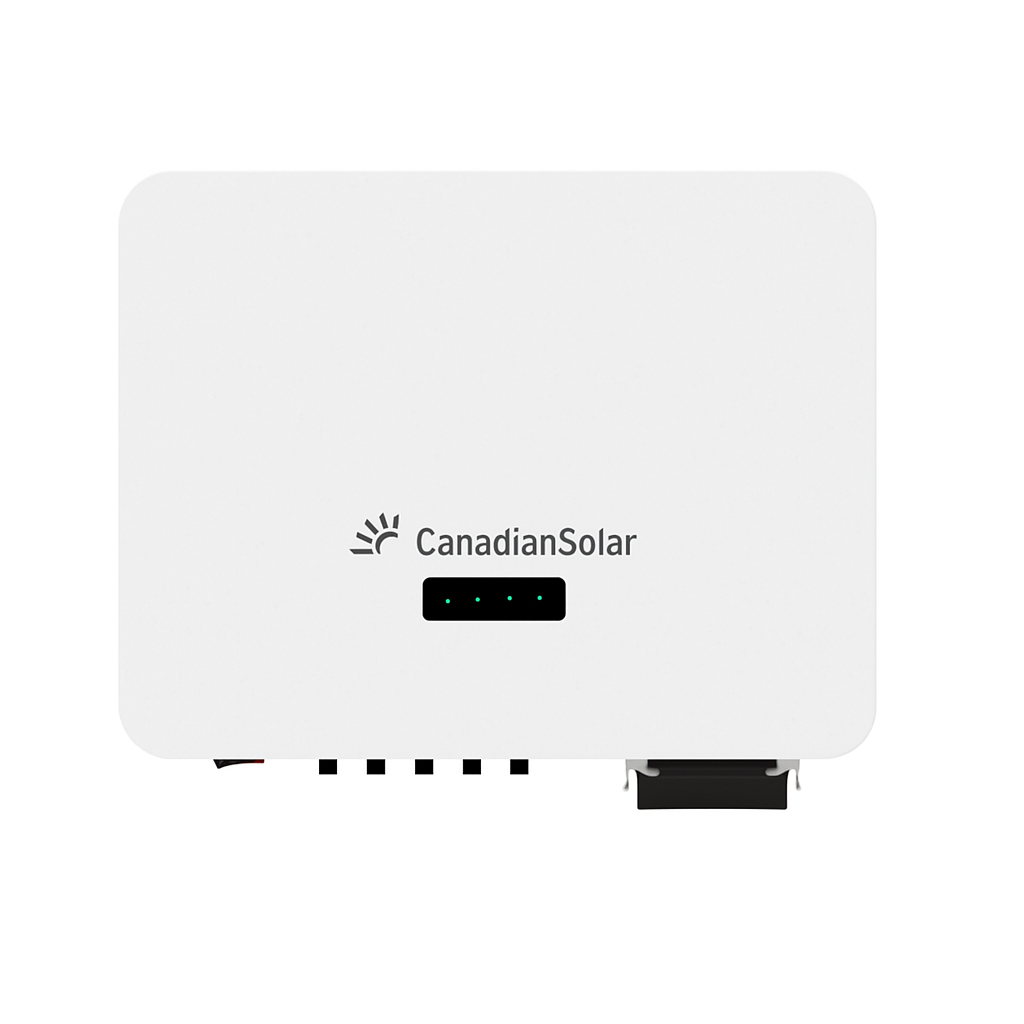

CanadianSolar 50kW Three-Phase On-Grid Solar Inverter | 4 MPPT | IP66 | High Efficiency | CSI-50K-T4001A-E

CanadianSolar 50kW Three-Phase On-Grid Solar Inverter | 4 MPPT | IP66 | High Efficiency | CSI-50K-T4001A-E

SKU: AR-002695
Product Type: string inverter
Rs.549,999.00
Rs.610,999.00
Rs.549,999.00
Save Rs.61,000.00
Subtotal: Rs.549,999.00

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

CanadianSolar 50kW Three-Phase On-Grid Solar Inverter | 4 MPPT | IP66 | High Efficiency | CSI-50K-T4001A-E

CanadianSolar 50kW Three-Phase On-Grid Solar Inverter | 4 MPPT | IP66 | High Efficiency | CSI-50K-T4001A-E

Rs.610,999.00 Rs.549,999.00
CanadianSolar 50kW Three-Phase On-Grid Solar Inverter | 4 MPPT | IP66 | High Efficiency | CSI-50K-T4001A-E

CanadianSolar 50kW Three-Phase On-Grid Solar Inverter | 4 MPPT | IP66 | High Efficiency | CSI-50K-T4001A-E

Rs.610,999.00 Rs.549,999.00
Description

The Canadian Solar High-Efficiency Grid-Tied Inverter is engineered for advanced solar energy systems, offering powerful performance, safety, and long-term reliability. With a multiplex MPPT design, it delivers optimal energy harvesting even in complex installation conditions. Its 16A input current supports the latest high-power PV modules, while the integrated DC switches. This inverter includes smart string monitoring, optional anti-PID and AFCI protection, and intelligent fan cooling for stable operation in all environments. Built with IP66 protection, it’s designed to perform in harsh outdoor conditions and provides utility-interactive controls like active power derating, reactive power control, and over-frequency derating for grid stability.

Key Features:

  • Multiplex MPPT design for higher efficiency in complex applications
  • 16A input supports high-power solar modules
  • Integrated DC switches for improved safety
  • Smart string monitoring and optional anti-PID function
  • Supports aluminum cable and optional AFCI protection
  • Intelligent fan cooling system for optimal temperature control
  • SPD Type II protection for both DC and AC circuits
  • IP66-rated enclosure for harsh environments
  • Utility interactive controls: active power derating, reactive power control, and over-frequency derating
Feature CSI-50K-T4001A-E
INPUT (DC)
Max. Input Voltage 1100 VDC
Start-up DC Input Voltage 195 VDC
Rated Input Voltage 600 VDC
MPPT Voltage Range 200 - 1000 VDC
Max. String Input No. 8
MPPT No. 4
Max. Input Current 4 x 32 A
Max. DC short-circuit current 4 x 40 A
OUTPUT (AC)
Rated AC Output Power 50 kW
Max. AC Output Power (Apparent) 50 kVA
Rated Output Voltage 380 / 400 VAC
Grid Connection Type 3 L / N / PE
Max Output Current 76 A
Rated Output Frequency 50 / 60 Hz
THDI < 3 %
Power Factor 0.8
Zero Export Solution Support
EFFICIENCY
Max. Efficiency 98.7 %
EU Efficiency 98.3 %
ENVIRONMENT
Protection Degree IP66
Cooling Intelligent Air Cooling
Operating Temperature Range -30 to +60 °C
Operating Humidity 0 - 100% Non-condensing
Operating Altitude 4000 m (>3000 m derating)
PROTECTION
DC Switch Yes
Anti-Islanding Protection Yes
DC Reverse-Polarity Protection Yes
DC Insulation Resistance Detection Yes
Residual Current Monitoring Yes
AC Output Over Current Protection Yes
AC Short Circuit Protection Yes
Grid Monitoring Yes
AFCI Optional
O recovery overvoltage Class Optional
DISPLAY AND COMMUNICATION
Display LED Indicators & APP
Communication WiFi
MECHANICAL DATA
Dimensions (W x H x D) 720 x 555 x 288 mm
Weight 50 kg
DC Connection Type OT Terminals
AC Connection Type OT Terminals
