Voltrra Falcon 10kW IP66 Hybrid Solar Inverter | Dual Output

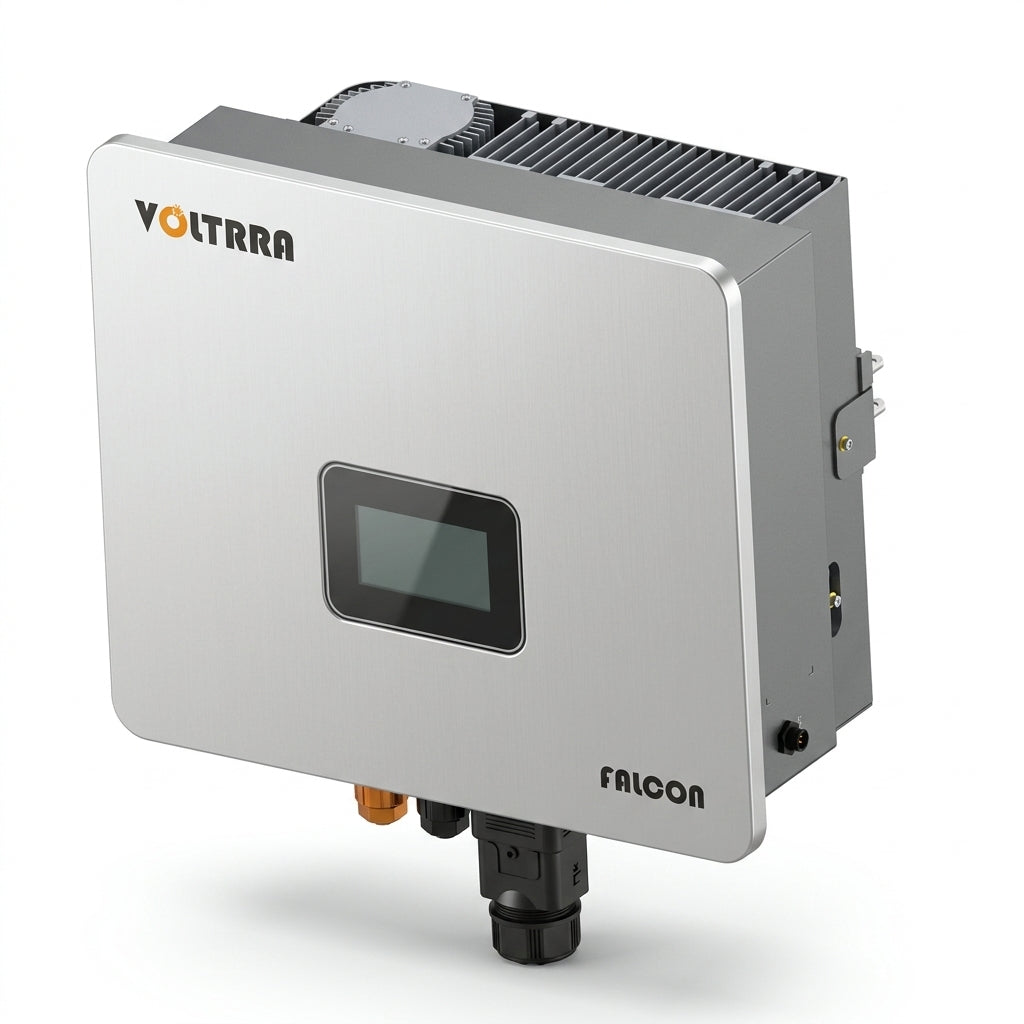

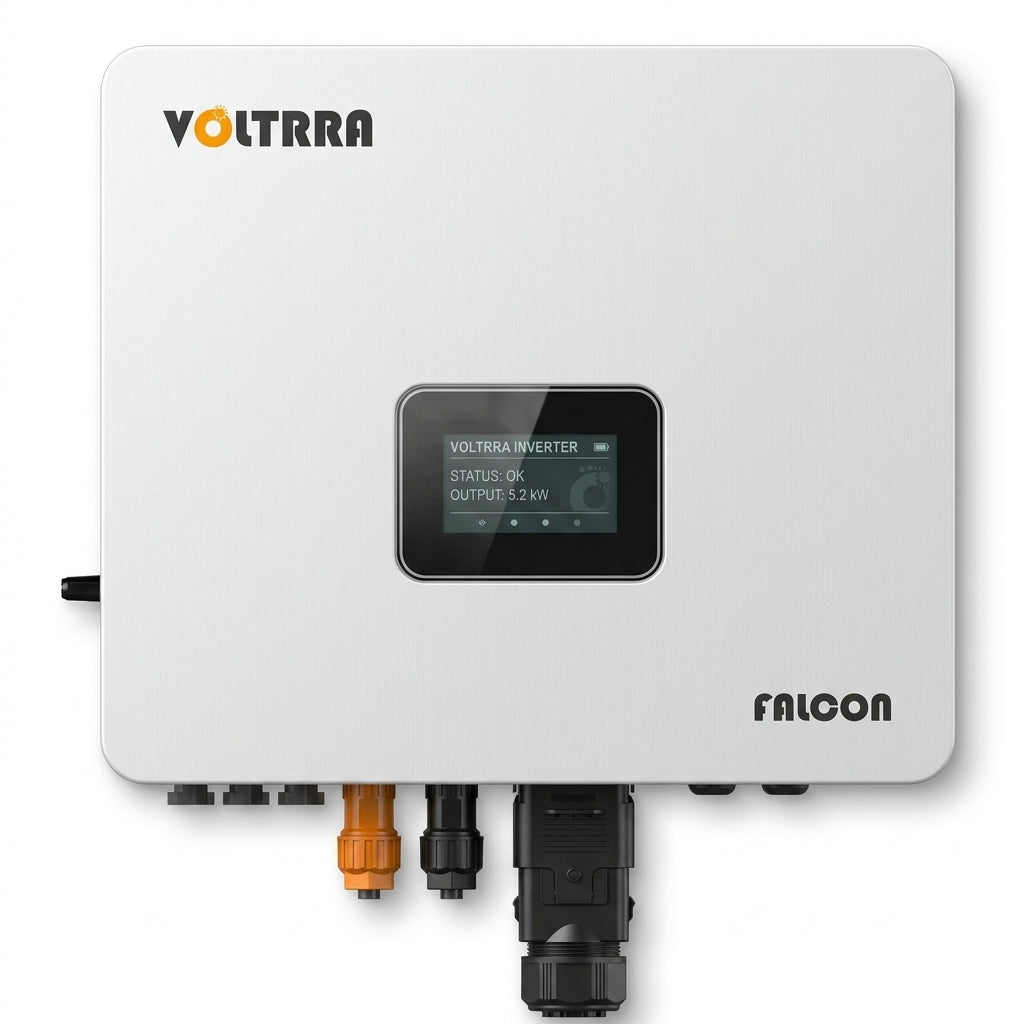

The Voltrra Falcon 10kW Hybrid Solar Inverter is a high-performance solution designed for residential and commercial solar energy systems. With a 10kW rated output, it can handle loads up to 10kW and supports up to 12kW of solar PV input. Its 3 independent MPPT trackers provide efficient solar energy harvesting across different panel configurations. The Falcon 10kW supports lithium-ion and lead-acid batteries and can operate with or without battery storage, offering flexible energy management for backup and grid-connected applications. With dual output, advanced protection features, and an IP66-rated enclosure, it is built for reliable operation in demanding environments.

Key Features

10kW Rated Output Power – Suitable for high-power residential and commercial applications.

Up to 12kW Solar PV Input – Supports high-capacity solar panel installations.

3 MPPT Trackers – Optimizes solar energy harvesting from multiple PV strings.

Dual Output Design – Provides flexible power distribution for main and backup loads.

Battery or Battery-Free Operation – Can operate with or without battery storage.

Lithium-Ion & Lead-Acid Compatible – Supports different battery technologies.

IP66 Protection – Provides strong protection against dust and water ingress.

48V Battery System – Designed for low-voltage energy storage applications.

High Backup Capability – Delivers reliable power during grid outages.

Fast Backup Switching – Switches to backup power in less than 20 ms.

Advanced Protection – Includes PV reverse polarity, anti-islanding, ground fault, leakage current, insulation resistance, over-current and short-circuit protection.

LCD Display & Communication – Features LCD monitoring with RS485 and CAN communication.

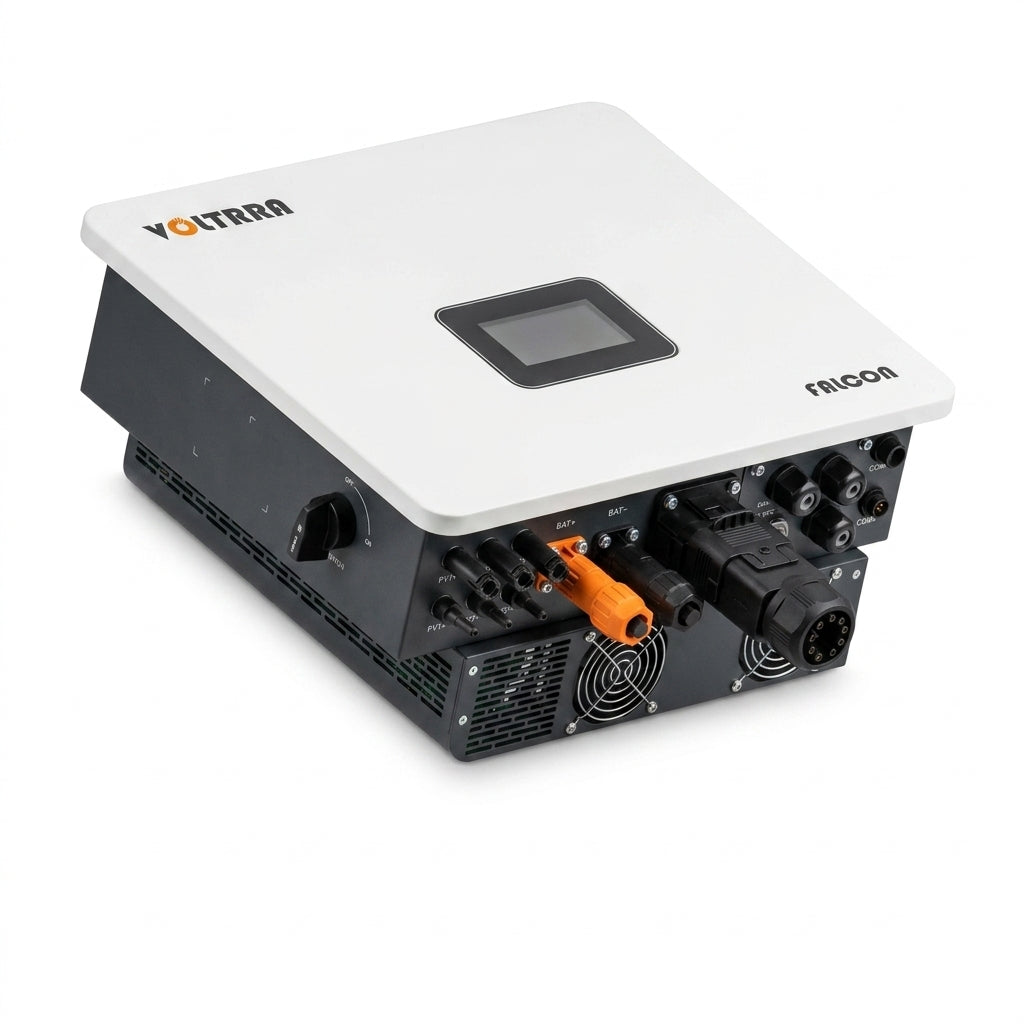

MC4 PV Connections – Convenient and secure solar panel connections.

Wide Operating Temperature – Designed to operate from -25°C to +60°C.

Fan Cooling System – Helps maintain stable performance under demanding loads.
