Volnex Alpha 16 Residential Low Voltage LiFePO4 Battery 16.08kWh 51.2V 314Ah

Volnex Alpha 16 Residential Low Voltage LiFePO4 Battery 16.08kWh 51.2V 314Ah

Write A Review
SKU: AR-003366
Product Type: Battery
Rs.620,000.00
Rs.650,000.00
Rs.620,000.00
Save Rs.30,000.00
Subtotal: Rs.620,000.00

10 years warranty (5 years product + 5 years service)

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Volnex Alpha 16 Residential Low Voltage LiFePO4 Battery 16.08kWh 51.2V 314Ah

Volnex Alpha 16 Residential Low Voltage LiFePO4 Battery 16.08kWh 51.2V 314Ah

Rs.650,000.00 Rs.620,000.00
Volnex Alpha 16 Residential Low Voltage LiFePO4 Battery 16.08kWh 51.2V 314Ah

Volnex Alpha 16 Residential Low Voltage LiFePO4 Battery 16.08kWh 51.2V 314Ah

Rs.650,000.00 Rs.620,000.00
Description

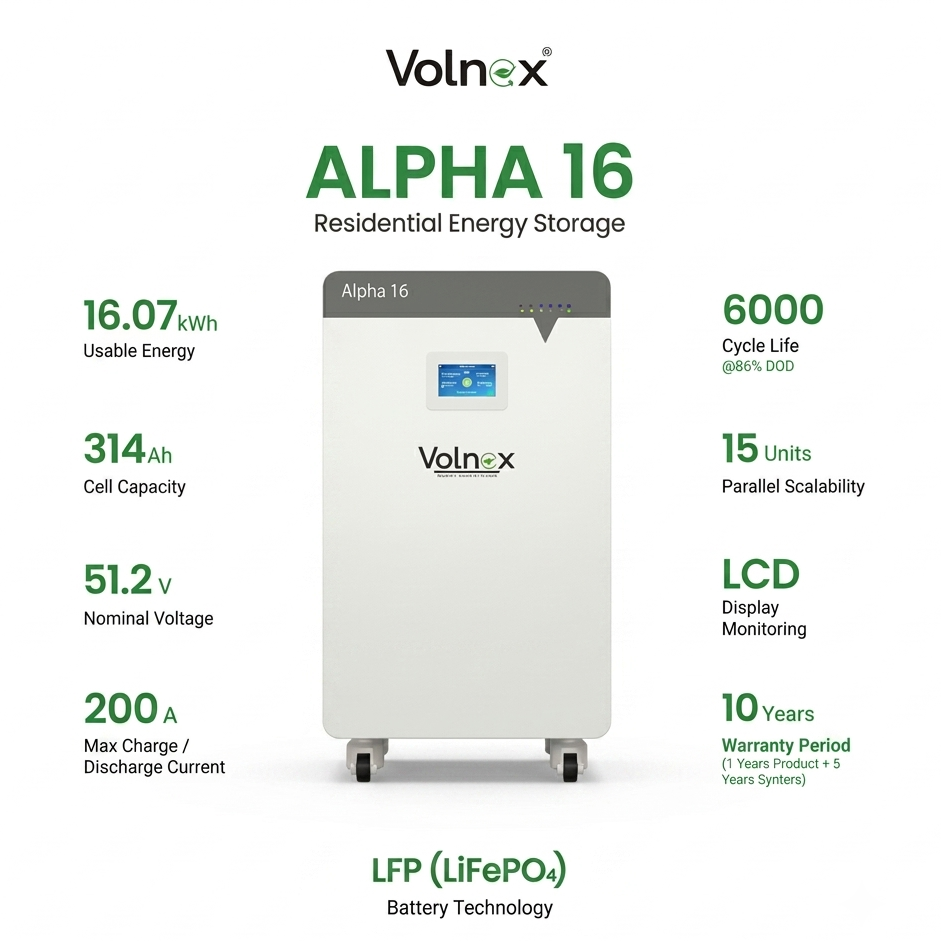

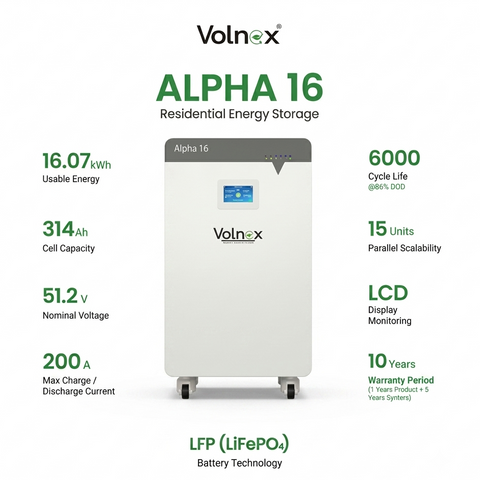

The Volnex Alpha 16 Residential Low Voltage Battery is a premium 16.08kWh LiFePO4 (Lithium Iron Phosphate) energy storage battery designed for residential and light commercial solar energy systems. With a 51.2V, 314Ah capacity, advanced Battery Management System (BMS), and support for up to 15 batteries in parallel, it provides reliable backup power, long service life, and excellent compatibility with leading hybrid and off-grid inverters. Built with high-quality LFP battery technology, the Alpha 16 delivers up to 6000 life cycles while maintaining outstanding safety, efficiency, and durability. It is suitable for on-grid, off-grid, and backup power applications, making it an ideal solution for modern solar energy storage systems.

Key Features

16.08kWh usable battery capacity

51.2V 314Ah LiFePO4 (LFP) battery technology

6000+ cycle life at 80% Depth of Discharge

Supports up to 15 batteries in parallel

200A maximum charge & discharge current

Floor-standing residential energy storage design

LCD display with SOC and LED status indicators

Specification Details
Brand Volnex
Model Alpha 16
Battery Technology LiFePO4 (LFP)
Usable Energy 16,076.8Wh (16.08kWh)
Cell Capacity 314Ah
Nominal Voltage 51.2V DC
Operating Voltage 44.8V – 56.16V
Max Charge Current 200A
Max Discharge Current 200A
Display LCD Display, SOC Indicator, LED Status Indicators
Communication CAN, RS485, RS232, Wi-Fi
Installation Type Floor Standing
Dimensions (W × D × H) 485 × 245 × 785 mm
Weight 122kg
Operating Temperature (Charge) 0°C to 50°C
Operating Temperature (Discharge) -15°C to 50°C
Humidity ≤95% RH (Non-condensing)
Protection Rating IP20
Cycle Life 6000 Cycles @ 80% DOD
Scalability Up to 15 Batteries in Parallel
Applications On-Grid, Off-Grid, Backup Power
Compatible Inverters Compatible with Major PCS/Inverter Brands
Warranty 10 Years (5-Year Product + 5-Year Service)



Read More
