UNI-T UT673PV+ Solar MPPT Meter | LCD Display, Max Power & Open Circuit Voltage Tester with Bluetooth

SKU: AR-003289
Product Type: UNI-T UT673PV+ Solar MPPT Meter
Rs.18,549.00
Rs.20,999.00
Rs.18,549.00
Save Rs.2,450.00
Subtotal: Rs.18,549.00

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

UNI-T UT673PV+ Solar MPPT Meter | LCD Display, Max Power & Open Circuit Voltage Tester with Bluetooth

UNI-T UT673PV+ Solar MPPT Meter | LCD Display, Max Power & Open Circuit Voltage Tester with Bluetooth

Rs.20,999.00 Rs.18,549.00

UNI-T UT673PV+ Solar MPPT Meter | LCD Display, Max Power & Open Circuit Voltage Tester with Bluetooth

Rs.20,999.00 Rs.18,549.00

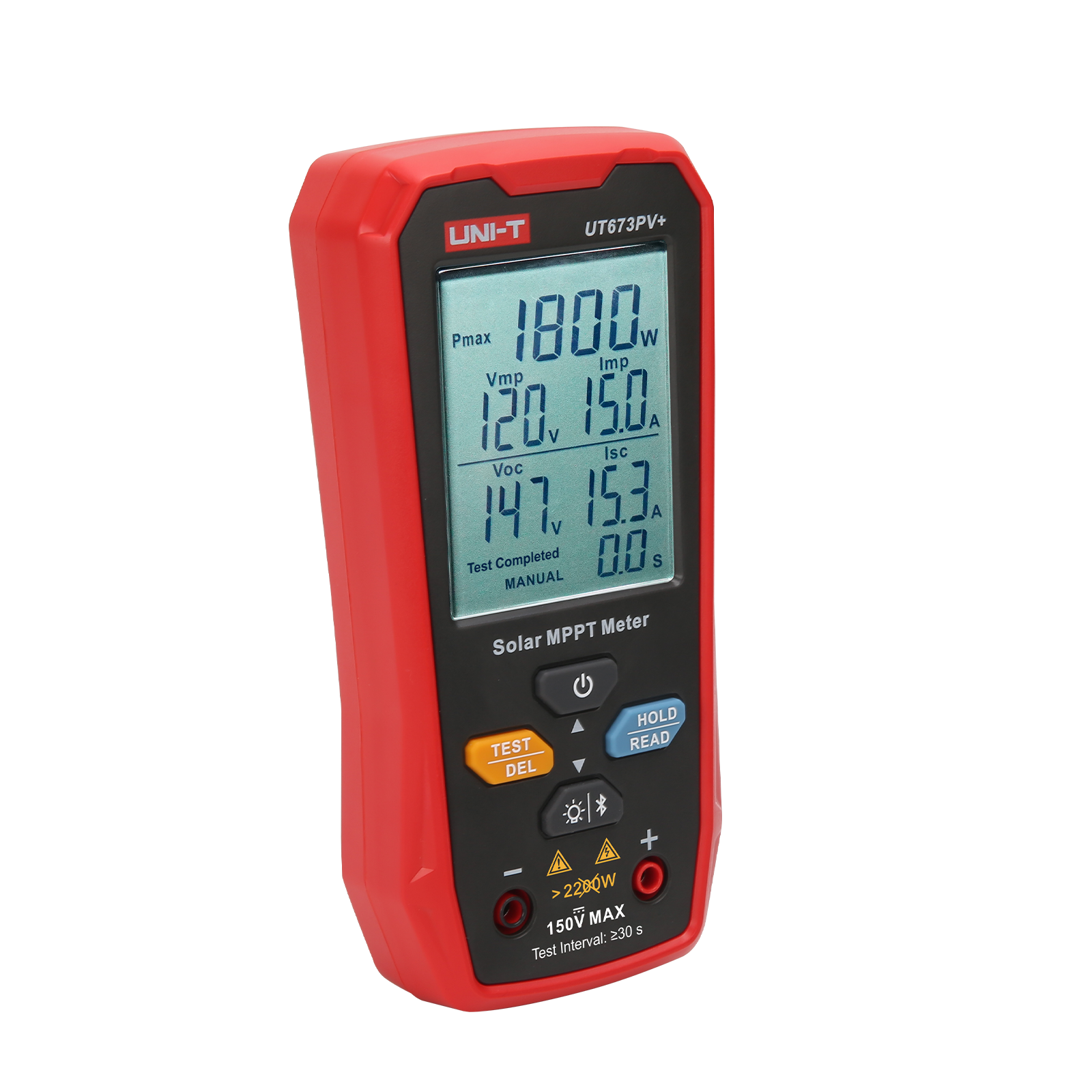

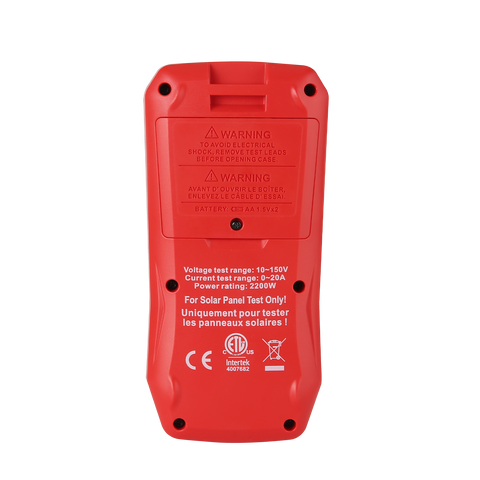

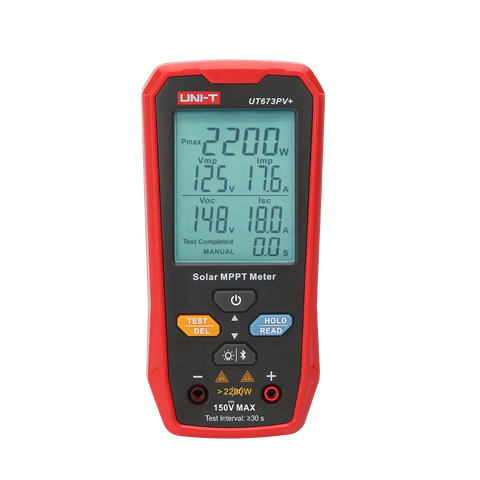

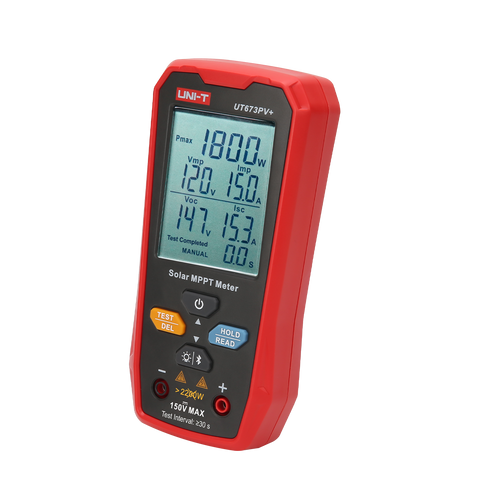

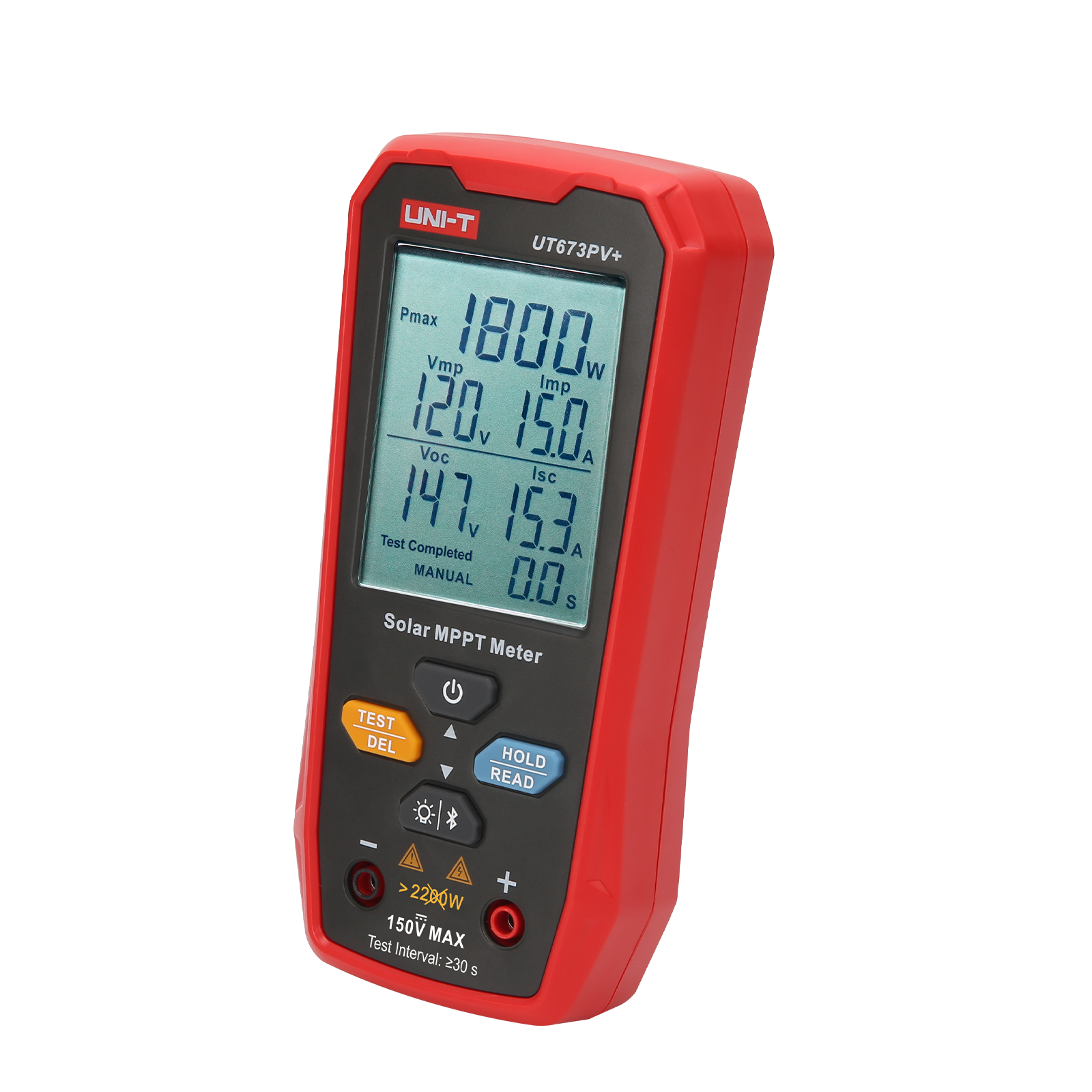

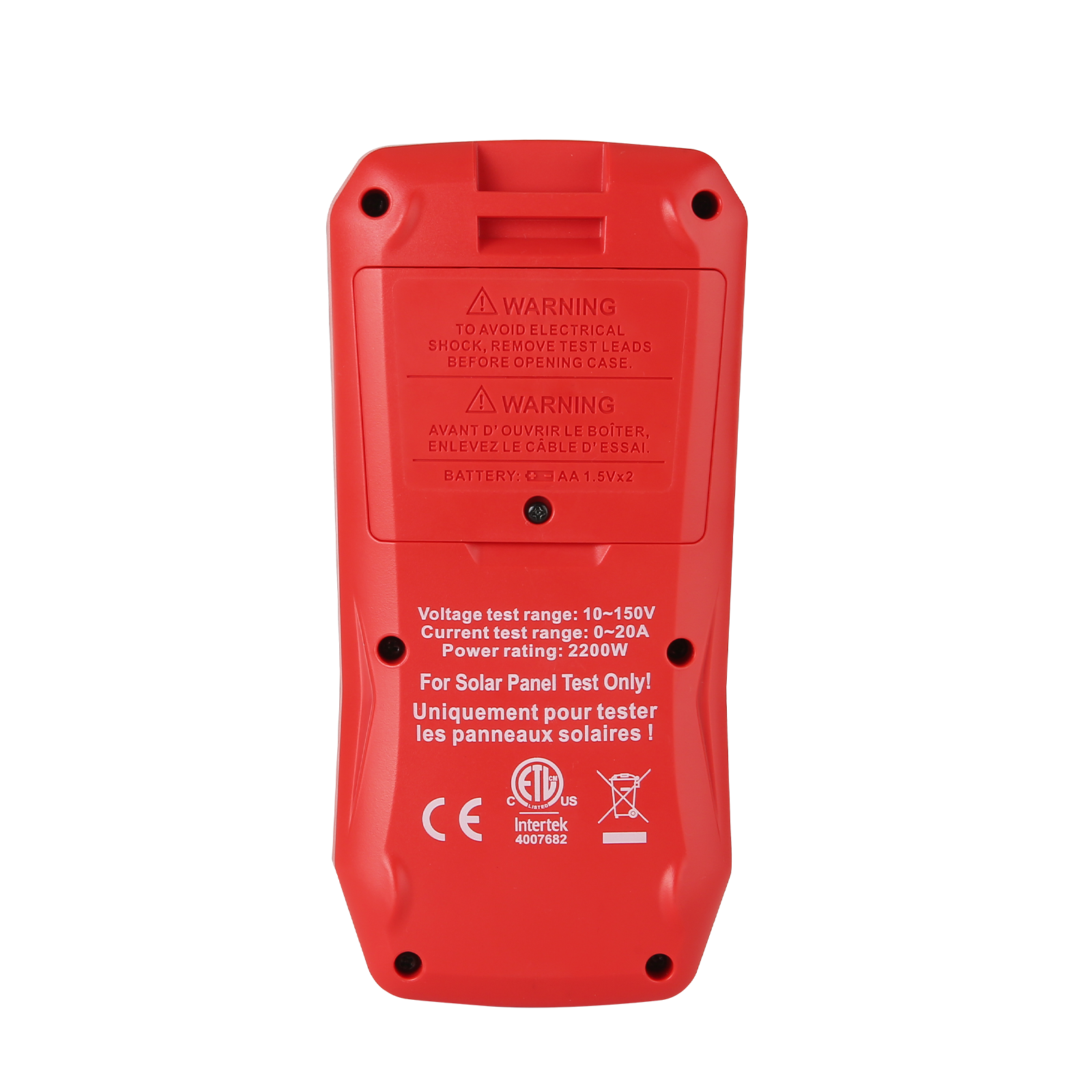

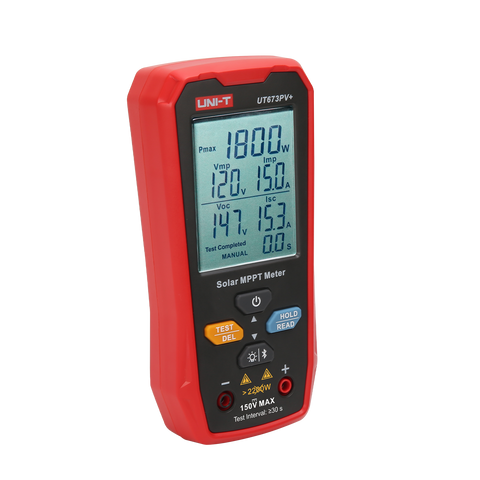

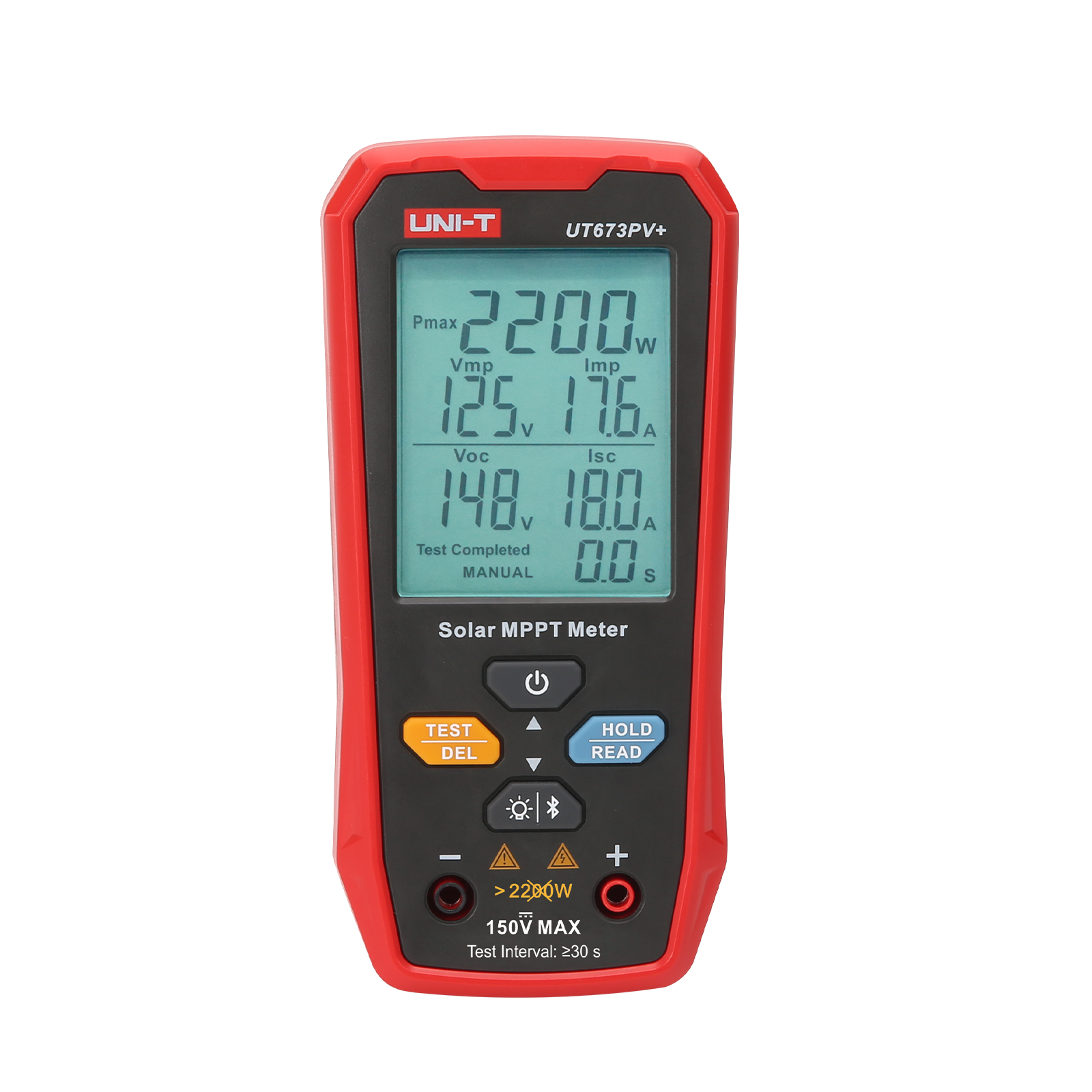

The UNI-T UT673PV+ Solar MPPT Meter is a professional photovoltaic (PV) testing instrument designed to quickly and accurately evaluate the performance of solar panels. It measures essential solar parameters such as maximum power (Pmax), peak power voltage (Vmp), peak power current (Imp), open-circuit voltage (Voc), and short-circuit current (Isc), helping technicians identify faults and optimize system performance. Featuring a large LCD display, automatic measurement, and Bluetooth connectivity, the UT673PV+ allows users to view and analyze test results with ease. Its compact, lightweight design and included MC4 test leads make it ideal for field testing, solar installations, maintenance, and troubleshooting. Certified to CE, cETLus, and RoHS standards, this reliable solar MPPT meter is an excellent choice for PV manufacturers, installers, engineers, and maintenance professionals.

Key Features

Maximum Power Test: Measures solar panel power output from 5W to 2200W with high accuracy.

Wide Voltage Range: Supports 10V–150V peak power and open-circuit voltage testing.

High Current Measurement: Measures 0–20A peak power and short-circuit current.

Large LCD Display: Displays multiple test results clearly on one screen.

Bluetooth Connectivity: Syncs with the mobile app for easy data monitoring.

MC4 Test Leads: Includes MC4 connectors for quick and reliable solar panel testing.

Portable Design: Compact and lightweight for convenient field use.

Battery Powered: Runs on 3 × 1.5V AAA batteries for portable operation.

Safety Certified: Rated CAT 0 150V and certified with CE, cETLus, and RoHS.

Professional PV Testing: Ideal for solar installers, technicians, and maintenance professionals.
