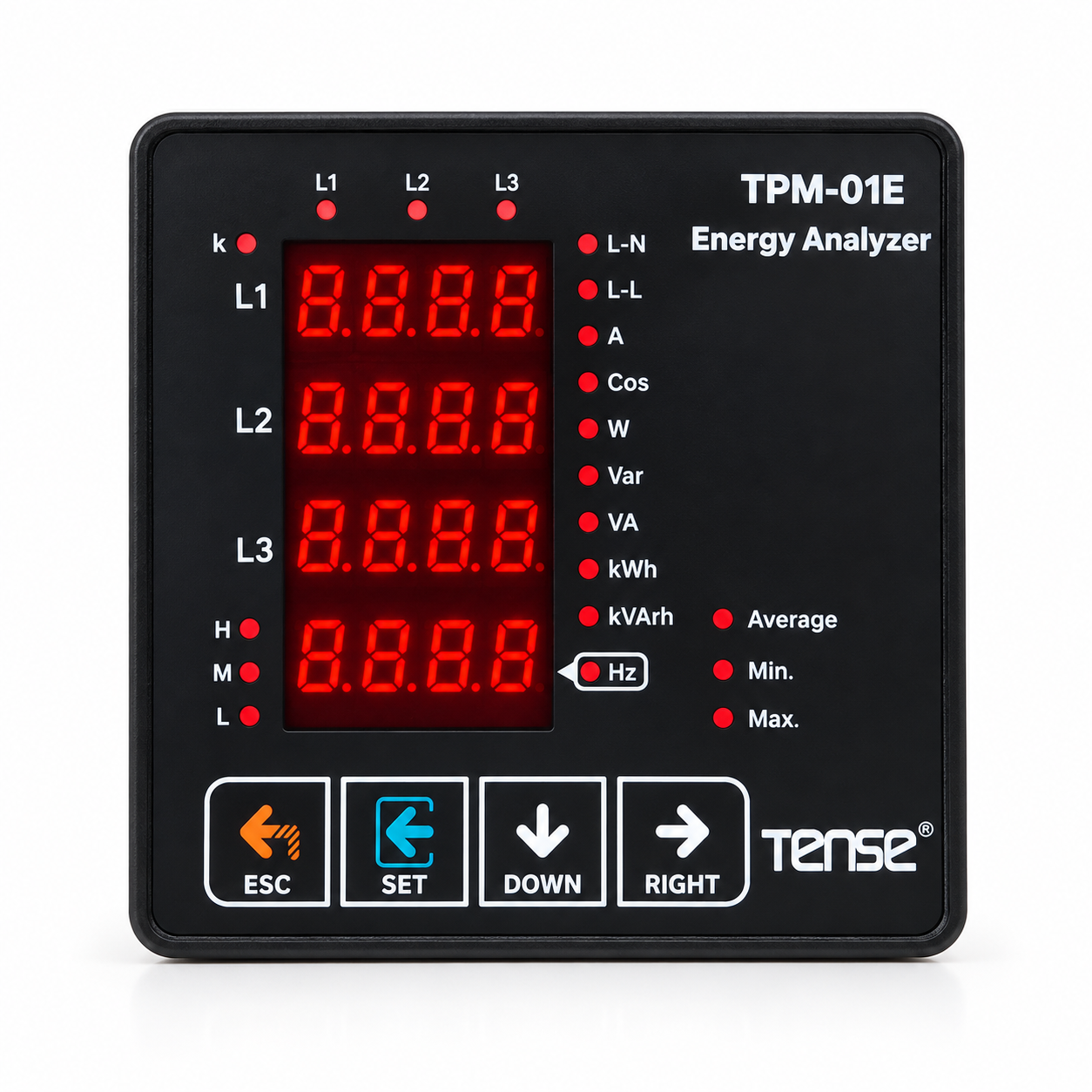

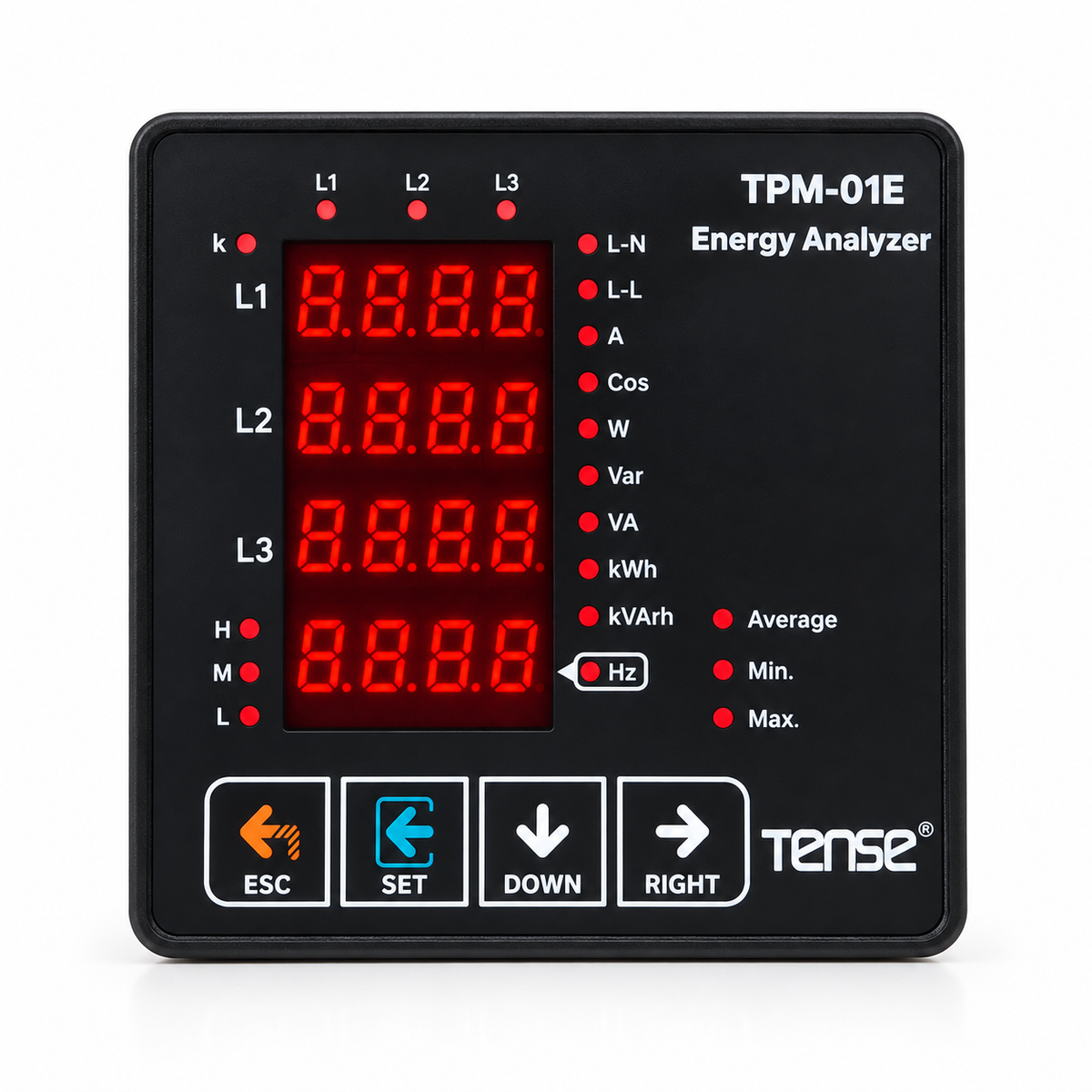

Tense TPM-01E Energy Analyzer

The Tense TPM-01E Energy Analyzer is a professional 3-phase electrical measurement device designed for accurate monitoring of voltage, current, power, energy, and power factor values. Featuring a clear 4×4 digit LED display, it provides easy installation, straightforward operation, and quick access to important electrical parameters. The TPM-01E measures per-phase active power (P), reactive power (Q), apparent power (S), voltage (V), current (I), Cosφ, and power factor for each phase. It also monitors total imported and exported active energy in kWh, along with inductive and capacitive reactive energy in kVArh. With minimum and maximum value monitoring, resettable energy measurements, and a password-protected menu, the TPM-01E is suitable for electrical panels, industrial systems, commercial installations, energy monitoring, and 3-phase power management applications.

Key Features

Display: Clear 4×4 digit LED display for easy viewing of electrical measurement values.

3-Phase Measurement: Designed for monitoring three-phase voltage and current through compatible transformers.

Easy Installation: Practical design allows straightforward installation and operation in electrical panels.

User Menu: Easy-to-use menu provides quick access to measurement and configuration functions.

Active Power: Displays per-phase active power (P) values for detailed power monitoring.

Reactive Power: Shows per-phase total reactive power (Q), including inductive and capacitive values.

Apparent Power: Measures and displays per-phase apparent power (S) for complete power analysis.

Power Factor: Displays Cosφ and power factor values separately for each phase.

Voltage Monitoring: Shows individual phase voltage (V) values for three-phase electrical systems.

Current Monitoring: Displays individual phase current (I) values for accurate load monitoring.

Active Energy: Measures total imported and exported active energy (ΣkWh) for energy tracking.

Reactive Energy: Monitors total inductive and capacitive reactive energy (ΣkVArh).

Min/Max Values: Records minimum and maximum measured values for electrical system analysis.

Energy Reset: Allows measured energy values to be reset when required for monitoring purposes.

Password Protection: Password-protected menu helps prevent unauthorized configuration changes.
