Tiger T-7200+ Gold Series 4kW Hybrid Solar Inverter With 7200W PV | Built-in WiFi | Dual Output | BMS Port
Tiger T-7200+ Gold Series 4kW Hybrid Solar Inverter With 7200W PV | Built-in WiFi | Dual Output | BMS Port

Tiger T-7200+ Gold Series 4kW Hybrid Solar Inverter With 7200W PV | Built-in WiFi | Dual Output | BMS Port

SKU: AR-002664
Product Type: hybrid inverter
Rs.124,999.00
Rs.136,999.00
Rs.124,999.00
Save Rs.12,000.00
Subtotal: Rs.124,999.00

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Tiger T-7200+ Gold Series 4kW Hybrid Solar Inverter With 7200W PV | Built-in WiFi | Dual Output | BMS Port

Tiger T-7200+ Gold Series 4kW Hybrid Solar Inverter With 7200W PV | Built-in WiFi | Dual Output | BMS Port

Rs.136,999.00 Rs.124,999.00
Tiger T-7200+ Gold Series 4kW Hybrid Solar Inverter With 7200W PV | Built-in WiFi | Dual Output | BMS Port
Tiger T-7200+ Gold Series 4kW Hybrid Solar Inverter With 7200W PV | Built-in WiFi | Dual Output | BMS Port

Tiger T-7200+ Gold Series 4kW Hybrid Solar Inverter With 7200W PV | Built-in WiFi | Dual Output | BMS Port

Rs.136,999.00 Rs.124,999.00
Description

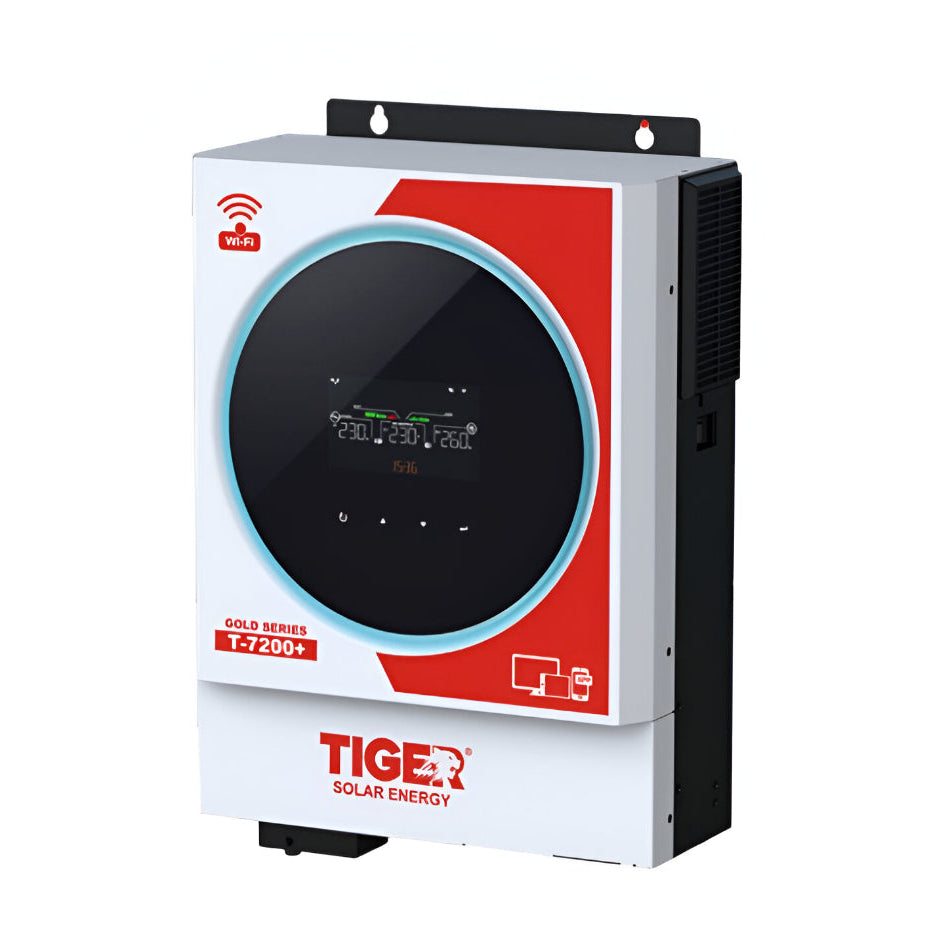

Upgrade your power system with the Tiger Solar Energy Hybrid Inverter T-7200+ Gold Series, a high-performance solution designed for maximum efficiency and reliability. This advanced hybrid inverter seamlessly integrates solar energy, battery storage, and grid power to deliver uninterrupted electricity for your home or business.

Key Features:

  • Model: Tiger Solar Energy Hybrid Inverter T-7200+ Gold Series
  • Advanced MPPT controller for optimal solar performance
  • Pure sine wave output for safe appliance operation
  • Compatible with solar panels, batteries, and grid power
  • High efficiency and intelligent power management
  • Durable design for long-term reliability
Specification Details
Model Tiger Gold Series T-7200+
Rated Power 4000VA / 4000W
Input Voltage 230 VAC
Selectable Voltage Range 170–280 VAC (For Personal Computers) / 90–280 VAC (For Home Appliances)
Frequency Range 50 Hz / 60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode) 230VAC ±10%
Surge Power 8000VA
Efficiency (Peak) 90% ~ 93%
Transfer Time 10 ms (For PCs) / 20 ms (For Home Appliances)
Waveform Pure Sine Wave
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 33 VDC
Solar Charger Type MPPT
Maximum PV Array Power 7200W
MPP Range @ Operating Voltage 60 ~ 450 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum PV Input Current 40A
Maximum Solar Charge Current 120A
Maximum AC Charge Current 100A
Maximum Combined Charge Current 120A
Dimension (D × W × H) 136 × 300 × 400.2 mm
Net Weight 10 kg
Communication Interface USB / RS232 / RS485 / WiFi / Dry-contact
Humidity 5% to 95% RH (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
