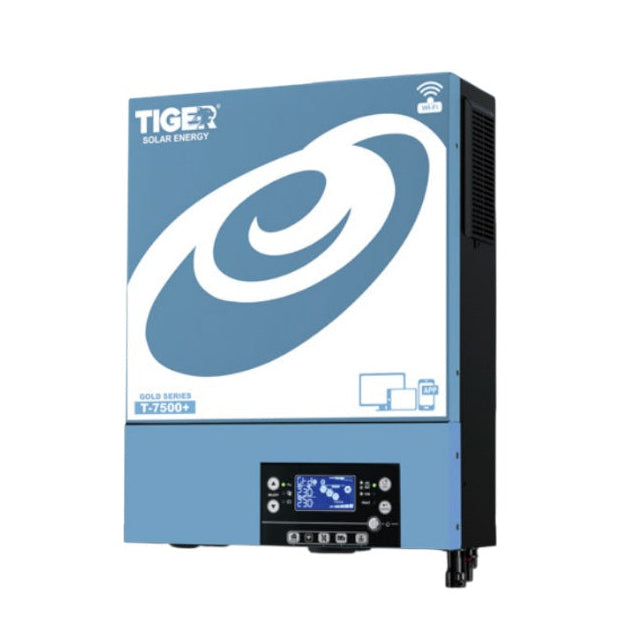

Tiger T-7500+ Gold Series 4.5kW Hybrid Solar Inverter With 7500W PV | Dual Input | Built-in WiFi |3 Outputs | BMS Port
Tiger T-7500+ Gold Series 4.5kW Hybrid Solar Inverter With 7500W PV | Dual Input | Built-in WiFi |3 Outputs | BMS Port

Tiger T-7500+ Gold Series 4.5kW Hybrid Solar Inverter With 7500W PV | Dual Input | Built-in WiFi |3 Outputs | BMS Port

SKU: 002667
Product Type: hybrid solar inverter
Rs.124,999.00
Rs.139,999.00
Rs.124,999.00
Save Rs.15,000.00
Subtotal: Rs.124,999.00

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Tiger T-7500+ Gold Series 4.5kW Hybrid Solar Inverter With 7500W PV | Dual Input | Built-in WiFi |3 Outputs | BMS Port

Tiger T-7500+ Gold Series 4.5kW Hybrid Solar Inverter With 7500W PV | Dual Input | Built-in WiFi |3 Outputs | BMS Port

Rs.139,999.00 Rs.124,999.00
Tiger T-7500+ Gold Series 4.5kW Hybrid Solar Inverter With 7500W PV | Dual Input | Built-in WiFi |3 Outputs | BMS Port
Tiger T-7500+ Gold Series 4.5kW Hybrid Solar Inverter With 7500W PV | Dual Input | Built-in WiFi |3 Outputs | BMS Port

Tiger T-7500+ Gold Series 4.5kW Hybrid Solar Inverter With 7500W PV | Dual Input | Built-in WiFi |3 Outputs | BMS Port

Rs.139,999.00 Rs.124,999.00
Description

Equipped with advanced MPPT technology, the T-7500+ maximizes solar energy conversion and enhances overall system efficiency. Its pure sine wave output guarantees clean and stable power for sensitive electronics, while smart protection features safeguard against overloads, short circuits, and voltage fluctuations.

Key Features:

  • Dual inputs and three outputs for smart energy management
  • Maximum PV input current 40A
  • Built-in Wi-Fi for mobile monitoring and OTA firmware
  • Supports USB (Type-A or Type-C) On-the-Go function for exporting log and firmware upgrade
  • Reserved communication port for BMS
  • Built-in external CT sensor to guarantee 100% self-consumption
  • Battery independent design
  • Built-in 120A MPPT solar charger
  • Built-in anti-dust kit
Specification Details
Model Tiger Gold Series T-7500+
Rated Power 4500VA / 4500W
Input Voltage 230 VAC
Selectable Voltage Range 170–280 VAC (For Personal Computers) / 90–280 VAC (For Home Appliances)
Frequency Range 50 Hz / 60 Hz (Auto Sensing)
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 9000VA
Efficiency 93%
Transfer Time 10 ms (For PCs) / 20 ms (For Home Appliances)
Waveform Pure Sine Wave
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 33 VDC
Solar Charger Type MPPT
Maximum PV Array Power 7500W
MPP Range @ Operating Voltage 60 ~ 450 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum PV Input Current 40A
Maximum Solar Charge Current 120A
Maximum AC Charge Current 120A
Maximum Total Charge Current 120A
Dimension (D × W × H) 131 × 336 × 435.5 mm
Net Weight 11.8 kg
Communication Interface USB / RS232 / RS485 / WiFi / Dry-contact
Humidity 5% to 95% RH (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
