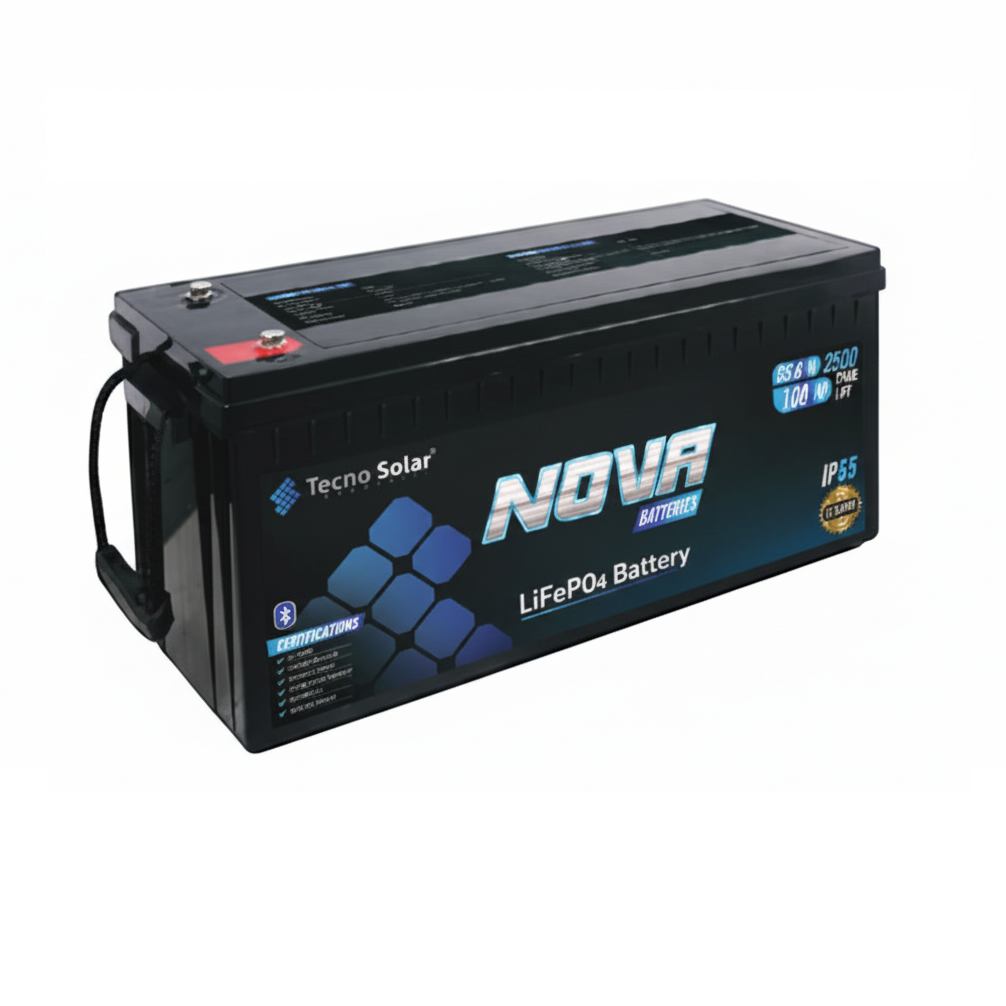

Tecno Solar Nova TSI-24100 25.6V 100Ah LiFePO₄ Battery – 2560Wh Deep Cycle Solar Battery with Smart BMS & IP65 Protection

Tecno Solar Nova TSI-24100 25.6V 100Ah LiFePO₄ Battery – 2560Wh Deep Cycle Solar Battery with Smart BMS & IP65 Protection

SKU: AR-002952
Product Type: Battery
Rs.110,000.00
Rs.115,000.00
Rs.110,000.00
Save Rs.5,000.00
Subtotal: Rs.110,000.00

3 years replacement warranty 2 years maintenance warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Tecno Solar Nova TSI-24100 25.6V 100Ah LiFePO₄ Battery – 2560Wh Deep Cycle Solar Battery with Smart BMS & IP65 Protection

Tecno Solar Nova TSI-24100 25.6V 100Ah LiFePO₄ Battery – 2560Wh Deep Cycle Solar Battery with Smart BMS & IP65 Protection

Rs.115,000.00 Rs.110,000.00
Tecno Solar Nova TSI-24100 25.6V 100Ah LiFePO₄ Battery – 2560Wh Deep Cycle Solar Battery with Smart BMS & IP65 Protection

Tecno Solar Nova TSI-24100 25.6V 100Ah LiFePO₄ Battery – 2560Wh Deep Cycle Solar Battery with Smart BMS & IP65 Protection

Rs.115,000.00 Rs.110,000.00
Description

With a 2560Wh energy capacity, 3500+ deep charge cycles, and an intelligent Battery Management System (BMS), this battery ensures stable power output, excellent thermal protection, and long-term performance. Its IP65-rated casing makes it suitable for both indoor and outdoor installations.

Key Features

High Energy Output – 25.6V 100Ah battery providing 2560Wh reliable power.

Long Cycle Life – Up to 3500 cycles at 50A charge/discharge for extended lifespan.

Smart BMS Protection – Protects against over-charge, over-discharge, overheating, and short circuits.

Fast & Efficient Charging – Supports CC-CV charging with up to 100A maximum current.

Strong Discharge Performance – 100A continuous and 250A pulse current for high-load applications.

IP65 Water & Dust Resistance – Durable design for harsh environmental conditions.

Scalable Battery System – Supports up to 4 batteries in series and 4 in parallel.

Optional Smart Features – Bluetooth monitoring and heating function available.

Compact & Lightweight Design – Only 18.4 kg with a durable plastic casing.

Parameter Specification
Nominal Voltage 25.6V
Nominal Capacity 100Ah
Minimum Capacity 99Ah
Nominal Energy 2560Wh
Internal Resistance ≤10mΩ
Cycle Life 3500 Cycles @ 50A Charge/Discharge (Until 80% Capacity)
Self Discharge ≤2% per month @ 25°C & 50% SOC
Bluetooth & Heating Optional
Charging Voltage 28.0 – 28.8V
Charging Mode CC–CV
Recommended Charging Current ≤50A
Maximum Charging Current 100A (Continuous charging may trigger BMS temperature protection)
Recommended Discharging Current 50A
Maximum Continuous Discharging Current 100A
Maximum Pulse Current 250A (<10 seconds)
Discharging Cut-off Voltage 21.6V
Charge Temperature 0°C to 45°C (32°F to 113°F) @ 60±25% RH
Discharge Temperature −20°C to 60°C (−4°F to 140°F) @ 60±25% RH
Storage Temperature 0°C to 45°C (32°F to 113°F) @ 60±25% RH
Casing Material Plastic
Dimensions (L × W × H × TH) 502 × 186 × 240 mm
Weight Approx. 18.4 kg
Terminal Type M8
Water & Dust Resistance IP65
Maximum Series Connections 4 PCS
Maximum Parallel Connections 4 PCS
