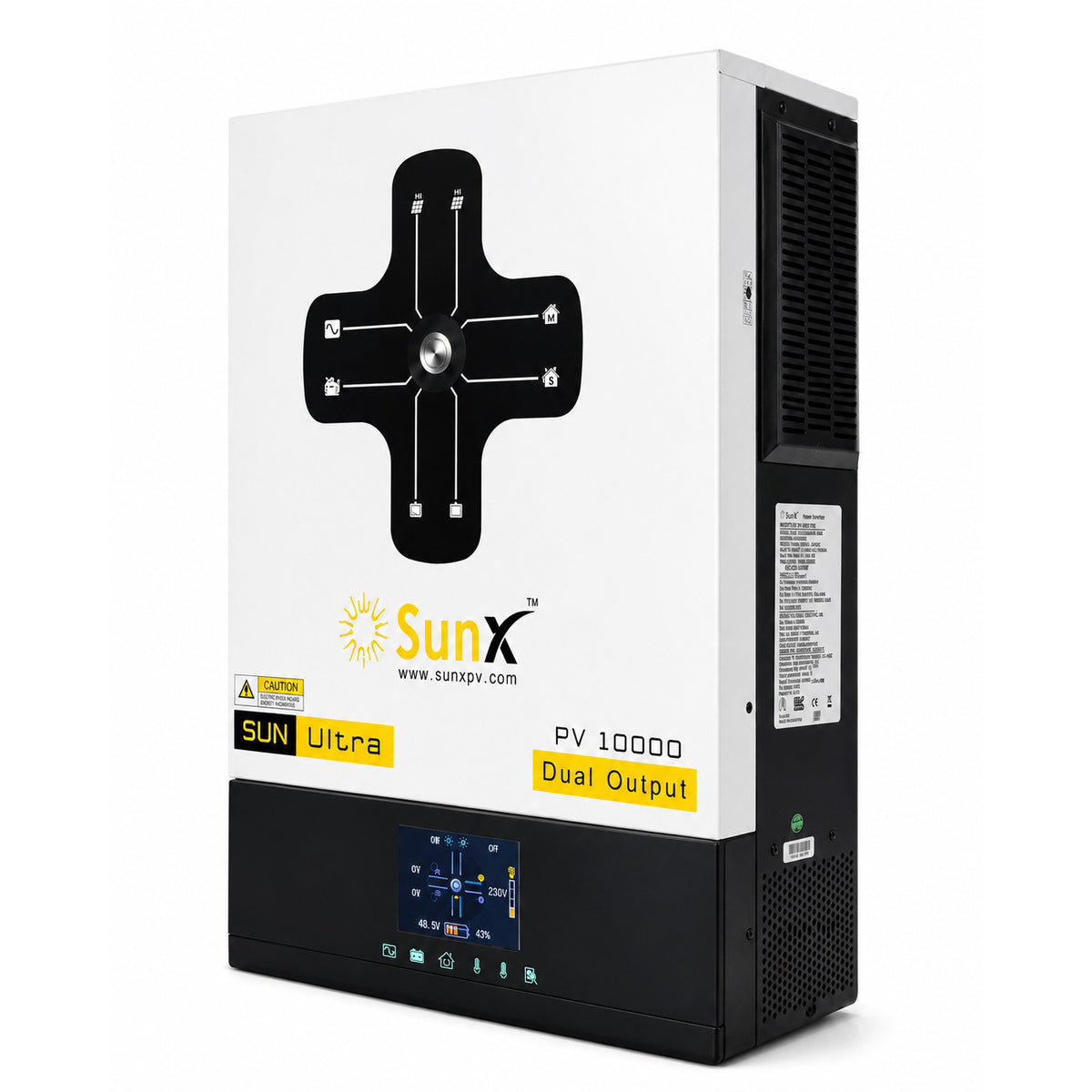

SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave
SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave
SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave
SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave

SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave

Write A Review
SKU: AR-003736
Product Type: Hybrid Solar Inverter
Rs.222,200.00
Rs.254,999.00
Rs.222,200.00
Save Rs.32,799.00
Subtotal: Rs.222,200.00

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave

SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave

Rs.254,999.00 Rs.222,200.00
SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave
SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave
SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave
SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave

SunX SunUltra 8kW Hybrid Solar Inverter With PV10000, Dual Output, Pure Sinewave

Rs.254,999.00 Rs.222,200.00
Description

Hybrid Solar Inverter – 8kW, pure sine wave hybrid inverter with MPPT solar charging, AC charging, 48 VDC battery system, and parallel operation capability for up to 6 units.Pure sine wave output ensures stable and efficient power delivery.
Dual MPPT technology supports up to 10,000W solar input.Parallel operation supports up to 6 units with Wi-Fi

  • 8KW Rated Power – Delivers 8000W output with 16000VA surge capacity
  • Pure Sine Wave Output – Provides stable 230V AC power with 90%–93% peak efficiency.
  • Dual MPPT Solar Charging – Supports up to 10,000W solar input with a 90–450VDC MPPT range.
  • High-Speed Charging – Supports up to 150A solar charging and 120A AC charging.
  • Parallel & Smart Connectivity – Supports up to 6 units in parallel, with Wi-Fi, USB, RS232, and RS485 communication interfaces.

Specification

Details

Rated Power

8000VA / 8000W

Parallel Capability

Yes, 6 units

Voltage

230 VAC

Selectable Voltage Range

170–280 VAC (for Personal Computers); 90–280 VAC (for

Home Appliances)

Frequency Range

50 Hz / 60 Hz (Auto Sensing)

AC Voltage Regulation (Battery Mode)

230 VAC ± 5%

Surge Power

16000 VA

Efficiency (Peak)

90%–93%

Transfer Time

10 ms (for Personal Computers); 20 ms (for Home Appliances)

Waveform

Pure Sine Wave

Battery Voltage

48 VDC

Floating Charge Voltage

54 VDC

Overcharge Protection

66 VDC

Solar Charger Type

MPPT

Maximum PV Array Power

10000 W (5000 W × 2)

MPPT Range / Operating Voltage

90–450 VDC

Maximum PV Array Operation

500 VDC

Maximum PV Input Current

27 A × 2 (Max 40 A)

Maximum Solar Charge Current

150 A

Maximum AC Charge Current

120 A

Maximum Charge Current

150 A

Dimension (D × W × H)

145 × 438 × 553.6 mm

Net Weight

18.4 kg

Communication Interface

USB / RS232 / RS485 / WiFi / Dry-contact / BTS

Additional Protection / Support

Supports optional GFCI, Rapid Shutdown, AFCI detection

External Current Sensor Port

Yes, built-in current transformer sensor

Humidity

5% to 95% Relative Humidity (non-condensing)

Operating Temperature

−10°C to 50°C

Storage Temperature

−15°C to 60°C

Compliance / Safety

CE
