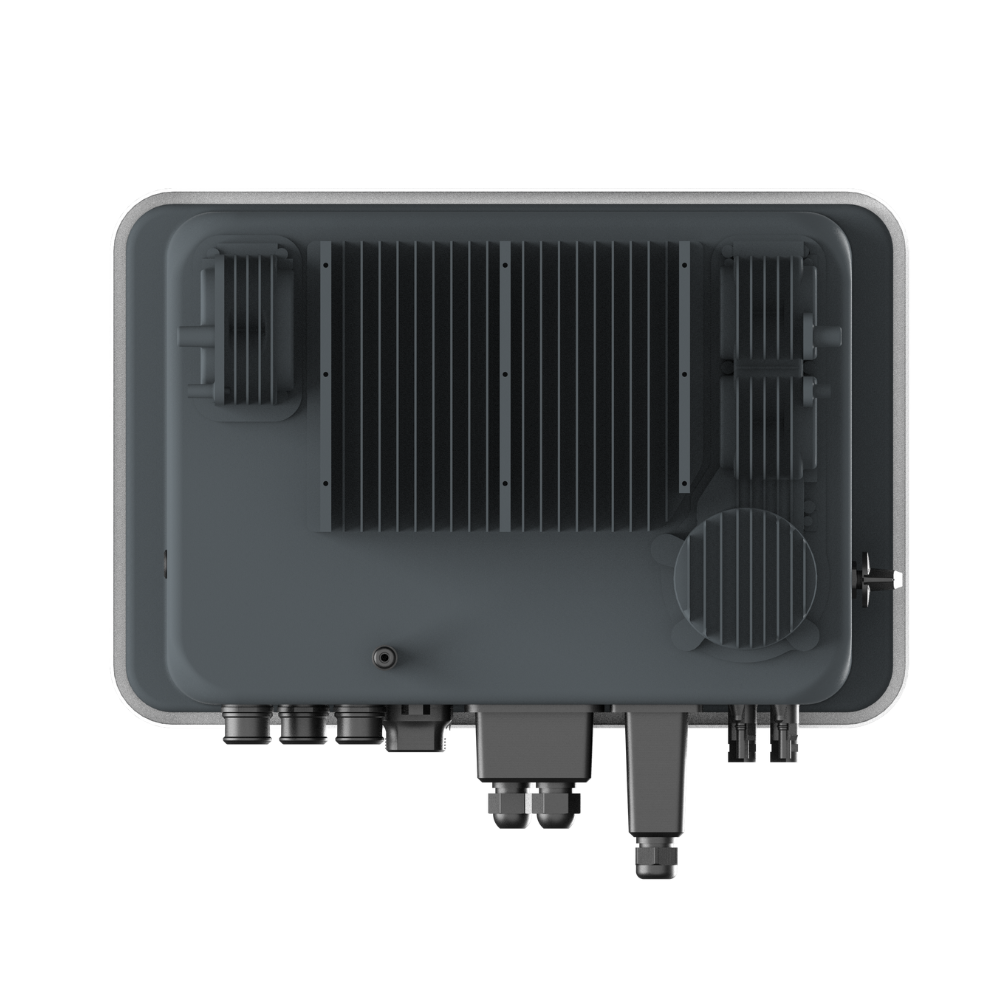

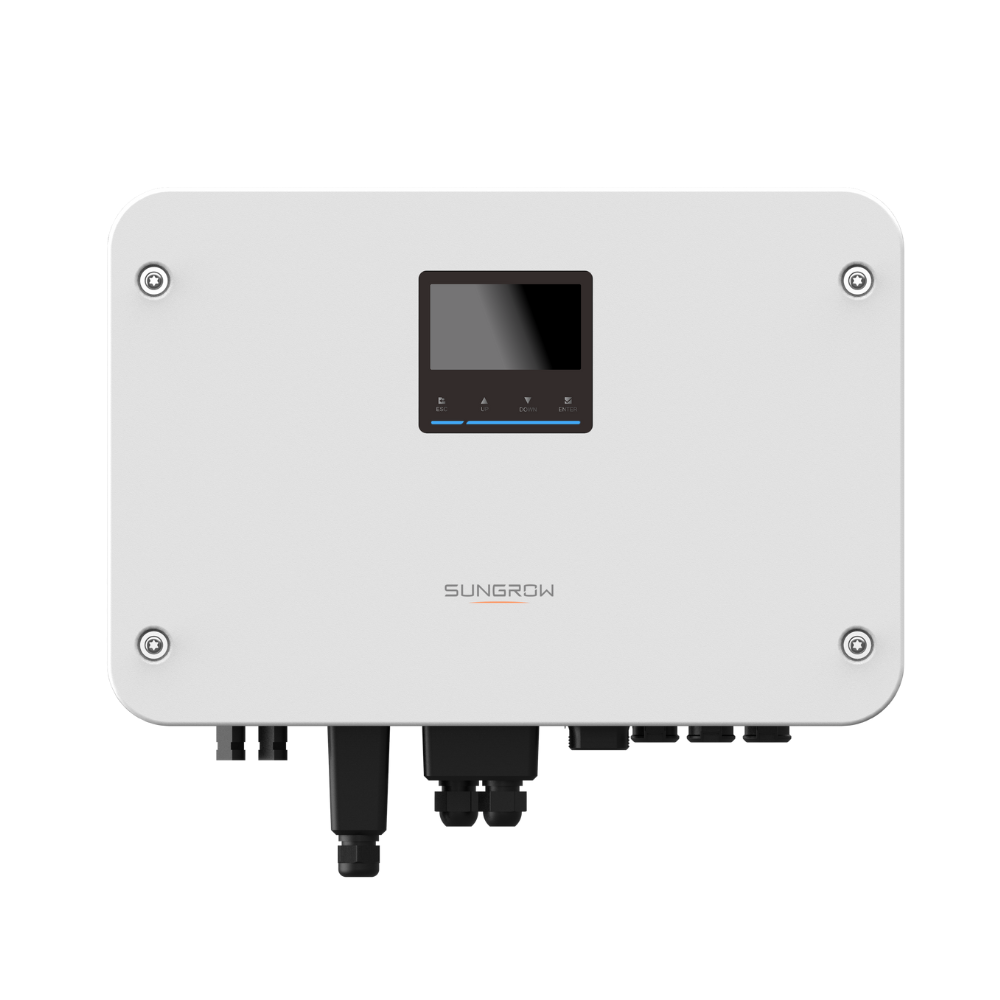

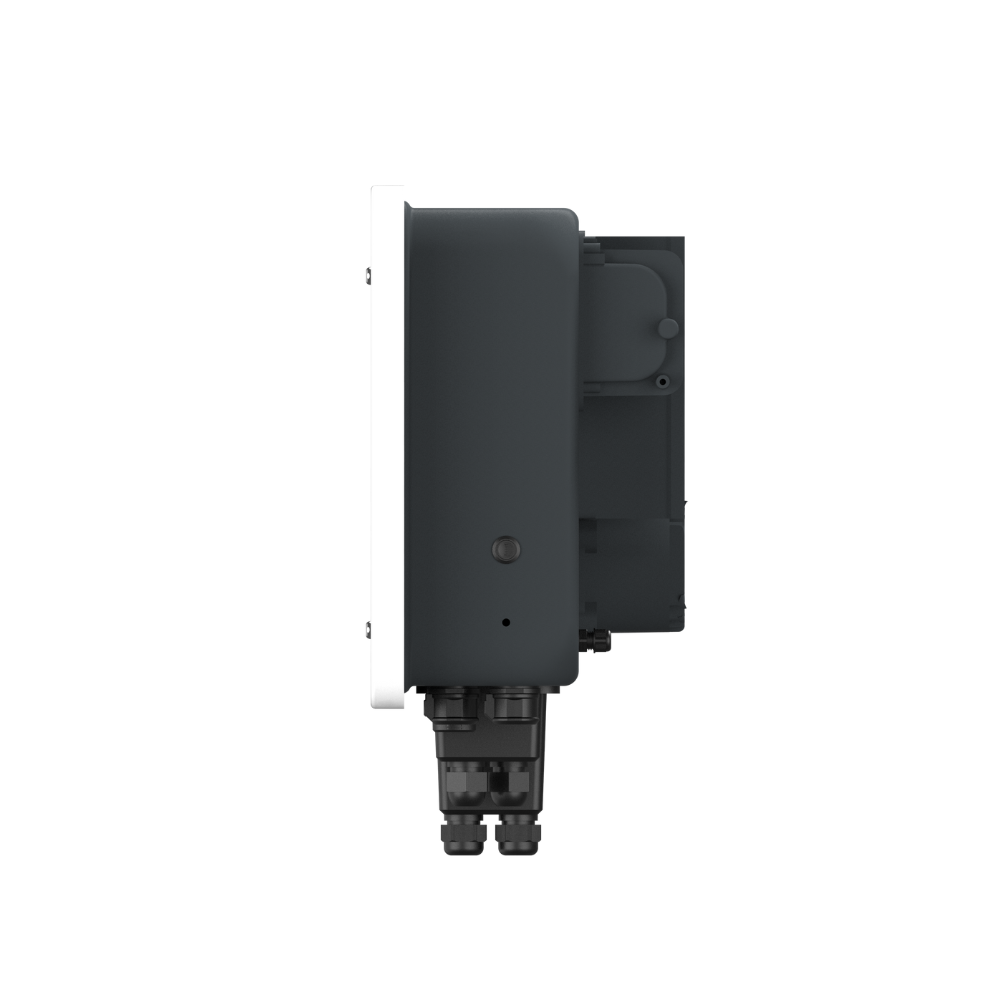

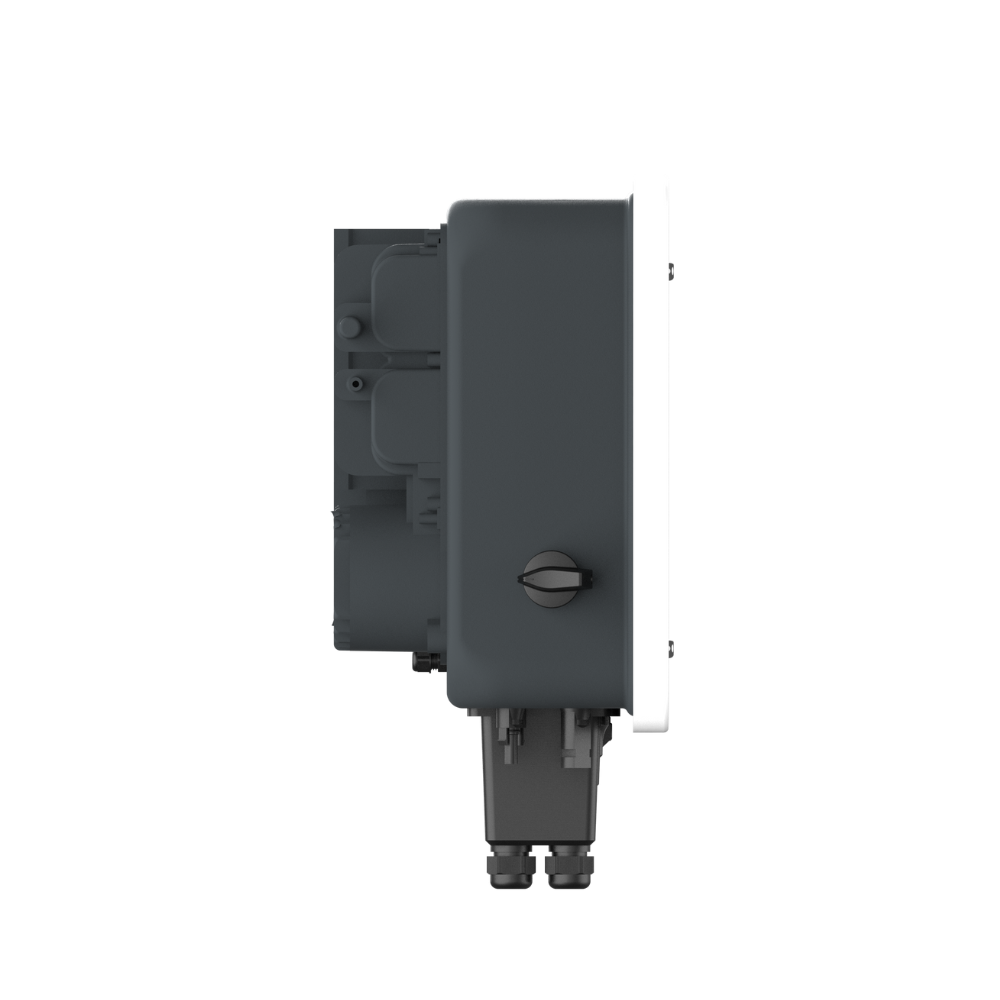

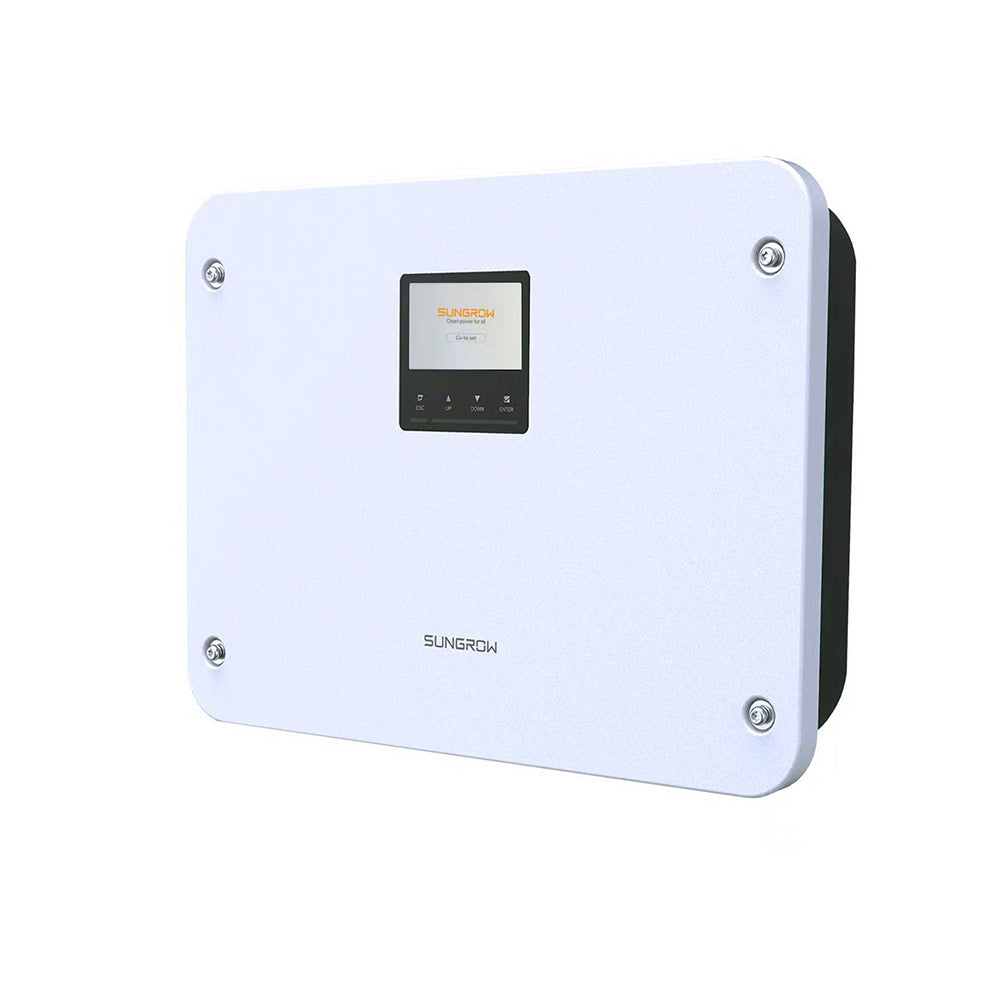

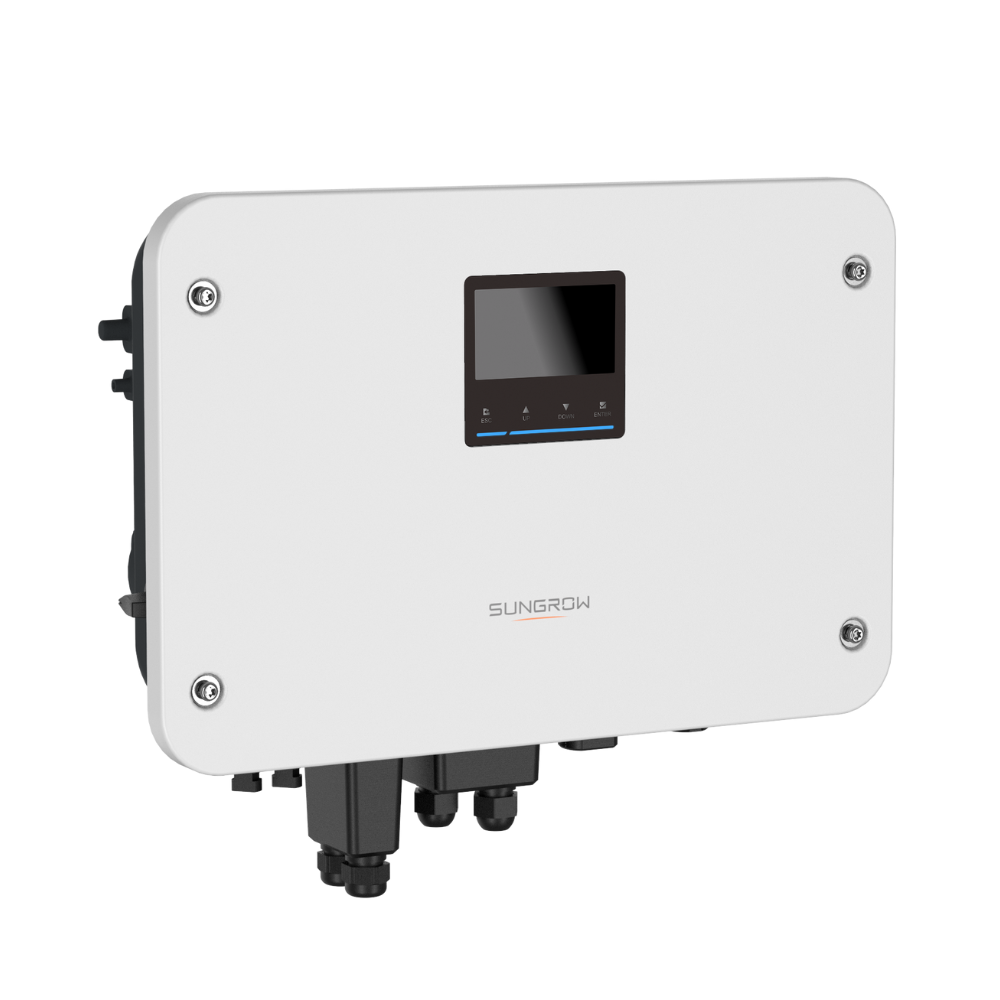

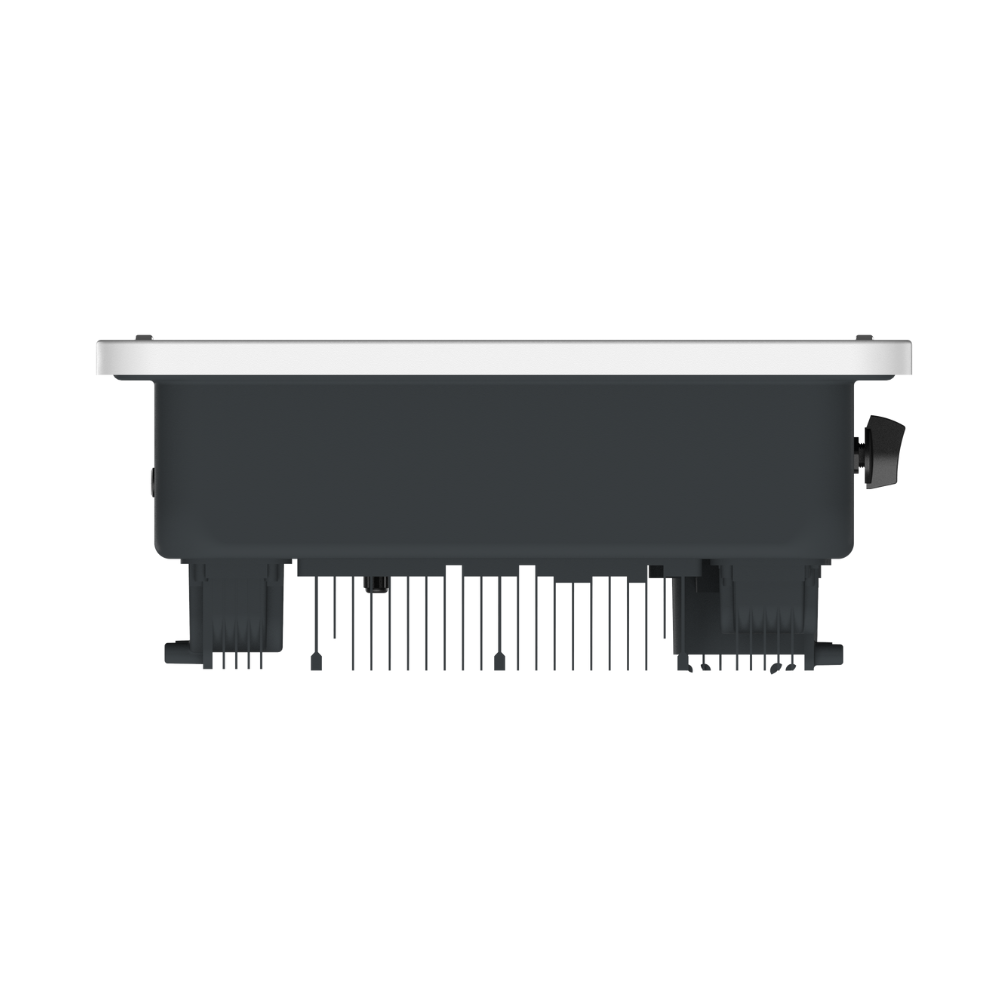

Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT

Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT

SKU: AR-002683
Product Type: solar inverter

Best Price Guarranted

At Alladin.pk, we don’t just match prices—we beat them while maintaining top quality!

Rs.249,999.00
Rs.249,999.00
Subtotal: Rs.249,999.00

5 Years Brand Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT

Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT

Rs.249,999.00
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT
Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT

Sungrow MG6RL 6KW - 48V Hybrid Solar Inverter (Single Phase) PV 12000W | IP65 | Touch Display | Dual MPPT

Rs.249,999.00
Description

The Sungrow MG6RL Hybrid Inverter is a 6kW high-performance residential solution designed for reliability and efficiency. It offers seamless backup power (switching in under 4ms), 200% peak power for 10 seconds, and advanced battery management. With dual pressure relief, AFCI protection, and a wide MPPT voltage range supporting 20A PV input per string, it ensures safe and flexible operation. The 4.3-inch touchscreen, multiple communication ports, and remote monitoring make system control simple and intuitive.

Key Features:

  • 6kW rated AC output power with full backup capability
  • Seamless backup switching (< 4 ms) for uninterrupted power
  • 200% peak output power for up to 10 seconds
  • Maximum 20A PV input current per string
  • Wide MPPT operating voltage range (40 – 425 V)
  • Supports whole-home backup with 40A bypass switch
  • Smart control interface for generators, smart loads, or microinverters
  • Dual-system pressure relief for PCS and AFCI protection
  • Natural convection cooling with IP65 protection
  • 4.3-inch LCD touchscreen with optional Wi-Fi or Ethernet communication

Download Datasheet

Technical Specifications:

Specification MG6RL
Recommended Max. PV Input Power 12,000 Wp
Max. Usable PV Input Power 9,600 Wp
Max. PV Input Voltage 500 V
Startup / Min. PV Input Voltage 50 V / 40 V
Rated PV Input Voltage 360 V
MPPT Operating Voltage Range 40 V – 425 V
Number of MPPT Trackers 2
Max. PV Input Current 40 A (20 A per string)
Battery Type Lithium-ion
Battery Voltage Range 40 V – 60 V
Max. Charge / Discharge Current 135 A
Max. Battery Charge / Discharge Power 6,000 W
AC Output Power (Grid Mode) 6,000 W
Max. Apparent Power 6,000 VA
Rated AC Output Voltage 220 V / 230 V / 240 V
AC Voltage Range 154 V – 276 V
Frequency 50 Hz / 60 Hz
Grid Frequency Range 45 – 55 Hz / 55 – 65 Hz
Harmonic Distortion (THD) < 3%
Power Factor > 0.99 at rated output
Max. Output Power for Backup Load 6,600 W
Backup Mode Voltage / Frequency 220 / 230 / 240 V
Peak Output (10 seconds) 2x rated power (up to 13,200 W)
Switching Time to Backup Mode ≤ 4 ms
Max. Efficiency / European Efficiency 97.6% / 96.7%
Cooling Method Natural convection
Protection Features DC reverse polarity, AC short-circuit, leakage current, PID, surge protection (DC Type II / AC Type II), AFCI (optional)
Degree of Protection IP65
Display 4.3" LCD digital touchscreen & LED indicator
Communication CAN, RS485, Ethernet (optional), WLAN (optional)
Dimensions (W x H x D) 536 mm × 386 mm × 210 mm
Weight < 18 kg
Mounting Wall-mounted
Ambient Temperature Range -25°C to +60°C
Certifications IEC 62109-1/-2, IEC 61000-6-1/-3, IEC 62116, NRS 097-2-1, MEA, PEA, DEWA

Included in the Package:

  • Sungrow MG6RL Hybrid Inverter
  • Wall-mounting bracket
  • User manual
  • Communication interfaces (CAN/RS485)
  • Optional Ethernet or WLAN module (if selected)
