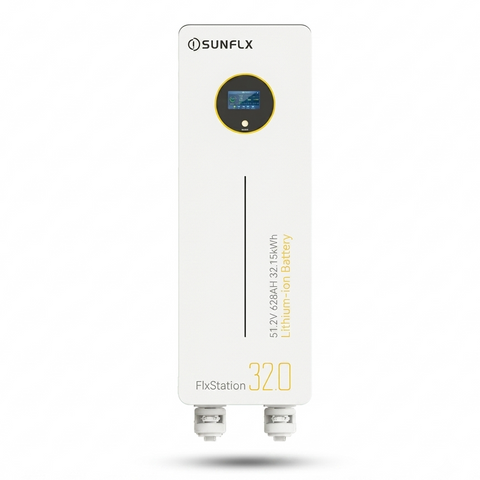

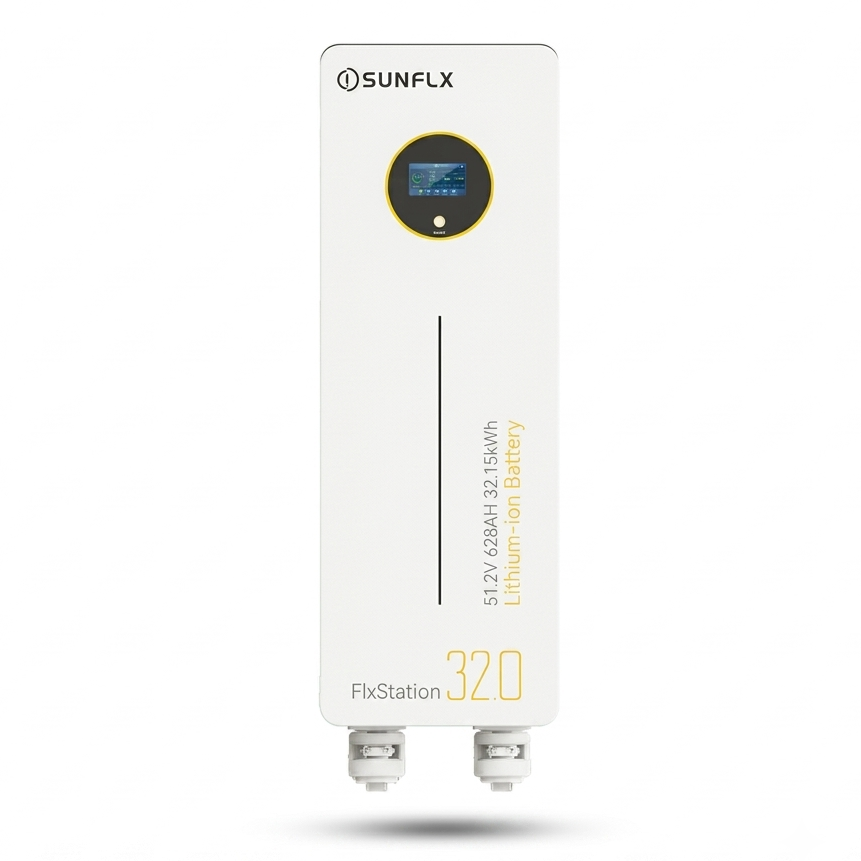

SUNFLX FlxStation 32.0 30kW 51.2V LiFePO4 Lithium-Ion Battery

SUNFLX FlxStation 32.0 30kW 51.2V LiFePO4 Lithium-Ion Battery

Write A Review
SKU: AR-003379
Product Type: lithium battery
Rs.1,285,000.00
Rs.1,295,000.00
Rs.1,285,000.00
Save Rs.10,000.00
Subtotal: Rs.1,285,000.00

5 Years Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

SUNFLX FlxStation 32.0 30kW 51.2V LiFePO4 Lithium-Ion Battery

SUNFLX FlxStation 32.0 30kW 51.2V LiFePO4 Lithium-Ion Battery

Rs.1,295,000.00 Rs.1,285,000.00
SUNFLX FlxStation 32.0 30kW 51.2V LiFePO4 Lithium-Ion Battery

SUNFLX FlxStation 32.0 30kW 51.2V LiFePO4 Lithium-Ion Battery

Rs.1,295,000.00 Rs.1,285,000.00
Description

The SunFLX FlxStation 32.0 Lithium-ion Battery is a premium 30.72kWh (600Ah) LiFePO4 energy storage system designed for residential, commercial, and industrial solar applications. Built with advanced LiFePO4 prismatic cells, it delivers exceptional safety, long service life, and high charging/discharging efficiency. Featuring a 51.2V DC battery system, a 4.3-inch touch screen display, integrated Wi-Fi & Bluetooth monitoring, and support for up to 15 batteries in parallel, the FlxStation 32.0 is an ideal energy storage solution for large hybrid and off-grid solar systems. It is compatible with most leading inverter brands through CAN, RS485, and RS232 communication protocols.

Key Features

30.72kWh (600Ah) High-Capacity Energy Storage

Advanced LiFePO4 Prismatic Cell Technology

51.2V DC Battery System

100% Depth of Discharge (DOD) (Settable)

4.3-inch Touch Screen with LED Status Indicator

Built-in Wi-Fi & Bluetooth Remote Monitoring

Supports Up to 15 Batteries in Parallel

Intelligent BMS with Multiple Protection Functions

RS232, RS485 & CAN Communication Ports

Compatible with Most Hybrid & Off-Grid Inverters

Floor Standing Design with Natural Cooling

Long Cycle Life, High Safety & Maintenance-Free Operation

Specification Details
Model FlxStation 32.0
Nominal Capacity 30.72kWh (600Ah)
Cell Technology LiFePO4 Prismatic Cell
Nominal Voltage 51.2V DC
Battery Configuration 16 Cells in Series, 2 Series in Parallel
Operating Voltage 43.2–58.4V DC
Full Voltage Difference ≤20mV
Maximum Depth of Discharge 100% (Settable)
Default Charging Current 200A
Maximum Charging Current 200A
Default Discharge Current 200A
Maximum Discharge Current 200A
BMS Protection Current 220A (2s); 240A (0.2s)
Low Voltage Cut-off 43.2V DC
Low Voltage Recovery 48V DC
High Voltage Cut-off 58.4V DC
High Voltage Recovery 54.4V DC
Display 4.3-inch Touch Screen with LED Indicator
Monitoring Built-in Wi-Fi & Bluetooth
Communication RS232, RS485, CAN
Parallel Support Up to 15 Units
Application Hybrid & Off-Grid Solar Systems
Compatible Inverters Compatible with Major Inverter Brands
Charging Temperature 0°C to +50°C
Discharging Temperature -20°C to +60°C
Storage Temperature -10°C to +50°C
Mounting Floor Standing
Cooling Method Natural Convection
Humidity ≤95% RH (Non-Condensing)
Maximum Operating Altitude ≤4000m
Dimensions (H × W × D) 380 × 661 × 825 mm
