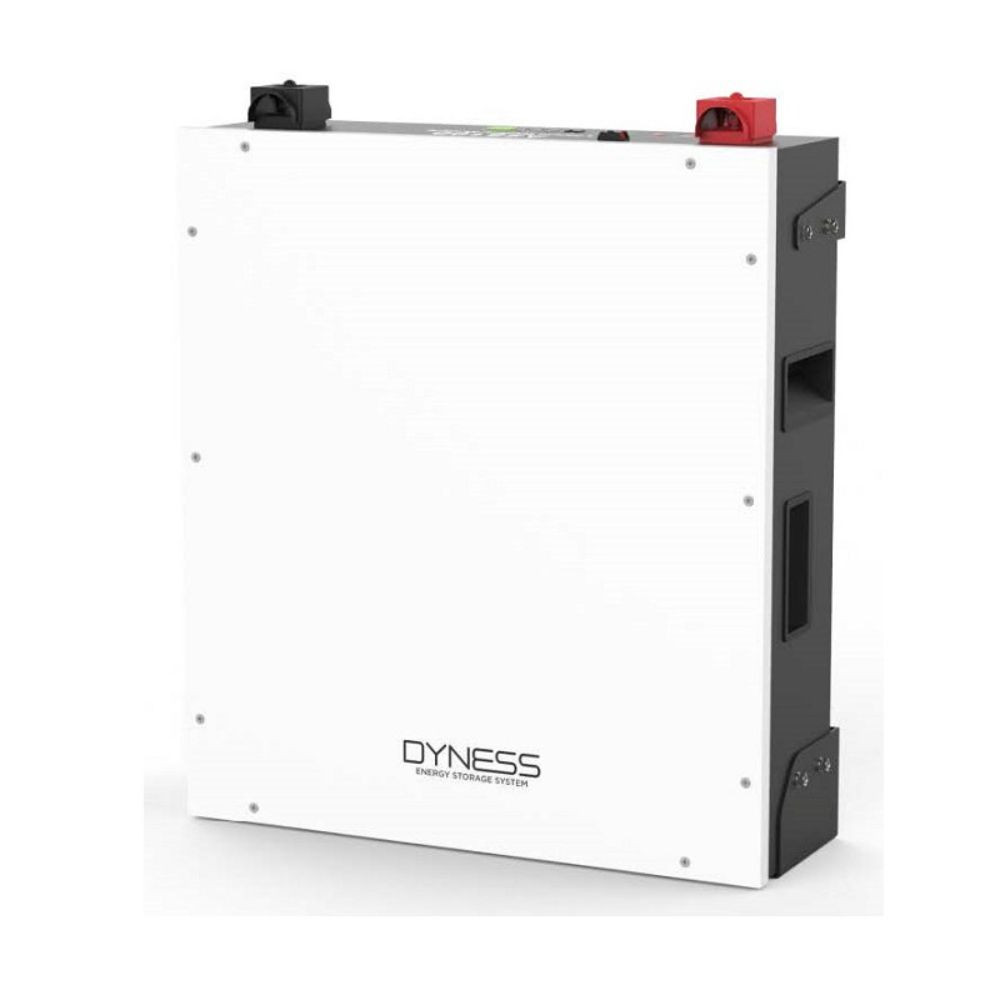

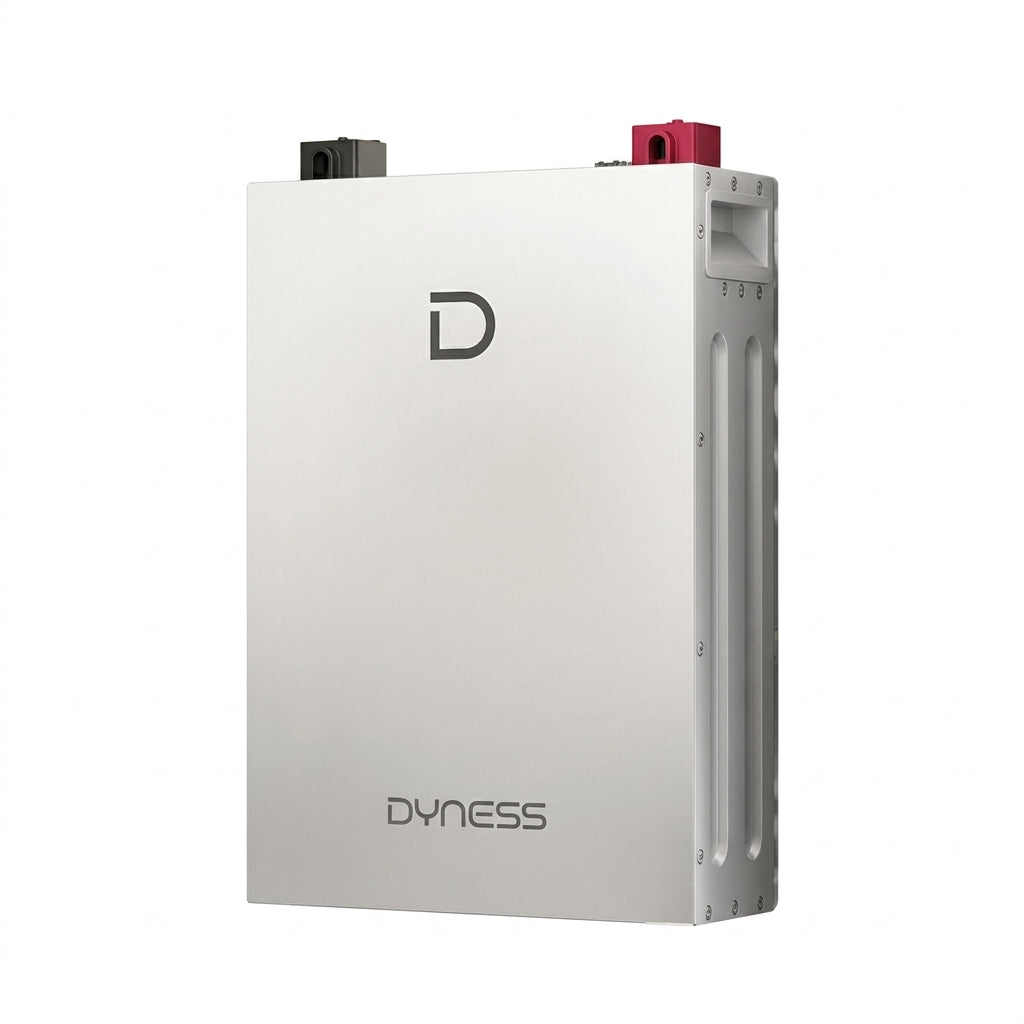

Dyness DL5.0F 5.12kWh 51.2V Lithium Iron Phosphate (LiFePO4) Battery 100Ah | 8000+ Cycles

The Dyness DL5.0F 5.12kWh LV Battery is a high-performance 51.2V 100Ah Lithium Iron Phosphate (LiFePO4/LFP) battery designed for residential and commercial energy storage, solar backup, and hybrid inverter systems. With 5.12kWh nominal energy, 95% Depth of Discharge (DOD), and a cycle life of 8000+ cycles, it provides reliable and long-lasting energy storage. The DL5.0F supports wall-mounted, rack-mounted, and floor-mounted installation, making it flexible for different energy storage setups. Up to 50 batteries can be connected in parallel for increased storage capacity. Its compatibility with leading inverter brands including SMA, Victron Energy, Solis, GoodWe, Growatt, Deye, Sungrow, Luxpower, Solplanet, and Ingeteam makes it suitable for a wide range of solar power systems.

Key Features

5.12kWh Nominal Energy: Provides dependable energy storage for solar and backup applications.

51.2V 100Ah Capacity: High-voltage low-voltage (LV) battery architecture for efficient energy storage.

LiFePO4 (LFP) Chemistry: Offers excellent safety, stability, and long service life.

95% Depth of Discharge: Maximizes usable battery capacity at approximately 4.864kWh.

8000+ Cycle Life: Designed for long-term and reliable energy storage performance.

100A Maximum Discharge: Supports up to 5.12kW maximum discharge power.

110A Peak Current: Provides 110A peak discharge current for up to 15 seconds at 25°C.

Multiple Installation Options: Supports wall-mounted, rack-mounted, and floor-mounted installation.

Up to 50 Units Parallel: Expand the system capacity by connecting up to 50 batteries in parallel.

IP20 Protection: Designed for suitable indoor energy storage installations.

CAN/RS485 Communication: Enables communication with compatible solar inverters and energy management systems.

Optional WiFi + APP: Allows convenient system monitoring through an optional wireless interface.

Optional Fire Protection: Built-in aerosol fire extinguisher option provides enhanced safety.

10-Year Warranty: Long-term warranty support for greater peace of mind.

Wide Inverter Compatibility: Compatible with SMA, Victron Energy, Solis, GoodWe, Growatt, Deye, Sungrow, Luxpower, Solplanet, Ingeteam and more.
