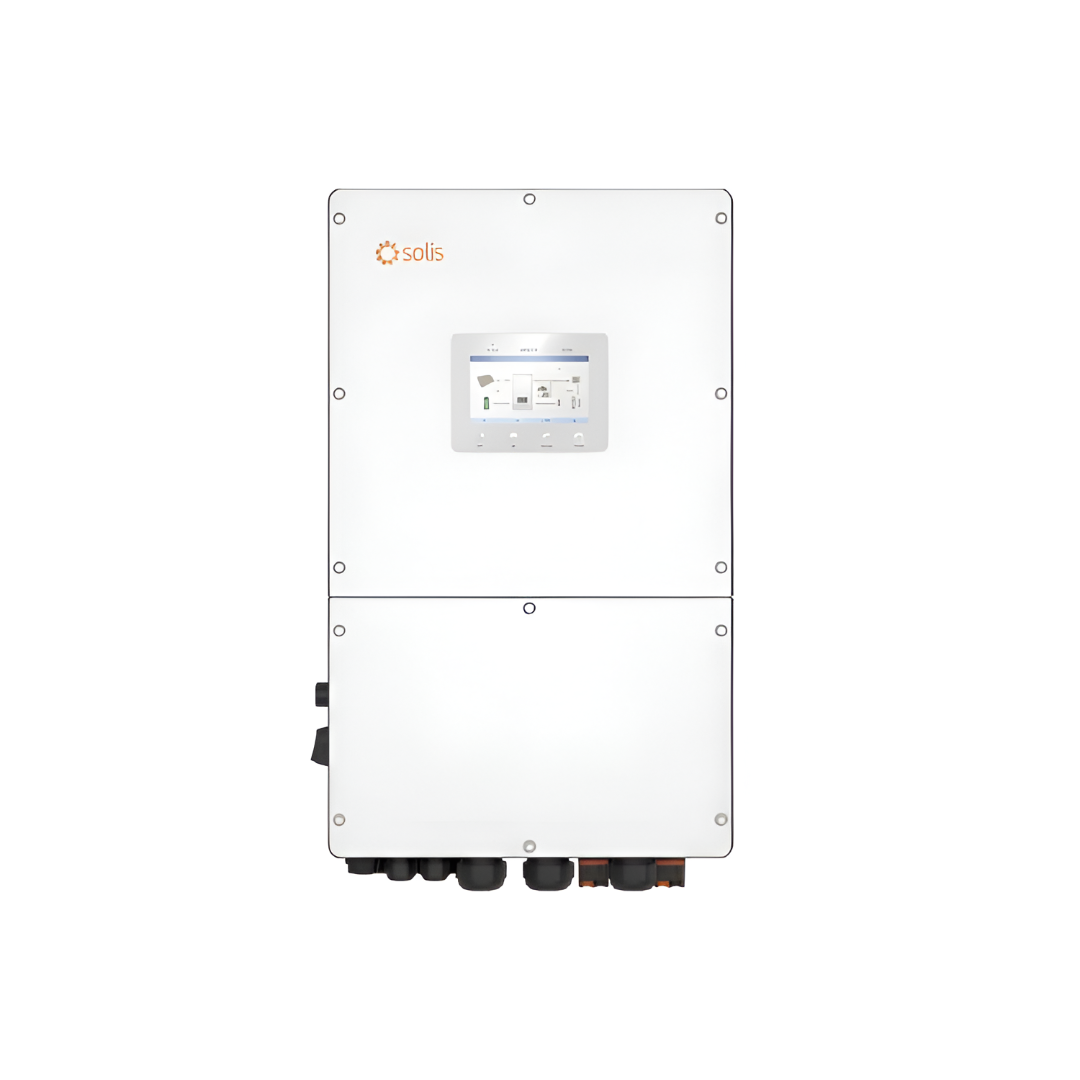

Solis Three Phase 50KW High Voltage Energy Storage Inverter – Commercial & Industrial Hybrid Power Solution

Solis Three Phase 50KW High Voltage Energy Storage Inverter – Commercial & Industrial Hybrid Power Solution

SKU: AR-002999
Product Type: hybrid solar inverter
Rs.1,575,000.00
Rs.1,575,000.00
Rs.1,575,000.00
Save Rs.0.00
Subtotal: Rs.1,575,000.00

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Solis Three Phase 50KW High Voltage Energy Storage Inverter – Commercial & Industrial Hybrid Power Solution

Solis Three Phase 50KW High Voltage Energy Storage Inverter – Commercial & Industrial Hybrid Power Solution

Rs.1,575,000.00
Solis Three Phase 50KW High Voltage Energy Storage Inverter – Commercial & Industrial Hybrid Power Solution

Solis Three Phase 50KW High Voltage Energy Storage Inverter – Commercial & Industrial Hybrid Power Solution

Rs.1,575,000.00
Description

The Solis Three Phase High Voltage Energy Storage Inverter is a powerful, intelligent hybrid inverter designed for commercial, industrial, and large residential solar systems. Supporting high-voltage lithium batteries, large PV arrays up to 100kW, and advanced grid management, it ensures maximum energy efficiency, reliability, and backup performance.

Key Features

High Overload Capability – 160% overload for 2 seconds ensures reliable startup of heavy loads

High PV Input Current (20A) – Compatible with all high-power solar panels

Smart Battery Management – Real-time monitoring, remote upgrades & battery healing to extend battery life

Peak Shaving Support – Reduce electricity bills in self-use and generator modes

Unbalanced & Half-Wave Load Support – Stable operation on grid and backup ports

Wide Battery Voltage Range (150–800V) – Compatible with most HV lithium batteries

High Charge/Discharge Current – 140A / 70A+70A, ideal for 280Ah battery cells

200% DC/AC Ratio – Maximizes PV utilization for longer backup time

Fast Backup Switching – <10ms UPS-level switchover for critical loads

Parameter 50kW
Rated Power 50 kW
Recommended Max. PV Array Size 100 kW
Max. Usable PV Input Power 96 kW
Max. Input Voltage 1000 V
Rated Voltage 600 V
Start-up Voltage 180 V
MPPT Voltage Range 150–850 V
MPPT Number / Strings 4 MPPT / 8 Strings
Max. Input Current 4 × 40 A
Max. Short Circuit Current 4 × 60 A
Battery Type Li-ion
Battery Voltage Range 150–800 V
Max. Charge/Discharge Power 55 kW
Max. Charge/Discharge Current 70 A × 2
Battery Inputs 2
Max. Power per Battery Input 35 kW
Battery Communication CAN / RS485
Rated Grid Output Power 50 kW
Max. Apparent Output Power 50 kVA
Rated Grid Voltage 3/N/PE, 220/380 V or 230/400 V
Rated Grid Frequency 50 / 60 Hz
Rated Grid Output Current 76 A / 72.2 A
Max. Output Current 76 A / 72.2 A
Power Factor >0.99 (0.8 lead – 0.8 lag)
THDi < 3%
Max. AC Passthrough Current 152 A / 144.4 A
Rated AC Input Voltage 3/N/PE, 220/380 V or 230/400 V
Rated AC Input Frequency 50 / 60 Hz
Generator Max Input Power 50 kW
Generator Rated Input Current 76 A / 72.2 A
Generator Rated Input Voltage 3/N/PE, 220/380 V or 230/400 V
Generator Rated Input Frequency 50 / 60 Hz
Backup Rated Output Power 50 kW
Backup Max Apparent Power 1.6 × rated (2s)
Backup Switch Time < 10 ms
Backup Rated Output Voltage 3/N/PE, 220/380 V or 230/400 V
Backup Rated Frequency 50 / 60 Hz
Backup Rated Output Current 76 A / 72.2 A
THDv (Linear Load) < 2%
Max. Efficiency 97.8%
EU Efficiency 97.4%
PV to Battery Efficiency 98.5%
Battery to AC Efficiency 97.5%
Anti-islanding Protection Yes
Overcurrent Protection Yes
Short Circuit Protection Yes
Integrated DC Switch Yes
Reverse Polarity Protection Yes
Surge Protection DC Type II / AC Type II
AFCI 2.0 Optional
Dimensions (W×H×D) 530 × 880 × 290 mm
Weight 73 kg
Topology Transformerless
Night Self Consumption < 35 W
Operating Temperature -25°C to +60°C
Relative Humidity 0–95%
Ingress Protection IP66
Cooling Intelligent Redundant Fan Cooling
Max Operating Altitude 4000 m
Grid & Safety Standards IEC/EN 62109, EN 50549, VDE, G99, CE
PV Connection MC4 Quick Connector
Battery Connection Terminal Connector
AC Connection Terminal Block
Display LCD + Bluetooth + APP
Communication CAN, RS485, Ethernet (WiFi / Cellular optional)
