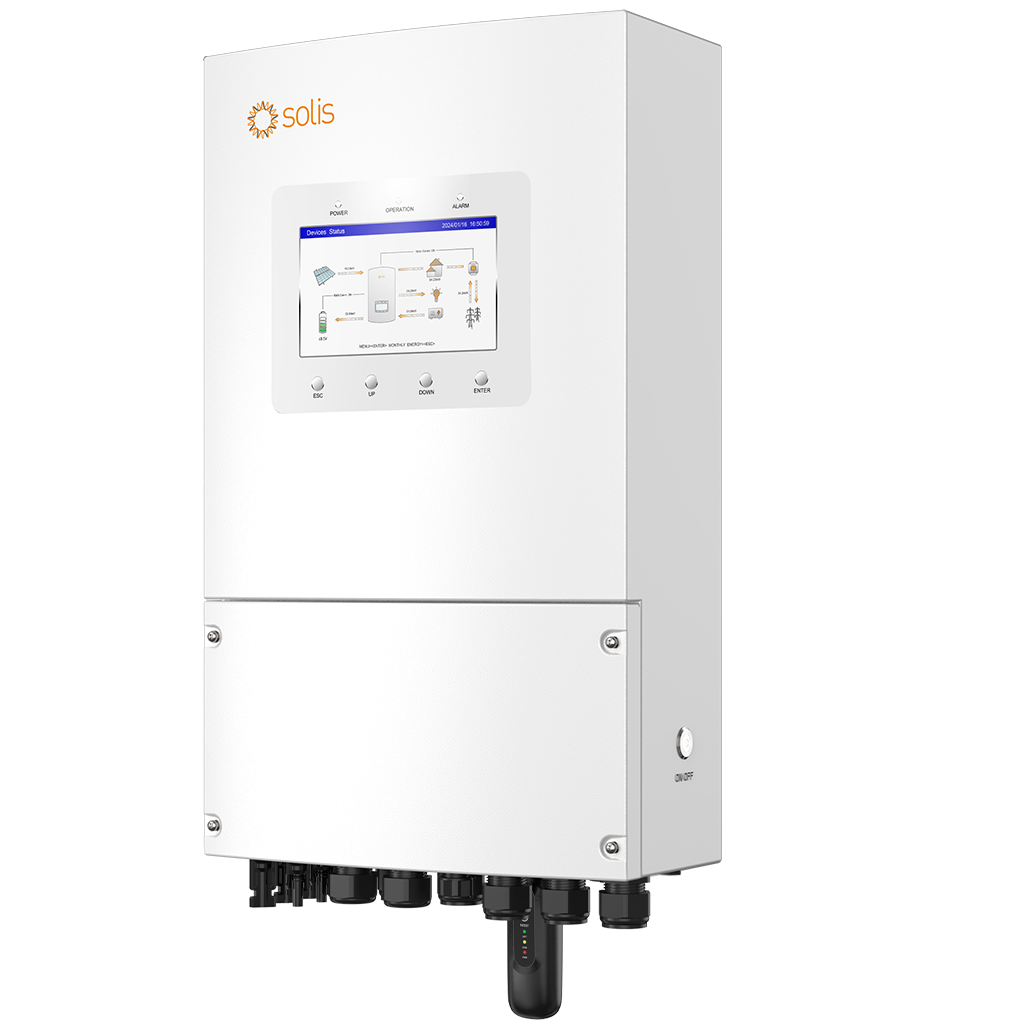

Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support
Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support
Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support
Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support

Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support

SKU: AR-003050
Product Type: solar inverter
Rs.415,000.00
Rs.420,000.00
Rs.415,000.00
Save Rs.5,000.00
Subtotal: Rs.415,000.00

5 years brand warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support

Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support

Rs.420,000.00 Rs.415,000.00
Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support
Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support
Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support
Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support

Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter | IP66 Single Phase Solar Inverter | 2 MPPT | 10kW Backup Support

Rs.420,000.00 Rs.415,000.00
Description

The Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter is a powerful and reliable single-phase solar inverter designed for residential and small commercial solar systems. Built with IP66 protection, it is suitable for both indoor and outdoor installations, offering durability in harsh weather conditions.

Key Features

10kW single-phase hybrid inverter

IP66 rated for outdoor and indoor installation

2 MPPT trackers with 4 input strings

Supports Li-ion and Lead-acid batteries (40–60V)

10kW full backup output capability

High PV capacity up to 20kW recommended array size

Wide MPPT voltage range (90–435V)

Advanced grid and battery management system

Specification Details
Recommended Max. PV Array Size 20 kW
Max. Usable PV Input Power 16 kW
Max. Input Current 42 A / 42 A
Max. Short Circuit Current 48 A / 48 A
MPPT / Max. Input Strings 2 MPPT / 4 Strings
Max. Charge / Discharge Power 10 kW
Max. Charge / Discharge Current 210 A
Battery Type Li-ion / Lead-acid (40 – 60 V)
Rated Output Power (Grid) 10 kW
Max. Apparent Output Power 10 kVA
Rated Grid Output Current 45.5 A / 43.5 A
Max. Input Current (Grid) 65 A
Rated Output Power (Back-up) 10 kW
Rated Output Current (Back-up) 45.5 A / 43.5 A
Rated Grid Voltage L/N/PE, 220 V / 230 V
MPPT Voltage Range 90 – 435 V
Dimensions (W × H × D) 335 × 560 × 253 mm
Read More
