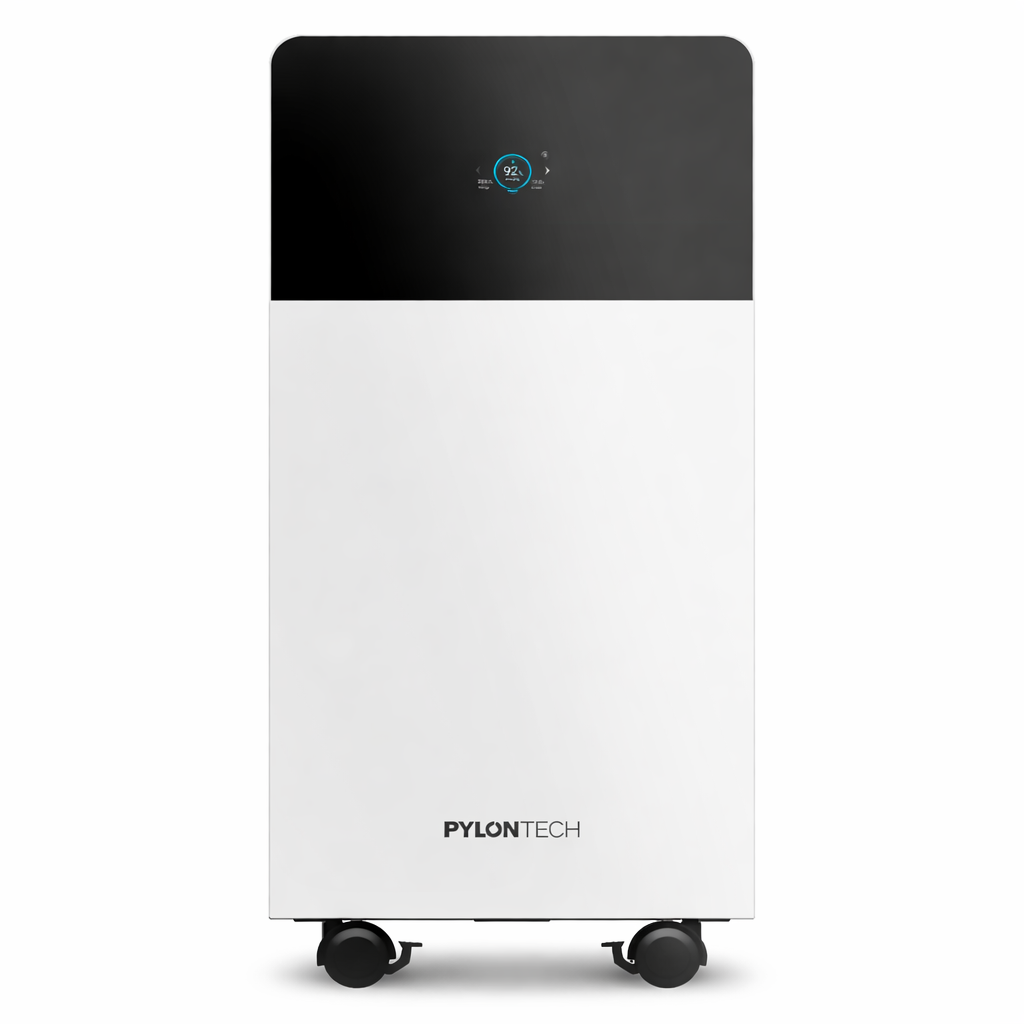

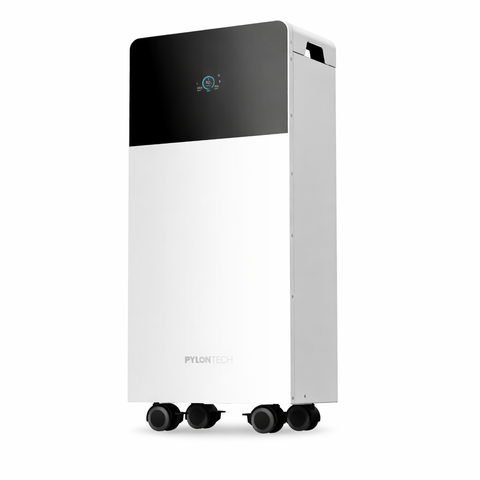

Pylontech Fidus Plus 16kWh Energy Storage Battery | IP65 | Built in WiFi | Display Screen
Pylontech Fidus Plus 16kWh Energy Storage Battery | IP65 | Built in WiFi | Display Screen

Pylontech Fidus Plus 16kWh Energy Storage Battery | IP65 | Built in WiFi | Display Screen

SKU: AR-002974
Product Type: energy storage battery
Rs.699,999.00
Rs.750,000.00
Rs.699,999.00
Save Rs.50,001.00
Subtotal: Rs.699,999.00

10 Years Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Pylontech Fidus Plus 16kWh Energy Storage Battery | IP65 | Built in WiFi | Display Screen

Pylontech Fidus Plus 16kWh Energy Storage Battery | IP65 | Built in WiFi | Display Screen

Rs.750,000.00 Rs.699,999.00
Pylontech Fidus Plus 16kWh Energy Storage Battery | IP65 | Built in WiFi | Display Screen
Pylontech Fidus Plus 16kWh Energy Storage Battery | IP65 | Built in WiFi | Display Screen

Pylontech Fidus Plus 16kWh Energy Storage Battery | IP65 | Built in WiFi | Display Screen

Rs.750,000.00 Rs.699,999.00
Description

The Pylontech Fidus Plus 16kWh is a high-performance lithium battery designed for residential, commercial, and industrial solar energy storage systems. With IP65 protection, built-in WiFi, and an ultra-long 8000+ cycle life, this battery delivers reliable, safe, and scalable power for on-grid and off-grid applications. Built with advanced LiFePO₄ technology, the Fidus Plus ensures 100% depth of discharge, high efficiency, and long service life, even in harsh environmental conditions.

Key Features

  • High Capacity 16kWh Energy Storage: Delivers powerful and consistent backup energy for homes and businesses.
  • 8000+ Life Cycles: Long-term durability with up to 10 years design life at 25°C.
  • IP65 Rated: Fully protected against dust and water — ideal for indoor & outdoor installations.
  • Built-in WiFi & Bluetooth: Smart monitoring with display screen for real-time battery status
  • Flexible System Expansion: Supports up to 20 batteries per group and 6 parallel strings.
  • Wide Operating Temperature Range: Stable performance from -20°C to 55°C.
Parameter Specification
Nominal Voltage (VDC) 51.2V
Nominal Capacity (Wh) 16,076 Wh
Usable Capacity (Wh) 16,076 Wh
Depth of Discharge (%) 100%
Dimensions (mm) 435 (W) × 240 (D) × 900 (H)
Weight (Kg) 130 kg
Discharge Voltage (VDC) 40 ~ 56.8 V
Charge Voltage (VDC) 56 ~ 56.8 V
Maximum Continuous Charge / Discharge Current (A) 200A / 200A
Peak Charge / Discharge Current (A) 300A @ 15s
Communication CAN, RS485
Max Batteries per Group 20
Max Parallel Strings 6
Working Temperature (Charging) 0 ~ 55 °C
Working Temperature (Discharging) -20 ~ 55 °C
Storage Temperature (°C) -20 ~ 60 °C
Cooling Type Natural Cooling
Protective Class Class I
IP Rating IP65
Anti-Corrosion Rating C5-M
Humidity Range (RH, Non-condensing) 5% ~ 95%
Maximum Altitude ≤ 4000 m
Certifications IEC62619, IEC63056, UN38.3, EMC / CE
Design Life (25°C) 10 Years
Cycle Life (25°C) 8000 Cycles
