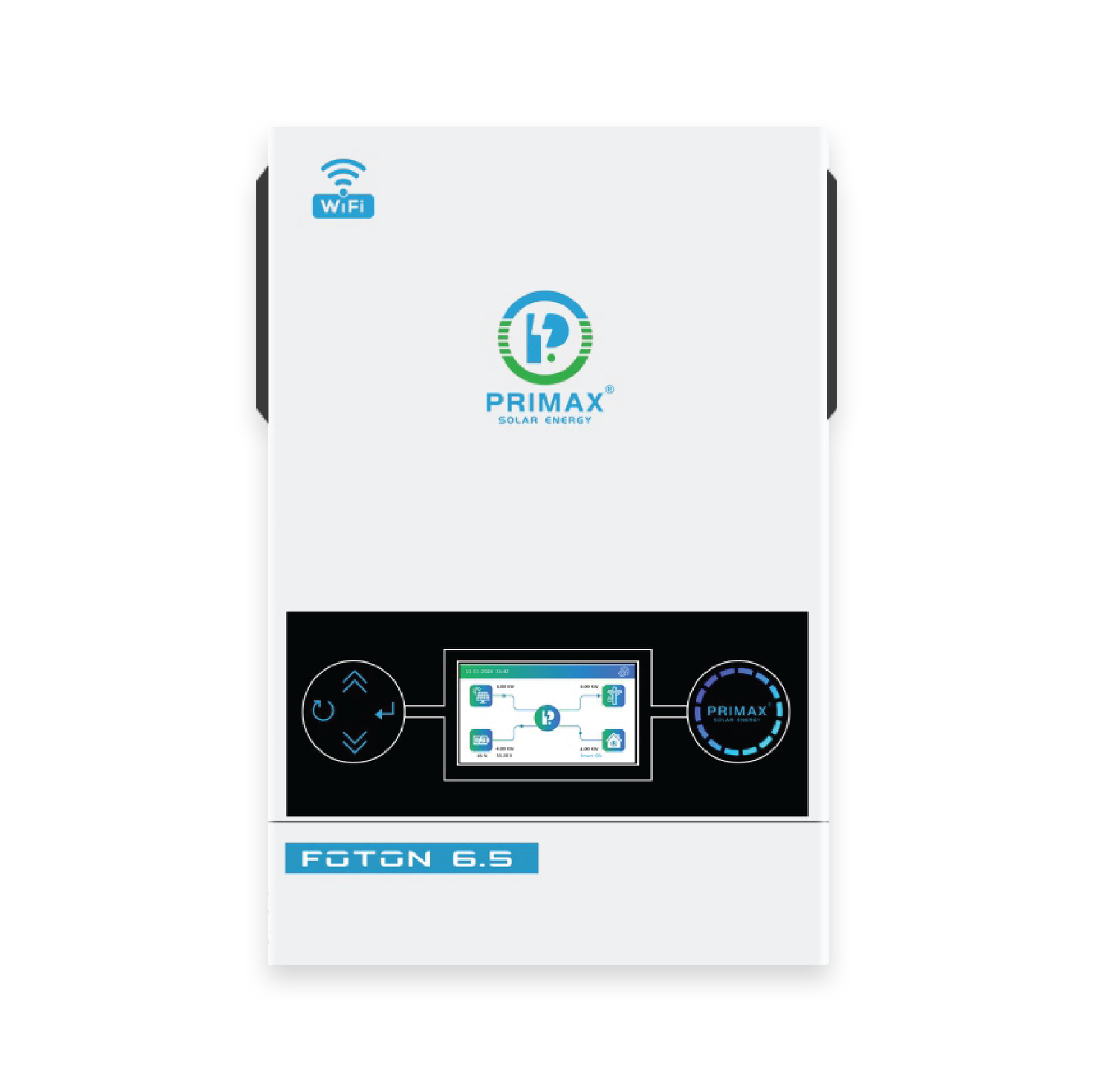

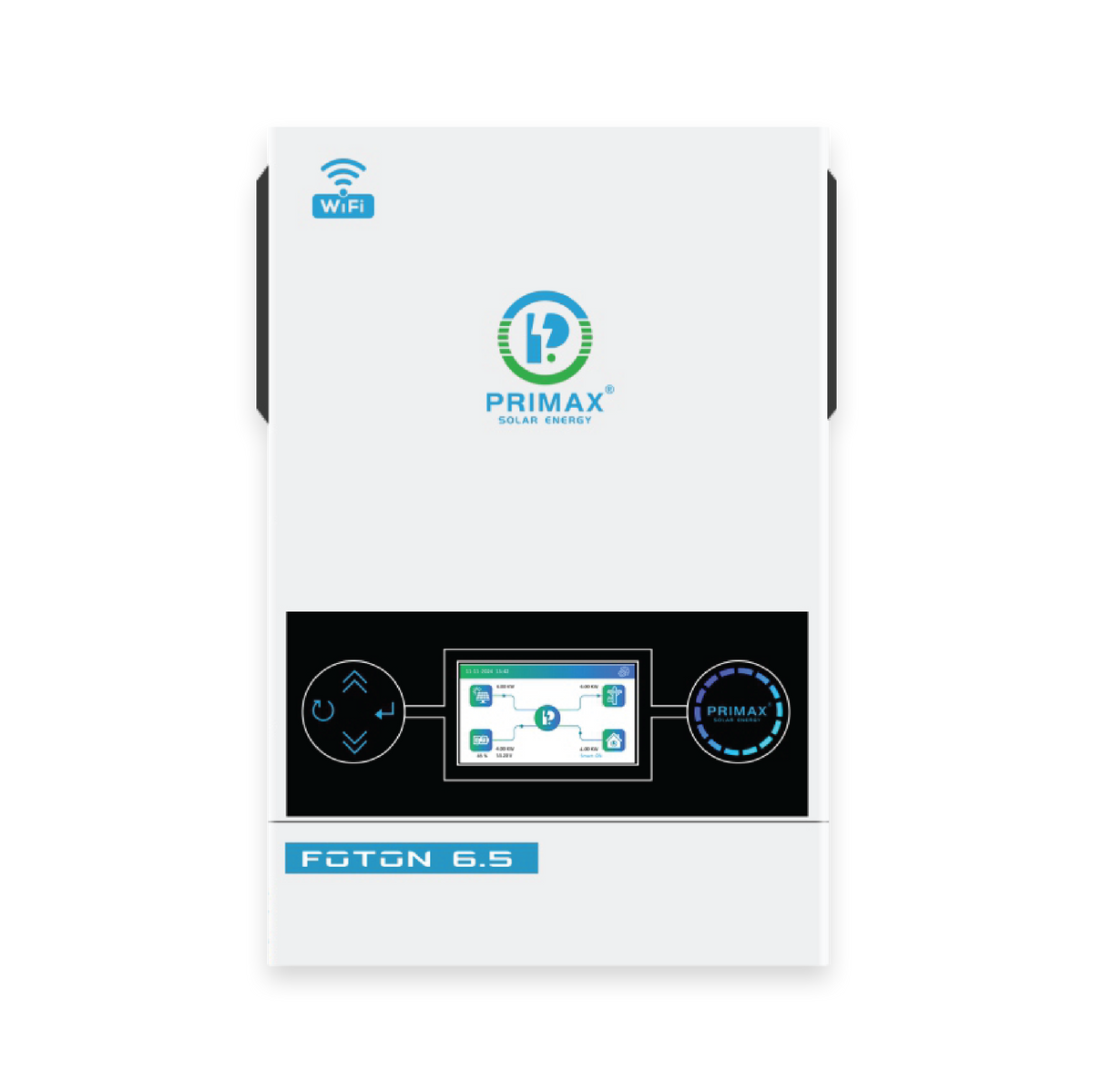

PRIMAX FOTON 6.5 4.5KW Hybrid Solar Inverter With 6500W Mppt Solar Charge Controller

SKU: AR-002309
Product Type: solar inverter
Rs.135,000.00
Rs.170,000.00
Rs.135,000.00
Save Rs.35,000.00
Subtotal: Rs.135,000.00
  • Alladin Store

1 Years Parts Replacement + 4 Years Service Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

PRIMAX FOTON 6.5 4.5KW Hybrid Solar Inverter With 6500W Mppt Solar Charge Controller

PRIMAX FOTON 6.5 4.5KW Hybrid Solar Inverter With 6500W Mppt Solar Charge Controller

Rs.170,000.00 Rs.135,000.00

PRIMAX FOTON 6.5 4.5KW Hybrid Solar Inverter With 6500W Mppt Solar Charge Controller

Rs.170,000.00 Rs.135,000.00

Unlock the power of solar energy with the FOTON 6.5 4.5KW Hybrid Solar Inverter, a reliable and efficient solution for your home or small business. Designed with cutting-edge technology, this single-phase inverter delivers a rated power of 4500W (4000W in battery/AC mode) and features a robust 6500W MPPT solar charge controller to maximize your solar energy harvest. With its pure sine wave output, dual output capability (main and second load at 4000W each), and seamless transfer time (10ms for computers, 20ms for home appliances), this inverter ensures uninterrupted power for all your needs.

Key Features:

  • Enhanced Power Output: Rated at 4500W in PV mode with a peak power of 8000VA, perfect for handling heavy loads.
  • Efficient Solar Charging: 6500W MPPT solar charge controller with a tracking range of 60~500VDC (optimal at 300~400VDC) and a max PV input voltage of 500VDC.
  • Grid-Tie Capability: Supports feed-in grid voltage (175~265VA) and frequency (49~51±0.1Hz / 59~61±1Hz) with a peak DC/AC efficiency of 98%.
  • Battery Support: Operates at 24VDC with adjustable constant (28.2VDC) and floating (27VDC) charge voltages, compatible with lithium batteries via BMS support.
  • Smart Connectivity: Features RS232 for WiFi monitoring and updates, RS485 for BMS communication, and dry connect to start generators.
  • User-Friendly Design: Touch LCD screen for intuitive operation, OTA firmware updates, and RGB lights for operational status indication.
  • Robust Build: Operates in temperatures from -10°C to 50°C, with a noise level of ≤50dB and certifications (IEC 62109-1, IEC 62109-2, IEC 61683).

Technical Data Sheet:

Download DataSheet

Model FOTON 6.5
Phase Single Phase
Nominal Voltage 220/230/240VAC
Voltage Range 90~280VAC±3V (Normal Mode) 170~280VAC±3V (UPS Mode)
Frequency Range 50Hz/60Hz (Adaptive)
Rated Power 4500W
PV Mode 4500W
Battery Mode/AC Mode 4000W
Output Voltage (AC) 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Dual Output Rated Power Main Load: 4000W, Second Load: 4000W
Waveform Pure Sine Wave
Transfer Time (Adjustable) 10ms for Computer, 20ms for Home Appliances
Peak Power 8000VA
Overload (Battery Mode) 105%~150% Load: 1ls ; 150%~200% Load: 2s; >200% Load: 400ms
Peak Efficiency (Battery Mode) 94%
Output Voltage 220/230/240VAC
Feed-in Grid Voltage 175 ~ 265 VA
Feed-in Grid Frequency Range 49~51±0.1Hz / 59~61±1Hz
Rated Feed-in Grid Current 17.4A
Peak Efficiency (DC/AC) 98%
Rated Voltage 24 VDC
Constant Voltage Charging Voltage 28.2VDC (Adjustable)
Floating Charge Voltage 27VDC (Adjustable)
PV Charging Method Single MPPT
PV Max Input Power 6500W
MPPT Tracking Range 60~500 VDC
Best PV Voltage Range 300~400 VDC
Max PV Input Voltage 500 VDC
Max PV Input Current 27A
Max PV Charging Current 120A
Max AC Charging Current 100A
RS232 For External WiFi device / Monitoring & Update
RS485 For BMS Communication
Dry Connect Support sending signal to start generator
Parallel Function No
Operating environment temperature -10~50°C
Operating environment humidity 20%~95% (Non-condensing)
Storage temperature -15~60°C
Altitude The altitude should not exceed 1000m, derating above 1000m, up to 4000m
Noise ≤50dB
Certifications IEC 62109-1, IEC 62109-2, IEC 61683



Perfect for off-grid or hybrid solar systems, the FOTON 6.5 ensures you get the most out of your solar investment with its high efficiency, advanced features, and reliable performance. Power your life sustainably—order yours today!
