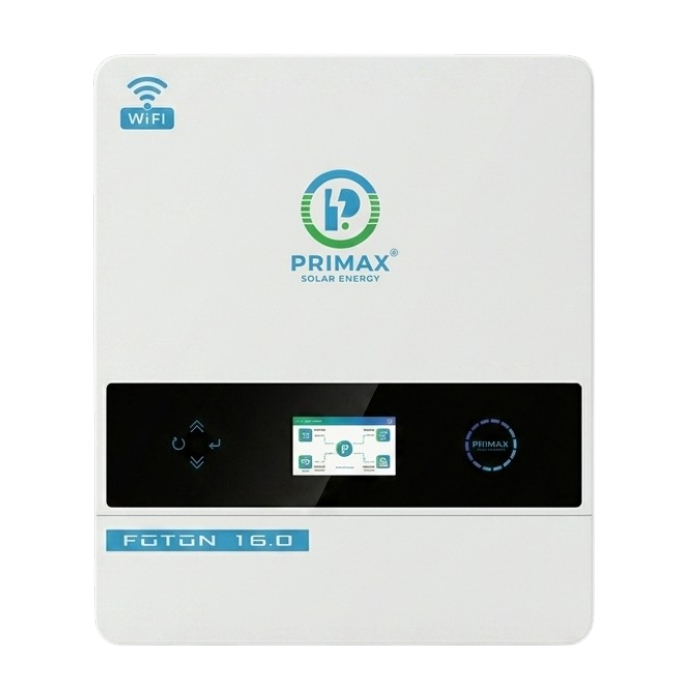

PRIMAX FOTON 16.0 10kW Hybrid Solar Inverter 48V | Dual MPPT

PRIMAX FOTON 16.0 10kW Hybrid Solar Inverter 48V | Dual MPPT

Write A Review
SKU: AR-003376
Product Type: Hybrid Solar Inverter
Rs.260,000.00
Rs.275,000.00
Rs.260,000.00
Save Rs.15,000.00
Subtotal: Rs.260,000.00

2 year parts + 3 year service warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

PRIMAX FOTON 16.0 10kW Hybrid Solar Inverter 48V | Dual MPPT

PRIMAX FOTON 16.0 10kW Hybrid Solar Inverter 48V | Dual MPPT

Rs.275,000.00 Rs.260,000.00
PRIMAX FOTON 16.0 10kW Hybrid Solar Inverter 48V | Dual MPPT

PRIMAX FOTON 16.0 10kW Hybrid Solar Inverter 48V | Dual MPPT

Rs.275,000.00 Rs.260,000.00
Description

The PRIMAX FOTON 16.0 Hybrid Solar Inverter is a high-performance 10kW single-phase hybrid inverter designed for residential and commercial solar energy systems. Featuring Dual MPPT technology, support for up to 16,000W PV input, and a 48V battery system, it delivers maximum solar energy harvesting and reliable backup power. With 98% peak efficiency, pure sine wave output, and fast transfer times, the FOTON 16.0 ensures stable, uninterrupted power for homes, offices, and businesses.

Key Features

10kW Hybrid Solar Inverter

Single Phase Operation

Supports up to 16,000W Solar PV Input

Dual MPPT Solar Charger

48V Battery System Compatible

Pure Sine Wave Output

Dual Load Output Support

Peak Efficiency up to 98%

Fast UPS Transfer Time (10ms)

Intelligent Battery Charging Management

Wide MPPT Voltage Range

Suitable for Residential & Commercial Solar Systems

Parameter FOTON 16.0 Specification
Phase Single Phase
Nominal Voltage 220 / 230 / 240 VAC
Voltage Range 90–280 VAC ±3V (Normal Mode); 170–280 VAC ±3V (UPS Mode)
Frequency Range 50Hz / 60Hz (Adaptive)
Rated Power 10000W
PV Mode / AC Mode 10000W
Battery Mode 8600W
Output Voltage (AC) 220 / 230 / 240 VAC ±5%
Output Frequency 50 / 60 Hz ±0.1%
Dual Output Rated Power Main Load: 8600W; Second Load: 8600W
Waveform Pure Sine Wave
Transfer Time (Adjustable) 10ms (Computer); 20ms (Home Appliances)
Peak Power 17200VA
Overload (Battery Mode) 105%–150% Load: 11s; 150%–200% Load: 2s; >200% Load: 400ms
Peak Efficiency (Battery Mode) >94%
Grid Output Voltage 220 / 230 / 240 VAC
Feed-in Grid Voltage 175–265 VAC
Feed-in Grid Frequency Range 49–51 ±1Hz / 59–61 ±1Hz
Rated Feed-in Grid Current 37.4A
Peak Efficiency (DC/AC) 98%
Rated Battery Voltage 48 VDC
Constant Voltage Charging Voltage 56.4 VDC (Adjustable)
Floating Charge Voltage 54 VDC (Adjustable)
PV Charging Method Dual MPPT
PV Max Input Power 16000W (8000W + 8000W)
MPPT Tracking Range 90–500 VDC
Best PV Voltage Range 360–430 VDC
Max PV Input Voltage 500 VDC
Max PV Input Current 32A + 32A
