PRIMAX FOTON 15.0P 12KW Hybrid Solar Inverter With 15000W Dual Mppt Solar Charge Controller

PRIMAX FOTON 15.0P 12KW Hybrid Solar Inverter With 15000W Dual Mppt Solar Charge Controller

SKU: AR-002317
Product Type: solar inverter
Rs.325,000.00
Rs.370,000.00
Rs.325,000.00
Save Rs.45,000.00
Subtotal: Rs.325,000.00
  • Alladin Store

2 Years Parts Replacement + 3 Years Service Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

PRIMAX FOTON 15.0P 12KW Hybrid Solar Inverter With 15000W Dual Mppt Solar Charge Controller

PRIMAX FOTON 15.0P 12KW Hybrid Solar Inverter With 15000W Dual Mppt Solar Charge Controller

Rs.370,000.00 Rs.325,000.00
PRIMAX FOTON 15.0P 12KW Hybrid Solar Inverter With 15000W Dual Mppt Solar Charge Controller

PRIMAX FOTON 15.0P 12KW Hybrid Solar Inverter With 15000W Dual Mppt Solar Charge Controller

Rs.370,000.00 Rs.325,000.00
Description

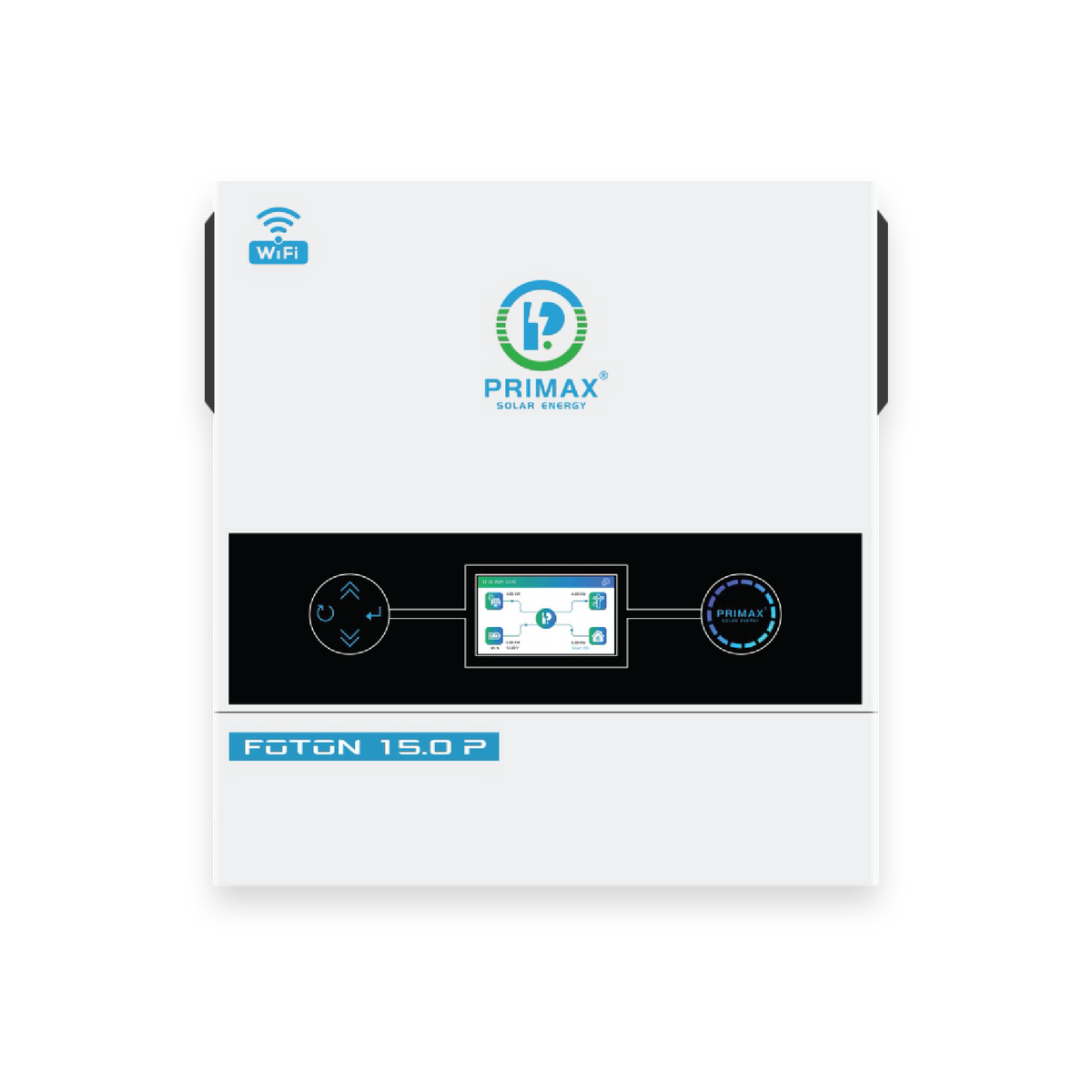

Primax Foton 15.0P Hybrid Solar Inverter by Primax offers a powerful solution for solar energy systems, delivering a rated power of 12000W and supporting up to 15000W of PV power from solar panels. Operating on a 48V battery system, it ensures efficient energy management and compatibility with lithium batteries for enhanced performance.

Primax Foton 15.0P Hybrid Solar Inverter supports parallel functionality, allowing up to 9 units to be connected together. This feature enables scalability for larger solar energy systems, ensuring increased power output and redundancy by combining multiple inverters.

Highlighted Features

  • Support Parallel function, maximum 9 units
  • Enhanced inverter output power under PV mode
  • BMS communication, support lithium battery
  • Touch LCD screen, intuitive parameter display, convenient for user operation
  • Touch button as an alternative operating method
  • Novel and fashionable RGB atmosphere lights indicator
  • Dual Output & Dual PV RGB
  • 15000W high PV input, support more panels
  • Support WiFi monitoring & setting
  • Working with or without battery

Product Specifications:

Download DataSheet

FOTON 15.0P
Phase Single Phase
Nominal Voltage (DC/AC) 220/230/240VAC
Voltage Range (Normal Mode) 90-280VAC±3V (Normal Mode); 170-280VAC±3V (UPS Mode)
Frequency Range 50Hz/60Hz (Adaptive)
Rated Power 12000W
PV Mode 12000W
Battery Mode 8600W
Output Voltage (AC/AC) 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Dual Output Rated Power Main Load: 11000W, Second Load: 11000W
Waveform Pure Sine Wave
Transfer Time (Adjustable) 10ms for Computer, 20ms for Home Appliances
Peak Power 22000VA
Overload (Battery Mode) 105%-150% Load 1s; 150%-200% Load 2s; >200% Load 400ms
Peak Efficiency (Battery Mode) >94%
Output Voltage 220/230/240VAC
Feed-in Grid Voltage Range 175-265 VA
Feed-in Grid Frequency Range 49.5Hz/55Hz/61.4Hz
Rated Feed-in Grid Current 47.8A
Peak Efficiency (AC) 98%
Rated Voltage 48VDC
Constant Voltage Charging Voltage 56.4VDC (Adjustable)
Floating Charge Voltage 54VDC (Adjustable)
PV Charging Method Dual MPPT
PV Max Input Power 15000W (7500W+7500W)
MPPT Tracking Range 90-500 VDC
Best PV Voltage Range 360-430 VDC
Max PV Input Voltage 500 VDC
Max PV Input Current 27A + 27A
Max PV Charging Current 150A
AC Max Charging Current 150A
RS232 Available
RS485 Available
External WiFi Device For BMS Communication/Monitoring & Update
Dry Connect Support sending signal to start generator
Parallel Function Support maximum 9 units
Operating Environment Temperature -10-50°C
Environmental Parameters Operating environment humidity 20%-95% (Non condensing)
Storage Temperature -15-60°C
Altitude Should not exceed 1000m, derating above 1000m, up to 4000m
Noise ≤50dB
Certifications EC 62109-1, EC 62109-2, EC 61883
