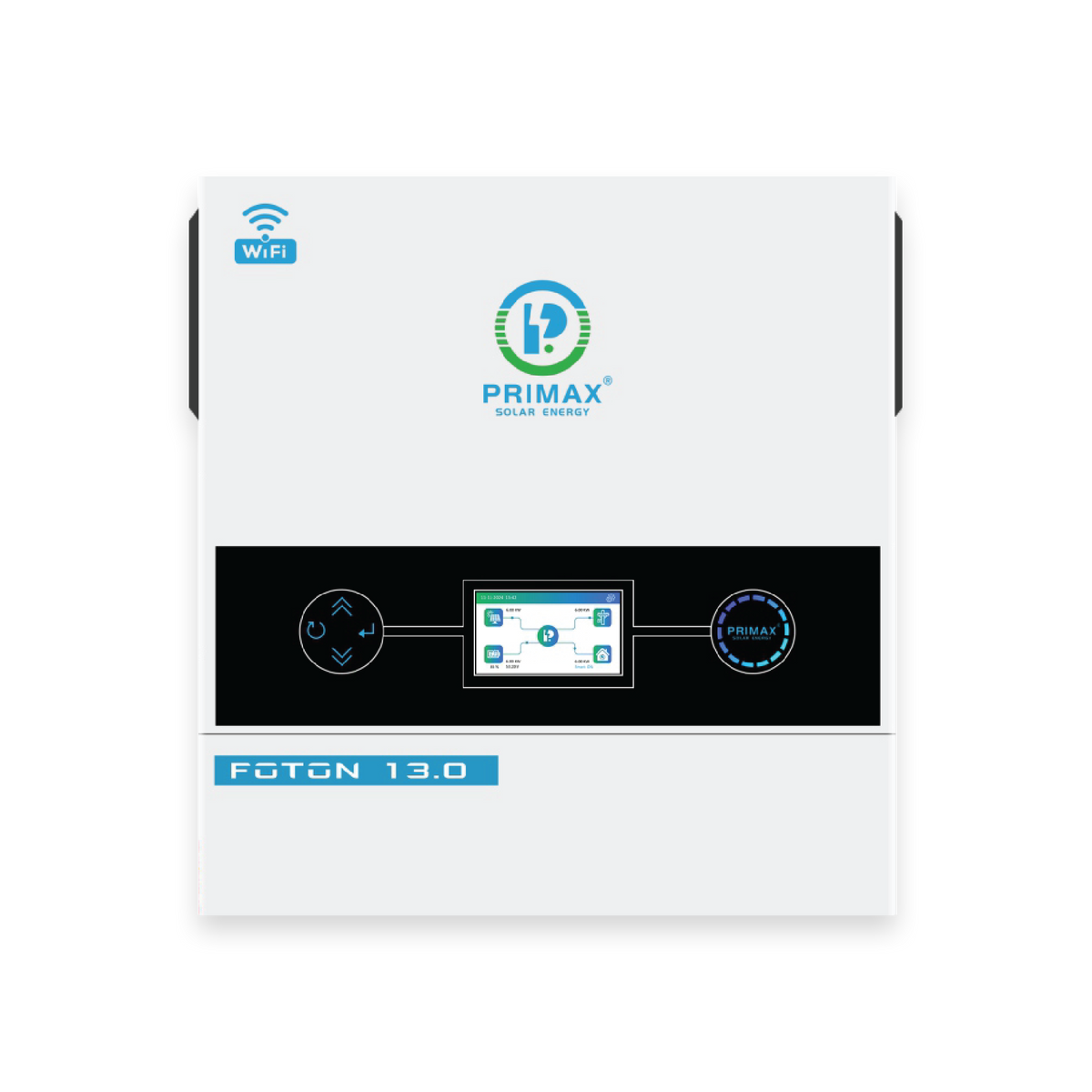

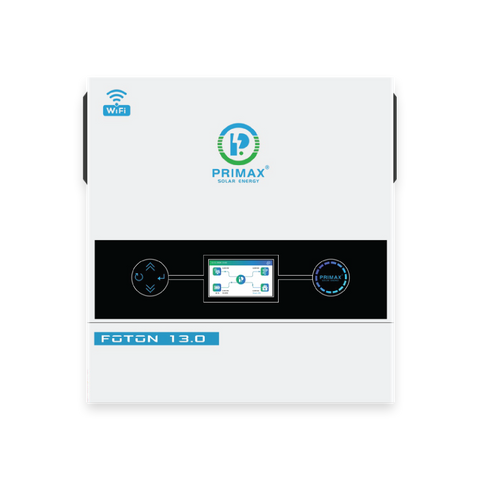

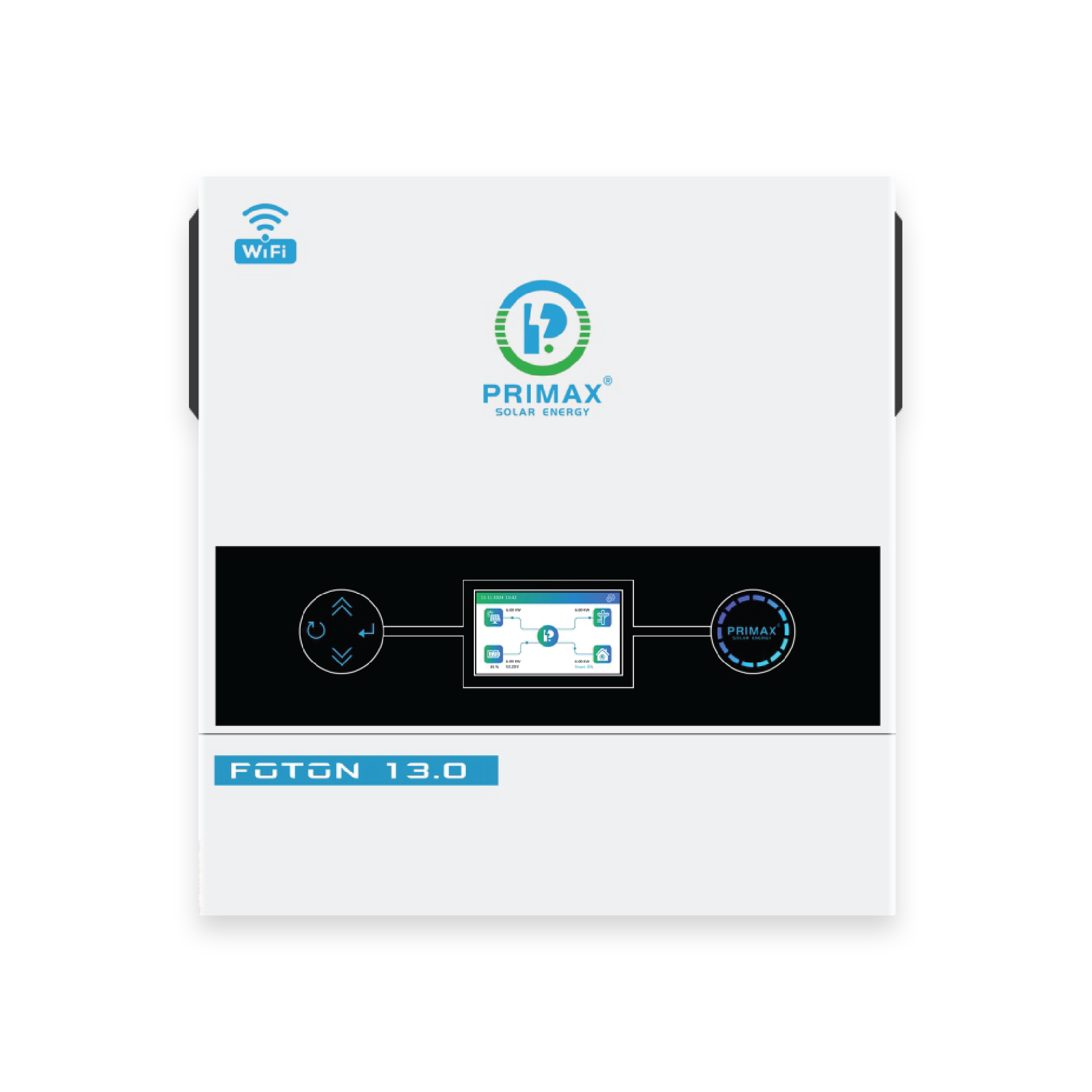

PRIMAX FOTON 13.0 10KW Hybrid Solar Inverter With 13000W Dual Mppt Solar Charge Controller

PRIMAX FOTON 13.0 10KW Hybrid Solar Inverter With 13000W Dual Mppt Solar Charge Controller

SKU: AR-002314
Product Type: solar inverter
Rs.259,999.00
Rs.290,000.00
Rs.259,999.00
Save Rs.30,001.00
Subtotal: Rs.259,999.00

2 Years Parts Replacement + 3 Years Service Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

PRIMAX FOTON 13.0 10KW Hybrid Solar Inverter With 13000W Dual Mppt Solar Charge Controller

PRIMAX FOTON 13.0 10KW Hybrid Solar Inverter With 13000W Dual Mppt Solar Charge Controller

Rs.290,000.00 Rs.259,999.00
PRIMAX FOTON 13.0 10KW Hybrid Solar Inverter With 13000W Dual Mppt Solar Charge Controller

PRIMAX FOTON 13.0 10KW Hybrid Solar Inverter With 13000W Dual Mppt Solar Charge Controller

Rs.290,000.00 Rs.259,999.00
Description

Primax Foton 13.0 Hybrid Solar Inverter by Primax Solar Energy is a powerful solution with a rated power of 10000W, capable of connecting up to 13000W of PV panels. It operates efficiently with a 48V battery system, offering versatile energy management for both residential and commercial use.

Features:

  • Enhanced inverter output power under PV mode
  • Touch LCD screen, intuitive parameter display, and convenient user operation method
  • Novel and fashionable RGB atmosphere lights indicator
  • Dual Output & Dual PV input with 13000W high PV power, supporting more panels
  • Support WiFi monitoring & setting
  • Working with or without battery

Product Specifications :

Download DataSheet

Model Foton 13.0
Input
Phase Single Phase
Nominal Voltage 220/230/240VAC
Voltage Range 90-280VAC±3V (Normal Mode) / 170-280VAC±3V (UPS Mode)
Frequency Range 50Hz/60Hz (Adaptive)
Rated Power 10000W
Output
PV Mode 10000W
Battery Mode / AC Mode 8800W
Output Voltage(AC) 220/230/240VAC±5%
Dual Output Rated Power Main Load: 8800W , Second Load : 8800W
Waveform Pure Sine Wave
Transfer Time (Adjustable) 10ms for Computer, 20ms for Home Appliances
Peak Power 17200VA
Overload/Battery Mode 105%-150% Load: 15s; 200% Load: 2s; 200% Load: 400ms
Peak Efficiency (Battery Mode) 94%
Output Voltage 220/230/240VAC
Grid-tie
Feed-in Grid Voltage 175 - 265 VA
Feed-in Grid Frequency Range 49.5-51.5Hz / 59-61.4Hz
Rated Feed-in Grid Current 37.4A
Peak Efficiency (DC/AC) 98%
Battery
Rated Voltage 48VDC (Adjustable)
Constant Voltage Charging Voltage 56.4VDC (Adjustable)
Floating Charge Voltage 54VDC (Adjustable)
PV Charging Method
PV Max Input Power Dual MPPT: 13000W (6500W+6500W)
MPPT Tracking Range 90-500 VDC
Charger
Best PV Voltage Range 360-430 VDC
Max PV Input Voltage 500 VDC
Max PV Input Current 27A + 27A
Max AC Charging Current 150A
Communication
RS232 For External WiFi / Monitoring & Update
RS485 For BMS Communication
Communication Port Dry Contact
Dry Contact Support sending signal to start generator
Environmental parameters
Operating environment temperature -10-50°C
Operating environment humidity 20%-95% (Non-condensing)
Storage temperature -15-60°C
Altitude Altitude should not exceed 1000m, derating above 1000m, up to 4000m
Noise
Certifications IEC 62010-1; IEC 62019-2; IEC 61883
