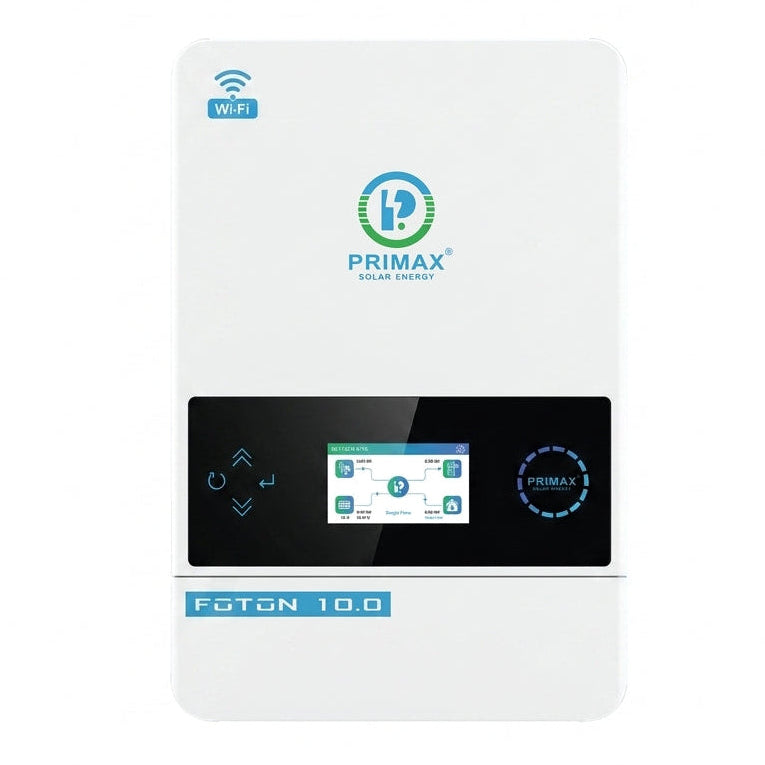

PRIMAX FOTON 10.0 10kw Hybrid Solar Inverter 48V | Single MPPT

PRIMAX FOTON 10.0 10kw Hybrid Solar Inverter 48V | Single MPPT

Write A Review
SKU: AR-003371
Product Type: Hybrid Solar Inverter
Rs.150,000.00
Rs.165,000.00
Rs.150,000.00
Save Rs.15,000.00
Subtotal: Rs.150,000.00

2 year parts + 3 year service warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

PRIMAX FOTON 10.0 10kw Hybrid Solar Inverter 48V | Single MPPT

PRIMAX FOTON 10.0 10kw Hybrid Solar Inverter 48V | Single MPPT

Rs.165,000.00 Rs.150,000.00
PRIMAX FOTON 10.0 10kw Hybrid Solar Inverter 48V | Single MPPT

PRIMAX FOTON 10.0 10kw Hybrid Solar Inverter 48V | Single MPPT

Rs.165,000.00 Rs.150,000.00
Description

Built with 98% DC/AC conversion efficiency, dual output functionality, and fast transfer times, the FOTON 10.0 ensures uninterrupted power for sensitive electronics and household appliances. Its intelligent battery charging system, adjustable charging voltages, and WiFi monitoring support make it an ideal solution for modern energy storage and backup applications. Whether you're looking to reduce electricity costs or ensure reliable backup power during outages, the PRIMAX FOTON 10.0 Hybrid Solar Inverter offers dependable performance, high efficiency, and smart energy management.

Key Features

10,000W Maximum Solar PV Input

6,500W Rated Output Power

48V Battery System

Single Phase Hybrid Solar Inverter

Advanced Single MPPT Solar Charger

Pure Sine Wave Output

Up to 98% DC/AC Conversion Efficiency

120A Maximum Solar Charging Current

100A Maximum AC Charging Current

500V Maximum PV Input Voltage

Parameter FOTON 10.0
Phase Single Phase
Nominal Voltage 220/230/240VAC
Voltage Range 90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode)
Frequency Range 50Hz/60Hz (Adaptive)
Rated Power 6500W
PV Mode / AC Mode 6500W
Battery Mode 6200W
Output Voltage (AC) 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Dual Output Rated Power Main Load: 6200W , Second Load : 6200W
Waveform Pure Sine Wave
Transfer Time (Adjustable) 10ms for Computer , 20ms for Home Appliances
Peak Power 12400VA
Overload (Battery Mode) 105%~150% Load: 11s ; 150%~200% Load: 2s; >200% Load: 400ms
Peak Efficiency (Battery Mode) >94%
Grid Output Voltage 220/230/240VAC
Feed-in Grid Voltage 175 - 265 VA
Feed-in Grid Frequency Range 49-51±1Hz/59-61±1Hz
Rated Feed-in Grid Current 26.9A
Peak Efficiency (DC/AC) 98%
Battery Rated Voltage 48 VDC
Constant Voltage Charging Voltage 56.4VDC (Adjustable)
Floating Charge Voltage 54VDC (Adjustable)
PV Charging Method Single MPPT
PV Max Input Power 10000W
MPPT Tracking Range 60~500 VDC
Best PV Voltage Range 360-430 VDC
Max PV Input Voltage 500 VDC
Max PV Input Current 32A
Max PV Charging Current 120A
Max AC Charging Current 100A
RS232 For External WiFi device / Monitoring & Update
