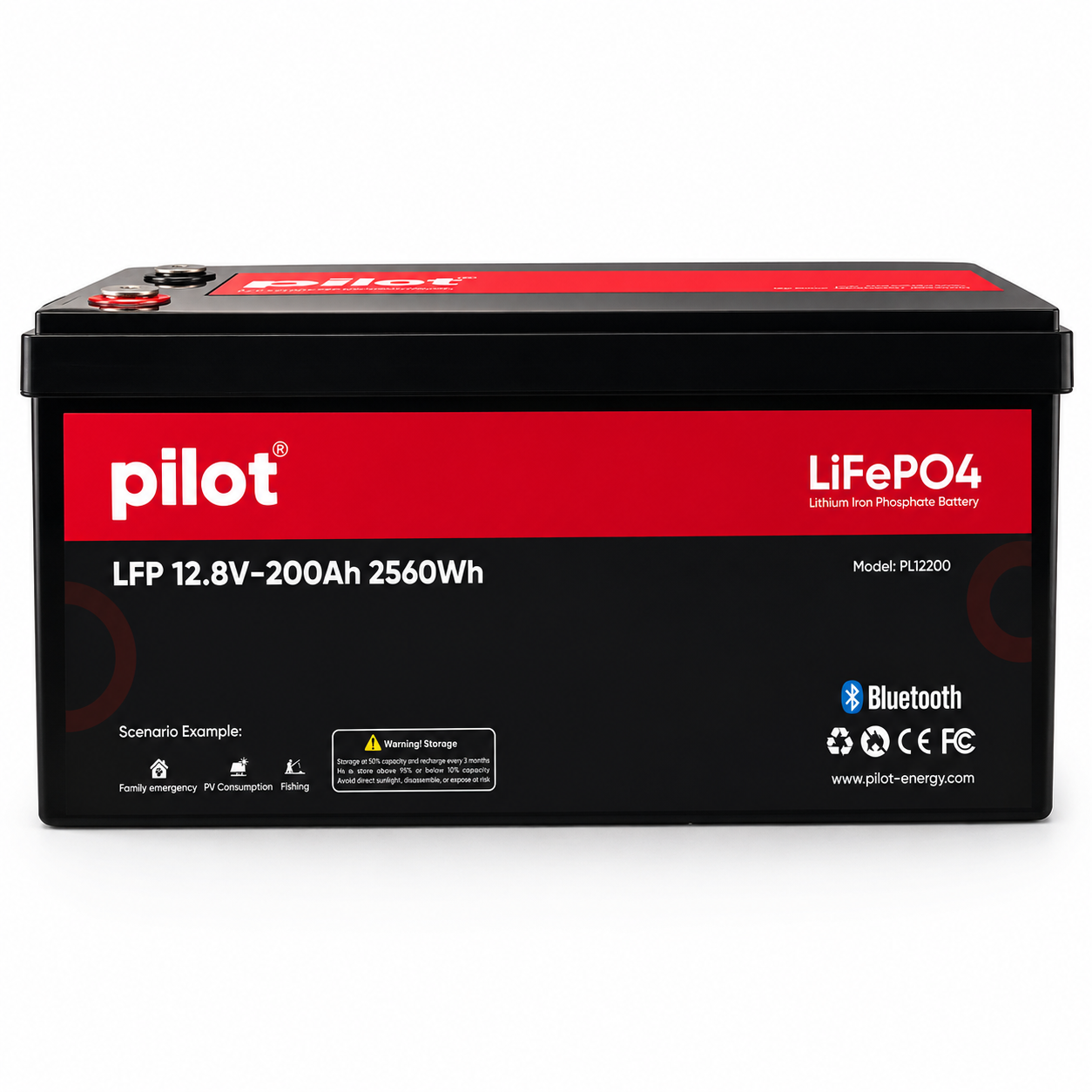

Pilot LFP 12.8V 200Ah 2.56kWh Lithium LiFePO4 Battery IP65
Pilot LFP 12.8V 200Ah 2.56kWh Lithium LiFePO4 Battery IP65

Pilot LFP 12.8V 200Ah 2.56kWh Lithium LiFePO4 Battery IP65

Write A Review
SKU: AR-003402
Product Type: lithium battery
Rs.125,000.00
Rs.130,000.00
Rs.125,000.00
Save Rs.5,000.00
Subtotal: Rs.125,000.00

3 Years Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Pilot LFP 12.8V 200Ah 2.56kWh Lithium LiFePO4 Battery IP65

Pilot LFP 12.8V 200Ah 2.56kWh Lithium LiFePO4 Battery IP65

Rs.130,000.00 Rs.125,000.00
Pilot LFP 12.8V 200Ah 2.56kWh Lithium LiFePO4 Battery IP65
Pilot LFP 12.8V 200Ah 2.56kWh Lithium LiFePO4 Battery IP65

Pilot LFP 12.8V 200Ah 2.56kWh Lithium LiFePO4 Battery IP65

Rs.130,000.00 Rs.125,000.00
Description

The Pilot LFP 2.56kWh 12.8V 200Ah Lithium Battery is a high-performance LiFePO4 (Lithium Iron Phosphate) battery designed for solar energy storage, UPS systems, RVs, marine applications, telecom, and off-grid power solutions. With 2560Wh of usable energy, an IP65-rated weatherproof enclosure, and 4000+ cycle life, this battery delivers reliable, long-lasting performance while requiring minimal maintenance. Featuring a 200A continuous charge/discharge current, 400A peak pulse current, and CAN communication with optional Bluetooth monitoring, the Pilot LFP battery ensures safe, efficient, and intelligent energy storage for residential and commercial applications.

Key Features

2.56kWh (2560Wh) Lithium Iron Phosphate (LiFePO4) Battery

12.8V Nominal Voltage

200Ah High Capacity

4000+ Charge & Discharge Cycles

IP65 Water & Dust Resistant Enclosure

200A Continuous Charge & Discharge Current

400A Peak Pulse Current (<2 Seconds)

High Charging Efficiency up to 100%

96–99% Discharge Efficiency

Integrated CAN Communication

Optional Bluetooth Monitoring

Maintenance-Free & Long Service Life

Ideal for Solar, UPS, RV, Marine & Backup Power Systems

Specification Details
Brand Pilot
Battery Type Lithium Iron Phosphate (LiFePO4)
Model LFP 2.56kWh
Nominal Voltage 12.8V
Nominal Capacity 200Ah (C5, 25°C)
Energy 2560Wh (2.56kWh)
Internal Resistance ≤10mΩ @ 50% SOC
Cycle Life >4000 Cycles @ 0.5C & 80% DOD
Self Discharge <3% Per Month
Charge Efficiency 100% @ 1C
Discharge Efficiency 96–99% @ 1C
Charge Mode CC/CV (0.2C to 14.6V, then Constant Voltage)
Continuous Charge Current 200A
Recommended Charge Current 100A
Max Pulse Charge Current 400A (<2 Seconds)
Charge Cut-off Voltage 14.6V ±0.2V
Continuous Discharge Current 200A
Recommended Discharge Current 100A
Max Pulse Discharge Current 400A (<2 Seconds)
Discharge Cut-off Voltage 10.8V
Charge Temperature 0°C to 45°C
Discharge Temperature -20°C to 60°C
Storage Temperature 0°C to 40°C
Protection Rating IP65
Cell Configuration 3.2V 100Ah, 4S2P
Case Material ABS
Dimensions 521 × 241 × 222 mm
Net Weight 18.5 kg
Gross Weight 19.5 kg
Terminal M8
Communication CAN, Optional Bluetooth
