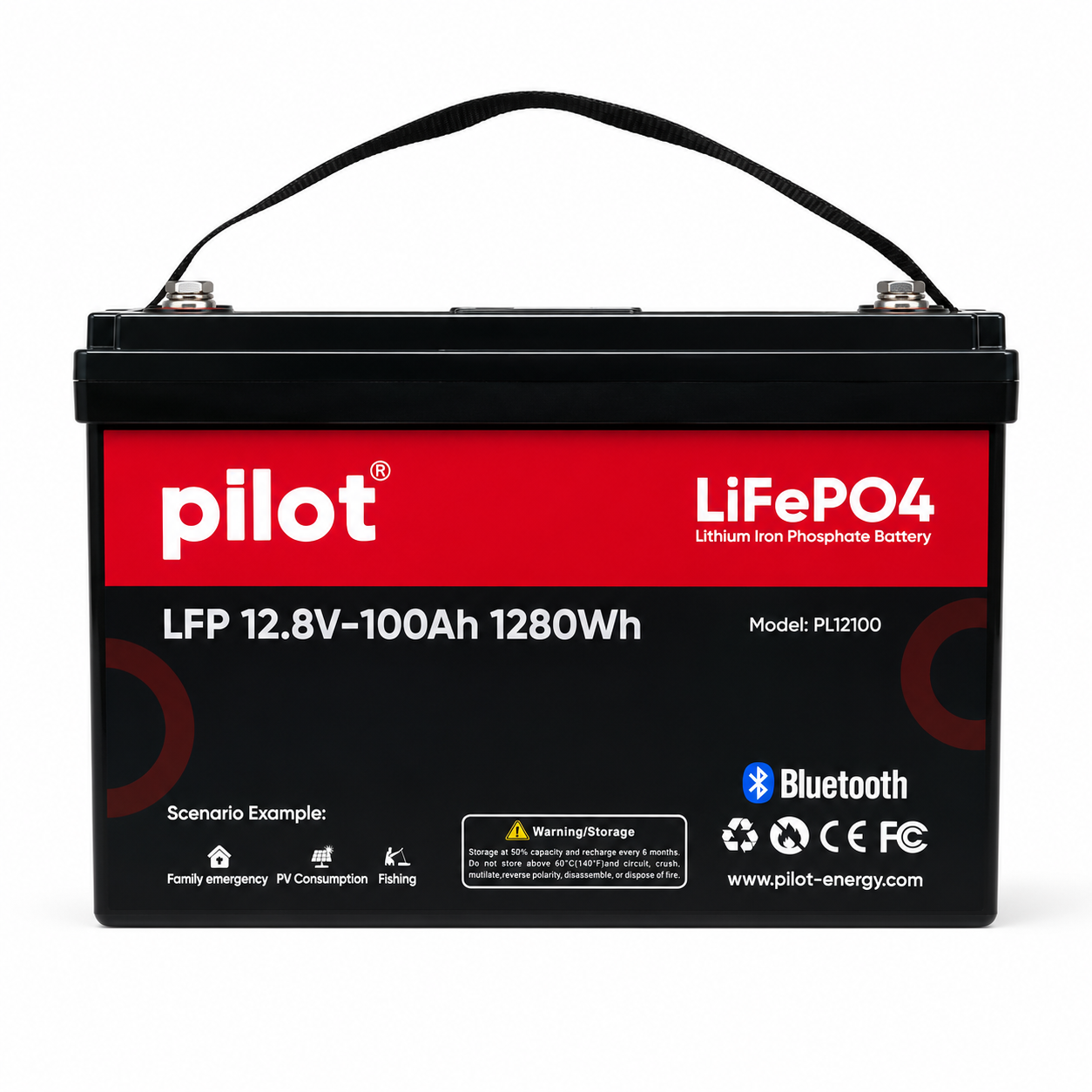

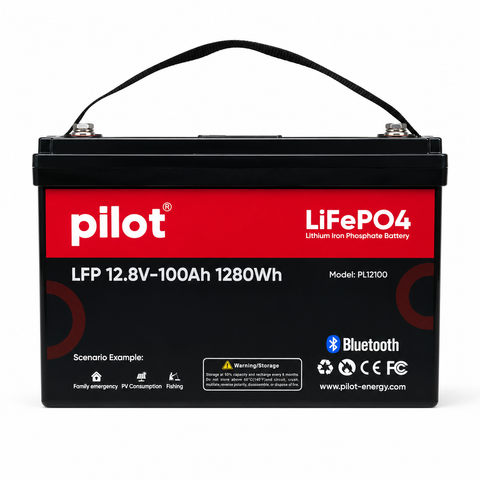

Pilot LFP 12.8V 100Ah 1.28kWh LiFePO4 Lithium Battery IP65
Pilot LFP 12.8V 100Ah 1.28kWh LiFePO4 Lithium Battery IP65

Pilot LFP 12.8V 100Ah 1.28kWh LiFePO4 Lithium Battery IP65

Write A Review
SKU: AR-003401
Product Type: lithium battery
Rs.70,000.00
Rs.75,999.00
Rs.70,000.00
Save Rs.5,999.00
Subtotal: Rs.70,000.00

3 Years Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Pilot LFP 12.8V 100Ah 1.28kWh LiFePO4 Lithium Battery IP65

Pilot LFP 12.8V 100Ah 1.28kWh LiFePO4 Lithium Battery IP65

Rs.75,999.00 Rs.70,000.00
Pilot LFP 12.8V 100Ah 1.28kWh LiFePO4 Lithium Battery IP65
Pilot LFP 12.8V 100Ah 1.28kWh LiFePO4 Lithium Battery IP65

Pilot LFP 12.8V 100Ah 1.28kWh LiFePO4 Lithium Battery IP65

Rs.75,999.00 Rs.70,000.00
Description

The Pilot LFP 12.8V 100Ah 1.28kWh LiFePO4 Lithium Battery is a high-performance deep cycle battery designed for solar energy storage, backup power systems, RVs, marine applications, and off-grid installations. Built with advanced LiFePO4 (Lithium Iron Phosphate) cell technology, it delivers over 6,000 charge cycles, fast charging, lightweight construction, and exceptional safety. Featuring a built-in 100A Battery Management System (BMS), the battery provides protection against overcharging, over-discharging, overcurrent, short circuits, and temperature fluctuations for reliable long-term operation. Its durable ABS housing and IP65-rated protection make it suitable for demanding indoor and outdoor environments.

Key Features

12.8V 100Ah LiFePO4 Lithium Battery

1.28kWh (1280Wh) Energy Capacity

Long service life with 6000+ charge cycles

Built-in 100A Battery Management System (BMS)

High charge efficiency up to 100%

96–99% discharge efficiency

Lightweight and maintenance-free design

Low self-discharge (<3% per month)

Durable ABS plastic enclosure

IP65-rated dust and water resistance

Suitable for solar systems, UPS, RVs, marine, telecom, and backup power

Specification Details
Nominal Voltage 12.8V
Nominal Capacity 100Ah (C5, 25°C)
Energy 1280Wh
Internal Resistance <150mΩ
Cycle Life >6000 Cycles
Self Discharge <3% per Month
Charge Efficiency 100% @ 0.2C
Discharge Efficiency 96–99% @ 1C
Certifications CE, FCC, PSE, RoHS
Charge Voltage 14.6V ±0.2V
Charge Mode 0.2C to 14.6V, then constant voltage at 14.6V until charge current reaches 0.02C (CC/CV)
Standard Charger Current 20A
Maximum Charge Current 100A
Charge Cut-off Voltage 14.8V ±0.2V
Continuous Discharge Current 100A
Maximum Pulse Current 300A (<3 seconds)
Discharge Cut-off Voltage 10V
Charge Temperature 0°C to 45°C (32°F to 113°F) @ 60±25% RH
Discharge Temperature -20°C to 60°C (-4°F to 140°F) @ 60±25% RH
Storage Temperature 0°C to 40°C (32°F to 104°F) @ 60±25% RH
Water & Dust Resistance Not Specified
Cell Configuration 3.2V 100Ah – 4S1P
Battery Case Material ABS Plastic
Dimensions (L × W × H) 330 × 173 × 220 mm
Weight 10.3 kg
Terminal Type M8
Communication Protocol Optional (Not Included)
