PRIMAX NEXA PSE-DUAL-12KW – HYBRID SOLAR INVERTER
SKU:
AR-001915
Product Type:
solar inverter
- Rs.679,999.00
Rs.840,000.00- Rs.679,999.00
- Unit price
- per
Save Rs.160,001.00
Couldn't load pickup availability
5 Year's Replacement Warranty
Estimated Shipping Time: 48 to 72 Hours
You Have to Pay Partial Payment in Advance for Order Confirmation
Heavy weight parcels will be dispatch through Cargo Service
Customer will pay Cargo charges on delivery.

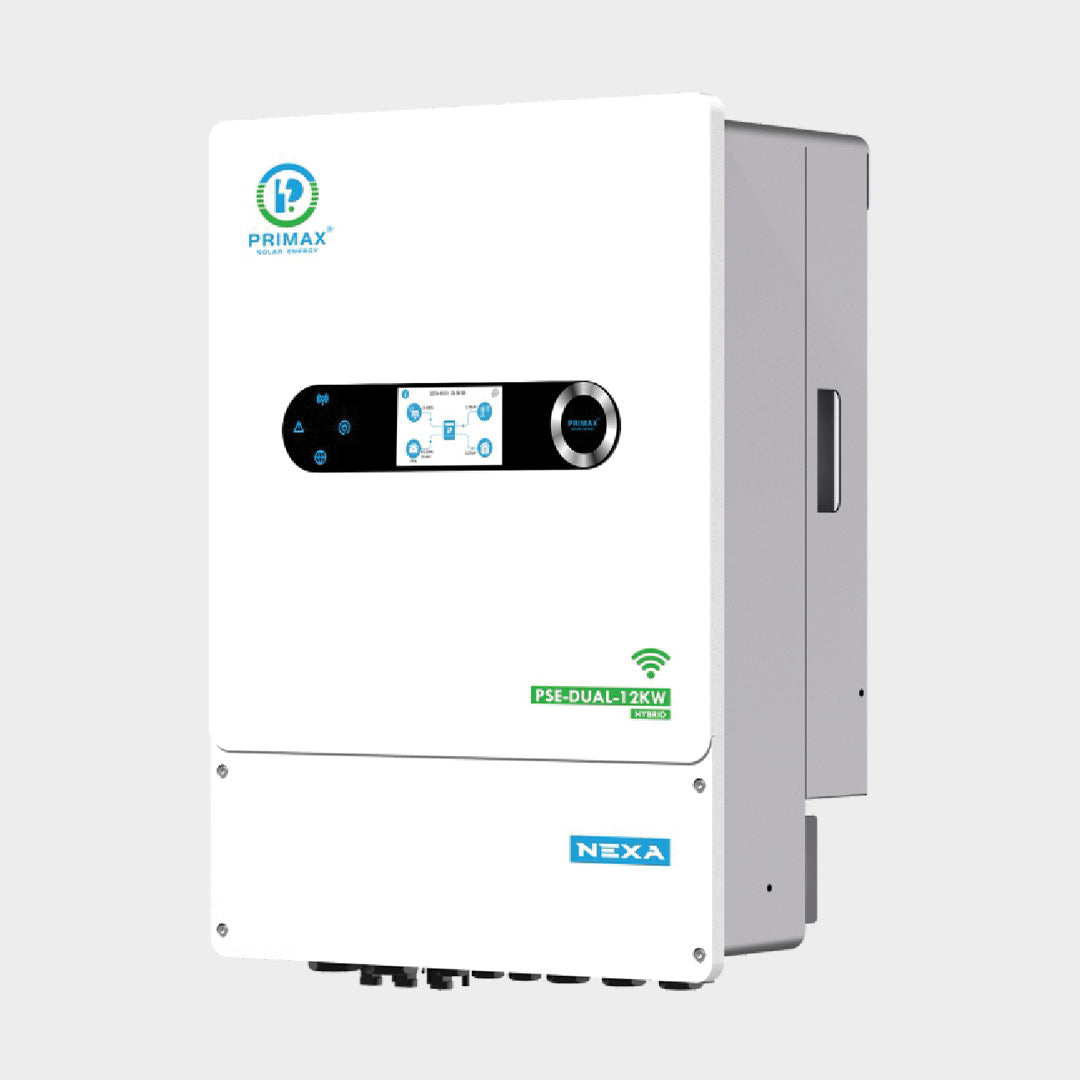

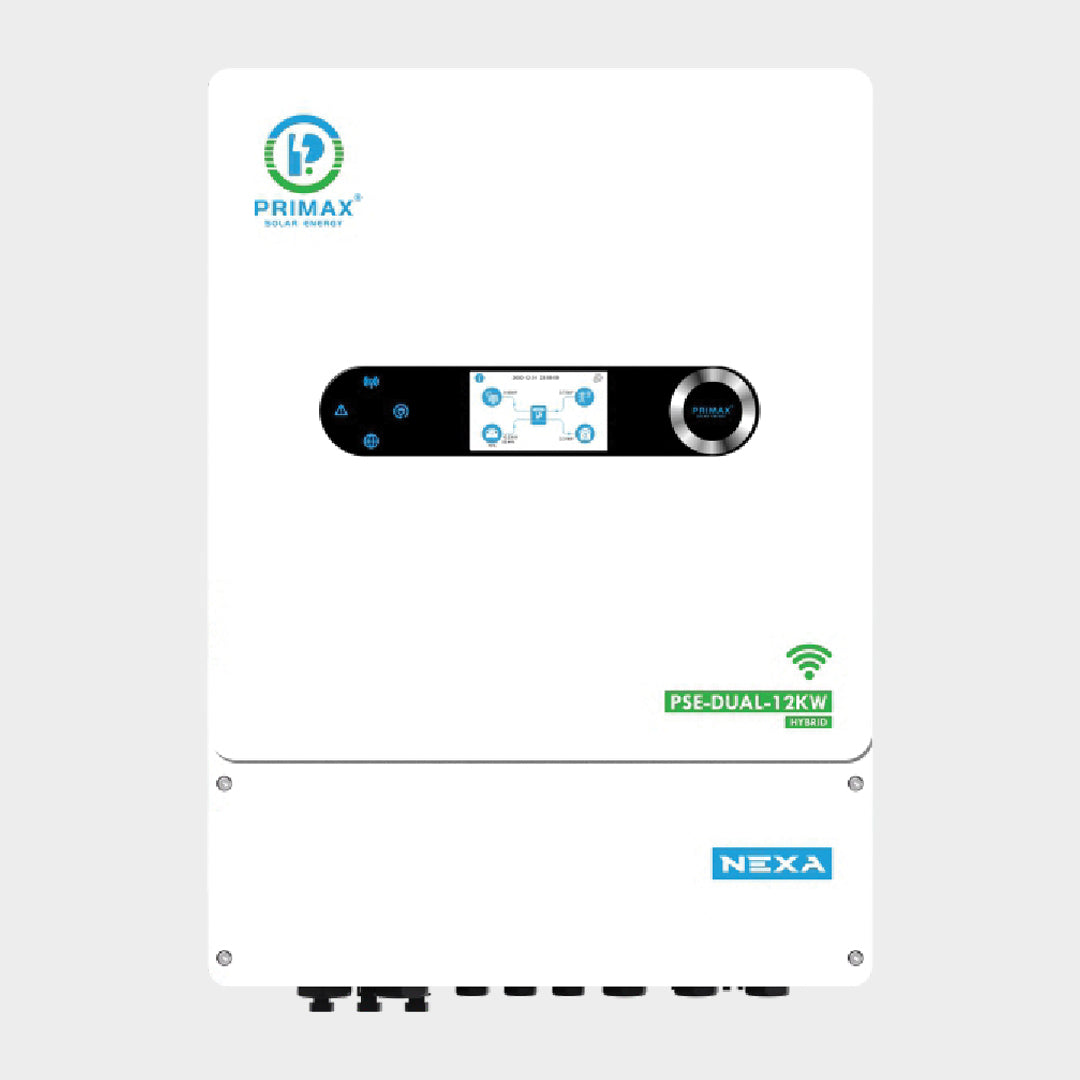

PRIMAX NEXA PSE-DUAL-12KW Hybrid Solar Inverter
A high-performance hybrid solar inverter designed for large-scale solar energy systems. Equipped with advanced features, it delivers exceptional efficiency, reliability, and versatility for demanding energy requirements.
Key Features
- Massive DC Input Power: Handles up to 18,000W for robust solar energy input.
- High Input Voltage Capacity: Maximum DC input voltage of 1000V, with a wide MPPT range of 150-800V.
- Dual MPPT: Two independent Maximum Power Point Tracking units for optimized solar panel performance.
- Starting Voltage: Activates at 150V for quick and efficient power generation.
- Powerful Output: Rated output power of 12,000W with a maximum output current of 27A.
- Battery Compatibility: Supports both Lithium and Lead Acid batteries; rated at 48V.
- Advanced Battery Management: Maximum charge/discharge current of 120A for enhanced performance and longevity.
- BMS Communication: Features CAN/RS485 for seamless integration with Battery Management Systems.
- Durable and Spacious Design: Dimensions of 475 x 683 x 256 mm and a weight of 35 kg, built for heavy-duty use.
SPECIFICATIONS
| PV INPUT | PSE-DUAL-12KW |
| Max. DC input power [W] | 18000 |
| Max. DC input voltage [V] | 1000 |
| MPPT operating voltage range [V] | 150-800 |
| Starting voltage [V] 33 | 150 |
| Max. input current [A] | 36/18 |
| Number of MPP trackers. | 2 |
| Strings per MPP tracker | 2/1 |
| AC OUTPUT (GRID) | |
| Rated output power [W] | 12000 |
| Max. output apparent power [VA] | 13200 |
| Rated output voltage [V] | 400 |
| Rated output frequency [Hz] | 50/60 |
| Max. output current [A] | 20.0 |
| Output power factor | -0.8 leading +0.8 lagging |
| AC OUTPUT (TWO BACKUP) | |
| Full Max. output power [W] | 12000 |
| Rated output voltage [V] | 400(±2%) |
| Rated output frequency [Hz] | 50/60 (±0.2%) |
| Backup 1 Max. output power [W] | 12000 |
| Backup2 Max. output power [W] | 12000 |
| Output Power Factor(off grid) | -0.8 leading +0.8 lagging |
| Output Current Harmonic Distortion | THD 3% (Nonlinear load); THD<1.5% (Linear load) |
| Max. output current. [A] | 20 |
| BATTERY PARAMETERS | |
| Battery type | Lithium or lead acid battery |
| Rated battery voltage. [V] | 48 |
| Voltage range [V] | 44-60 |
| Max. charge/discharge current [A] | 250 |
| EFFICIENCY | |
| Max. efficiency (PV) | 98% |
| Max. efficiency (Battery) | 94.5% |
| European efficiency | 97.5% |
| PROTECTION | |
| DC reverse-polarity protection | Yes |
| Short circuit protection | Yes |
| Output over current protection | Yes |
| Output over voltage protection | Yes |
| Insulation resistance monitoring | Yes |
| Residual current detection | Yes |
| Surge protection | Yes |
| Grid monitoring | Yes |
| Islanding protection | Yes |
| Temperature protection | Yes |
| Integrated DC switch | Yes |
| OTHERS | |
| Operating temperature range [C] | -25-60 |
| Storage temperature range [C] | -30-65 |
| Humidity range | 0-95% |
| Operating altitude [m] | ≤4000 |
| Topology | HF isolation (Battery side) |
| Cooling method | Natural |
| Noise [db] | <25 |
| Weight [kg] | 35 |
| Size (WXHXD) [mm] | 475×683×256 |
| STANDARD | |
| FN62109-1/2 IEC62109-1/2 EMC61000 EN50549 IEC61727 JFC62116 IEC61683 VDE 4105/0124 |
Perfect for commercial and industrial applications, the PSE-DUAL-12KW offers a dependable and efficient solution for large-scale energy systems.
