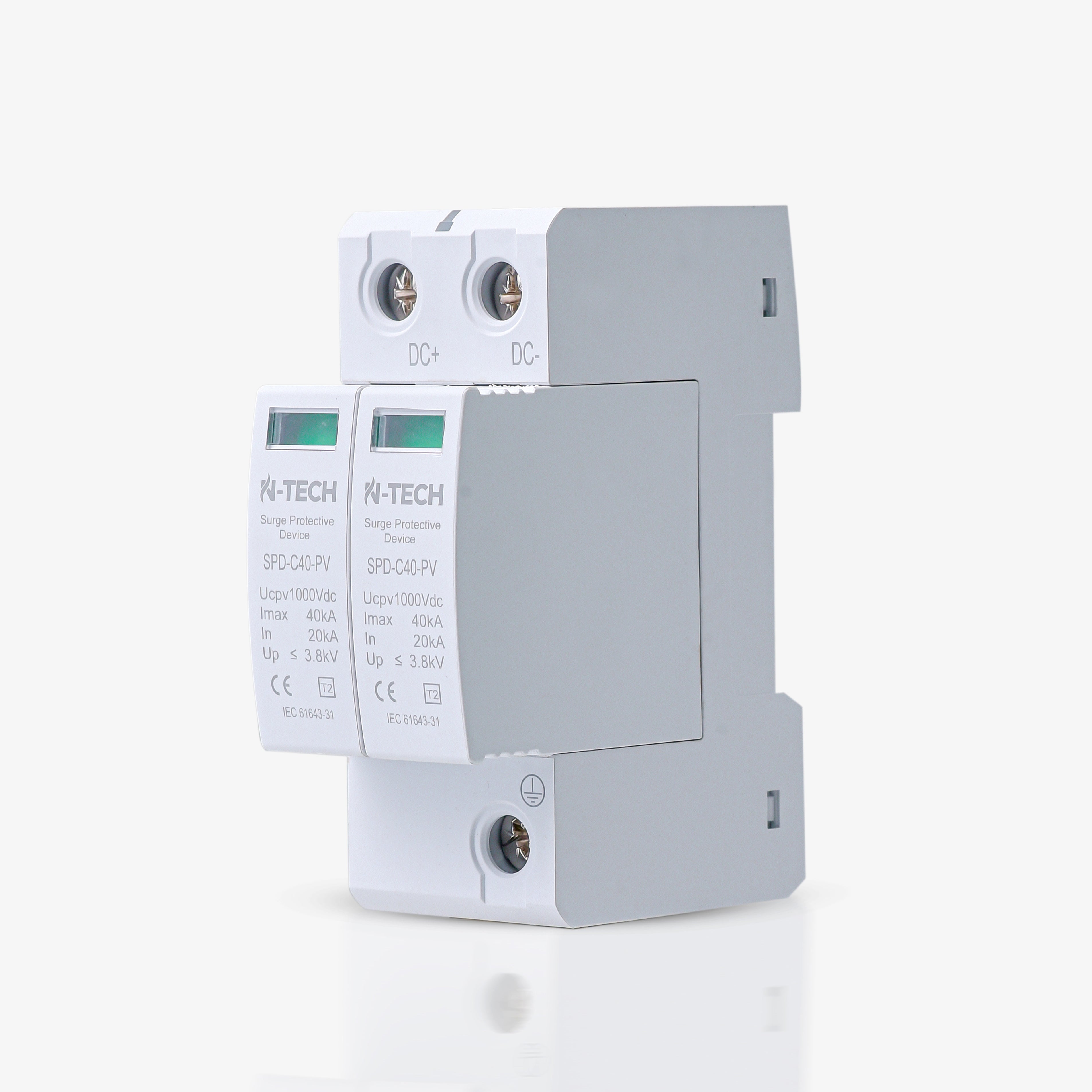

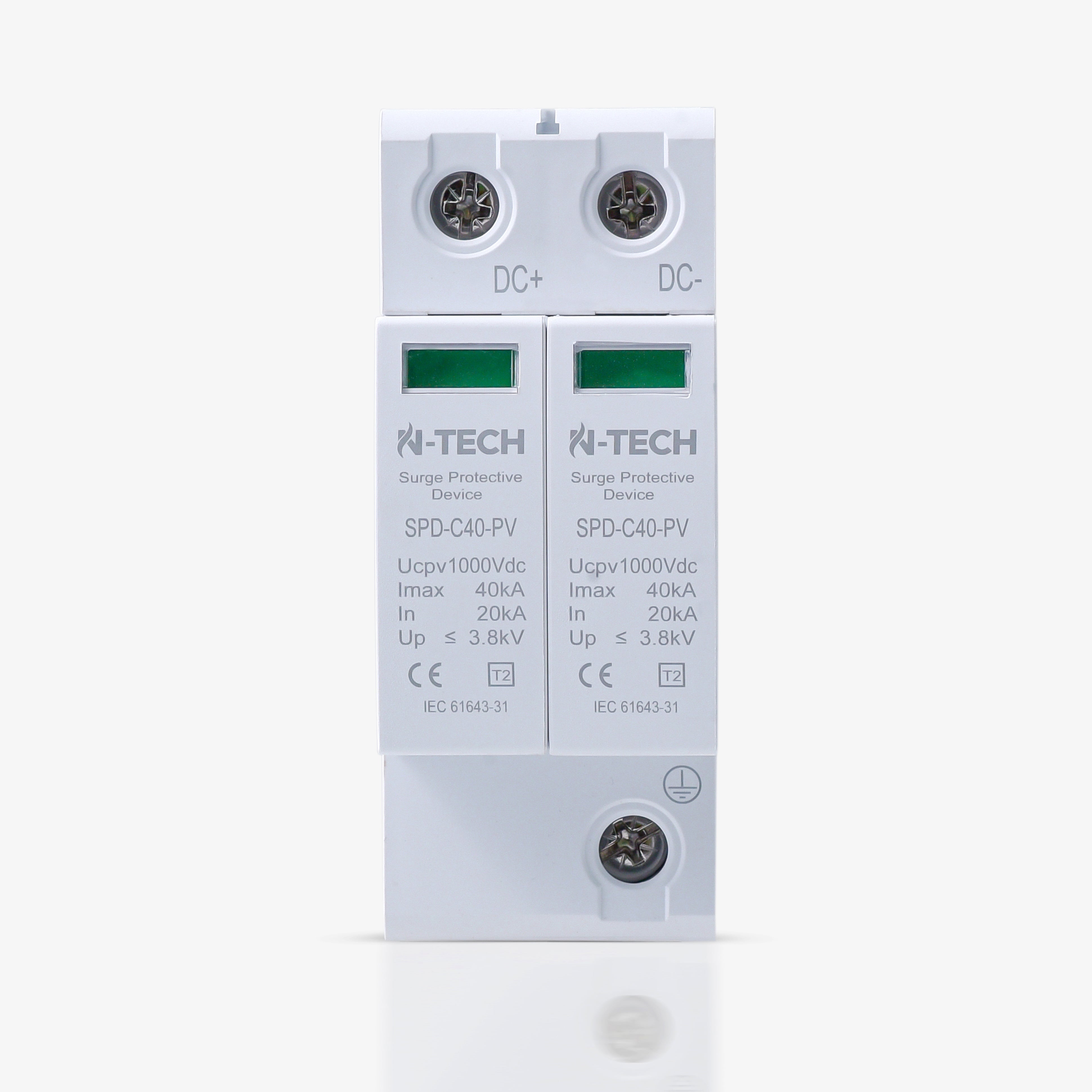

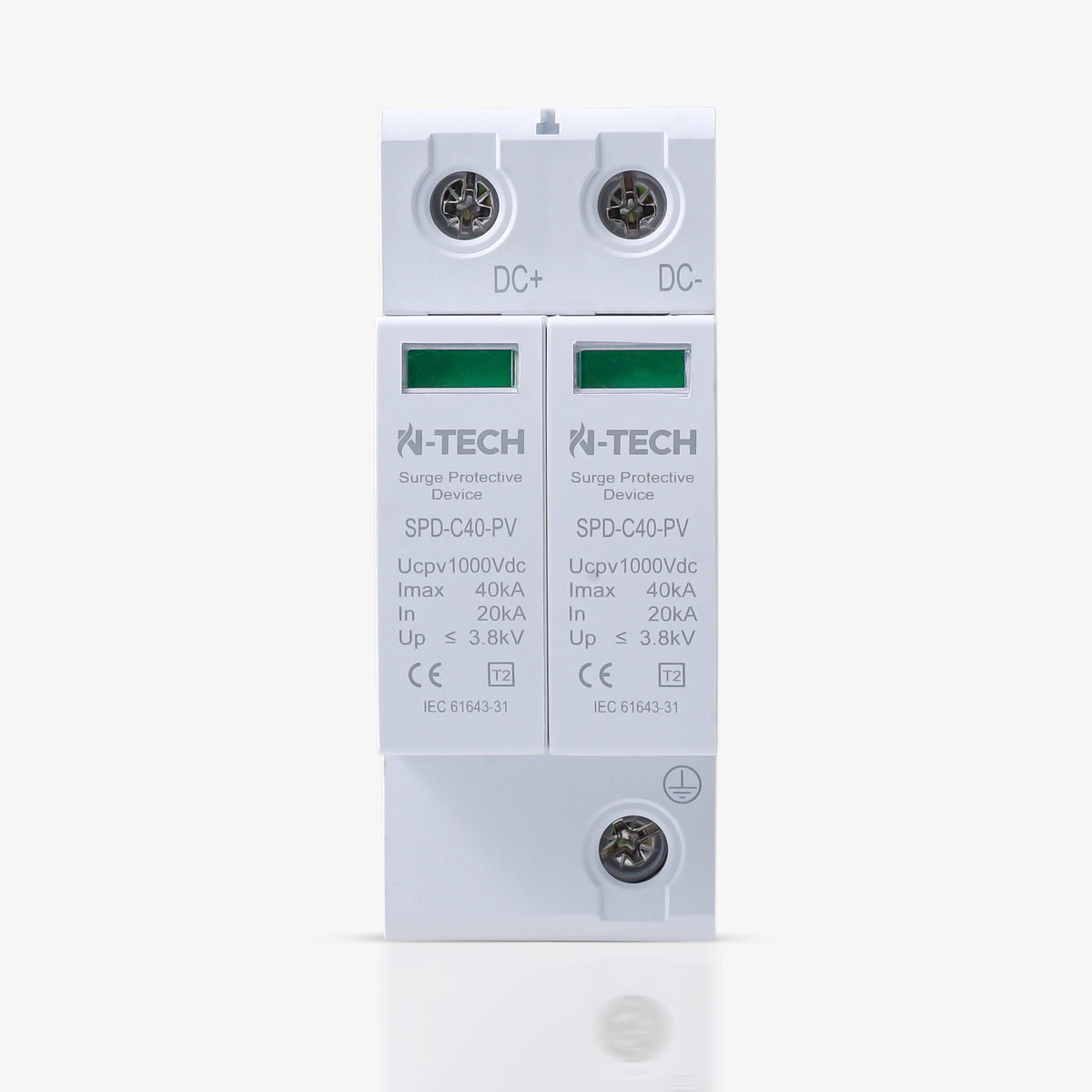

N-Tech SPD-C40-PV | 1000V DC 2-Pole Surge Protection Device, 40kA
N-Tech SPD-C40-PV | 1000V DC 2-Pole Surge Protection Device, 40kA

N-Tech SPD-C40-PV | 1000V DC 2-Pole Surge Protection Device, 40kA

SKU: AR-002541
Product Type: SPD
Rs.3,000.00
Rs.3,000.00
Rs.3,000.00
Save Rs.0.00
Subtotal: Rs.3,000.00
  • Alladin Store

7 Days Check Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

N-Tech SPD-C40-PV | 1000V DC 2-Pole Surge Protection Device, 40kA

N-Tech SPD-C40-PV | 1000V DC 2-Pole Surge Protection Device, 40kA

Rs.3,000.00
N-Tech SPD-C40-PV | 1000V DC 2-Pole Surge Protection Device, 40kA
N-Tech SPD-C40-PV | 1000V DC 2-Pole Surge Protection Device, 40kA

N-Tech SPD-C40-PV | 1000V DC 2-Pole Surge Protection Device, 40kA

Rs.3,000.00
Description

The N-Tech SPD-C40-PV is a surge protection device designed for photovoltaic (PV) systems and other DC power applications. It provides reliable protection against transient overvoltages caused by lightning strikes and switching operations, ensuring the safety and longevity of connected equipment.

Key Specifications:

  • Type: DC Surge Protection Device (SPD)
  • Poles: 2-Pole (DC+ / DC–)
  • Maximum Continuous Operating Voltage (Ucpv): 1000 V DC
  • Maximum Discharge Current (Imax): 40 kA
  • Nominal Discharge Current (In): 20 kA
  • Voltage Protection Level (Up): ≤ 3.8 kV
  • Standard Compliance: IEC 61643-31
  • Protection Class: Type 2 (T2)
  • Application: Solar PV systems, DC distribution systems

Features:

  • High discharge current capability (40 kA)
  • Compact design for easy DIN rail installation
  • Clear indicator window for status monitoring
  • Reliable protection for sensitive DC equipment
  • Designed for long-term stability and safety
