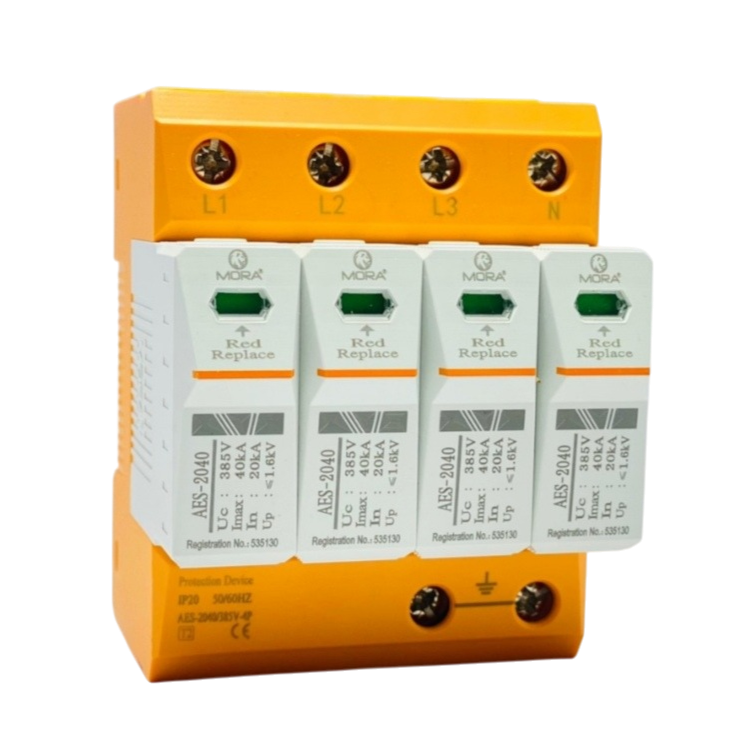

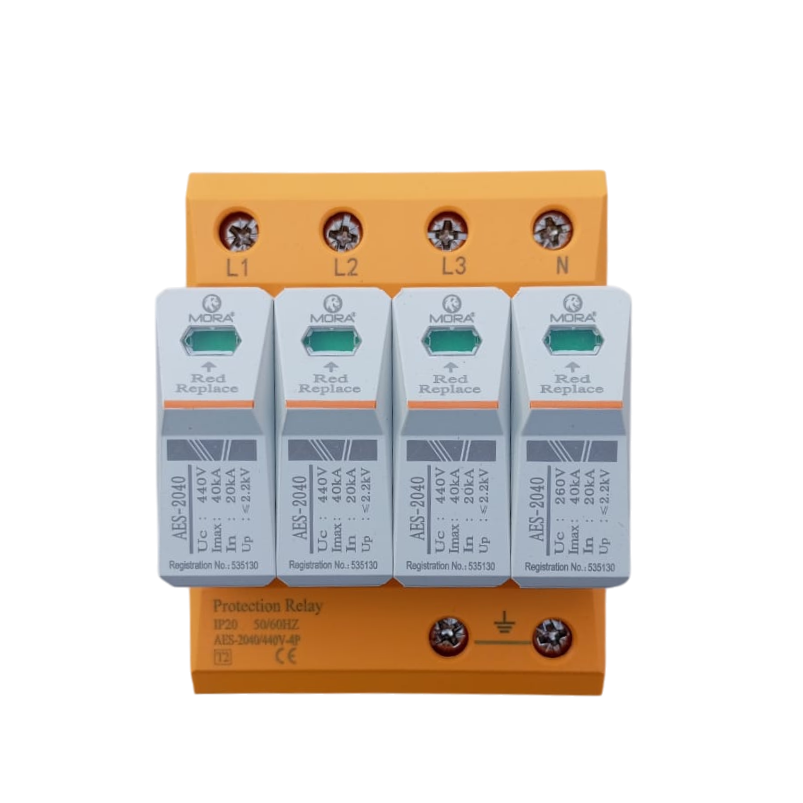

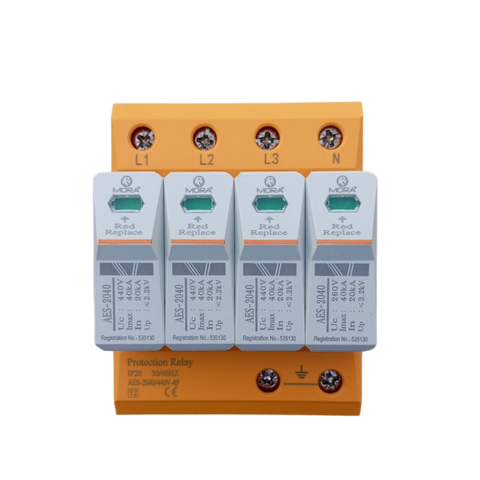

Mora (AES-2040) 4Pole 40kA AC (Surge Protection Device) SPD



Product : Surge protection device

Model : AES-2040

Related Operating Voltage Un : 380V AC

Maximum Continuous Operating Voltage  : 415 V

Nominal Discharge Current In : 20kA

Max. Discharge Current Imax : 40kA

Response Time (ns) : Ë‚ 25

Operating Environment : -40°C to 85°C

Maximum Connection Line : 35 mm² hard wire or 35 mm² strand wire

Recommended Connection Line : 16 mm² hard wire or 25 mm² strand wire

Installation : DIN rail Standard Rail 35mm
