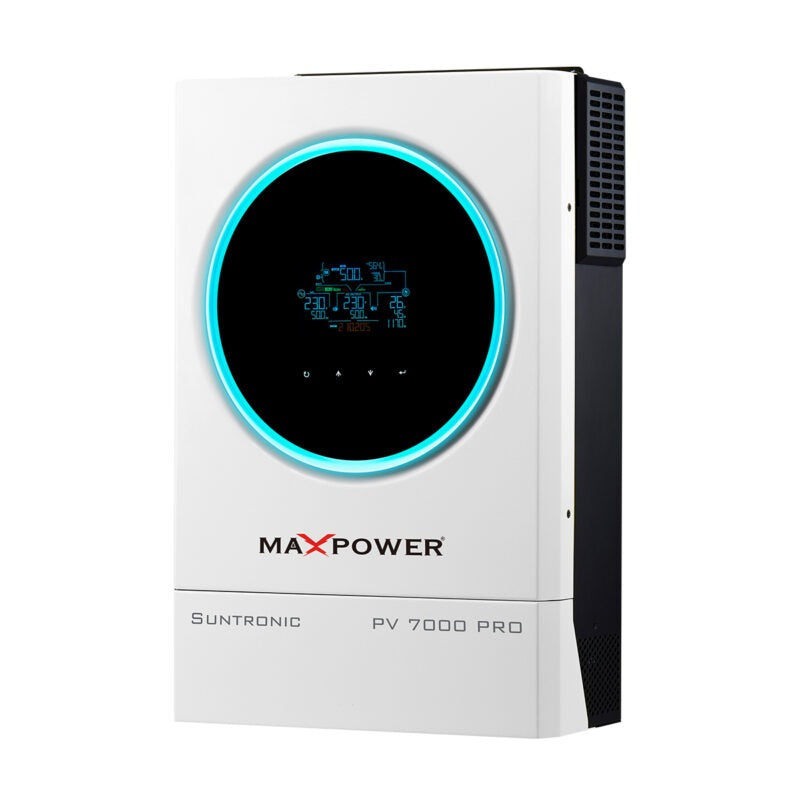

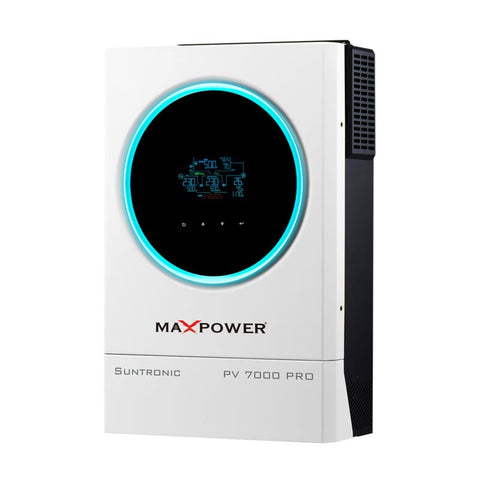

MaxPower SUNTRONIC PV 7000 PRO Hybrid Solar Inverter – 7KW PV Input, 48V Battery, MPPT 120-430V, Single Phase

MaxPower SUNTRONIC PV 7000 PRO Hybrid Solar Inverter – 7KW PV Input, 48V Battery, MPPT 120-430V, Single Phase

SKU: AR-003083
Product Type: solar inverter
Rs.150,000.00
Rs.160,000.00
Rs.150,000.00
Save Rs.10,000.00
Subtotal: Rs.150,000.00

5 years warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

MaxPower SUNTRONIC PV 7000 PRO Hybrid Solar Inverter – 7KW PV Input, 48V Battery, MPPT 120-430V, Single Phase

MaxPower SUNTRONIC PV 7000 PRO Hybrid Solar Inverter – 7KW PV Input, 48V Battery, MPPT 120-430V, Single Phase

Rs.160,000.00 Rs.150,000.00
MaxPower SUNTRONIC PV 7000 PRO Hybrid Solar Inverter – 7KW PV Input, 48V Battery, MPPT 120-430V, Single Phase

MaxPower SUNTRONIC PV 7000 PRO Hybrid Solar Inverter – 7KW PV Input, 48V Battery, MPPT 120-430V, Single Phase

Rs.160,000.00 Rs.150,000.00
Description

The MaxPower SUNTRONIC PV 7000 PRO Hybrid Solar Inverter is a high-performance solar power solution designed for residential and small commercial solar systems. With a 7000W maximum PV input capacity, this inverter efficiently converts solar energy into reliable electricity for your home or office. Featuring an advanced MPPT controller with a wide 120–430V DC voltage range, the SUNTRONIC PV 7000 PRO maximizes solar panel efficiency and ensures optimal energy harvesting throughout the day. The inverter supports a 48V battery system, making it compatible with both modern lithium batteries and traditional energy storage setups.

Key Features

7000W PV Input Capacity – Supports large solar panel arrays for higher solar power generation.

Advanced MPPT Technology – Ensures maximum solar energy harvesting and improved system efficiency.

Wide MPPT Voltage Range (120–430VDC) – Optimized performance across varying solar conditions.

48V Battery System Support – Compatible with lithium and other 48V battery storage solutions.

27A Maximum PV Input Current – Handles higher solar input for improved charging performance.

Wide AC Input Range (90–280VAC) – Provides stable operation in areas with fluctuating grid voltage.

IP21 Protection Rating – Designed for safe indoor installation and reliable operation.

Specification Details
Model MaxPower SUNTRONIC PV 7000 PRO
Rated Output Power 6000W
Phase 1-Phase In / 1-Phase Out
Maximum PV Input Power 7000W
Maximum Charging Power 6000W
Nominal DC Voltage / Max DC Voltage 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 110 VDC / 120 VDC
MPP Voltage Range 120 – 430 VDC
Number of MPP Trackers / Max Input Current 1 / 27A
Nominal Output Voltage 220 / 230 / 240 VAC
Output Voltage Range 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable)
Nominal Output Current 26A
Power Factor >0.9
Maximum Conversion Efficiency (DC/AC) 96%
Efficiency (DC to AC) 93%
Output Waveform Pure Sine Wave
AC Start-up Voltage / Auto Restart Voltage 120 – 140 VAC / 180 VAC
Acceptable AC Input Voltage Range 90 – 280 VAC or 170 – 280 VAC
Maximum AC Input Current 40A
Maximum DC Voltage 500 VDC
MPPT Voltage Range 120 – 430 VDC
MPP Trackers / Max Input Current 1 / 27A
