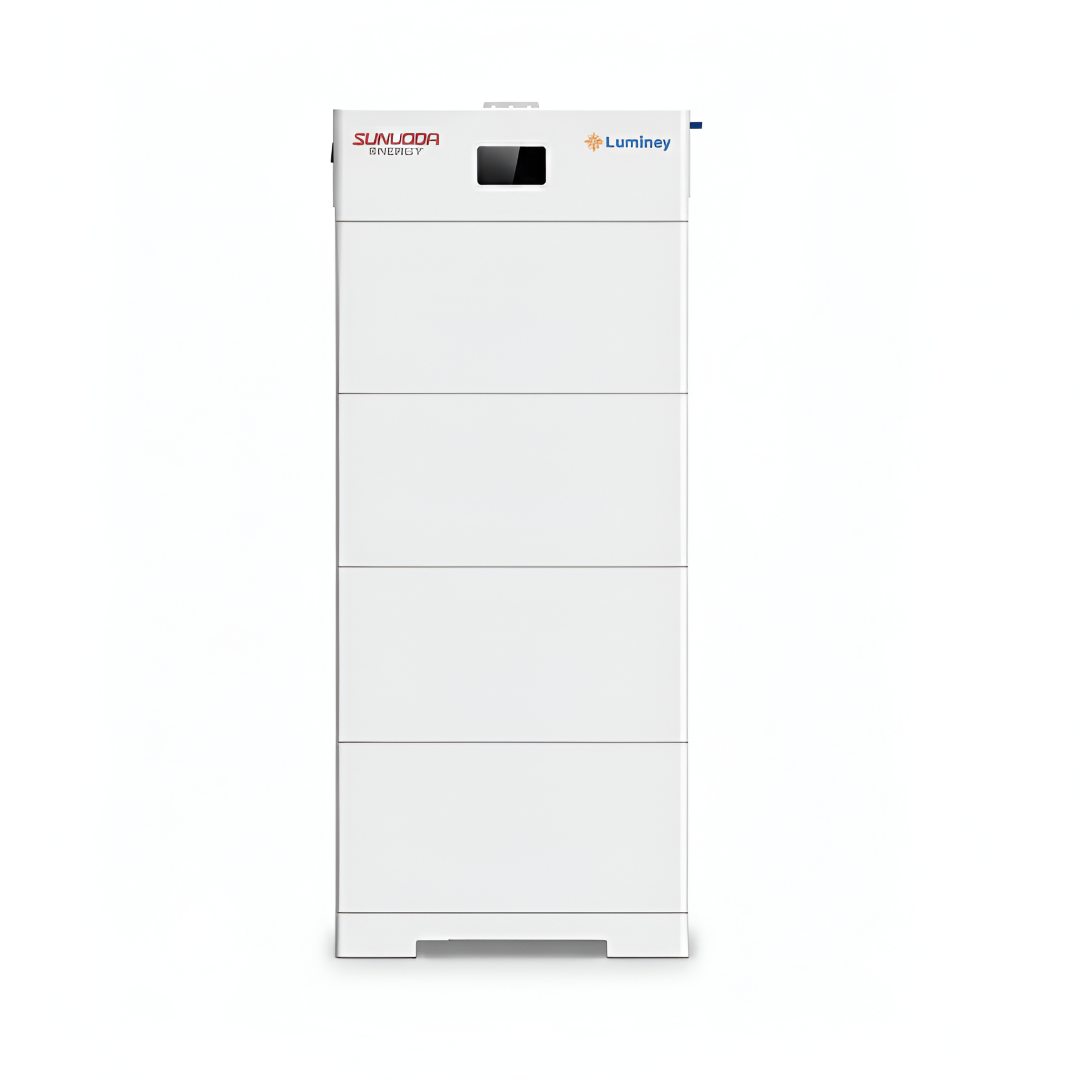

Luminey SunESS 20H 20kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Luminey SunESS 20H 20kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

SKU: AR-002765
Product Type: SunESS Energy Storage System
Rs.1,670,000.00
Rs.1,670,000.00
Subtotal: Rs.1,670,000.00

5 Years

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Luminey SunESS 20H 20kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Luminey SunESS 20H 20kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Rs.1,670,000.00
Luminey SunESS 20H 20kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Luminey SunESS 20H 20kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Rs.1,670,000.00
Description

The Luminey SunESS 20H 20kWh Smart Energy Storage System is a high-performance, high-voltage lithium battery solution designed for homes, businesses, and hybrid/off-grid solar setups. With a robust 20kWh capacity, advanced safety protections, and a modular stacked design, it delivers reliable backup power, efficient energy storage, and seamless integration with modern solar inverters.

Key Features:

  • Massive 20kWh Storage Capacity – Perfect for whole-home backup, commercial loads, and large solar systems.

  • High-Voltage System (409.6V) – Ensures superior efficiency, fast charging, and stable performance.

  • Smart Monitoring & Connectivity – Supports CAN 2.0, RS485, WiFi, and LAN for real-time system data.

  • Fast Power Delivery – Rated at 10kW continuous and up to 14kW peak for heavy loads.

  • Advanced Safety Protection – Overvoltage, undervoltage, overcurrent, short circuit, temperature protection & reverse polarity.

  • Expandable Up to 60kWh – Connect up to 3 units in parallel for larger energy needs.

  • Outdoor-Ready (IP55) – Weather-resistant housing ideal for all environments.

  • Natural Convection Cooling – Silent, efficient, and maintenance-free operation.

Specification SunESS 20H (Value)
Model SunESS 20H
Nominal Energy 20kWh
Usable Energy (90% DOD) 18kWh
Rated Voltage 409.6V
Charge/Discharge Cut-Off Voltage 350V ~ 450V
Roundtrip Efficiency >95%
Rated Charge/Discharge Power 10kW
Max Charge/Discharge Power 14kW @ 10s
Communication Interface CAN 2.0, RS485, WiFi, LAN
DC Disconnect Circuit Breaker, 50A, 410V Rating
Terminals Quick plug and unplug
User Interface Display: Battery status, SOC, alarms, WiFi status, heater status
Protection Features Overvoltage, undervoltage, overcurrent, short circuit, high/low temp, reverse polarity
Scalability Max 3 units in parallel (up to 60kWh)
Installation Location Outdoor or indoor
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Recommended Operating Temperature 59°F to 86°F (15°C to 30°C)
Storage Temperature -22°F to 140°F (-30°C to 60°C)
Humidity 10% to 95% (non-condensing)
Dimensions (W × H × D) 633 × 1542 × 189 mm
Weight 215kg
Enclosure Rating IP55
Altitude <2000m
Cooling Method Natural convection
Warranty 5 Years
