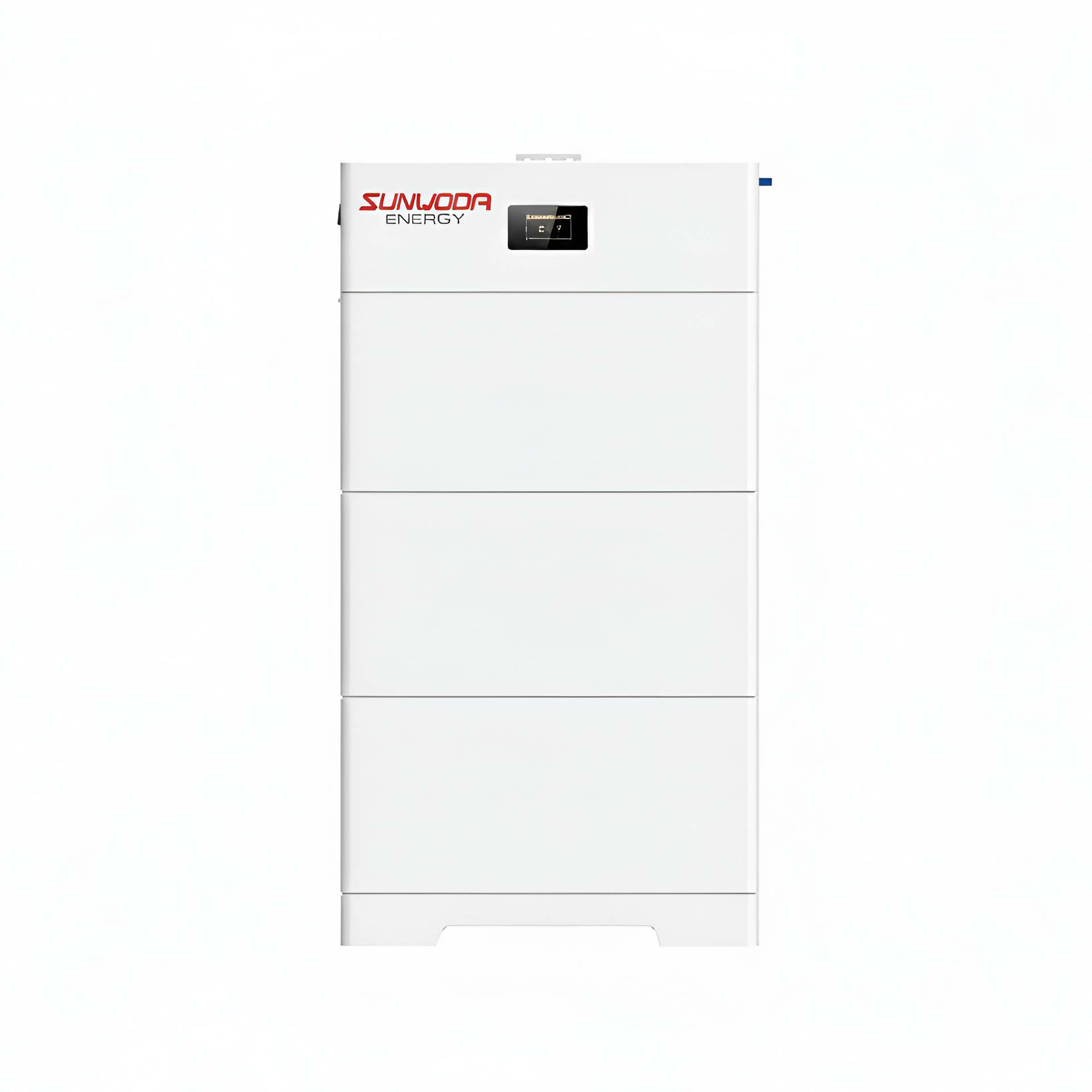

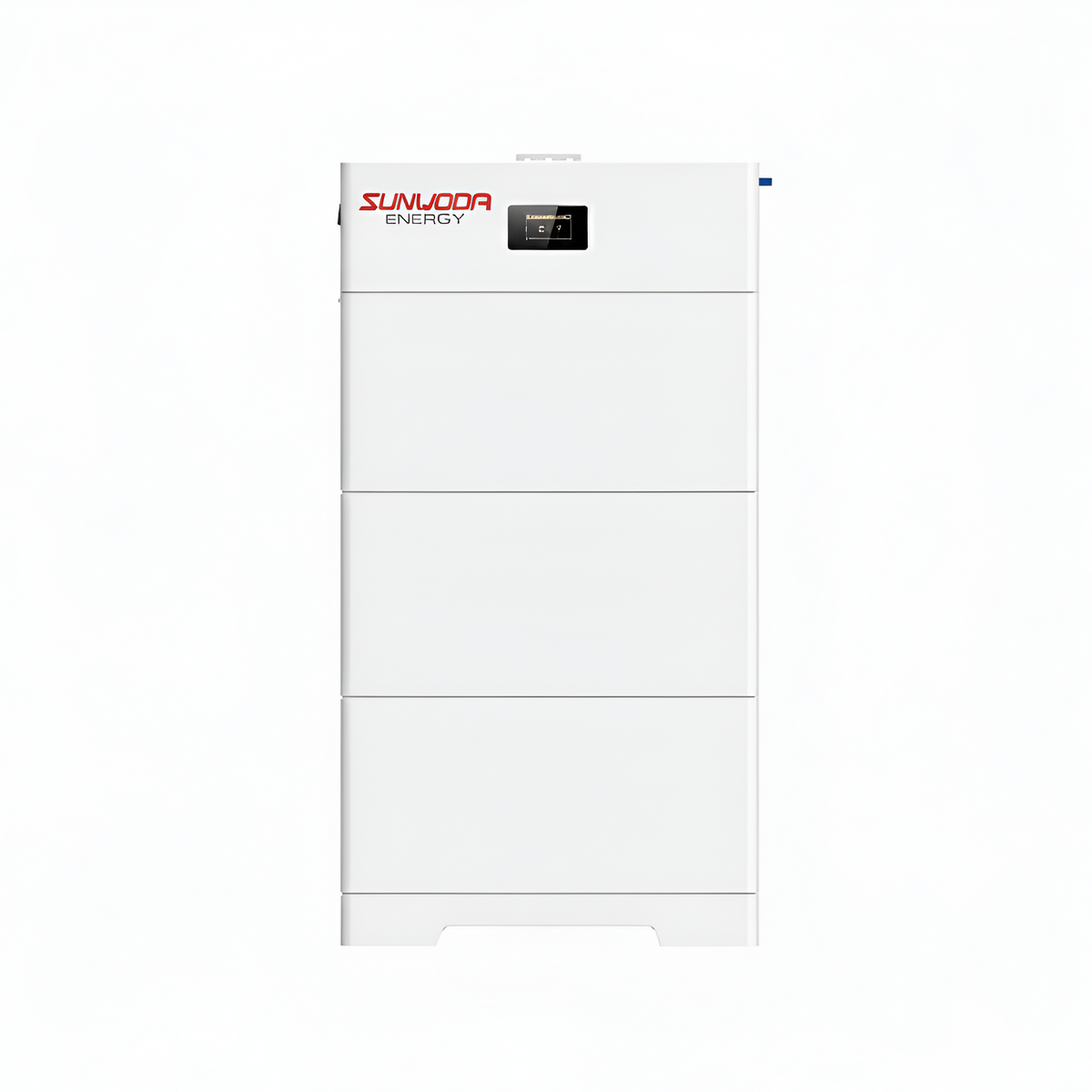

Luminey SunESS 15H 15kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Luminey SunESS 15H 15kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

SKU: AR-002763
Product Type: SunESS Energy Storage System
Rs.1,290,000.00
Rs.1,290,000.00
Subtotal: Rs.1,290,000.00

5 years

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Luminey SunESS 15H 15kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Luminey SunESS 15H 15kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Rs.1,290,000.00
Luminey SunESS 15H 15kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Luminey SunESS 15H 15kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Rs.1,290,000.00
Description

The Luminey SunESS 15H 15kWh High-Voltage Solar Battery is a premium smart energy storage solution designed for homes and businesses requiring reliable backup power and efficient load management. With a robust IP55 outdoor rating, advanced battery protection features, built-in WiFi monitoring, and scalable stacked design, the SunESS 15H delivers long-lasting performance in all conditions.

Key Features:

  • High Capacity Storage: 15kWh nominal energy with 13.5kWh usable at 90% DOD

  • High-Voltage Performance: 409.6V rated voltage for efficient energy delivery

  • Powerful Output: 7.5kW rated charge/discharge with 10.5kW peak for 10 seconds

  • Smart Monitoring: Built-in WiFi + CAN/RS485/LAN communication

  • Advanced Protection: Overvoltage, undervoltage, temperature, short-circuit, and reverse polarity protection

  • Durable & Weatherproof: IP55 enclosure suitable for indoor and outdoor installation

  • Stackable Design: Expandable up to 3 units (maximum 60kWh)

  • Long Lifespan: 5-year manufacturer warranty

  • Safe Operation: Natural convection cooling ensures silent, efficient performance

Specification Value
Model SunESS 15H
Nominal Energy 15kWh
Usable Energy (90% DOD) 13.5kWh
Rated Voltage 409.6V
Charge/Discharge Cut-Off Voltage 350V ~ 450V
Roundtrip Efficiency >95%
Rated Charge/Discharge Power 7.5kW
Max Charge/Discharge Power 10.5kW @ 10s
Communication Interface CAN 2.0, RS485, WiFi, LAN
DC Disconnect Circuit Breaker, 50A, 410V Rating
Terminals Quick plug and unplug
User Interface Display: Battery running status, SOC, alarms, WiFi status, heater status
Protection Features Overvoltage, undervoltage, overcurrent, short circuit, high/low temperature, reverse polarity
Scalability Max 3 units in parallel (up to 60kWh)
Installation Location Outdoor or indoor
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Recommended Operating Temperature 59°F to 86°F (15°C to 30°C)
Storage Temperature -22°F to 140°F (-30°C to 60°C)
Humidity 10% to 95% (non-condensing)
Dimensions (W × H × D) 633 × 1227 × 189 mm
Weight 165kg
Enclosure Rating IP55
Altitude <2000m
Cooling Method Natural convection
Warranty 5 Years
