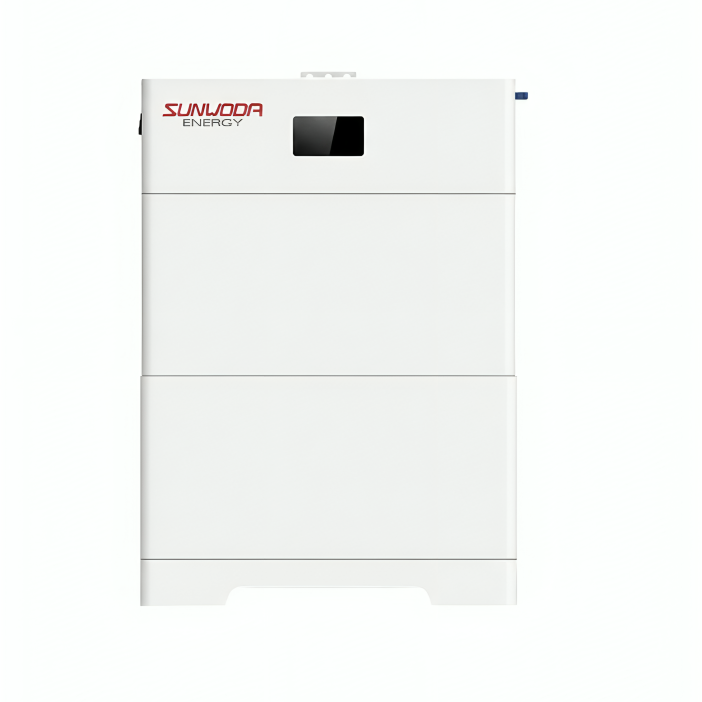

Luminey SunESS 10H 10kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Luminey SunESS 10H 10kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

SKU: AR-002762
Product Type: SunESS Energy Storage System
Rs.910,000.00
Rs.910,000.00
Subtotal: Rs.910,000.00

5 Years

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Luminey SunESS 10H 10kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Luminey SunESS 10H 10kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Rs.910,000.00
Luminey SunESS 10H 10kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Luminey SunESS 10H 10kWh High-Voltage Solar Battery Smart Stacked Energy Storage System | IP55 | Built in Wifi

Rs.910,000.00
Description

The Luminey SunESS 10H Smart Stacked Energy Storage System is a powerful 10kWh high-voltage lithium battery designed for solar backup, hybrid inverters, and whole-home energy management. Engineered for efficiency and long-term reliability, this system delivers excellent performance with a roundtrip efficiency of over 95%, advanced protection features, and intelligent communication interfaces including built-in WiFi.

Key Features

  • 10kWh high-voltage energy storage for home or commercial use

  • Usable energy: 9kWh (90% DOD)

  • >95% roundtrip efficiency for optimized power usage

  • 5kW rated output, peak 7kW for 10 seconds

  • Intelligent communication: CAN 2.0, RS485, WiFi, LAN

  • IP55 enclosure for indoor/outdoor installation

  • Quick plug-and-play connection for fast setup

  • Advanced monitoring display: SOC, battery status, alarms, WiFi status, heater status

  • Comprehensive protection system including overvoltage, overcurrent, short circuit, temperature, and reverse polarity

  • Expandable up to 60kWh (supports 3 units in parallel)

  • Natural convection cooling for silent operation

Specification Value
Model SunESS 10H
Nominal Energy 10 kWh
Usable Energy (90% DOD) 9 kWh
Rated Voltage 409.6 V
Charge/Discharge Cut-Off Voltage 350 V ~ 450 V
Roundtrip Efficiency >95%
Rated Charge/Discharge Power 5 kW
Max Charge/Discharge Power 7 kW @ 10s
Communication Interface CAN 2.0, RS485, WiFi, LAN
DC Disconnect Circuit Breaker, 50 A, 410 V
Terminals Quick plug and unplug
User Interface Display: Battery status, SOC, alarms, WiFi status, heater status
Protection Features Overvoltage, undervoltage, overcurrent, short circuit, high/low temperature, reverse polarity
Scalability Max 3 in parallel (up to 60 kWh)
Installation Location Outdoor or indoor
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Recommended Operating Temp. 59°F to 86°F (15°C to 30°C)
Storage Temperature -22°F to 140°F (-30°C to 60°C)
Humidity 10% to 95% (non-condensing)
Dimensions (W × H × D) 633 × 912 × 189 mm
Weight 115 kg
Enclosure Rating IP55
Altitude <2000 m
Cooling Method Natural convection
Warranty 5 Years
