Luminey OASIS 60 60kwh HV – High Voltage Energy Storage System | CIESS 60 Model | IP55 Outdoor Battery Cabinet
Luminey OASIS 60 60kwh HV – High Voltage Energy Storage System | CIESS 60 Model | IP55 Outdoor Battery Cabinet

Luminey OASIS 60 60kwh HV – High Voltage Energy Storage System | CIESS 60 Model | IP55 Outdoor Battery Cabinet

SKU: AR-002759
Product Type: high voltage battery
Rs.4,500,000.00
Rs.4,500,000.00
Rs.4,500,000.00
Save Rs.0.00
Subtotal: Rs.4,500,000.00

5 years

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Luminey OASIS 60 60kwh HV – High Voltage Energy Storage System | CIESS 60 Model | IP55 Outdoor Battery Cabinet

Luminey OASIS 60 60kwh HV – High Voltage Energy Storage System | CIESS 60 Model | IP55 Outdoor Battery Cabinet

Rs.4,500,000.00
Luminey OASIS 60 60kwh HV – High Voltage Energy Storage System | CIESS 60 Model | IP55 Outdoor Battery Cabinet
Luminey OASIS 60 60kwh HV – High Voltage Energy Storage System | CIESS 60 Model | IP55 Outdoor Battery Cabinet

Luminey OASIS 60 60kwh HV – High Voltage Energy Storage System | CIESS 60 Model | IP55 Outdoor Battery Cabinet

Rs.4,500,000.00
Description

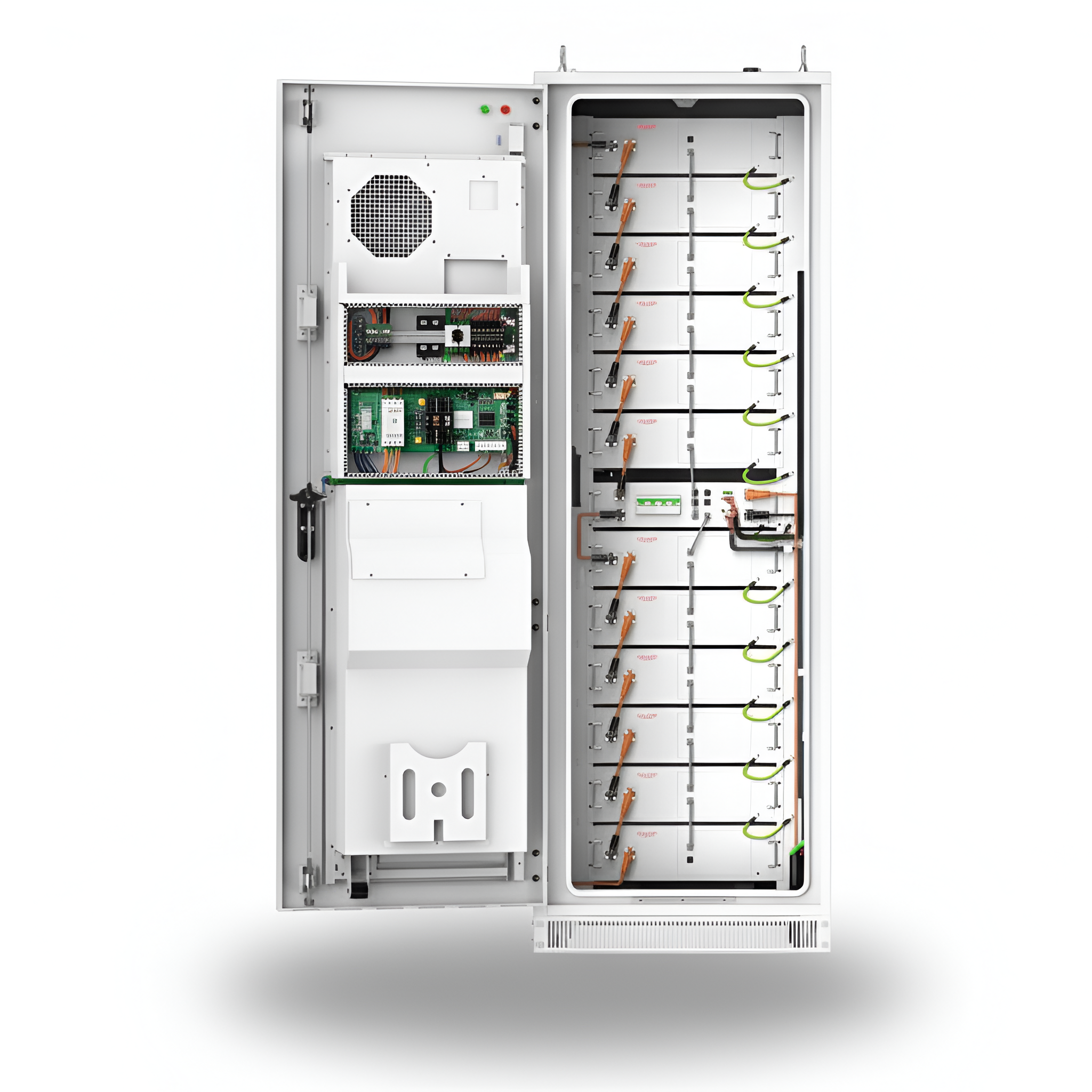

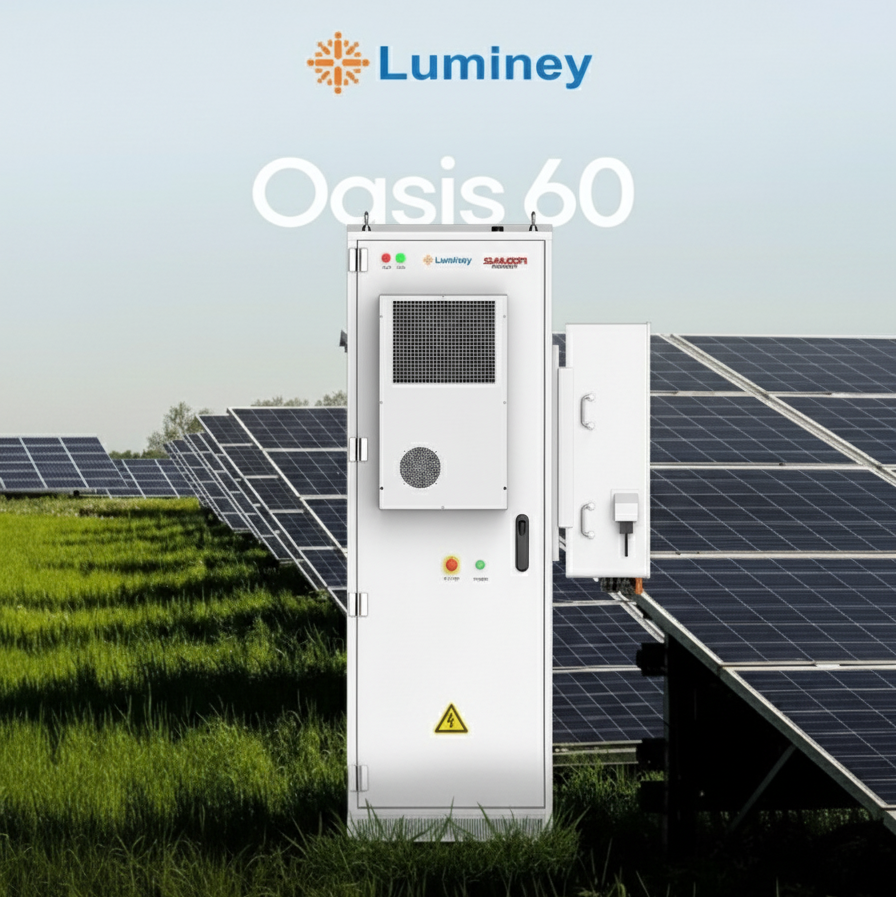

Upgrade your solar power system with the Luminey OASIS 60 HV 60kWh High Voltage Energy Storage System, designed for large residential, commercial, and industrial backup applications. Built with advanced lithium technology, this high-performance battery cabinet delivers exceptional energy density, long cycle life, and reliable high-voltage operation.

Key Features

  • 60kWh Rated Energy – Ideal for high-demand power backup and solar storage.

  • High Voltage 614.4V System – Voltage range 537.6V to 691.2V.

  • Advanced Thermal Management – Built-in air-conditioning for -20°C to 55°C operation.

  • Long Cycle Life – Up to 6000 cycles at 90% DOD.

  • Modular Expansion – Supports up to 6 battery cabinets.

  • Strong Safety Protection – Overcharge, over-discharge, overcurrent, over-temperature & short-circuit protection.

  • Smart Communication Interfaces – CAN / RS485 / WiFi support.

  • Outdoor Ready – IP55 protection level for dust and water resistance

Specification Details
Model Type CIESS 60
Rated Energy 60kWh
Battery Number 12 pcs
Rated Voltage 614.4V
Voltage Range 537.6V – 691.2V
Max C-Rate 1C
Cycle Life 6000 cycles (25°C, 0.5C/0.5C, 90% DOD, EOL 70%)
Dimensions 715 × 890 × 2140 mm (L×W×H)
Weight 807kg
Expansion Up to 6 battery cabinets
Protection Level IP55
Temperature Range -20°C to 55°C
Recommended Storage Temp 20°C – 30°C
Working Humidity 10% – 95% RH (non-condensing)
Communication CAN / RS485 / WiFi
Max Working Altitude 2000m
Warranty 5 Years*
Certifications IEC62619, CE, UN38.3, IEC62477
Basic Protection Charge OV, Discharge UV, Overcurrent, Over-temperature, Short Circuit
