Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA
Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA
Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA
Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA

Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA

SKU: AR-002284
Product Type: Battery

Best Price Guarranted

At Alladin.pk, we don’t just match prices—we beat them while maintaining top quality!

Rs.259,999.00
Rs.315,000.00
Rs.259,999.00
Save Rs.55,001.00
Subtotal: Rs.259,999.00

7 Year's Replacement Warranty

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Full Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA

Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA

Rs.315,000.00 Rs.259,999.00
Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA
Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA
Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA
Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA

Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh IP65 by SUNWODA

Rs.315,000.00 Rs.259,999.00
Description

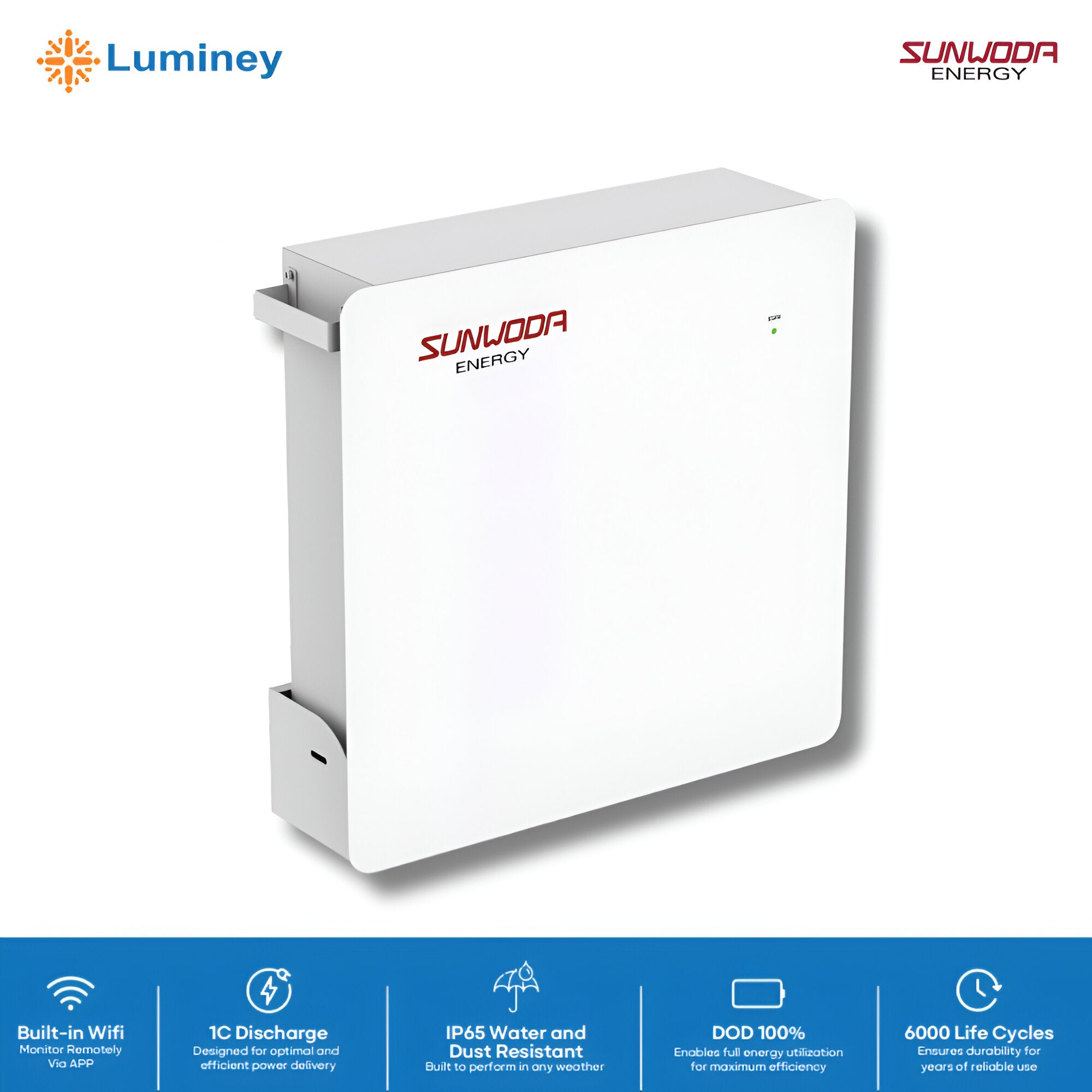

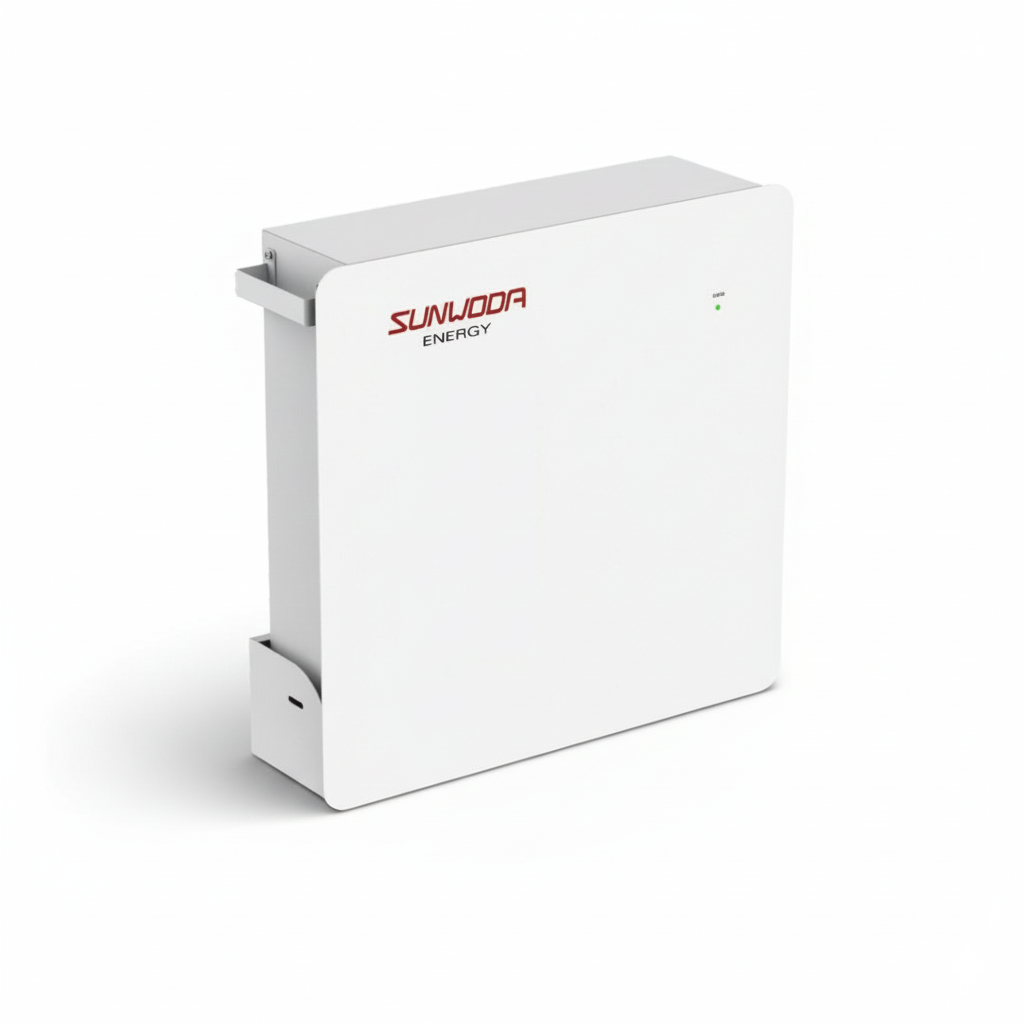

Luminey MonaWall SE5 Lithium Battery (5kWh)

The Luminey MonaWall SE5 is a high-performance LiFePO4 battery designed for residential and commercial energy storage. With 6000 life cycles, 100% Depth of Discharge (DOD), and built-in WIFI monitoring, it ensures efficient and reliable energy storage. Its IP65 rating makes it suitable for both indoor and outdoor installation.

Key Features

  • 1C Discharge Rate – Provides optimal and efficient power delivery.
  • Built-in WIFI – Enables remote monitoring via a mobile app.
  • 100% Depth of Discharge (DOD) – Allows full energy utilization for maximum efficiency.
  • 6000 Life Cycles – Ensures long-term durability and performance.
  • IP65 Water & Dust Resistance – Suitable for all weather conditions.
  • Quick Plug & Unplug DC Terminal – Simplifies installation and maintenance.
  • Anti-Expansion Design & Built-in Heater – Enhances battery lifespan and performance in various environments.
  • Scalable – Supports up to 16 batteries in parallel, reaching a total capacity of 80kWh.
  • 7-Year Warranty – Standard 6-year warranty, extendable to 7 years when connected to WIFI.

Specifications

Specification Details
Model MonaWall SE5
Nominal Energy 5kWh
Usable Energy (100% DOD) 5kWh
Rated Voltage 51.2V
Charge/Discharge Voltage 44.8V ~ 55.2V
Roundtrip Efficiency >98%
Rated Charge/Discharge Current 50A / 50A
Max. Continuous Charge/Discharge 100A / 100A
Communication Interface CAN 2.0 / RS 485
Scalability Max. 16 in parallel (80kWh)
Installation Wall-mounted
Weight 55kg
Dimensions (WHD) 544 × 524 × 162 mm
Operating Temperature Charging: -10°C to 50°CDischarging: -20°C to 50°C
Humidity 10% to 95%, non-condensing
Altitude Limit <4000m
Cooling Natural convection
Enclosure Protection IP65 (water & dust resistant)
Certifications IEC62619 / CE / UN38.3
Compatible Inverters Refer to compatibility list
Warranty 6+1 years (with WiFi module)

The Luminey MonaWall SE5 is a robust energy storage solution, offering high efficiency, long life, and smart monitoring capabilities, making it ideal for off-grid and hybrid solar systems.
