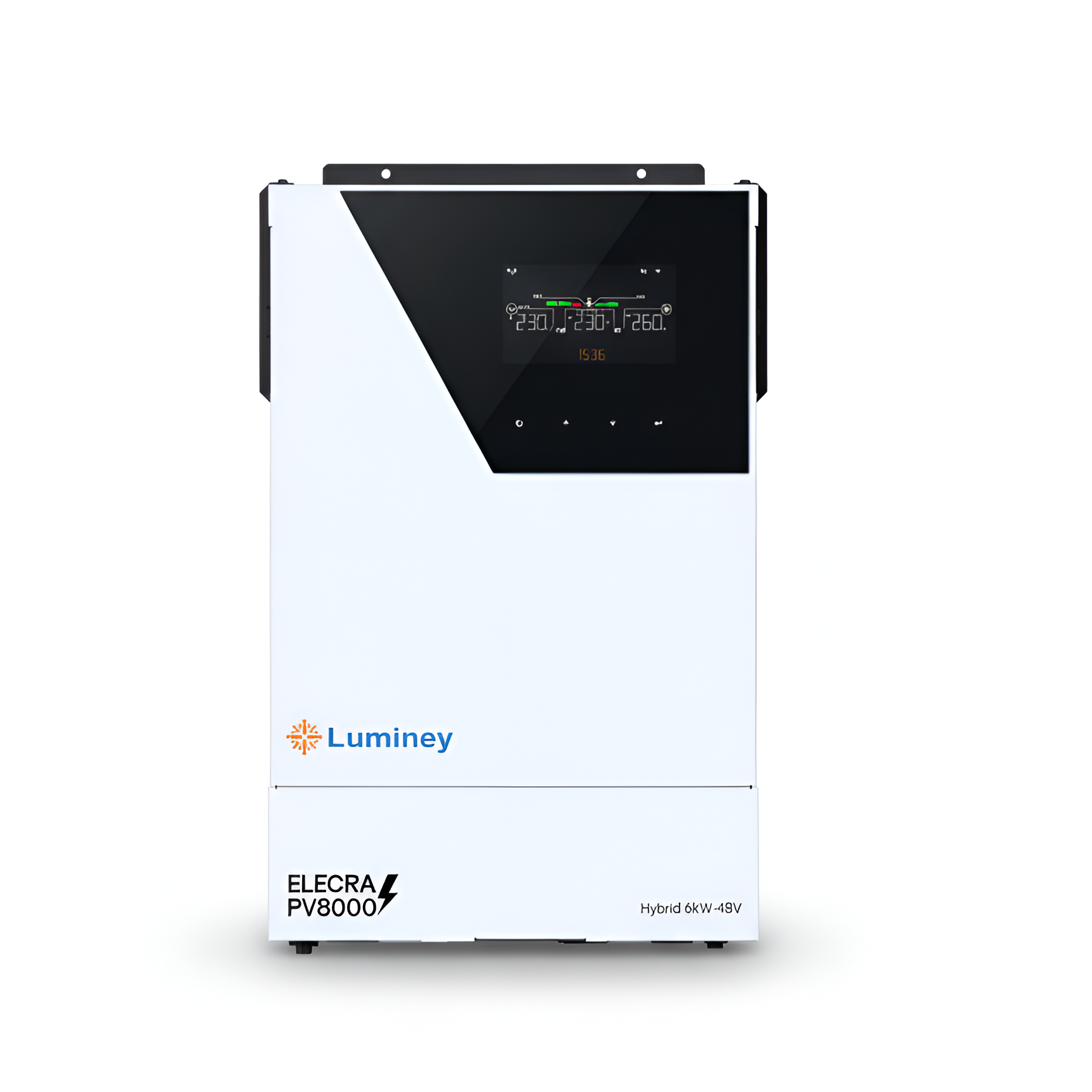

Luminey Elecra 6kW Hybrid Solar Inverter with PV 8000 | 48V | Dual Output | Touch LCD Display

Luminey Elecra 6kW Hybrid Solar Inverter with PV 8000 | 48V | Dual Output | Touch LCD Display

SKU: AR-002754
Product Type: hybrid solar inverter
Rs.135,000.00
Rs.135,000.00
Subtotal: Rs.135,000.00

12 Years Warranty (1 Year Parts + Service Warranty + 11 Years Service Warranty)

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Luminey Elecra 6kW Hybrid Solar Inverter with PV 8000 | 48V | Dual Output | Touch LCD Display

Luminey Elecra 6kW Hybrid Solar Inverter with PV 8000 | 48V | Dual Output | Touch LCD Display

Rs.135,000.00
Luminey Elecra 6kW Hybrid Solar Inverter with PV 8000 | 48V | Dual Output | Touch LCD Display

Luminey Elecra 6kW Hybrid Solar Inverter with PV 8000 | 48V | Dual Output | Touch LCD Display

Rs.135,000.00
Description

The Luminey Elecra 6kW Hybrid Solar Inverter (48V) is a high-performance solution designed for modern residential and commercial solar systems. With support for up to 8000W of solar PV input, this inverter ensures efficient energy conversion, stable power output, and seamless switching between solar, grid, and battery modes.

Key Features

  • 6000W rated output power

  • Supports up to 8000W solar PV input

  • High 96% DC/AC conversion efficiency

  • Pure sine wave output for stable appliance performance

  • Wide MPPT operating range from 120VDC to 430VDC

  • Compatible with 48V battery bank systems

  • Maximum solar charging current of 120A

  • Wide AC input range from 90–280VAC

  • Supports parallel connection of up to 9 units

  • Equipped with USB, RS232, RS485, WiFi, and Dry-contact communication ports

Specification Value
Phase 1-phase in / 1-phase out
Maximum PV Input Power 8000W
Rated Output Power 6200W
Maximum Charging Power 6000W
GRID-TIE OPERATION (PV INPUT - DC)
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 120VDC / 150 VDC
MPP Voltage Range 120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current 1 / 27A
GRID-TIE OPERATION (GRID OUTPUT - AC)
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 184-264.5 VAC or 195.5-253 VAC (Selectable)
Nominal Output Current 26A
Power Factor > 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 96%
OFF-GRID OPERATION (AC INPUT)
AC Start-up Voltage / Auto Restart Voltage 120-140 VAC / 180 VAC
Acceptable Input Voltage Range 90-280 VAC or 170-280 VAC
Maximum AC Input Current 40 A
OFF-GRID OPERATION (PV INPUT - DC)
Maximum DC Voltage 500 VDC
MPP Voltage Range 120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current 1 / 27 A
OFF-GRID OPERATION (BATTERY MODE OUTPUT - AC)
Nominal Output Voltage 220/230/240 VAC
Output Waveform Pure sinewave
Efficiency (DC to AC) 93%
HYBRID OPERATION (PV INPUT - DC)
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 120VDC / 150 VDC
MPP Voltage Range 120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current 1 / 27A
HYBRID OPERATION (GRID OUTPUT - AC)
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 184-264.5 VAC or 195.5-253 VAC (Selectable)
Nominal Output Current 26A
HYBRID OPERATION (AC INPUT)
AC Start-up Voltage / Auto Restart Voltage 120-140 VAC / 180 VAC
Acceptable Input Voltage Range 90-280 VAC or 170-280 VAC
Maximum AC Input Current 40A
HYBRID OPERATION (BATTERY MODE OUTPUT - AC)
Nominal Output Voltage 220/230/240 VAC
Efficiency (DC to AC) 93%
BATTERY & CHARGER
Nominal DC Voltage 48 VDC
Maximum Solar Charging Current 120A
Maximum AC Charging Current 120A
Maximum Charging Current (Total) 120A
GENERAL (PHYSICAL)
Dimension, D x W x H (mm) 140 x 295 x 468
Net Weight (kgs) 12
GENERAL (INTERFACE)
Parallel Function Yes, 9 units
Communication Port USB/RS232/RS485/Wifi/Dry-contact
GENERAL (ENVIRONMENT)
Humidity 0 ~ 90% RH (Non-condensing)
Operating Temperature -10 to 50ºC
