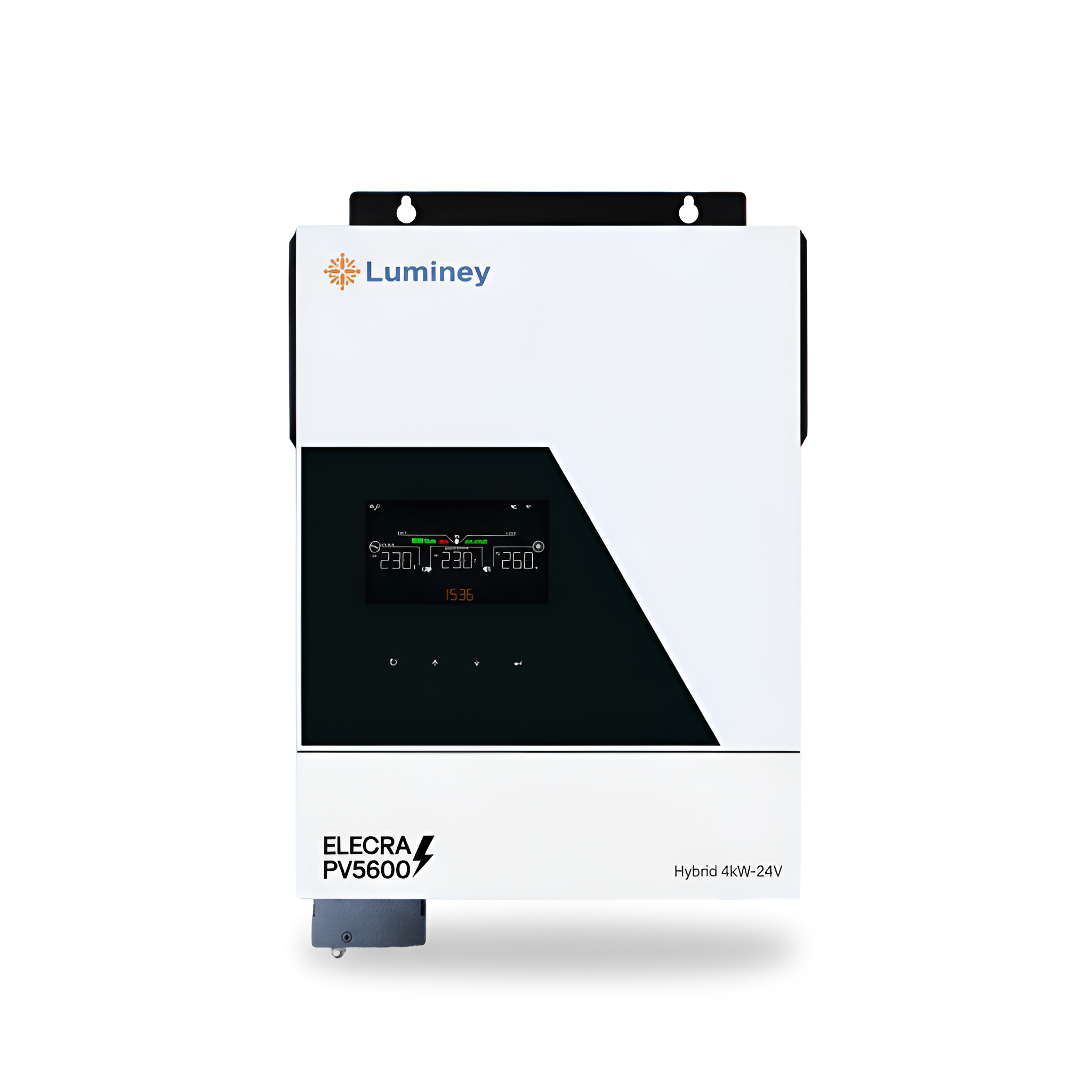

Luminey Elecra 4kW Hybrid Solar Inverter with PV5600 | 24V | Pure Sine Wave | Touch Button LCD Display

Luminey Elecra 4kW Hybrid Solar Inverter with PV5600 | 24V | Pure Sine Wave | Touch Button LCD Display

SKU: AR-002753
Product Type: hybrid inverter
Rs.95,000.00
Rs.95,000.00
Subtotal: Rs.95,000.00

12 Years Warranty (1 Year Parts + Service Warranty + 11 Years Service Warranty)

Estimated Shipping Time: 48 to 72 Hours

You Have to Pay Partial Payment in Advance for Order Confirmation

Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.

Heavy weight parcels will be dispatch through Cargo Service

Customer will pay Cargo charges on delivery.

Luminey Elecra 4kW Hybrid Solar Inverter with PV5600 | 24V | Pure Sine Wave | Touch Button LCD Display

Luminey Elecra 4kW Hybrid Solar Inverter with PV5600 | 24V | Pure Sine Wave | Touch Button LCD Display

Rs.95,000.00
Luminey Elecra 4kW Hybrid Solar Inverter with PV5600 | 24V | Pure Sine Wave | Touch Button LCD Display

Luminey Elecra 4kW Hybrid Solar Inverter with PV5600 | 24V | Pure Sine Wave | Touch Button LCD Display

Rs.95,000.00
Description

The Luminey Elecra PV5600 4kW Hybrid solar Inverter is a high-performance single-phase inverter designed for reliable home and commercial solar power systems. Equipped with an advanced MPPT solar charger, wide PV input range, and fast transfer time, this inverter delivers stable, efficient and uninterrupted power for modern energy needs. It supports both solar and AC charging, making it ideal for hybrid and off-grid installations.

Key Features

  • 4000W rated power with 8000VA surge capability

  • Pure sine wave output for smooth performance

  • MPPT solar charging with up to 5600W PV input

  • Fast 10–20 ms transfer time for sensitive electronics

  • Wide PV voltage range (60–450 VDC)

  • Multi-communication interfaces: USB, RS232, RS485, WiFi, Dry-contact

  • Compact design with low weight for easy installation

Category Specification
MODEL Elecra PV5600
Rated Power 4000VA / 4000W
Input Voltage 230VAC ±10%
Selectable Voltage Range 170–280 VAC (PC mode) / 90–280 VAC (Home Appliances)
Frequency Range 50Hz / 60Hz (Auto sensing)
Output - AC Voltage Regulation (Batt. Mode) 230 VAC
Surge Power 8000VA
Efficiency (Peak) 90% – 93%
Transfer Time 10 ms (PCs) / 20 ms (Home Appliances)
Waveform Pure Sine Wave
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 33 VDC
Solar Charger Type MPPT
Maximum PV Array Power 5600W
MPP Operating Voltage Range 60 – 450 VDC
Maximum PV Open Circuit Voltage 500 VDC
Maximum PV Input Current 27A
Maximum Solar Charge Current 120A
Maximum AC Charge Current 100A
Maximum Charge Current (Combined) 120A
Dimensions (D×W×H) 119 × 313.6 × 457.5 mm
Net Weight 10 kg
Communication Interface USB / RS232 / RS485 / WiFi / Dry-contact
Humidity 5% – 95% RH (Non-condensing)
Operating Temperature –10°C to 50°C
Storage Temperature –15°C to 60°C
